MIB / MIB II rear view camera interface Audi A3,A4,Q5,Q7, Porsche, Skoda, VW. V6-MIB

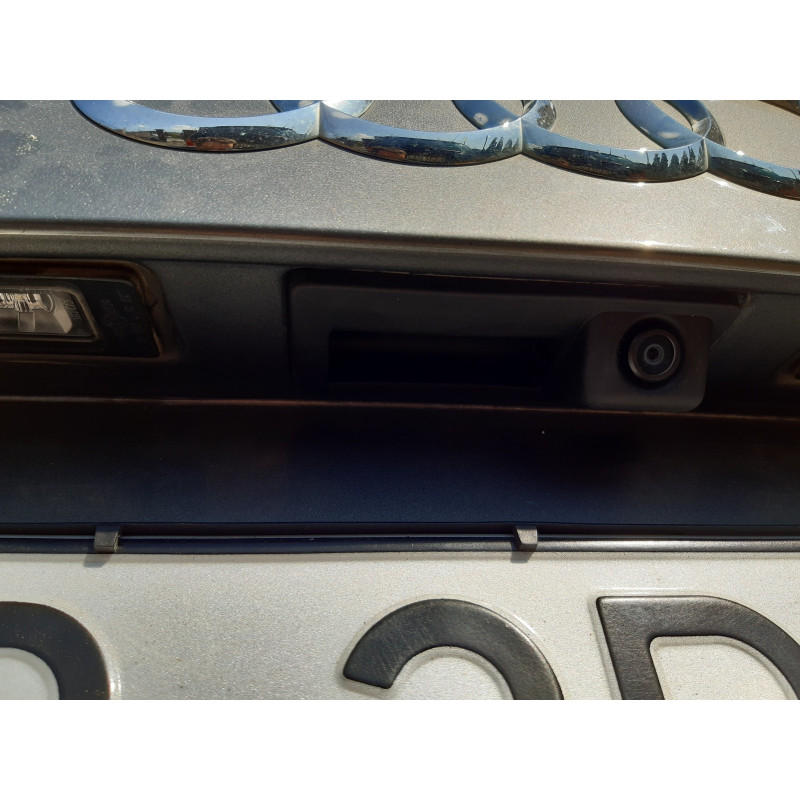

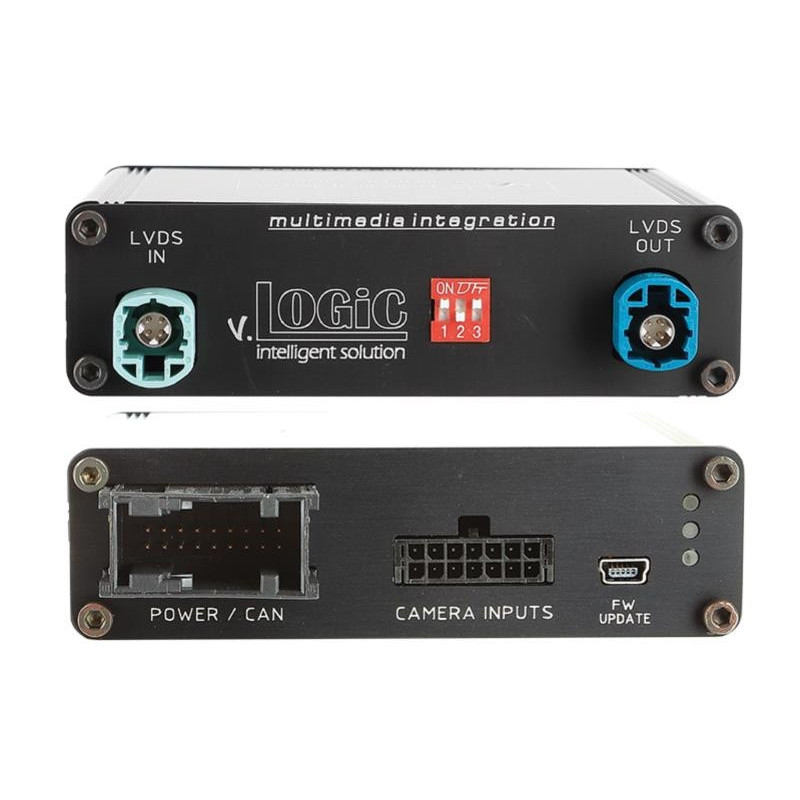

The video interface we present is designed to connect a parking camera and 3 external AV sources or up to 4 cameras (front, rear, side parking cameras) in Audi, Skoda, Porsche and VW. Video interface for Audi and more - discover the product features • Picture-in-picture mode combining the rear-mounted parking camera with the front camera with factory PDC graphics, dynamic lines,• Auxiliary with calibration function - simultaneous use of the picture-in-picture of the factory PDC with dynamic auxiliary lines,• Own OSD menu and settings,• Control of external AV sources (e.g. DVB-T tuner ...) via the MIB system,• Rear camera input,• Automatic switching to the rear parking camera after reverse gear in all modes,• Front parking camera input - side parking camera inputs - camera,• Side or front turn signal triggered,• Manual camera switching possible,• 2 switchable outputs (+ 12 V max. 1 A), separately adjustable (CAN, ACC, camera, reverse),• Compatible with any factory equipment,• USB port for easy SW update. Below is a list of Audi models that will be compatible with this interface:

• Audi A3 (8V) 05/2012 - 2020
• Audi A4 (B9 8W) 08/2015 - 2020
• Audi Q5 (FY) 01/2017 - 2020
• Audi Q7 (4M) 03/2015 - 2020

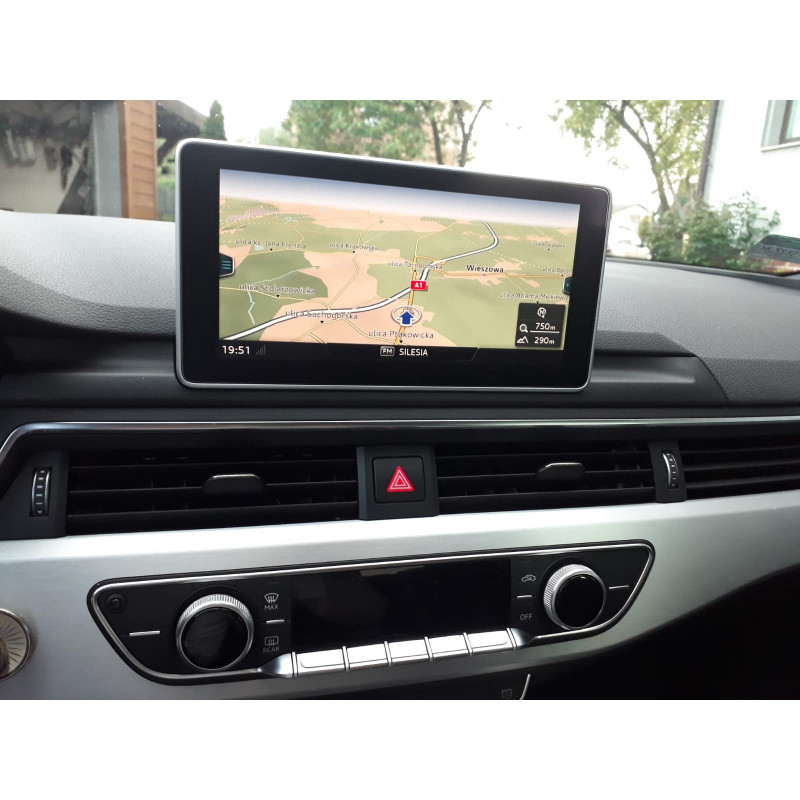

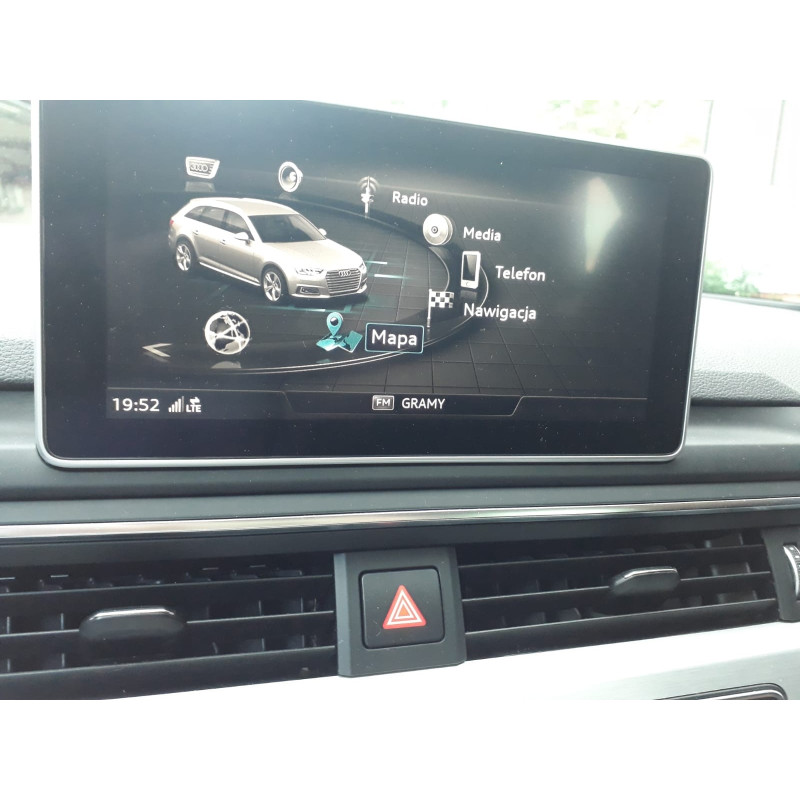

• Compatible system: MMI Navigation Plus with MMI touch 7" or 8.3" - MIB / MIB II.
• Porsche Cayenne
• Porsche Boxster
• Porsche 911
• Porsche Cayman
• Compatible system: PCM 4.0
• Skoda Octavia 2017 ->
• Compatible system: MIB - Amundsen 8"
• VW Golf 7 2015 ->
• VW Golf 7 Sportsvan MJ 2015 ->
• VW Passat (B8) 2015 ->

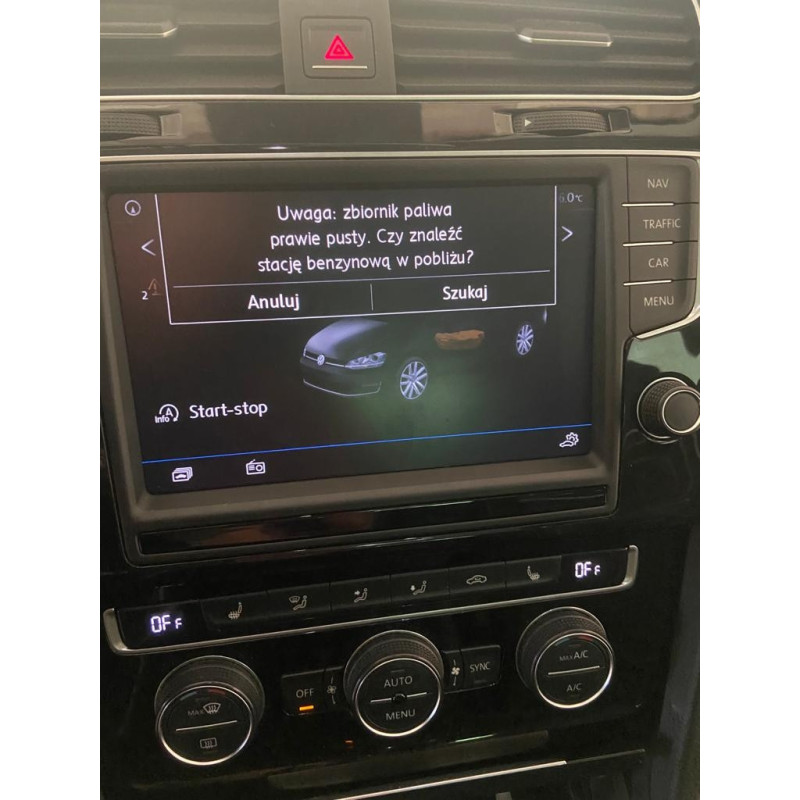

• Compatible system: MIB/MIB2 - Discover Pro 8" and Composition Media - 6.5" monitor.
