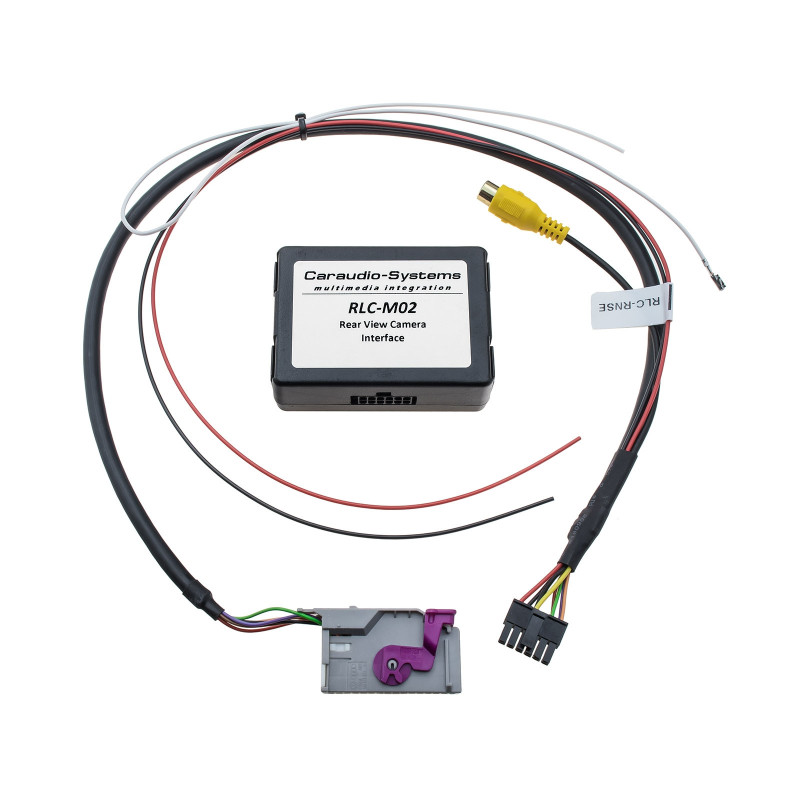

Interface for connecting an Audi reversing camera: rns-e

Reversing cameras are becoming increasingly popular. Installing them allows for safer and more attentive driving. To properly install them, you need the right interface. Reversing camera interface - greater safety on the road The presented interface is an example of meticulous production. It allows for the effective connection of a rearview camera. Its installation is extremely simple and operates via Plug Play. The interface allows for connection of a rearview camera signal in the NTSC standard (typical shop cameras). It allows for recording up to 5 km/h (3 mph). It does not work with the factory TV tuner. Please note that the camera must be coded by a diagnostic computer. The interface is compatible with RNS-E with the minimum 550 software. The connector type is Video. The interface allows for the connection of a universal rearview camera to the factory Audi / Lamborghini navigation system. Product features:

• Reversing camera only in the system NTSC.
• Displaying the image from the rear view camera up to 5 km/h
• Automatic switching to the rear view camera when reverse gear is engaged.

• Audi A3 (8L, 8P 8P Sport),
• Audi A4 (convertible - 8H, B7/8E, B6/8E),
• Audi A6 (4B),
• Audi TT (8J)
• Lamborghini

• For models without factory TV tuner.
• Aftermarket Rear View Camera: Only compatible with aftermarket cameras NTSC
• Coding: The head unit must be coded for the rear view camera function. (Only for RNS-E versions with software minimum 550 and up to 2010 possible)

The supported navigation model is Audi Navigation System AUDI NAVIGATION PLUS RNS-E (16:9). AUDI RNS-E Navigation plus
