Camera adapter for Audi A1,A4,A5,A6,A7Q3,A5,Q7 MMI 3G / 3G+ basic / high

The r.LiNK interface allows you to connect a rear view camera and any two video sources (retrofit device, e.g. DVD player, DVB-T tuner, ...) to your vehicle's factory infotainment system. Product Features

• The interface allows you to connect 2 external video sources to display the image (e.g. DVD player, DVB-T tuner, etc.).
• 1 entry rear view camera video CVBS
• 2 FBAS video inputs for retrofit devices (e.g. DVD player, DVB-T tuner, ...)

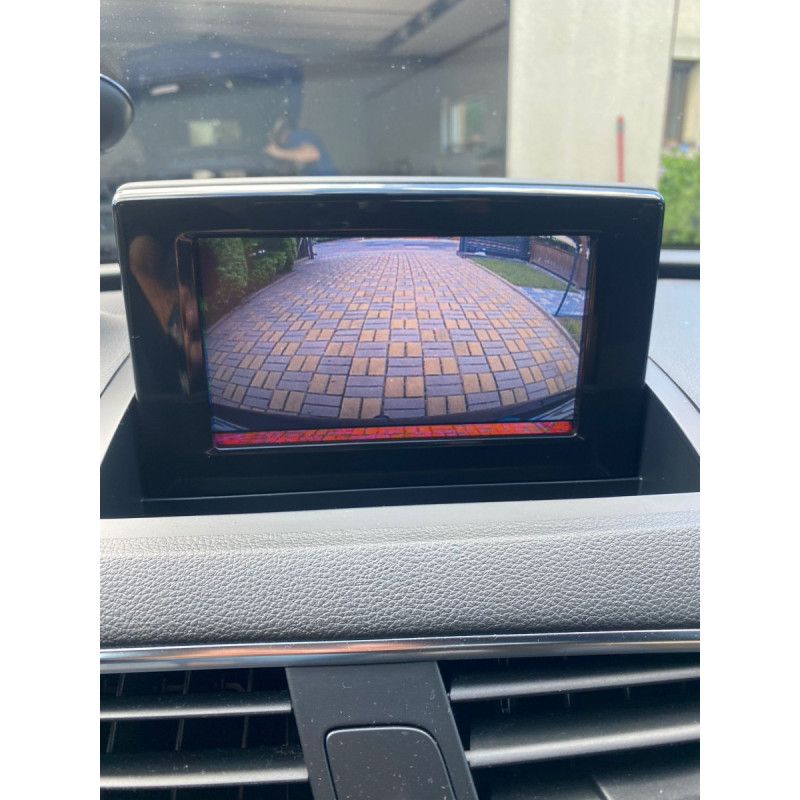

• Automatic switching to rear view camera input when engaging reverse gear

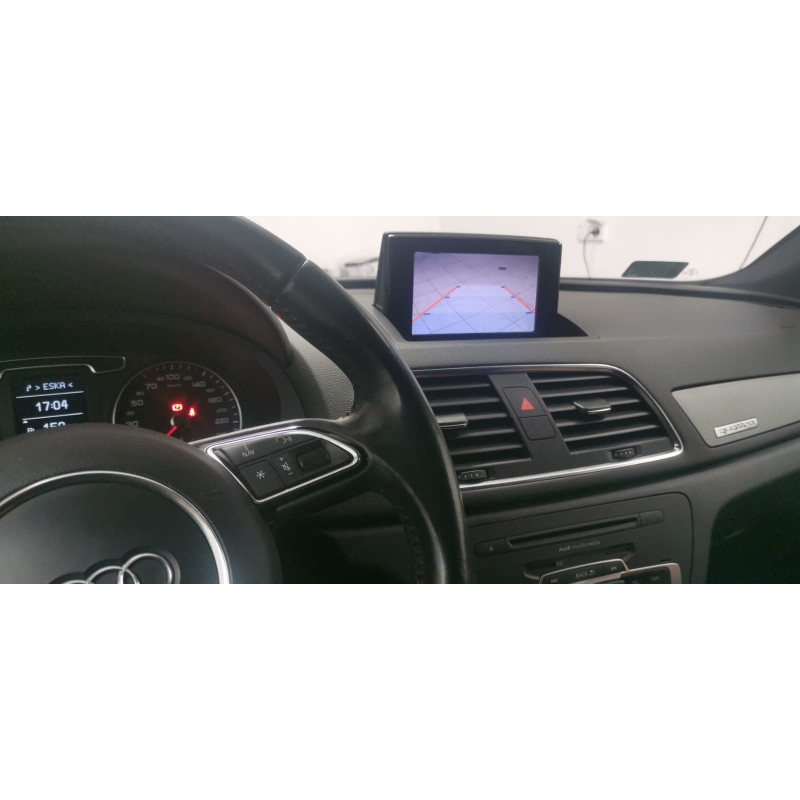

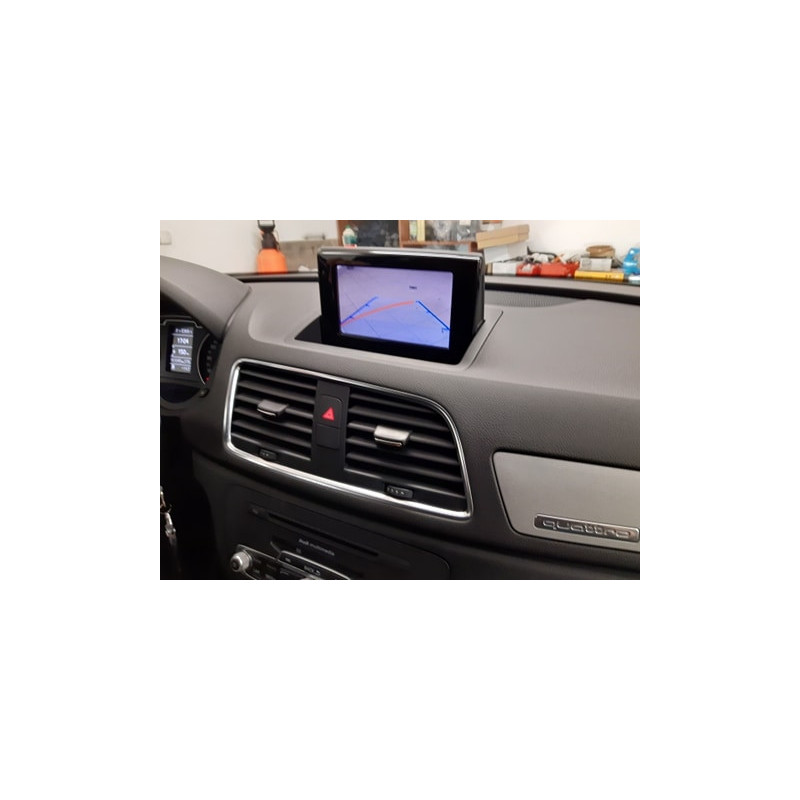

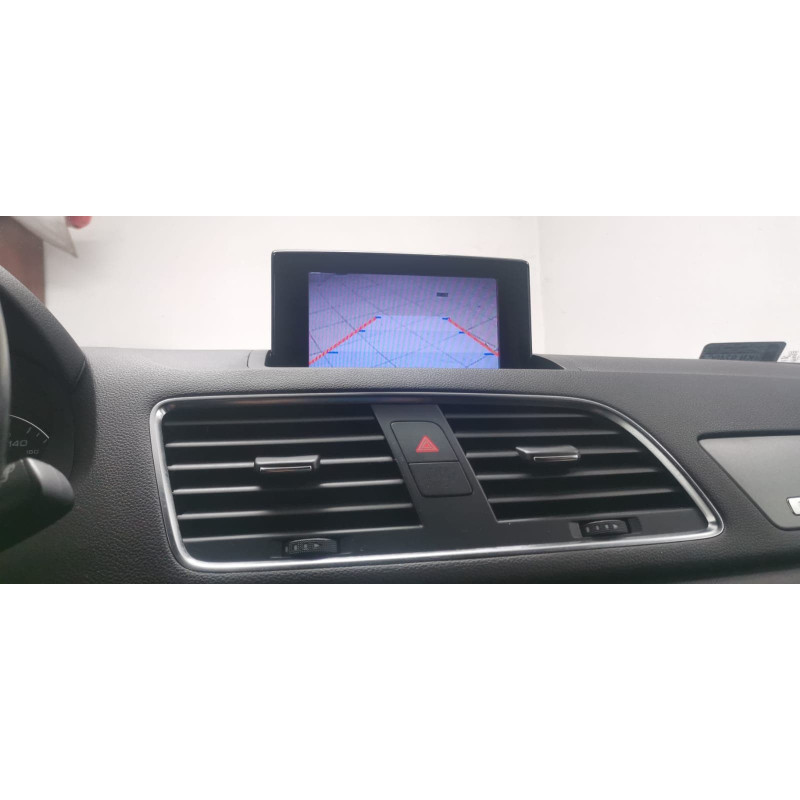

• Distance lines for the rear view camera can be activated (not for all vehicles)
• Unlocking the image while driving (ONLY for video input)
• Video inputs compatible with PAL and NTSC

Make and model:

• Audi A1 (8X) 05 / 2010-,
• A4 (8K) 05/2009 - 08/2015,
• A5 (8T) 11/2008 - 06/2016,
• A6 (4F) 08/2008 - 03/2011,
• A6 (4G) 04/2011 - 09/2014,
• A7 (4G) 07/2010 - 05/2014,
• A8 (4E) 09/2008 - 03/2010,
• A8 (4H) 03/2010 - 10/2017,
• Q3 (8U) 10/2011 - 07/2018,
• Q3 (8U) 10/2008 - 2017,
• Q5 (4H) 8R) 11/2008 -2017,
• Q7 (4L) 05/2009 - 03/2015

• A1 (8X) 05 / 2010-,
• A6 (4F) 08/2008 - 03/2011,
• A6 (4G) 04/2011-05/2018,
• A7 (4G) 07/2010-01/2018,
• Q3 (8U) 10/2011 - 07/2018,
• Q7 (4L) 05/2009 - 03/2015

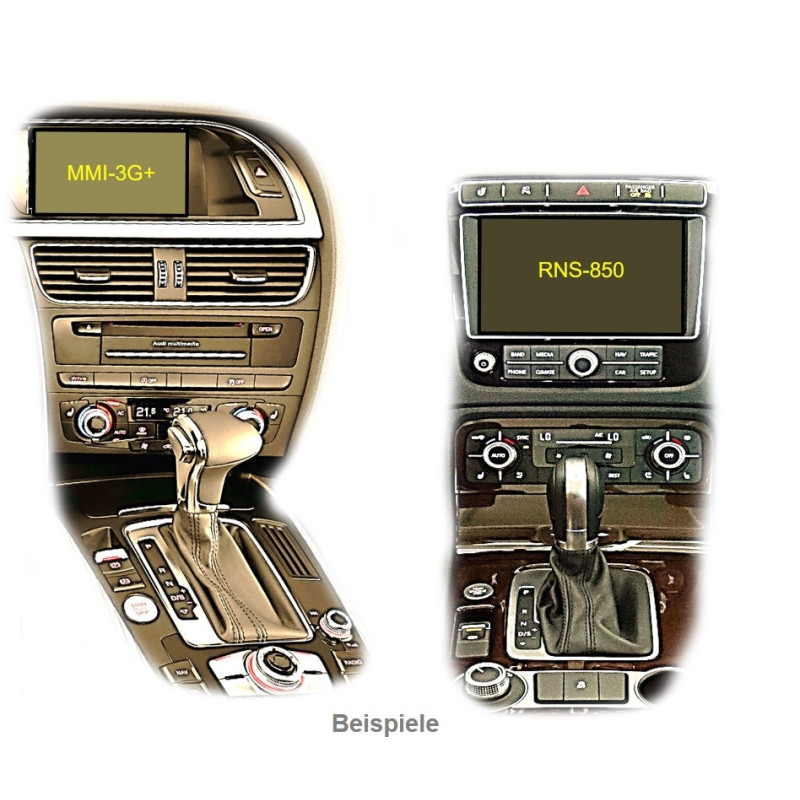

• VW Touareg from model 2011 RNS850

Limitations Video only The interface ONLY provides video signals to the infotainment system. To provide audio signals, you can use the existing factory AUX audio input, FM modulator, or AUX-110 AUX-IN interface. Factory reversing camera Automatic switching to the rearview camera is only possible when reverse is engaged. Delaying downshifts requires additional electronics. OPS The Optical Parking Distance Indicator (OPS) is not available when reverse gear is engaged and the universal rearview camera is installed. Acoustic signals are still available.Connectors

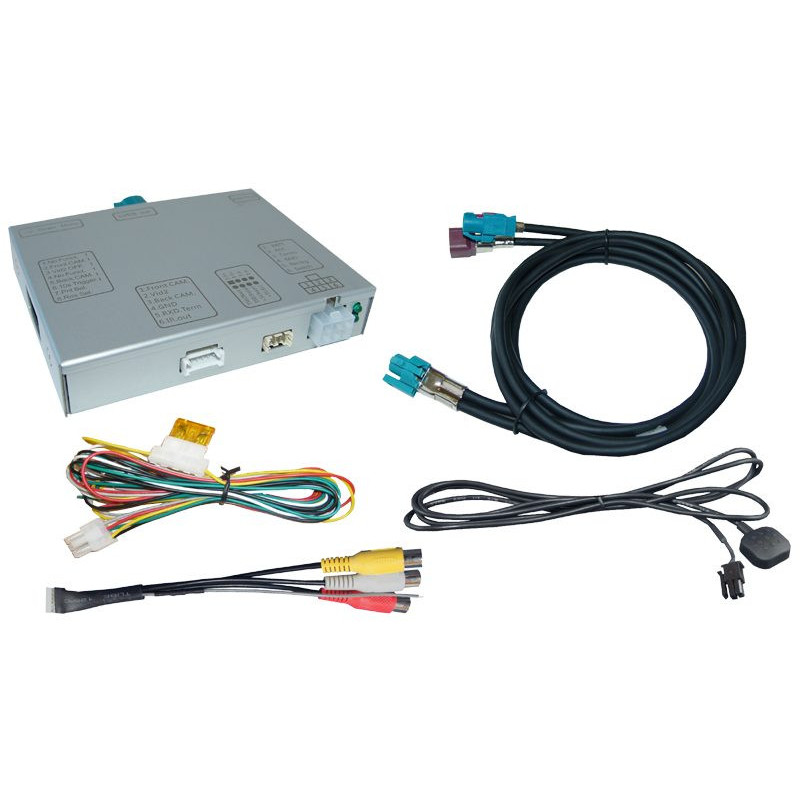

• Image Source 4-pin HSD
• Video inputs: RCA connector
• Rear camera input: RCA connector

Specification

• Power supply 7V - 25V
• Standby <10mA
• Power 0.7A @ 12V
• Video input 0.7V - 1V
• Video input formats PAL / NTSC
• RGB video amplitude 0.7V with 75 Ohm impedance
• Temperature range -40 ° C to + 85 ° C
• Video cassette dimensions
• 113 x 22 x 92 mm (W x H x D)
• CAN box dimensions
• 73 x 22 x 30 mm (W x H x D)
