Adapter for rear view camera audi symphony3, concert3, 6.5" monitor

The interface equips your car with a reversing camera and displays the image on the original car radio (which must be prepared for this). Some adapters are plug-and-play solutions, while others require connecting cables or other modifications. Please read the installation instructions beforehand or contact us with any questions. In addition to the adapter, you'll need a reversing camera. We also encourage you to view our full range in the reversing cameras section.

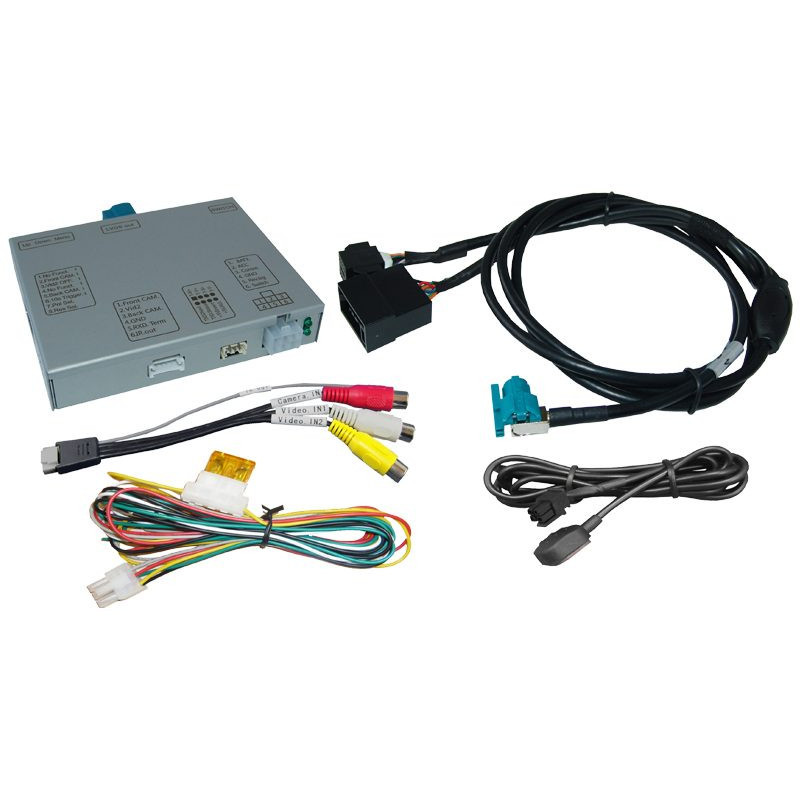

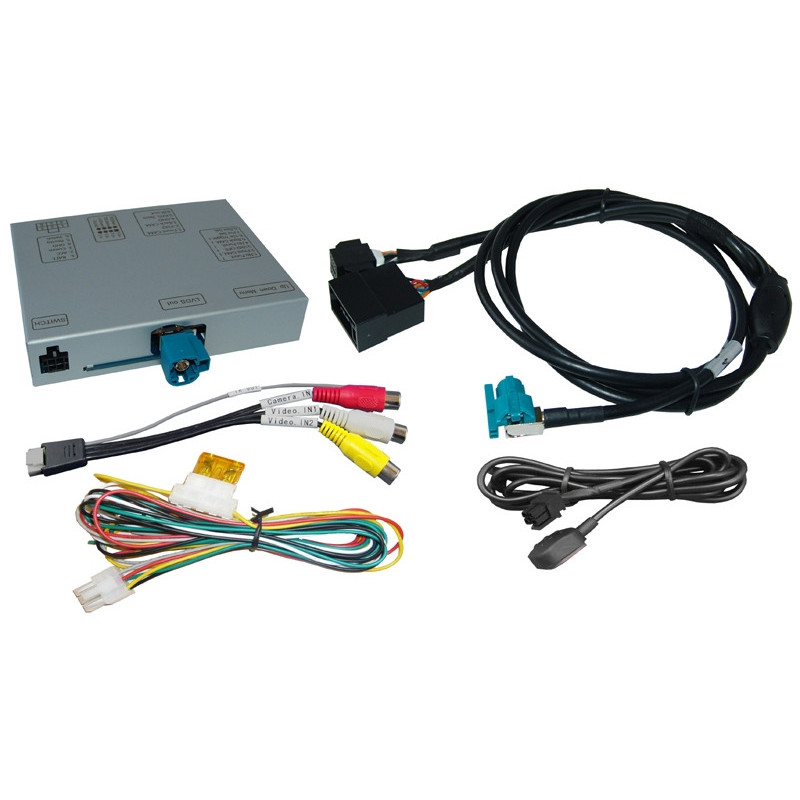

The v.LiNK interface allows you to connect a rear view camera and another video source (e.g. USB player, DVB-T2 tuner, ...) to the vehicle manufacturer's factory infotainment system.

Product features:

• 1 input for a reversing camera
• 2 FBAS video inputs for upgraded devices (e.g. USB player, DVB-T2 tuner, ...)
• Automatic switching to the rear view camera input when reverse gear is engaged
• Activate image while driving (for video input ONLY)
• Video Inputs PAL and NTSC compatible

Make and model:

• Audi A4 (8K) from 09/2007 to 08/2015,
• Audi A5 (8T) from 06.2007 to 06.2016,
• Audi Q5 (8R) from 11/2008 to 12/2016.

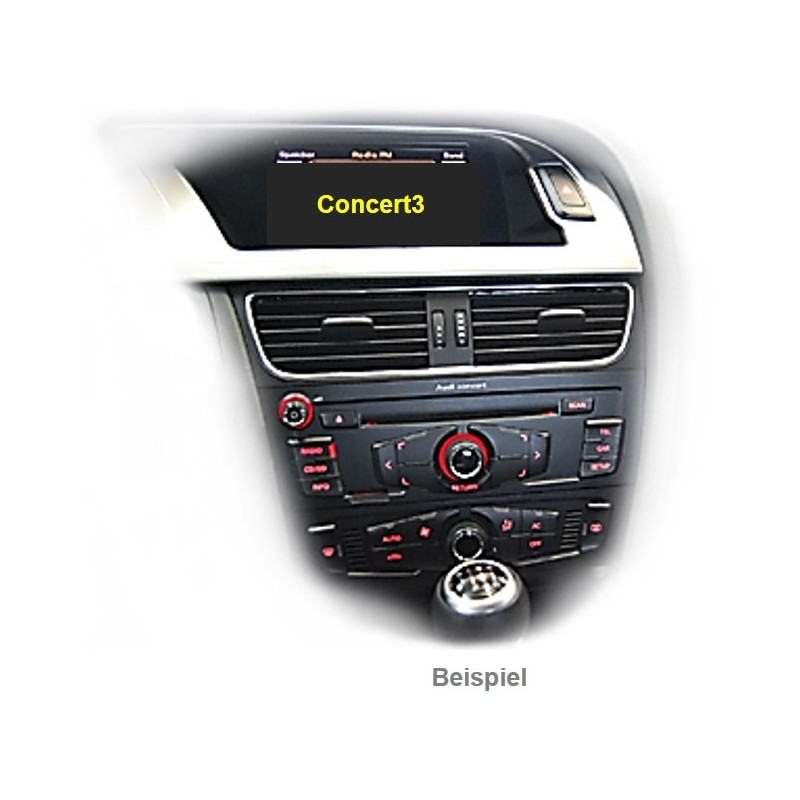

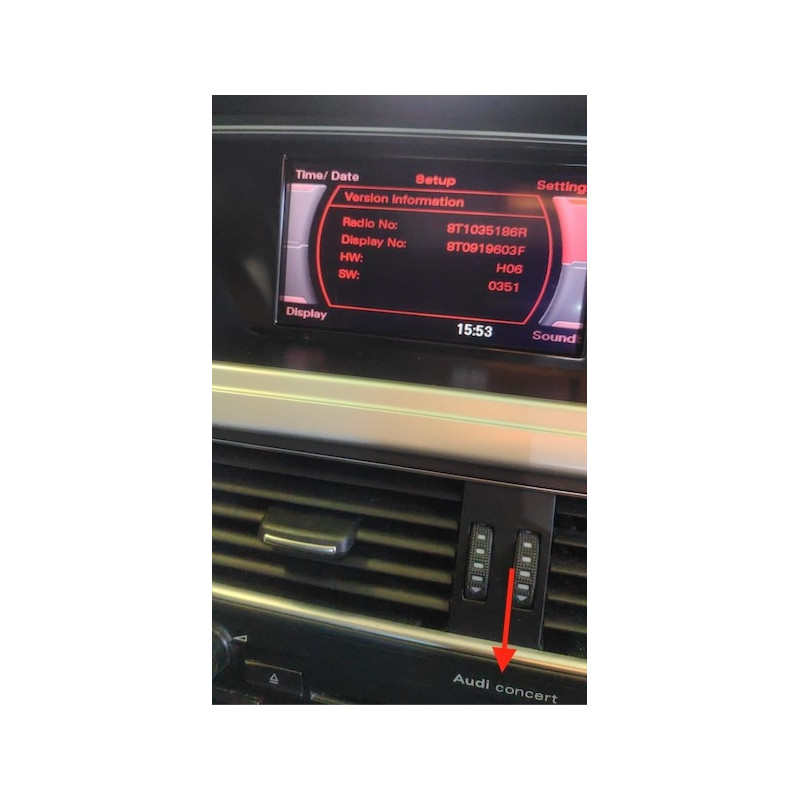

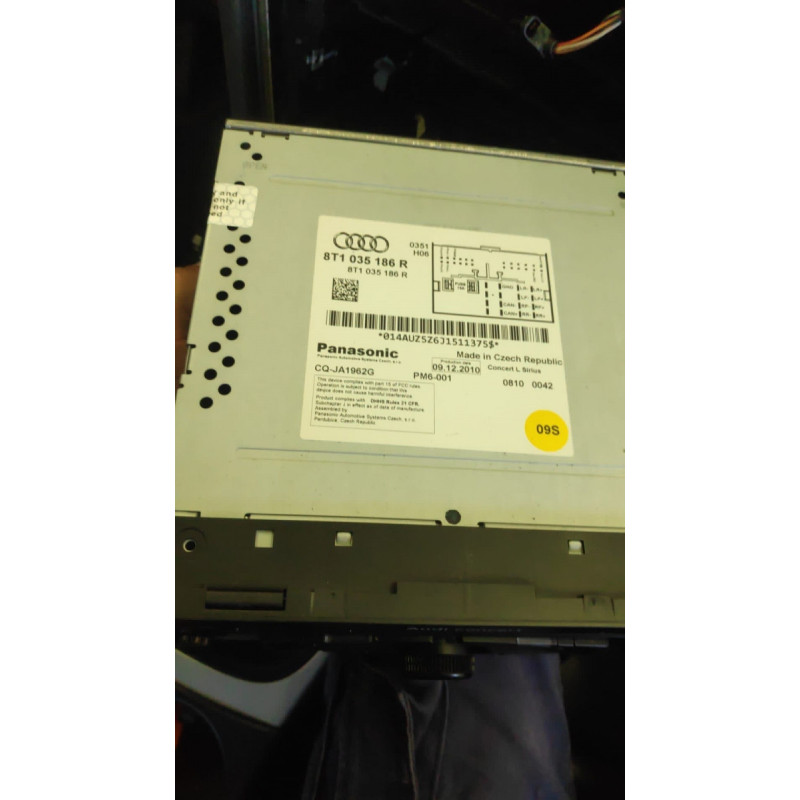

Navigation: Symphony3 or Concert3 radio with 6.5-inch monitor

Connectors:

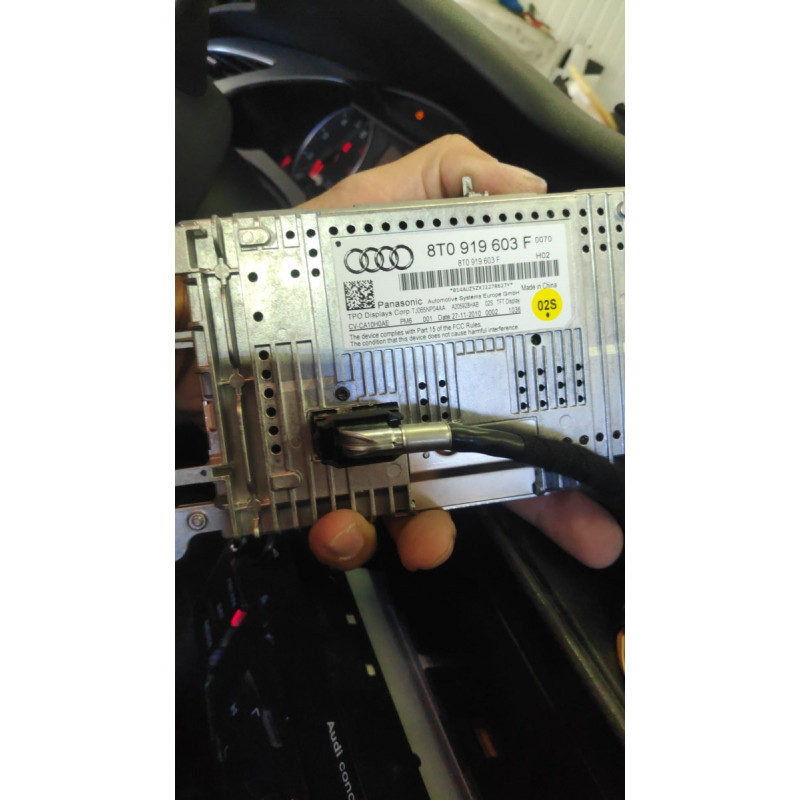

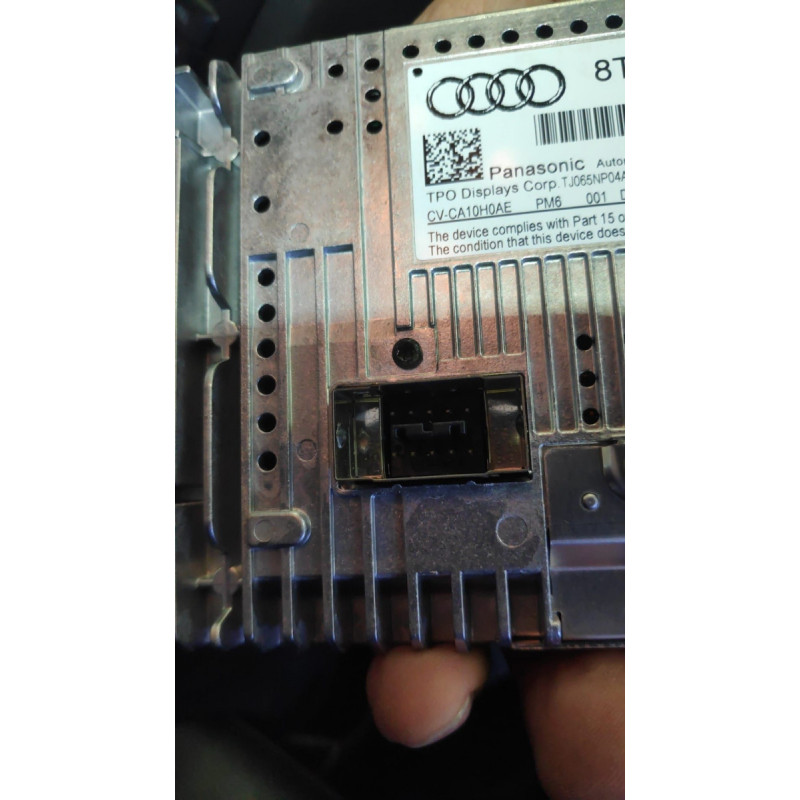

• for image transfer: 10-Pin
• Power Supply: Open Cable Ends
• Video inputs (2x): RCA sockets
• reversing camera input: cinch socket

Technical data:

• Operating voltage 12 V DC (7~25 V)
• Quiescent current 45 mA Current consumption 200 mA
• Video input 0.7 ~ 1V
• Video input PAL/NTSC formats
• Operating temperature - 40°C to +85°C
• Video box dimensions 113 x 25 x 115 mm (W x H x D)
