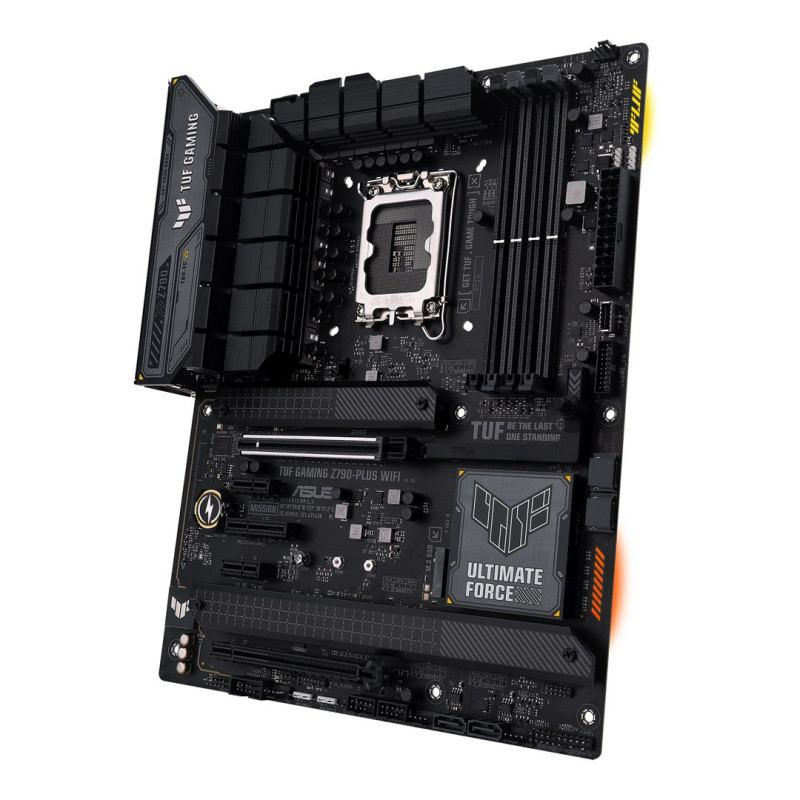

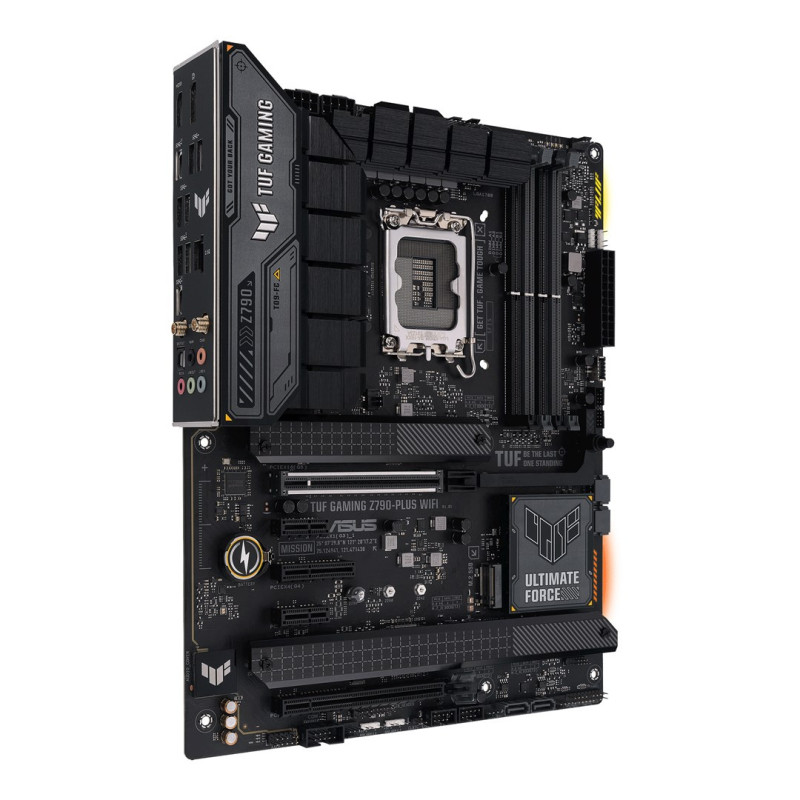

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
Product reference:
6-90MB1D80-M0EAY0
ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
Product reference:
6-90MB1D80-M0EAY0
ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Audio chip | Realtek S1220A |
| Product colour | Black |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Windows operating systems supported | Windows 11, Windows 10 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Motherboard form factor | ATX |
| Supported memory clock speeds | 6400, 5200, 6600, 6200, 4800, 6000, 5600, 6800, 7200, 5000, 7000, 5800, 5400 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 7200 MHz |
| Width | 305 mm |
| Depth | 244 mm |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| BIOS type | UEFI AMI |
| User guide | Yes |
| Cables included | SATA |
| Supported storage drive types | HDD & SSD |
| RAID levels | 5, 10, 1 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Line-in | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
