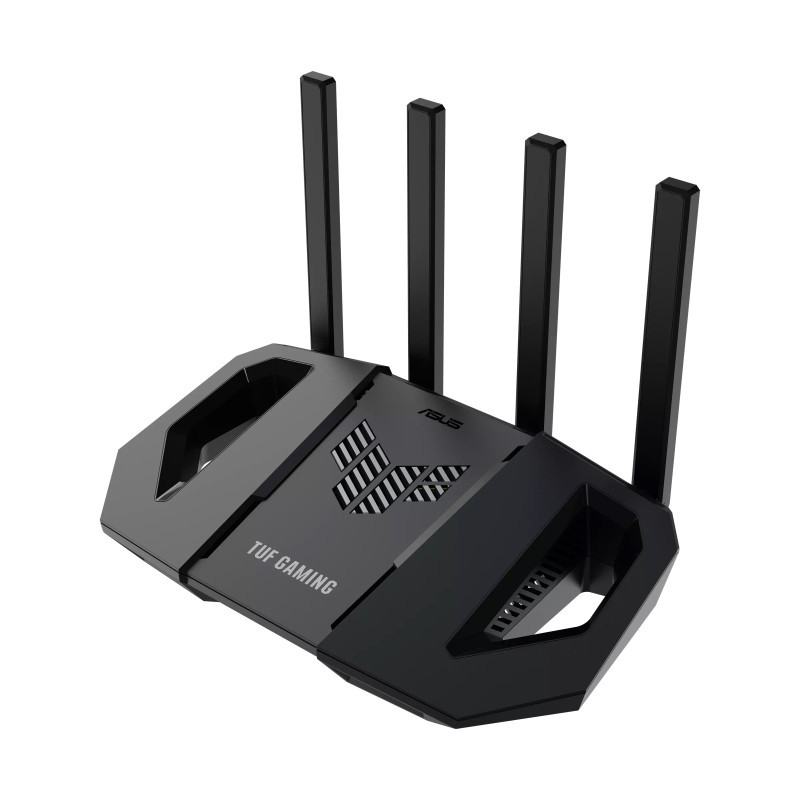

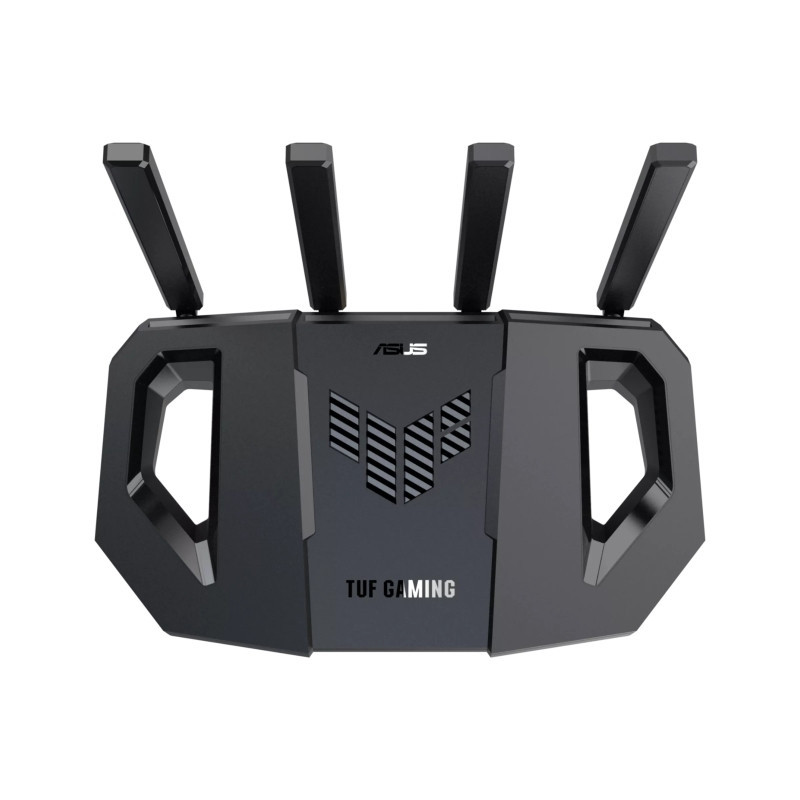

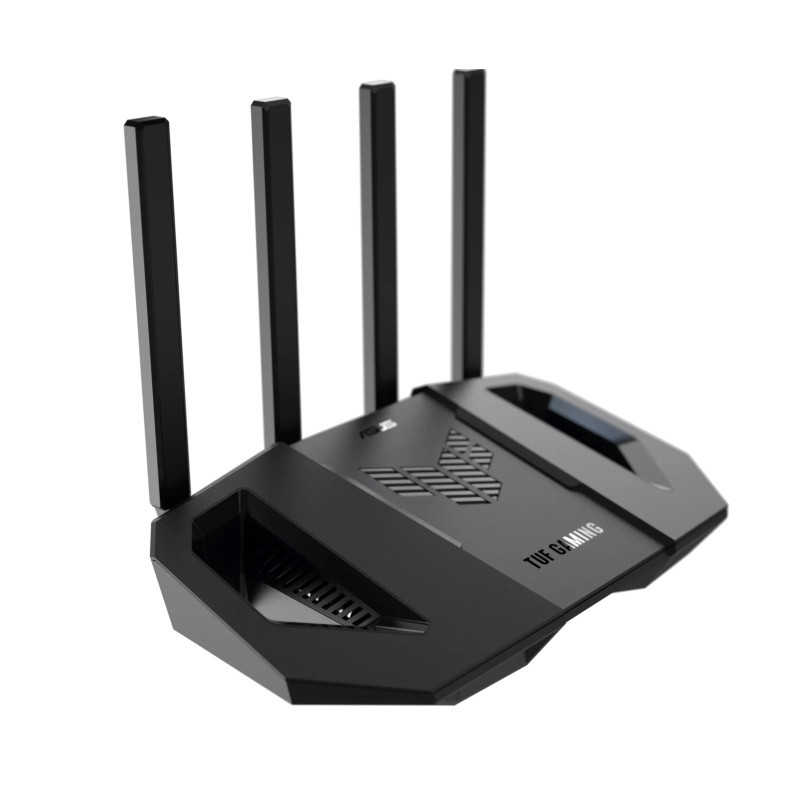

ASUS TUF Gaming BE3600 Dual Band WiFi 7 (802.11be) Gaming Router

• Ultrafast WiFi 7 -Next-generation WiFi 7 router boosts speeds up to 3600 Mbps.


• 4K-QAM Modulation -All-new 4096-QAM offers a 1.2 times increase in transmission speed compared to the previous generation.


• High Computational Power CPU -Equipped with the all-new quad-core powerhouse CPU, boasting a DMIPS computational capability of 20K, effortlessly handling both software and hardware-related tasks.


• ASUS AiMesh Support -Support AiMesh to create a whole-home mesh network.


• Tested Durability and Stable Operation -TUF Gaming BE3600 is built to be durable and undergoes verified testing to ensure reliable, stable operation.

Model: TUF Gaming BE3600 (TUF-BE3600) Network Standard: IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 Product Segment: BE3600 ultimate BE performance: 688+2882 Mbps WiFi Data Rate: 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps Antenna: External antenna x 4 Transmit / Receive: 2.4GHz 2x2 5GHz 2x2 Processor: 2.0 GHz quad-core processor Memory: 256 MB Flash 1 GB RAM Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth Operating Frequency: 2.4GHz / 5GHz 2.4 GHz 5 GHz Operating Mode: Wireless router mode Access point mode Media bridge mode I/O Ports: RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1 Buttons: WPS Button, Reset Button, Power Button LED Indicator: Power x 1 WAN x 1 LAN x 1 2.4GHz WiFi x 1 5GHz WiFi x 1 Power Supply: AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2 A current Product Weight (g): 561g Product Dimensions: 274 x 168 x 205 mm AiMesh: AiMesh • Primary AiMesh Router • AiMesh Node Game: Game Boost / Acceleration Mobile Game Mode Parental Control: 'Allow you to block access to unwanted websites and apps.' Safe Browsing Customized Internet Schedule Guest Network: 'The Guest Network provides Internet connection for guests but restricts access to your local network.' • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit Security: AiProtection WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection: • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN: VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Traffic Control: Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay LAN: DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) Wireless: UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming USB application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges Administration: Configuration Backup and Restore Diagnosis tools Feedback System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update

Package Contents:TUF Gaming BE3600 Dual Band WiFi 7 router RJ-45 cable Power adapter Quick Start Guide Warranty card
