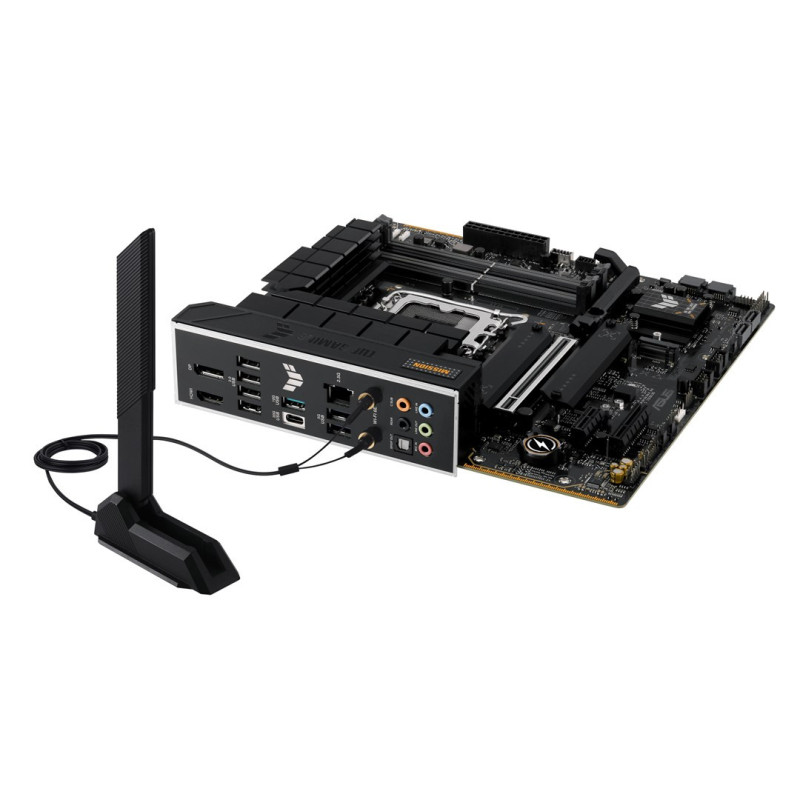

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1HE0-M0EAY0
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1HE0-M0EAY0
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| Power source type | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10, Windows 11 |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel B760 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7800 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 5200, 6800, 6400, 6200, 6600, 7000, 5000, 4800, 6000, 7800, 5800, 5400, 5600 |
| Maximum internal memory | 192 GB |
| Width | 244 mm |
| Depth | 244 mm |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| USB 2.0 connectors | 3 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| BIOS type | UEFI AMI |
| User guide | Yes |
| Cables included | SATA |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 10, 1, 5 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| DisplayPort version | 1.4 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Weight | 982 g |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply. |
