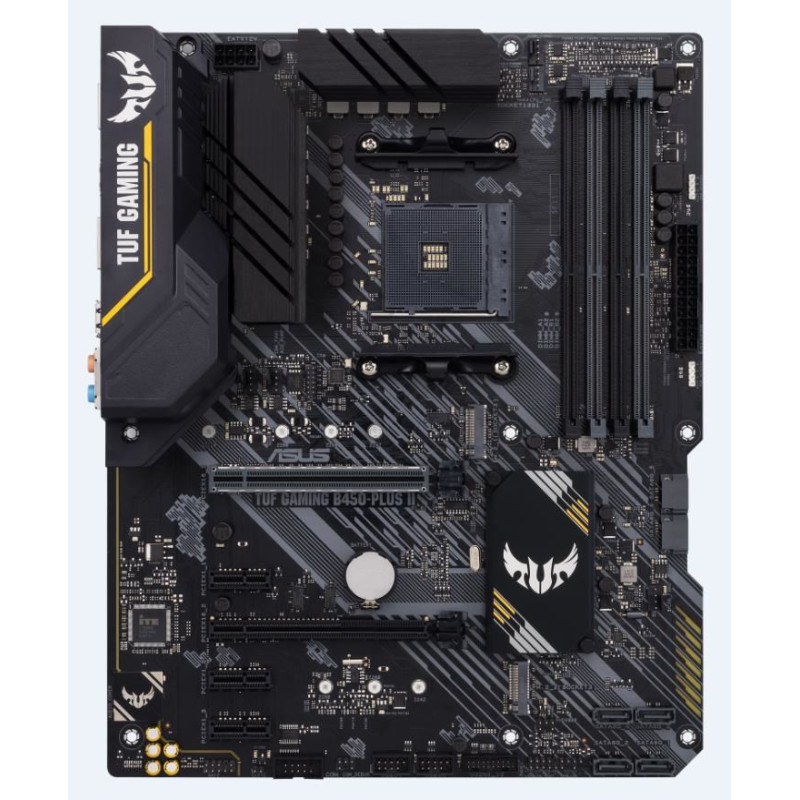

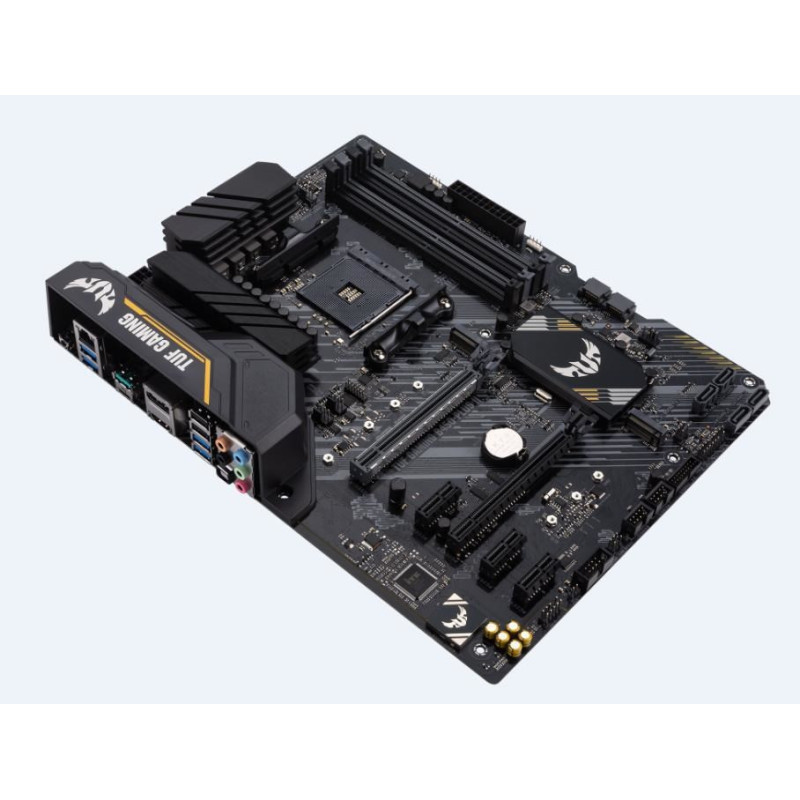

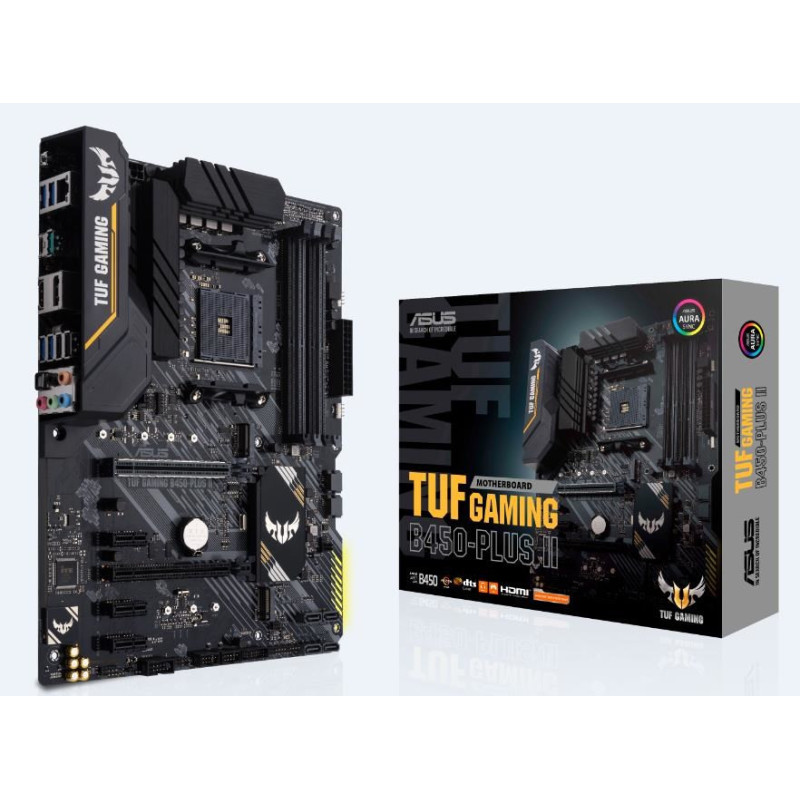

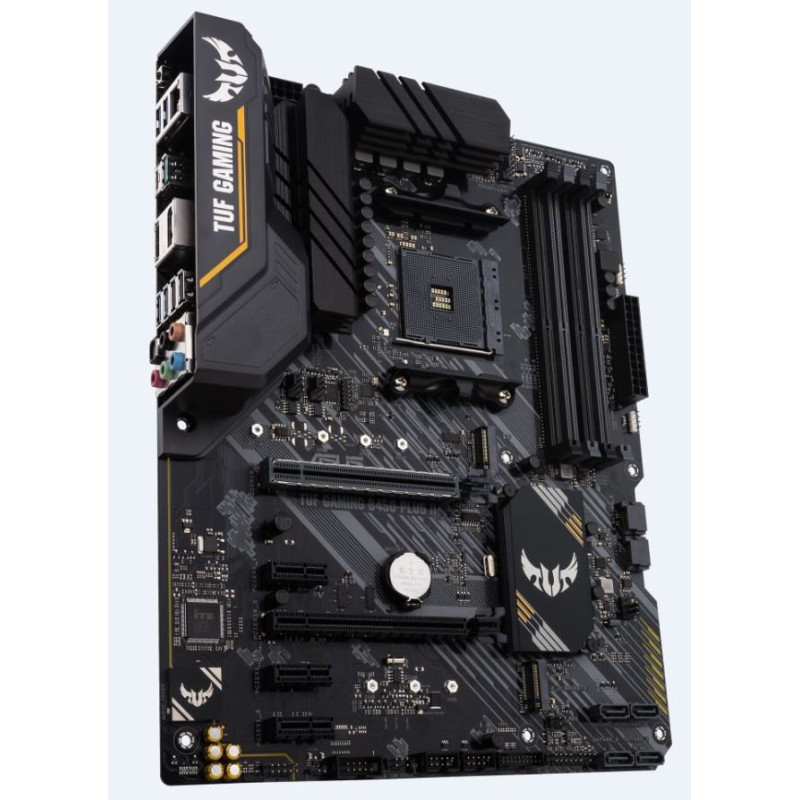

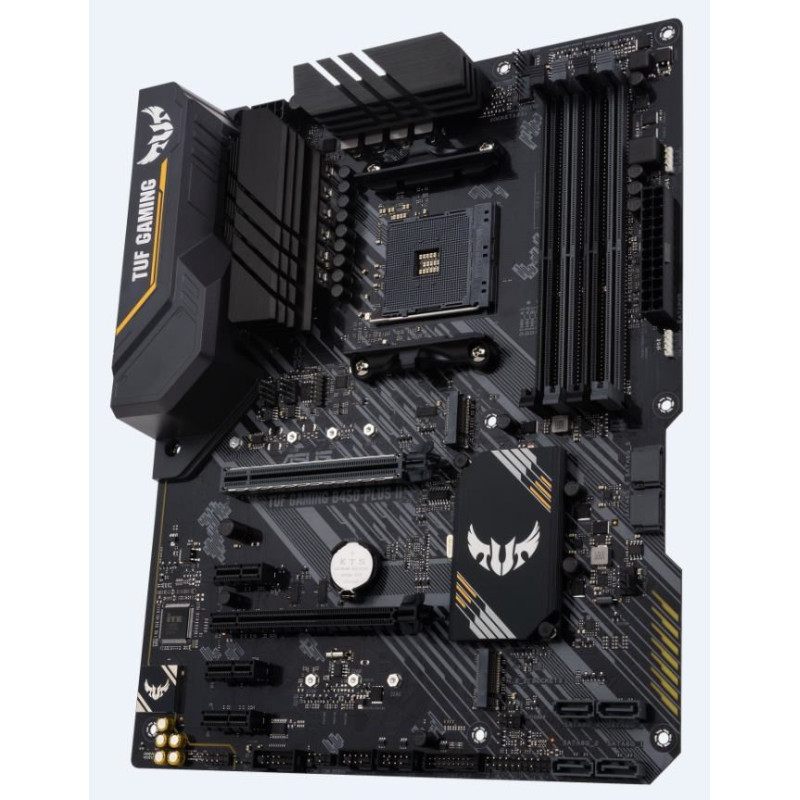

ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
Product reference:
6-90MB1650-M0EAY0
ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
Product reference:
6-90MB1650-M0EAY0
ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Parallel processing technology support | CrossFireX |
| Audio output channels | 8 channels |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 7 x64, Windows 10 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| Number of mounting holes | 8 |
| Audio chip | Realtek ALC S1200A |
| Cooling type | Active |
| Supported memory clock speeds | 4000, 3466, 3533 MHz, 3200, 2666, 3000, 3733, 4400, 3600, 2133, 3400, 3866, 2400, 2800 |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Width | 305 mm |
| Depth | 244 mm |
| LAN controller | Realtek L8200A |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| RGB LED pin header | Yes |
| Front panel audio connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of chassis fan connectors | 2 |
| S/PDIF out connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Total number of SATA connectors | 6 |
| Number of EATX power connectors | 1 |
| Audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Drivers included | Yes |
| Cables included | SATA |
| Supported storage drive interfaces | M.2, Serial ATA |
| Supported storage drive types | HDD & SSD |
| RAID levels | 1, 10 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI version | 2.0b |
| USB connector type | USB Type-A, USB Type-C |
| DisplayPort version | 1.2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 2.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
