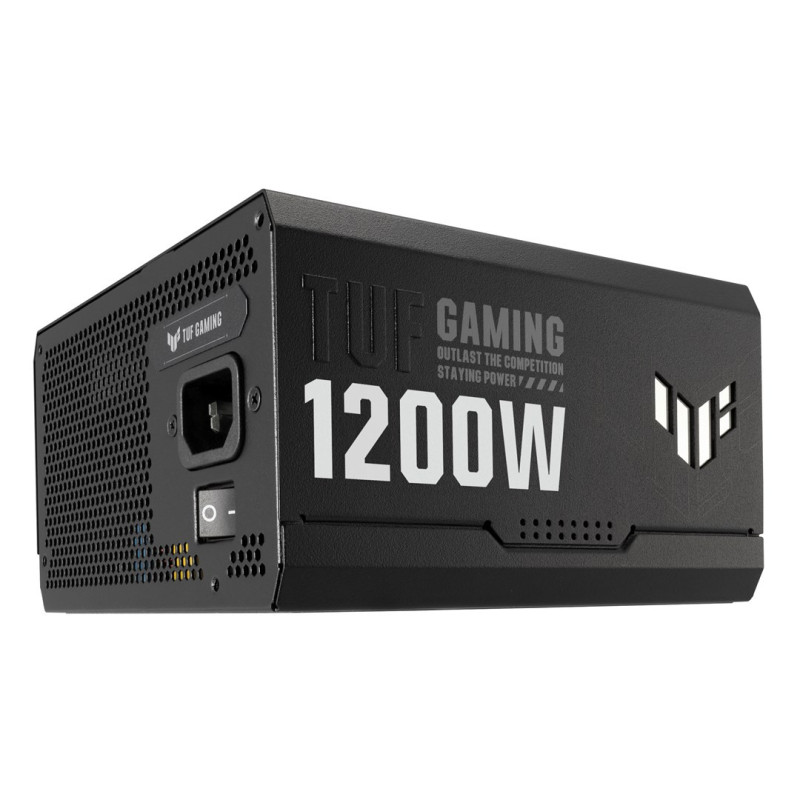

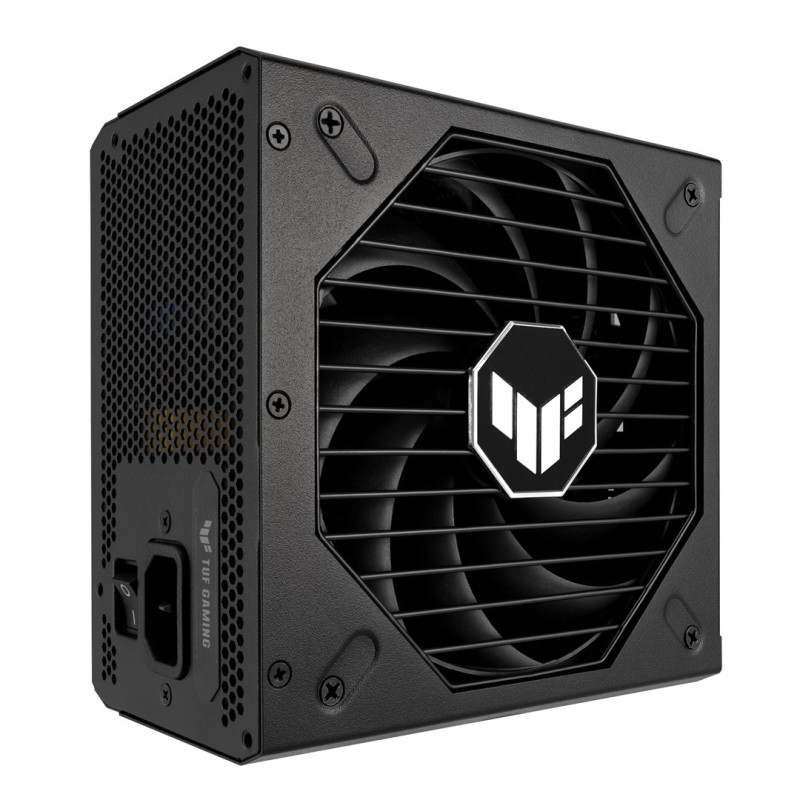

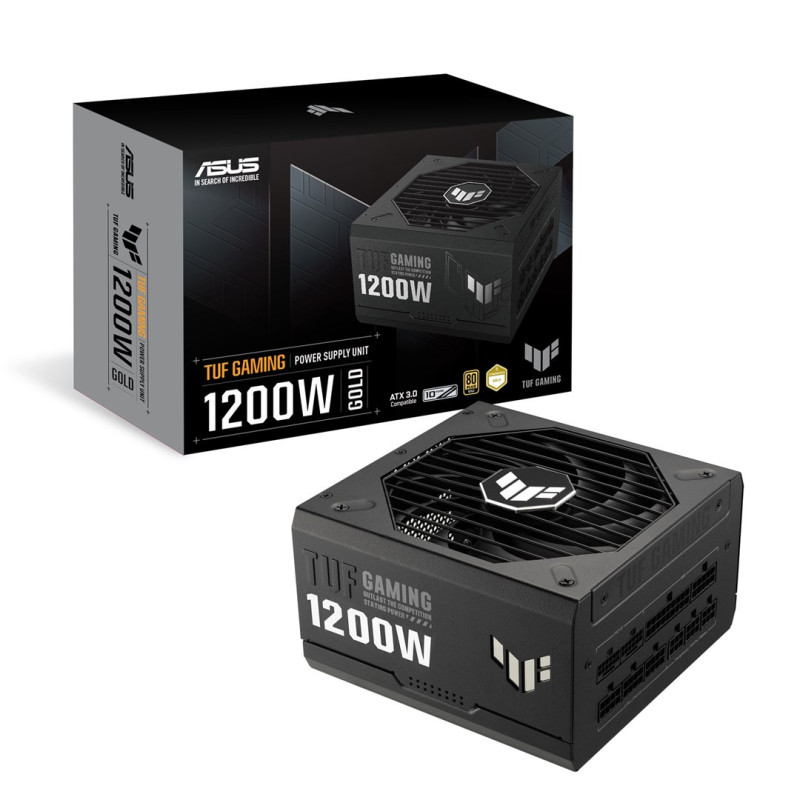

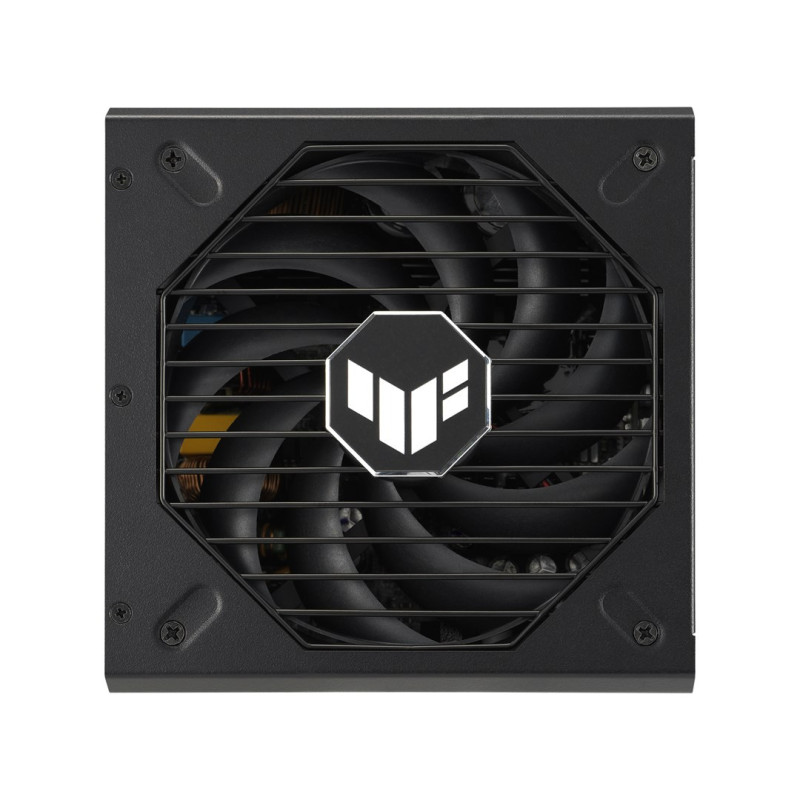

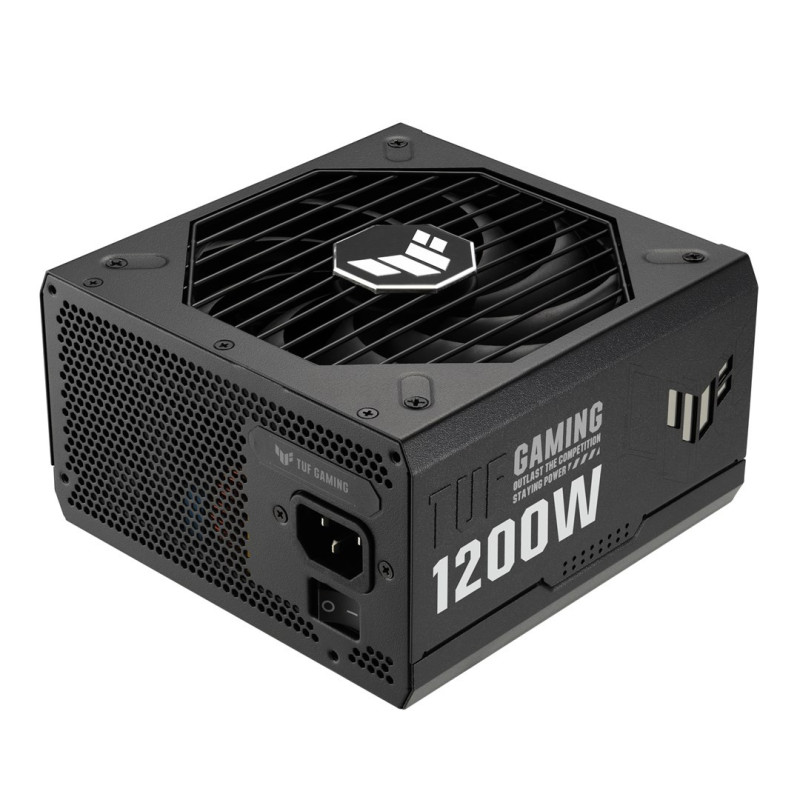

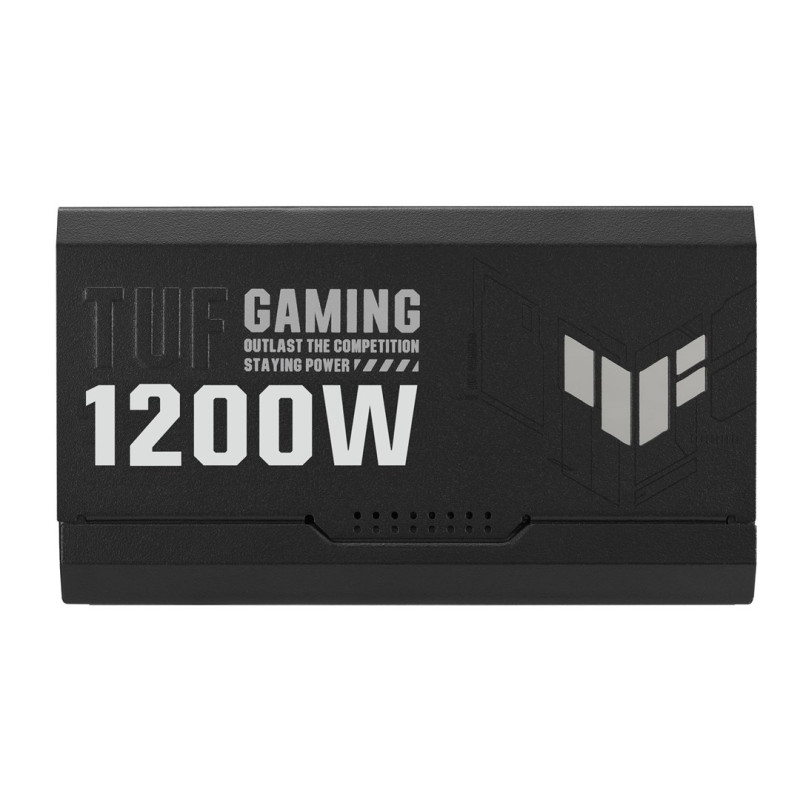

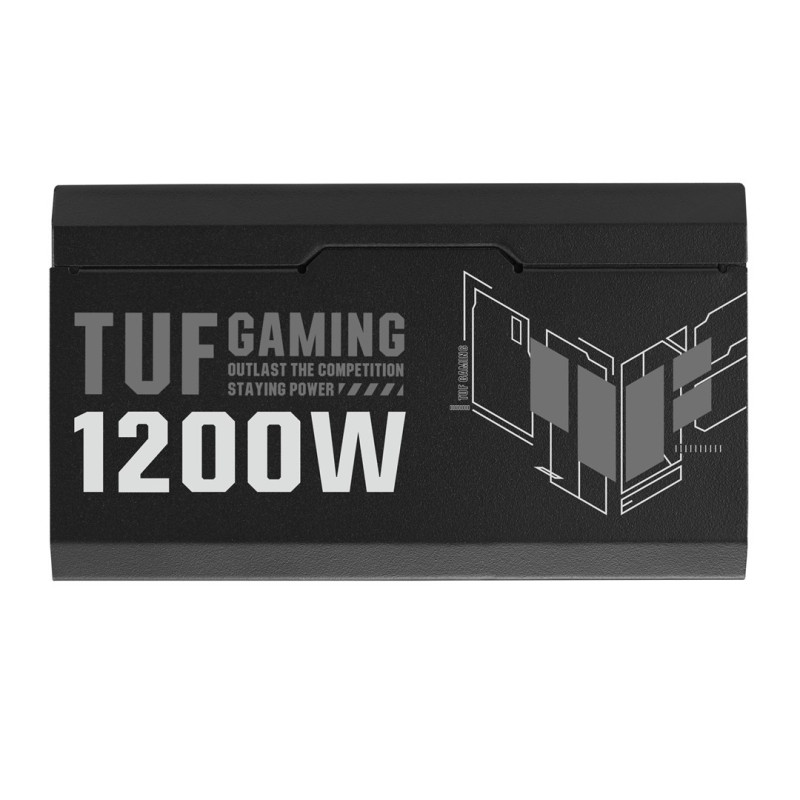

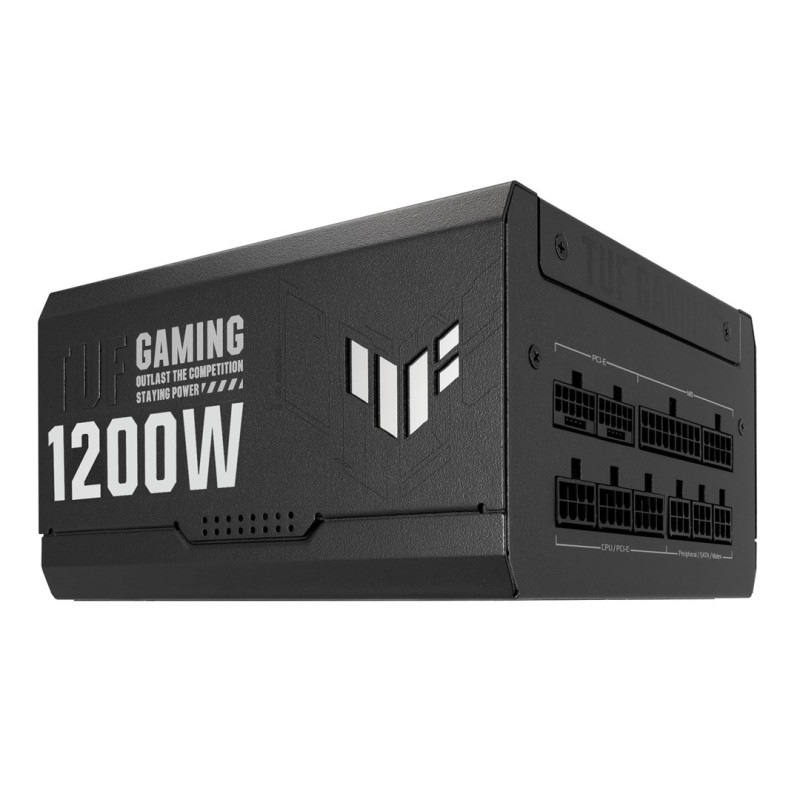

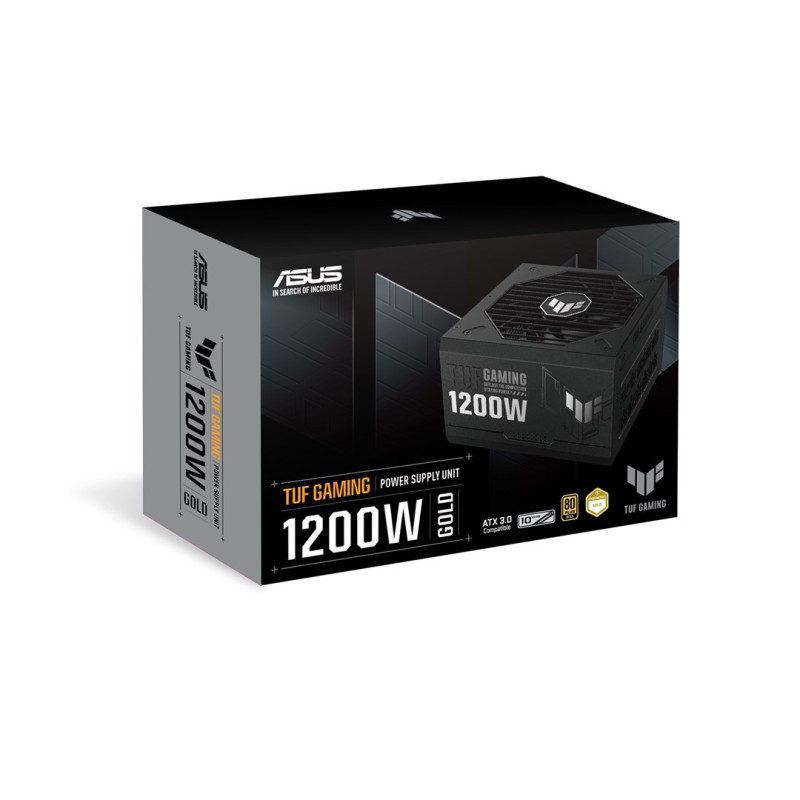

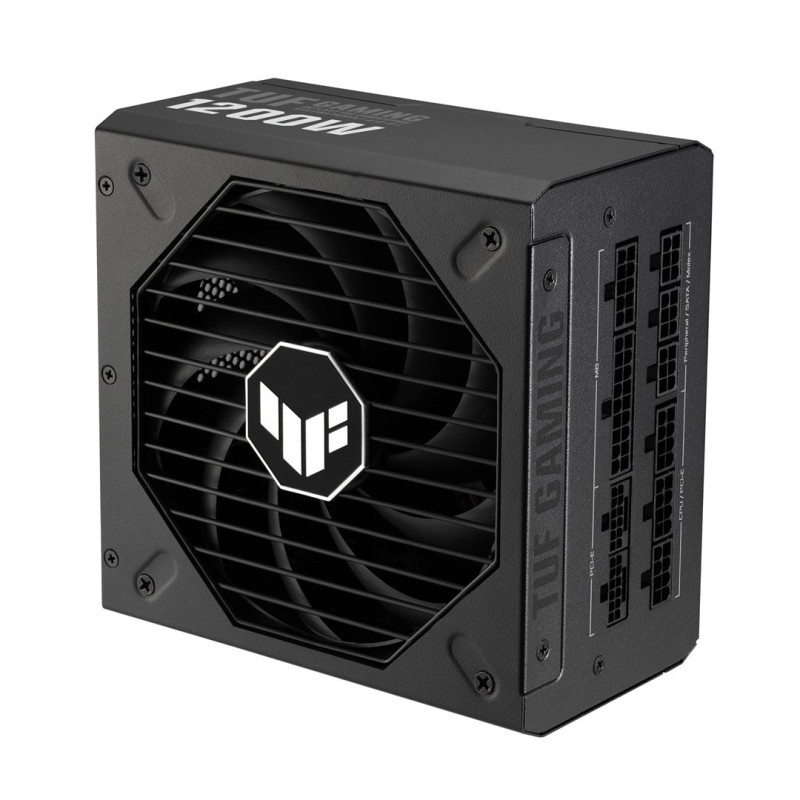

ASUS TUF GAMING 1200W Gold power supply unit 20+4 pin ATX ATX Black
Product reference:
6-90YE00S0-B0NA00
ASUS TUF GAMING 1200W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF GAMING 1200W Gold power supply unit 20+4 pin ATX ATX Black
Product reference:
6-90YE00S0-B0NA00
ASUS TUF GAMING 1200W Gold power supply unit 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
120 month
Delivery from Europe in
6 - 11
business days
| Sustainability compliance | Yes |
| Product colour | Black |

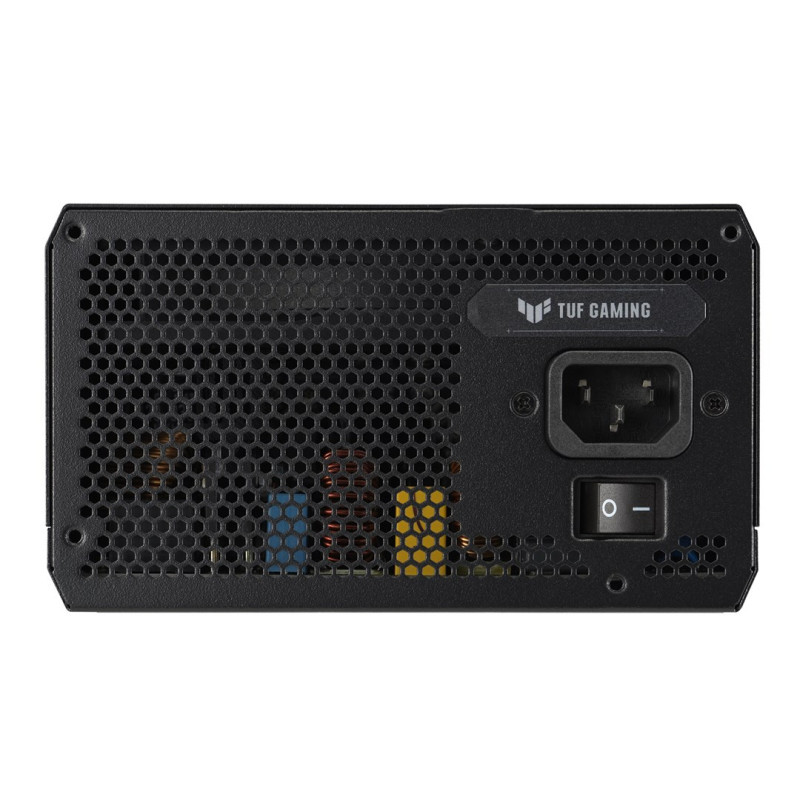

| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Power protection features | Overheating Overcharge Over power Short circuit Over voltage Under voltage Under power |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 9.6 W |
| Total power | 1200 W |
| Max output current (+12V) | 99 A |
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.8 A |
| Combined power (+5V) | 130 W |
| Max output current (+5V) | 25 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1188 W |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Weight | 2.66 kg |
| Depth | 150 mm |
| Width | 150 mm |
| Height | 86 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |

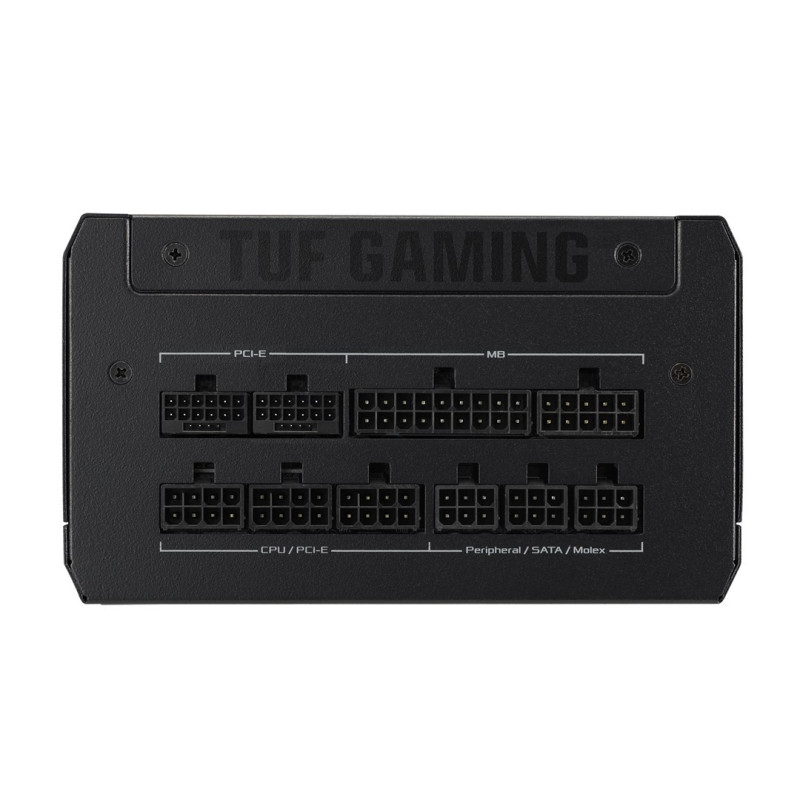

| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Compliance certificates | RoHS |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150 400 mm |
| Cabling type | Fully-Modular |
| SATA power cable length | 400 mm 120 |
| Number of SATA power connectors | 5 |
| PCI Express power cable length | 67.5 cm |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| PCI Express power connectors (8-pin) | 3 |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 2 |
| Warranty period | 10 year(s) |
| Warnings | Avoid contact of the product with water or other liquids. Do not open the case - risk of electric shock. The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
