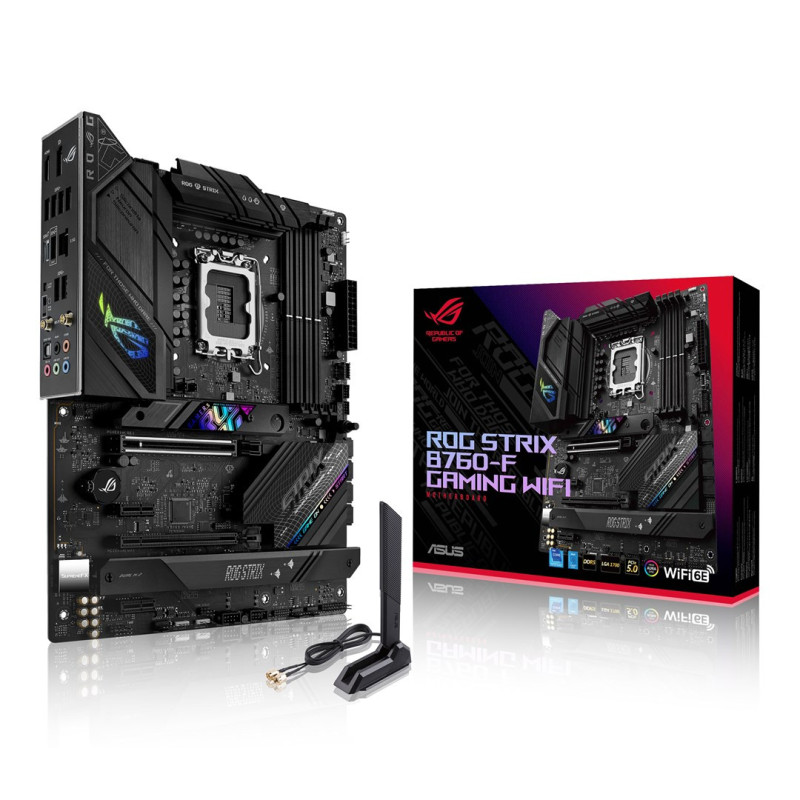

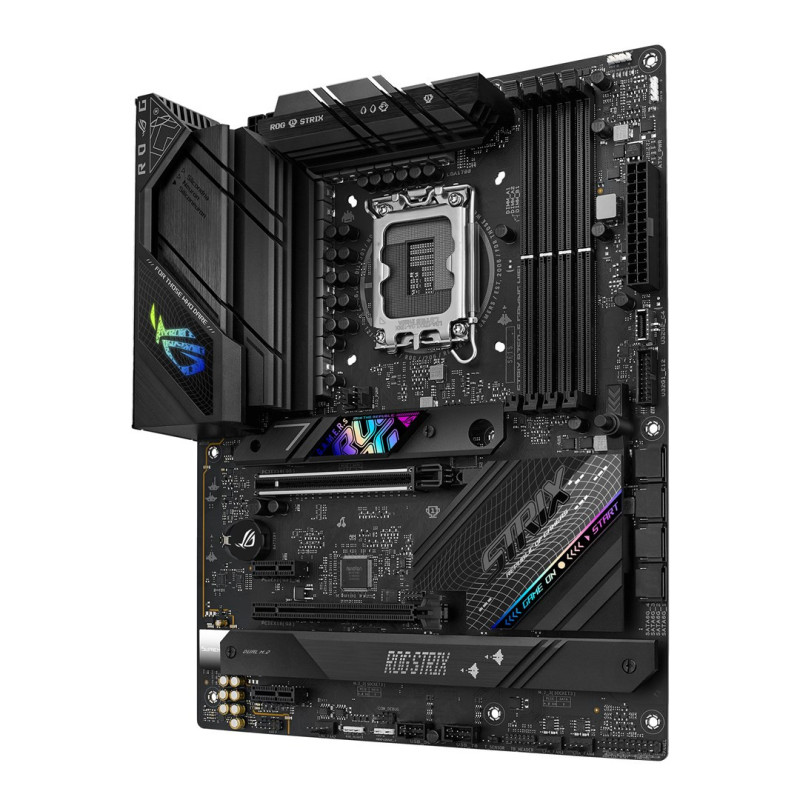

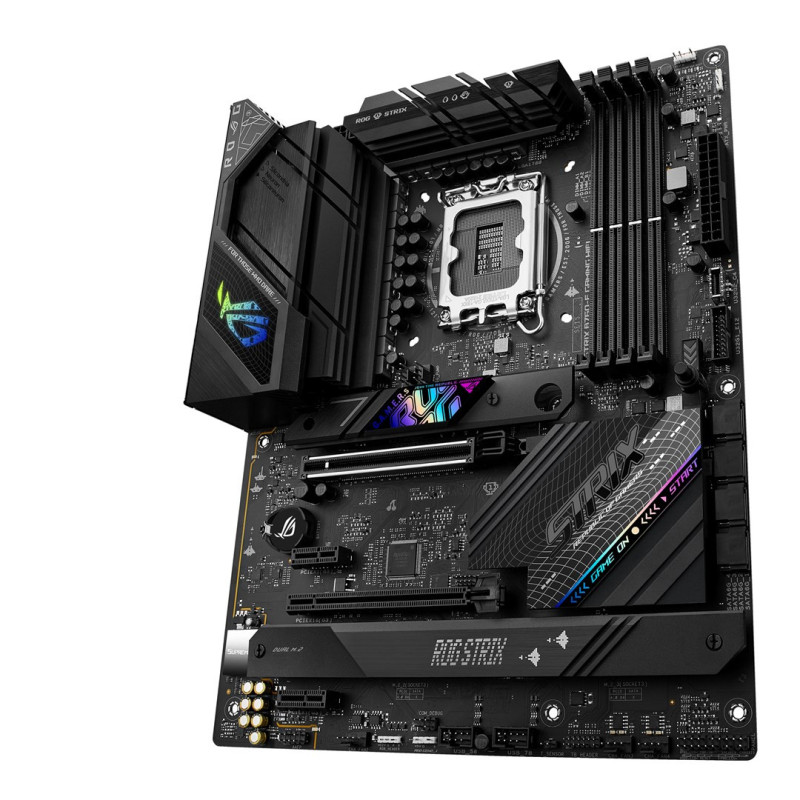

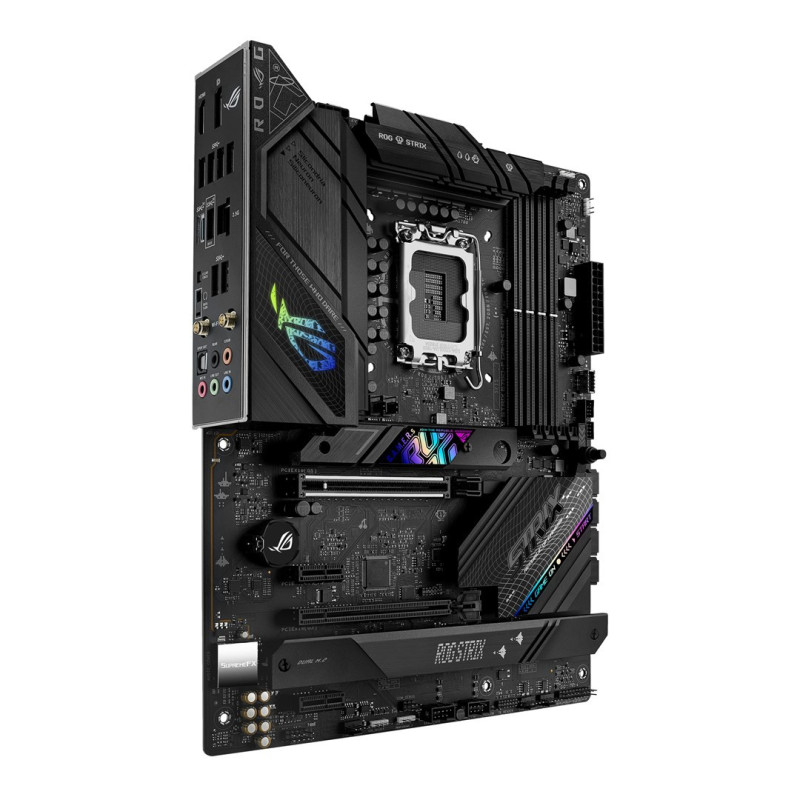

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX
Product reference:
6-90MB1CT0-M1EAY0
ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX
ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX
Product reference:
6-90MB1CT0-M1EAY0
ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11, Windows 10 |
| Cooling type | Passive |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Product colour | Black |
| Audio chip | Realtek ALC4080 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 7800 MHz |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7000, 6600, 4800, 6200, 6000, 5200, 6400, 6800, 7800, 5000, 5600, 5800, 5400 |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Depth | 244 mm |
| Width | 305 mm |
| Wi-Fi standards | 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Front panel connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Thunderbolt headers | 1 |
| USB 2.0 connectors | 2 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| User guide | Yes |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID levels | 10, 1, 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Microphone in | Yes |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Back-to-BIOS button | Yes |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
