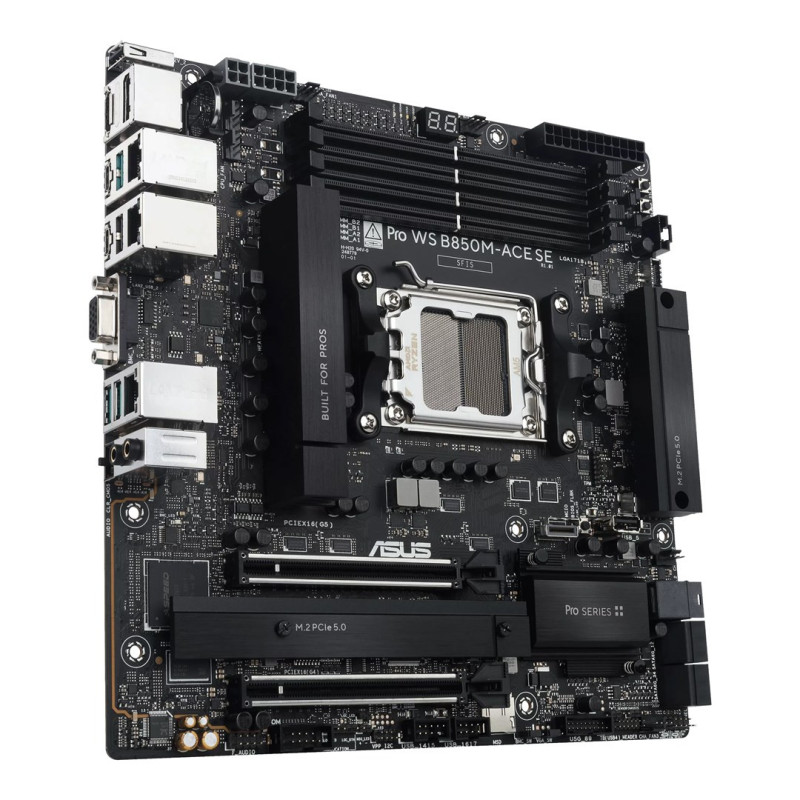

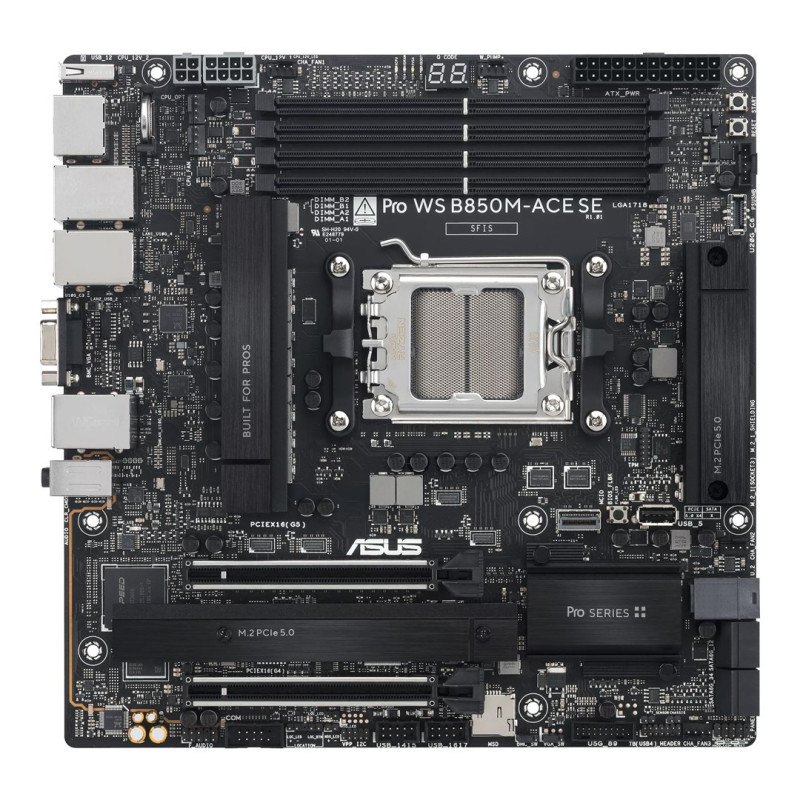

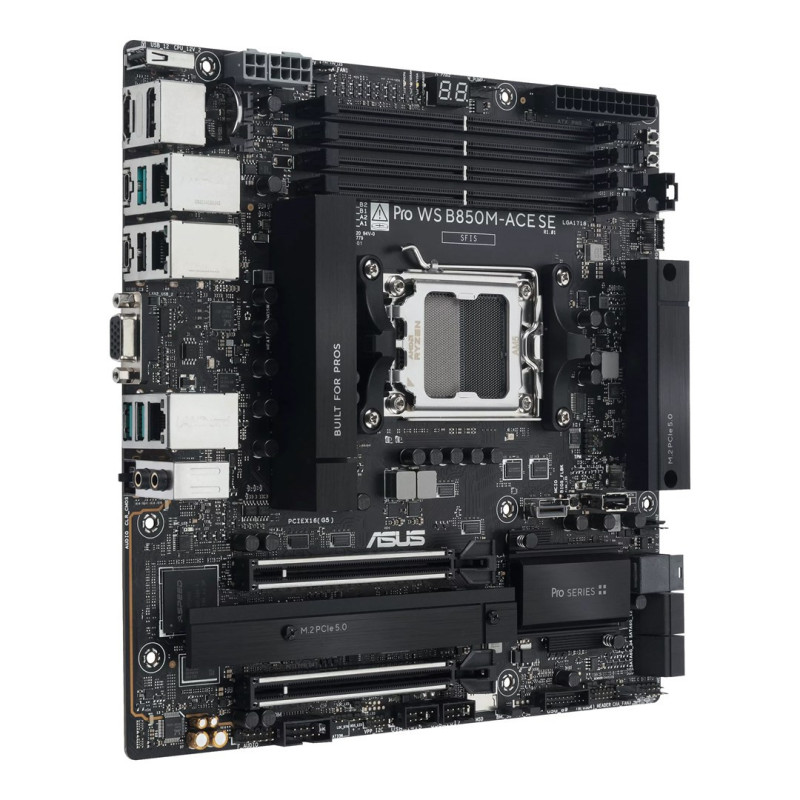

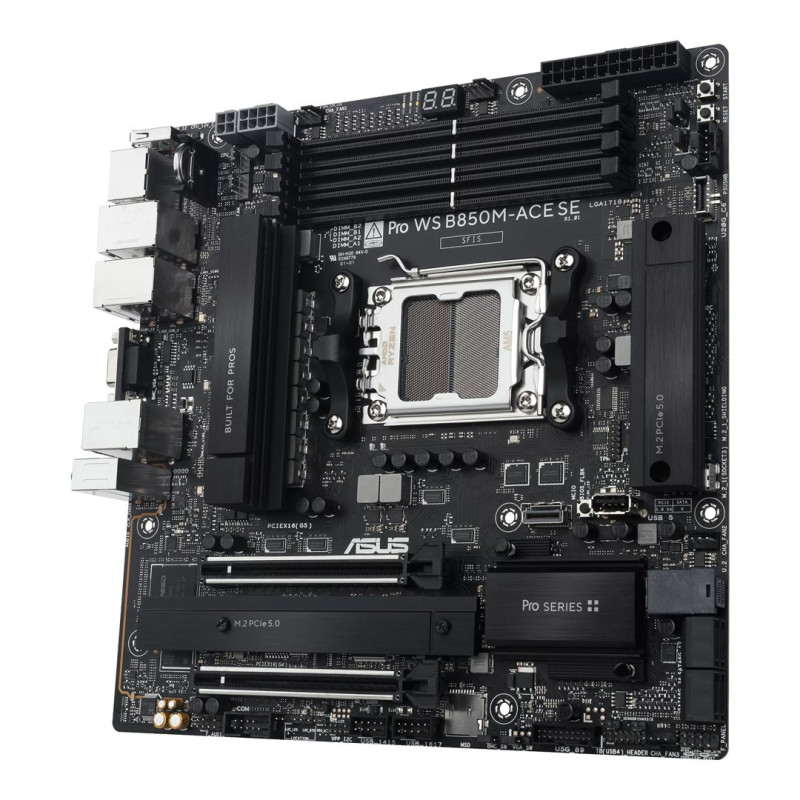

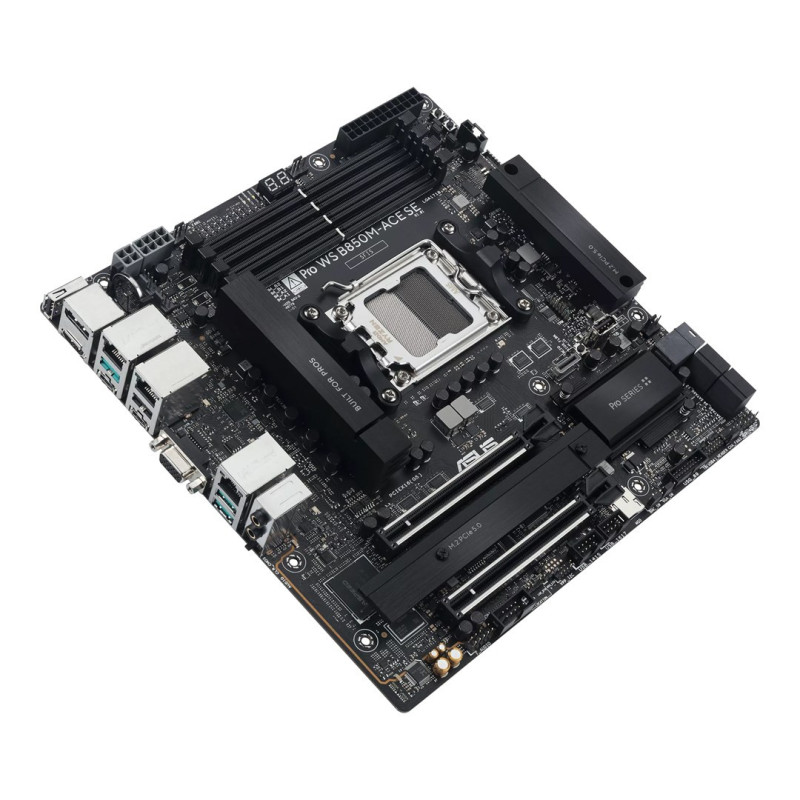

Asus PRO WS B850M-ACE SE AM5 AMD motherboard
Product reference:
6-90MB1MN0-M0EAY0
Asus PRO WS B850M-ACE SE AM5 AMD motherboard
Asus PRO WS B850M-ACE SE AM5 AMD motherboard
Product reference:
6-90MB1MN0-M0EAY0
Asus PRO WS B850M-ACE SE AM5 AMD motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD EPYC 4005, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Component for | PC |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Depth | 244 mm |
| Width | 244 mm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 3 |
| Number of COM connectors | 1 |
| Audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| USB4 ports quantity | 1 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| User guide | Yes |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| RAID levels | 10, 5, 1 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Number of audio jack connectors | 2 |
| Clear CMOS button | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
