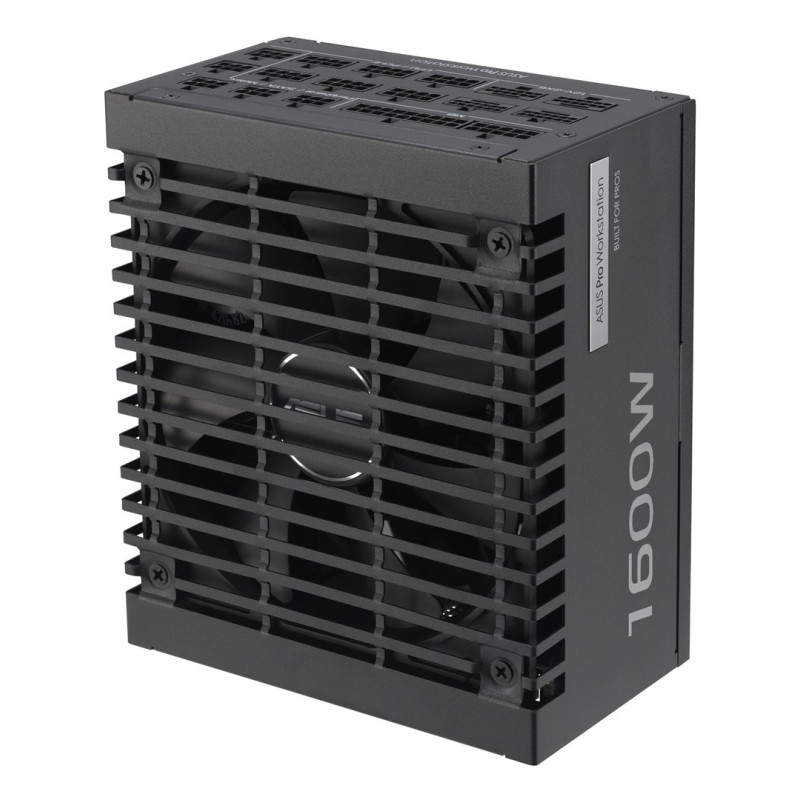

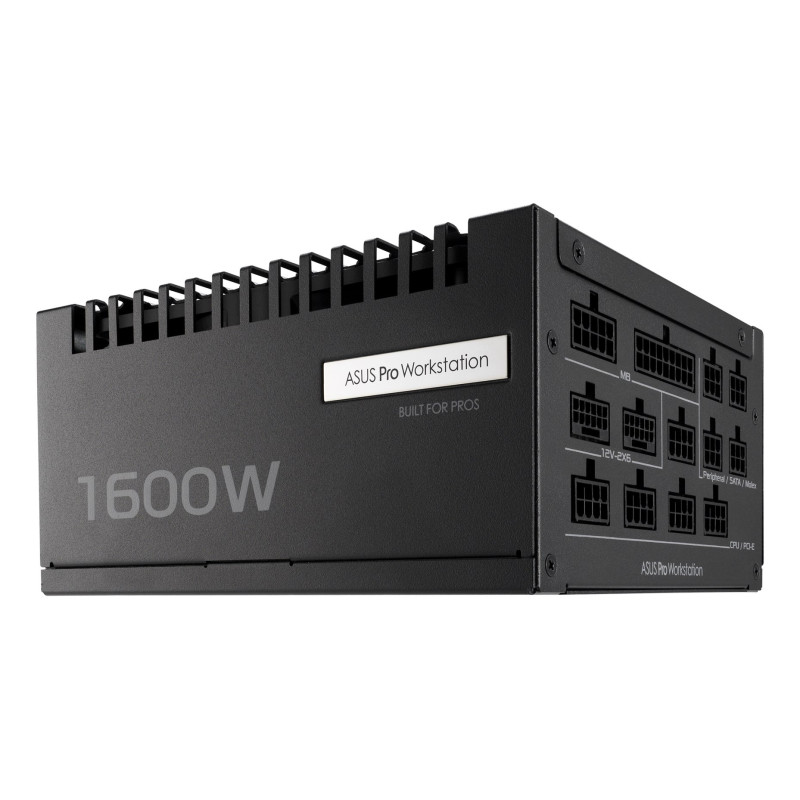

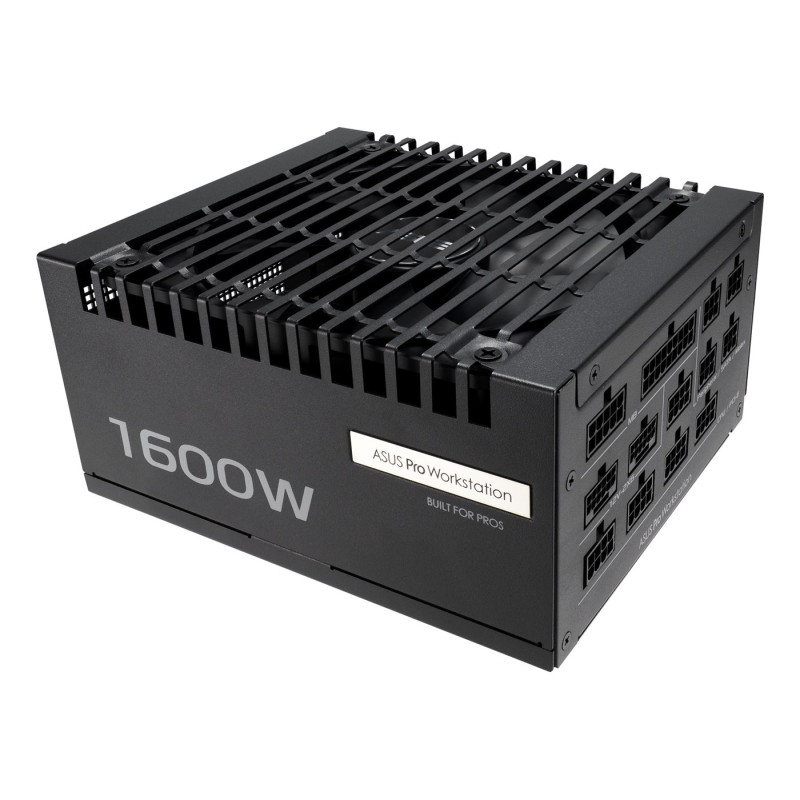

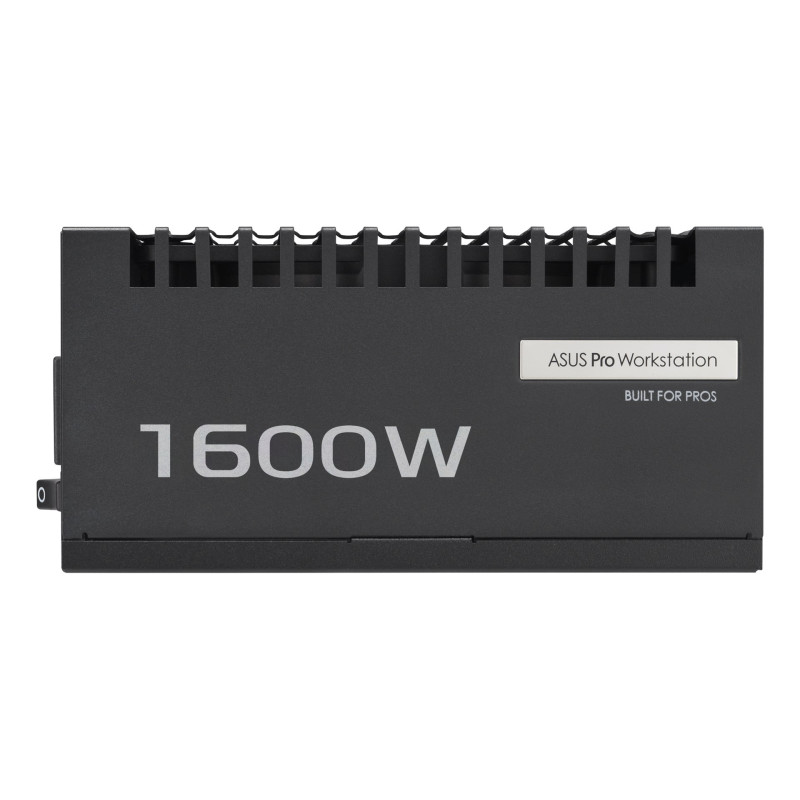

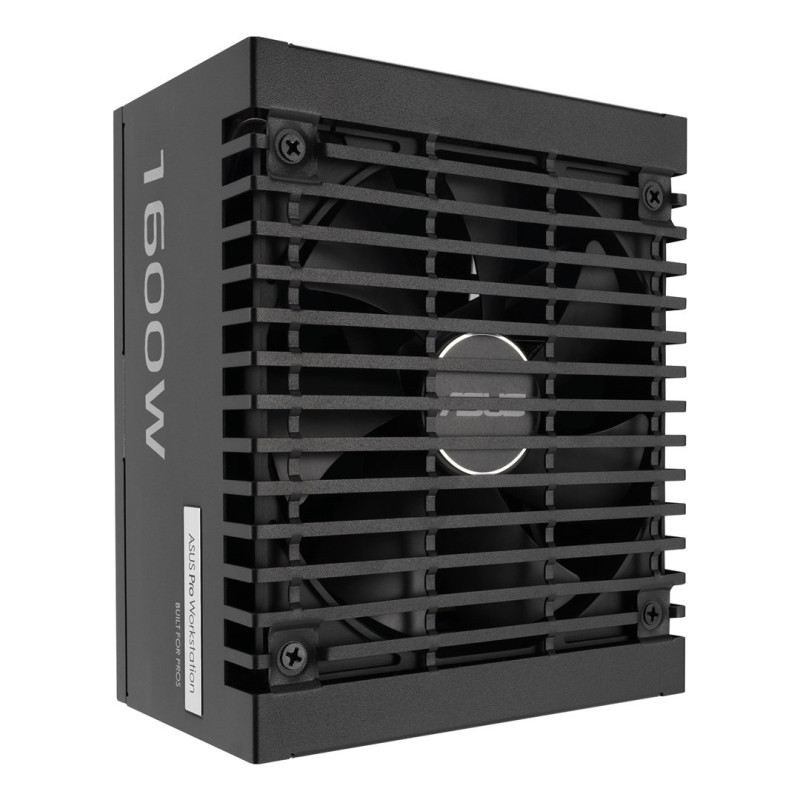

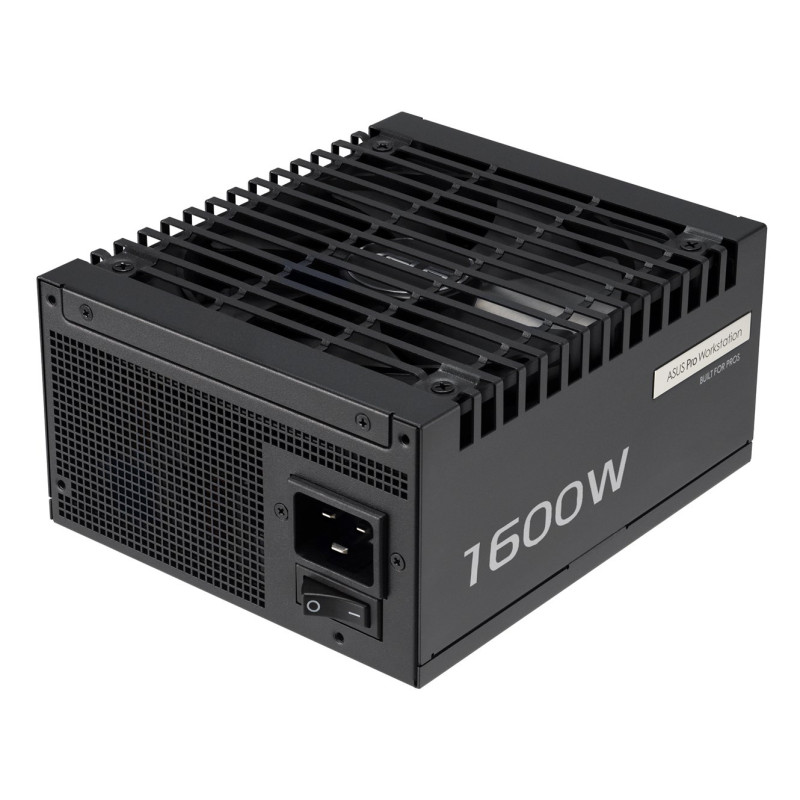

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

Product reference: 6-90YE00Z2-B0NA00

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

Product reference: 6-90YE00Z2-B0NA00

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

You have 3 products in compare list, please remove someone and try again

Add to compare

56169 €

Product in warehouse

Guarantee
120 month

Delivery from Europe in
6 - 11
business days

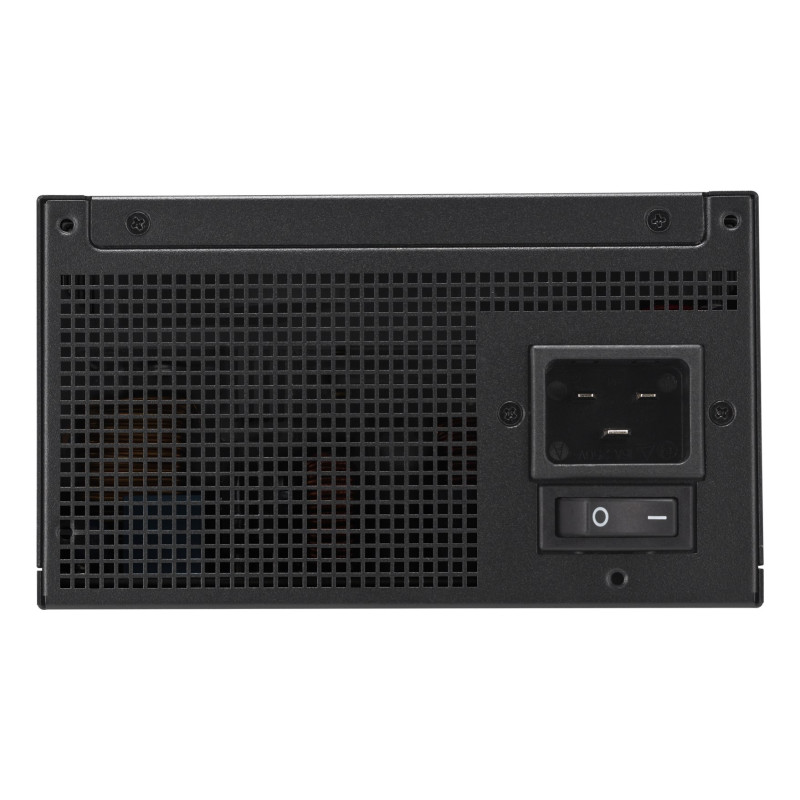

On/off switch	Yes

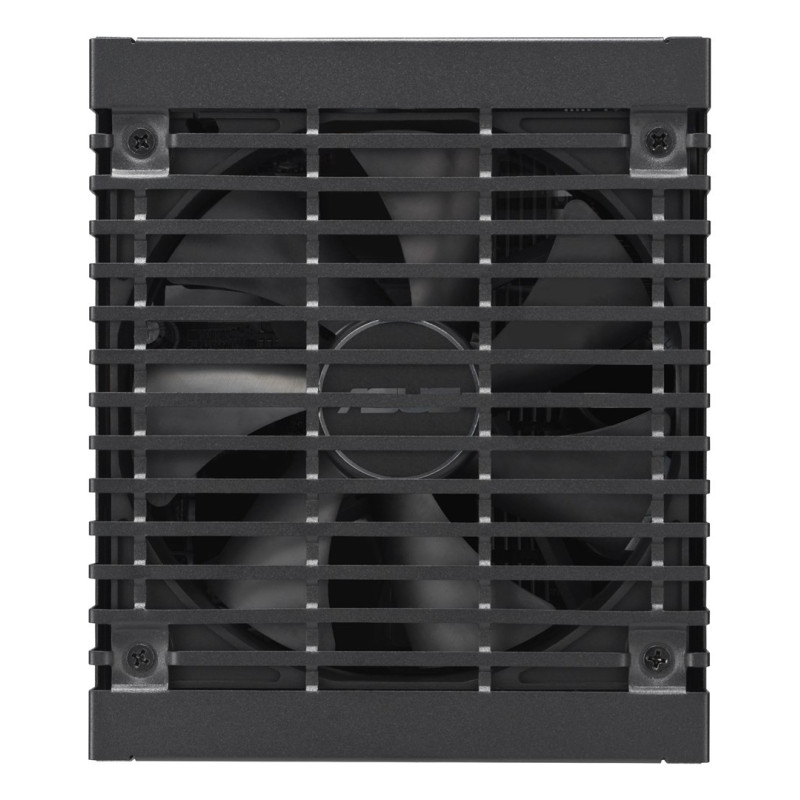

Cooling type	Active
Product colour	Black
AC input voltage	200 - 240 V
Total power	1600 W
Efficiency	92%
Power protection features	Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating
Max output current (+12V)	133.3 A
Combined power (+3.3V)	130 W
Power Factor Correction (PFC) type	Active
Combined power (+5Vsb)	15 W
Max output current (+5Vsb)	3 A
Combined power (-12V)	9.6 W
Max output current (+3.3V)	25 A
Max output current (-12V)	0.8 A
Combined power (+12V)	1600 W
Max output current (+5V)	25 A
Combined power (+5V)	130 W
Height	86 mm
Weight	2 kg
Depth	175 mm
Width	150 mm
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	Ball bearing
Compliance certificates	RoHS

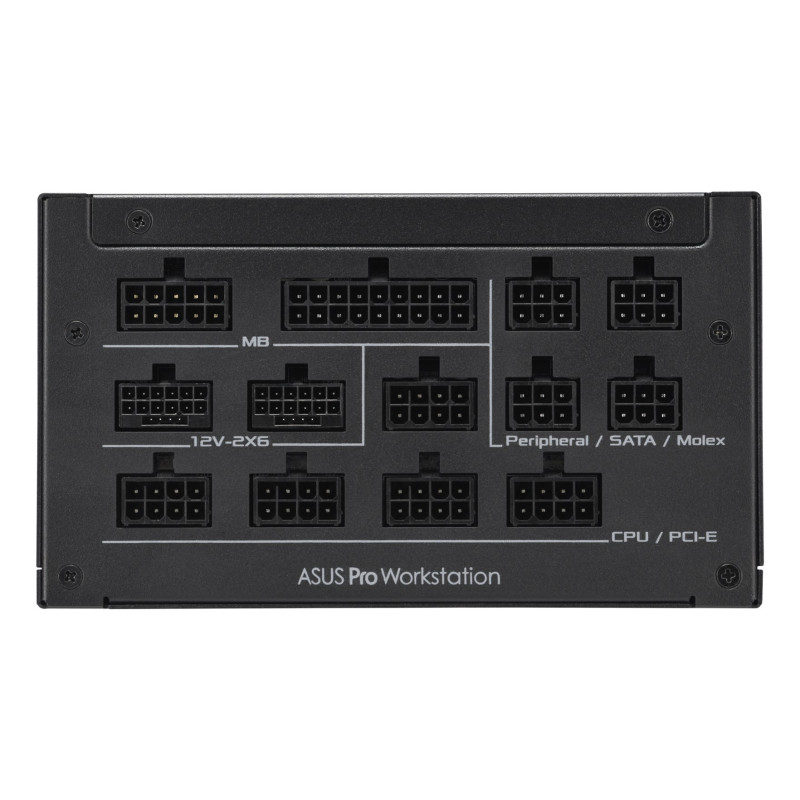

Cabling type	Fully-Modular
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
Motherboard power connector	20+4 pin ATX
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	61 cm
Peripheral (Molex) power cable length	400 mm, 150
ATX power connector (20+4 pin)	Yes
SATA power cable length	400 mm, 120
PCI Express power cable length	75 cm
CPU power cable length	100 cm
Number of SATA power connectors	9
PCI Express power connectors (16-pin)	2
Warranty period	10 year(s)
