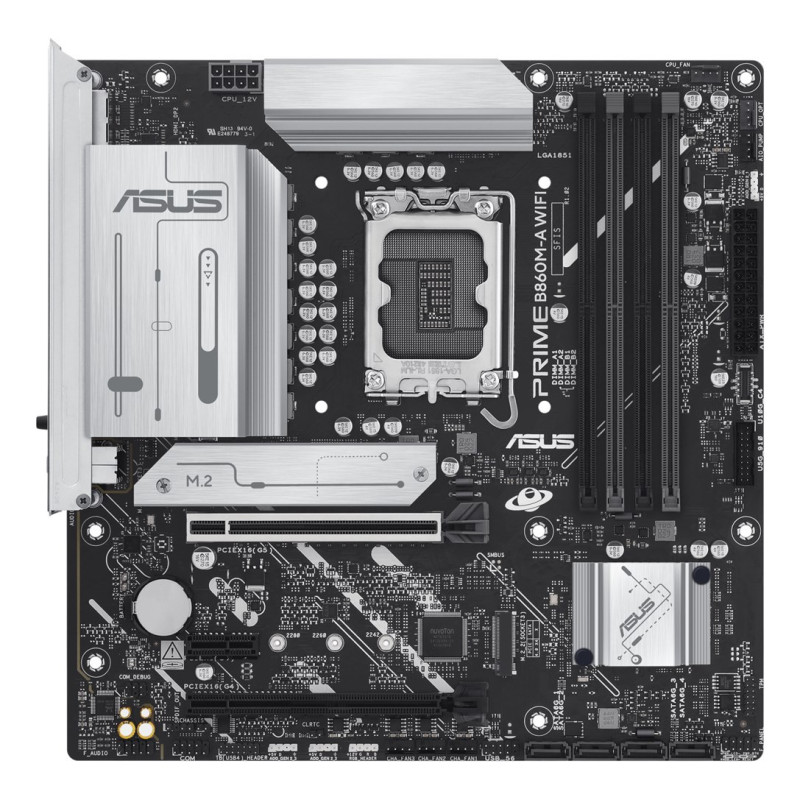

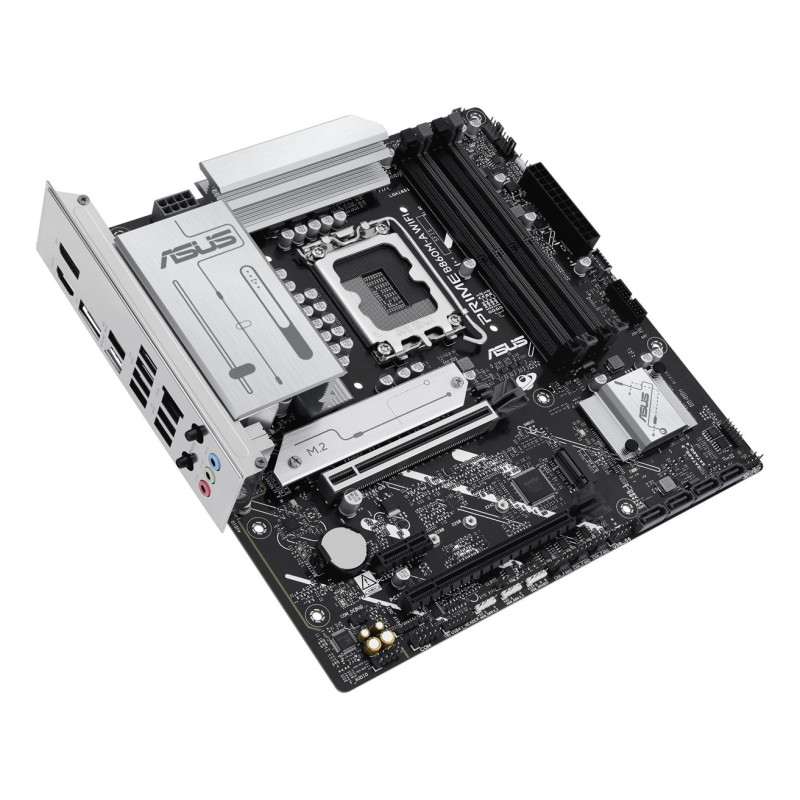

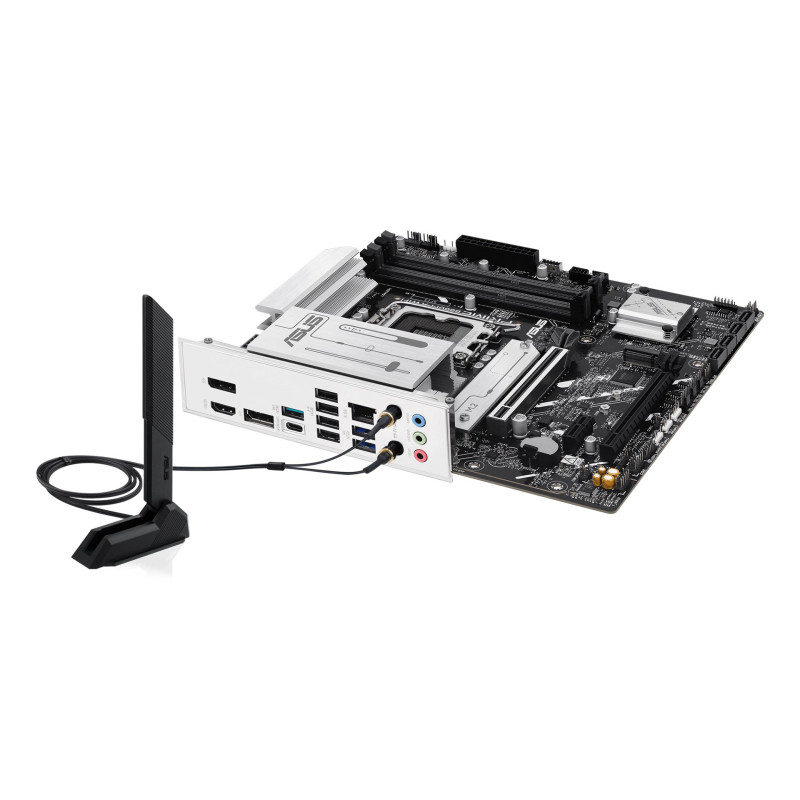

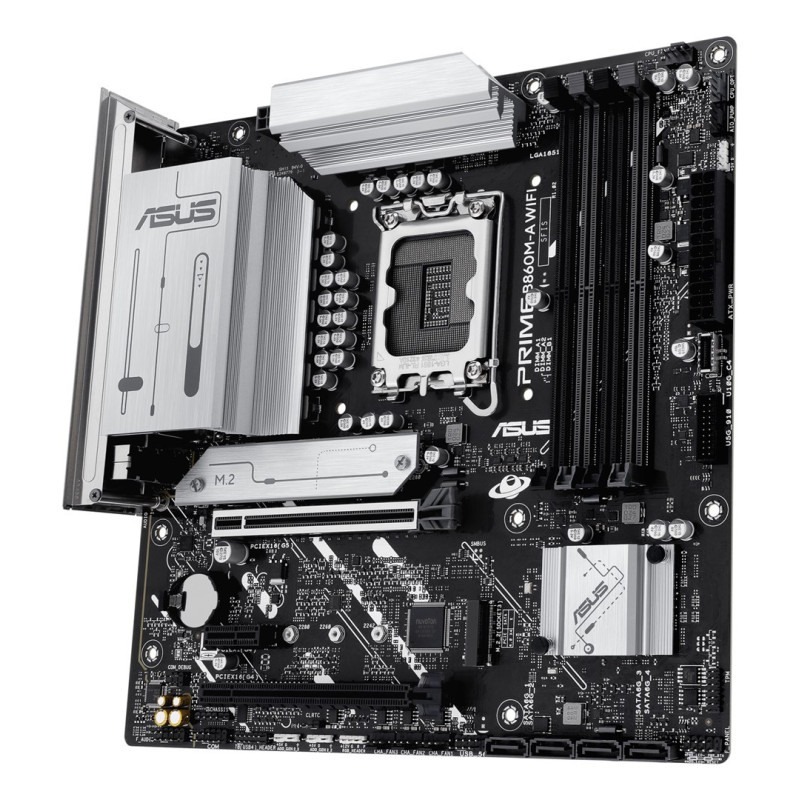

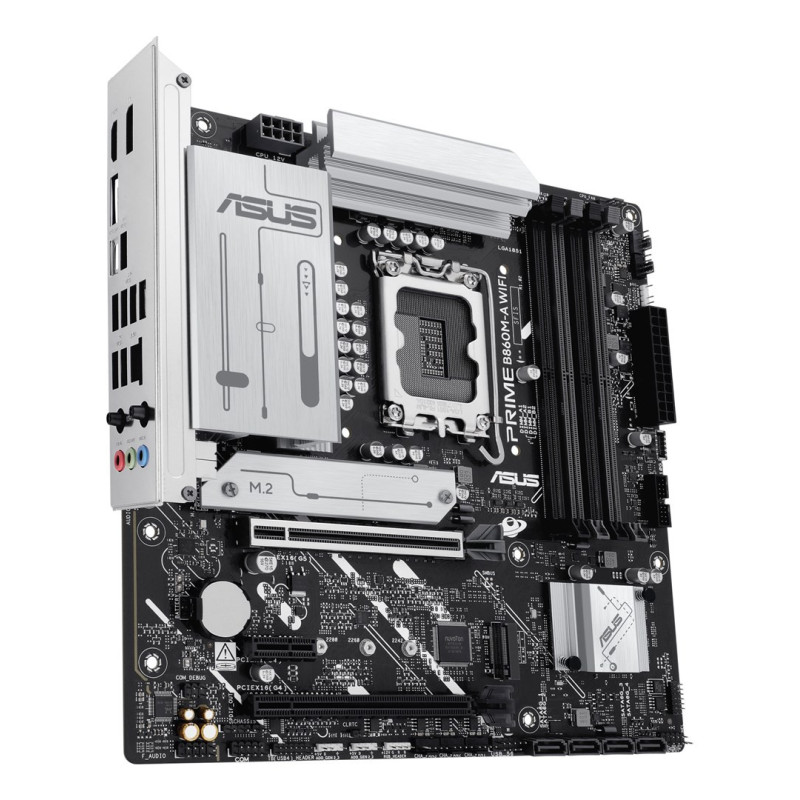

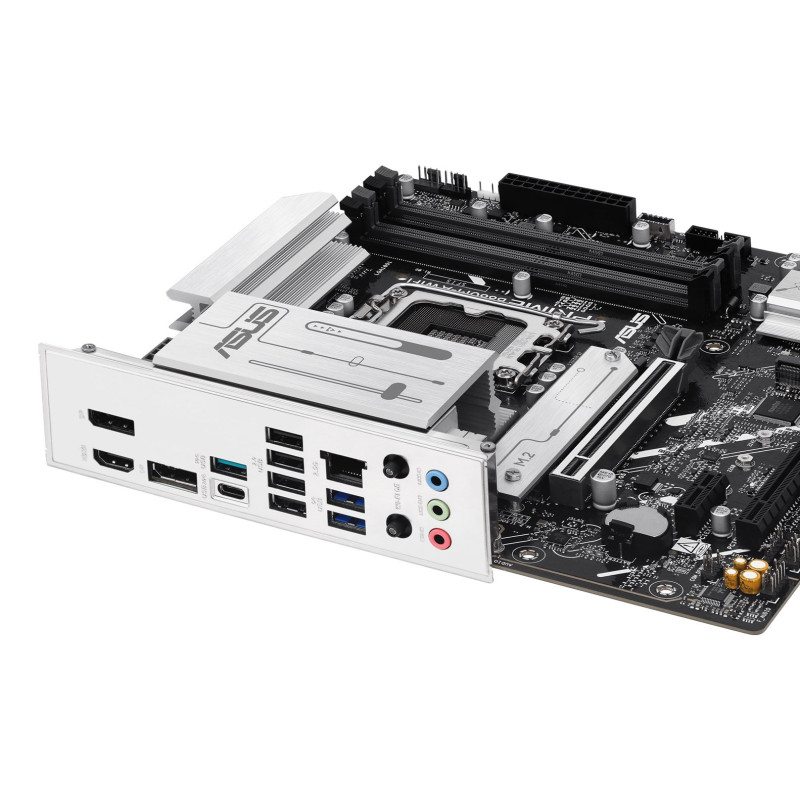

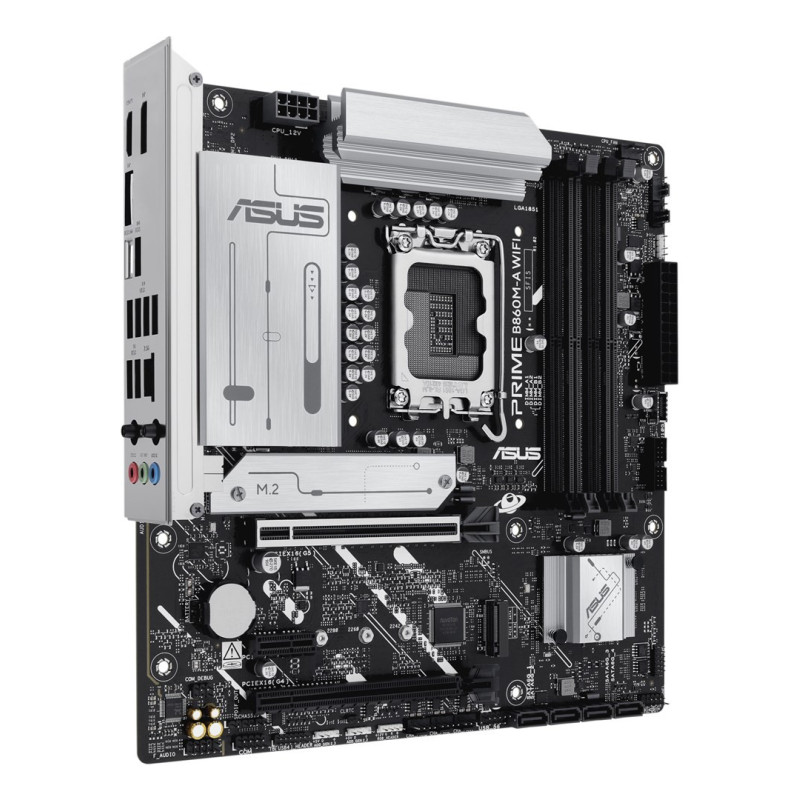

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
Product reference:
6-90MB1JY0-M0EAY0
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
Product reference:
6-90MB1JY0-M0EAY0
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Parallel processing technology support | Not supported |
| Motherboard chipset | Intel B860 |
| Windows operating systems supported | Windows 11, Windows 10 x64 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Depth | 244 mm |
| Width | 244 mm |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| ATX Power connector (24-pin) | Yes |
| S/PDIF out connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 1 |
| Chassis intrusion connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Screws included | Yes |
| Cables included | SATA |
| Antenna included | Yes |
| Number of storage drives supported | 6 |
| RAID levels | 1, 10, 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| RAID support | Yes |

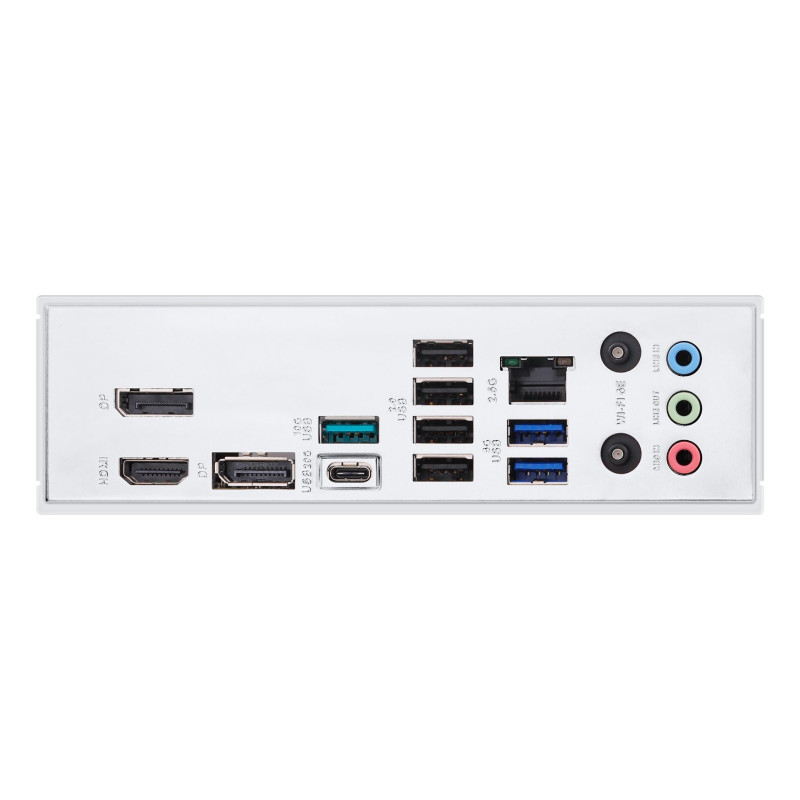

| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Warnings | Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics. |
