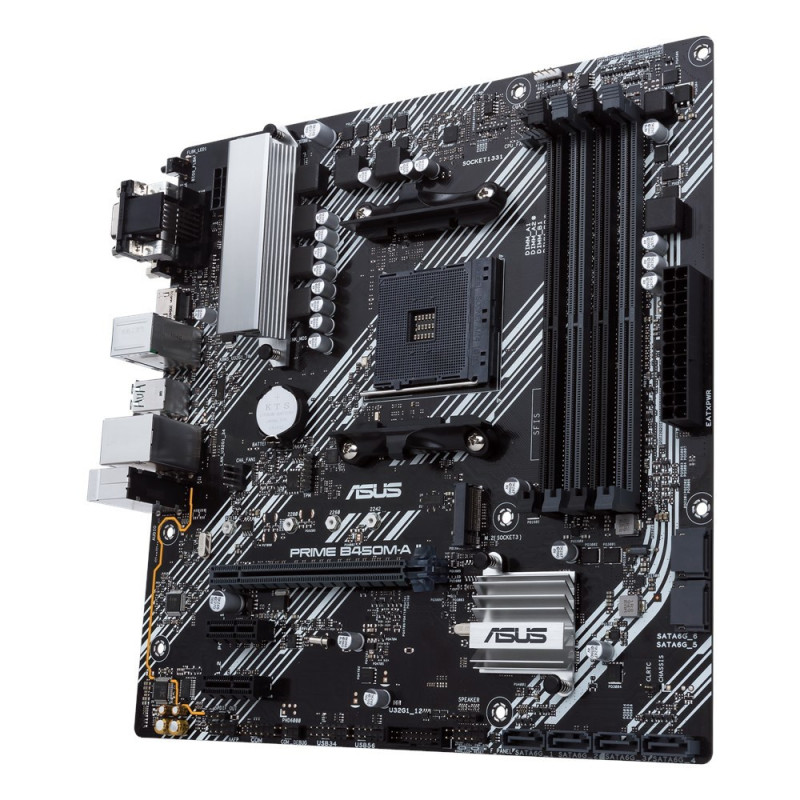

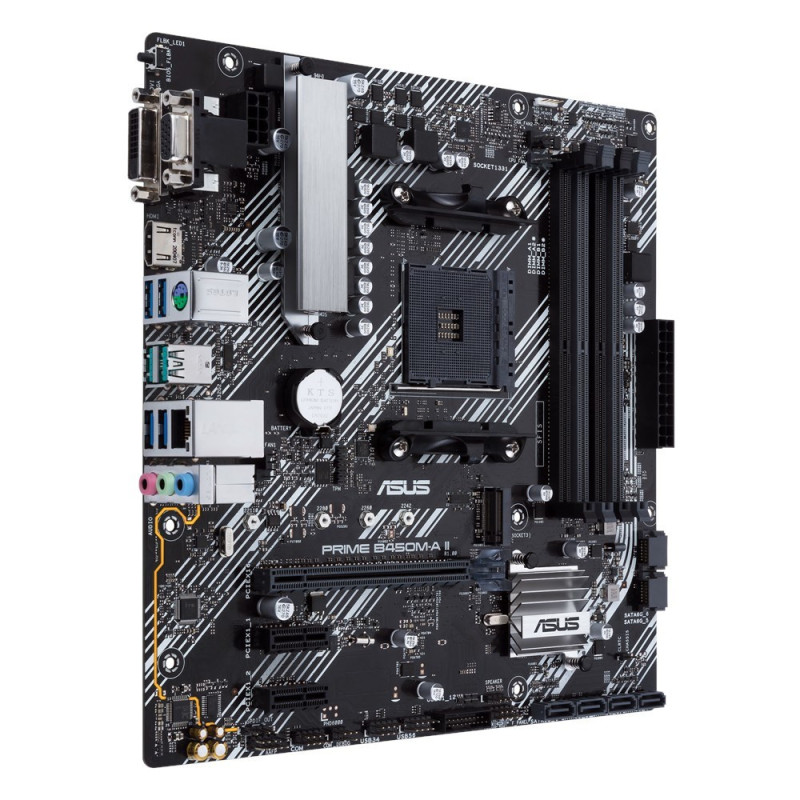

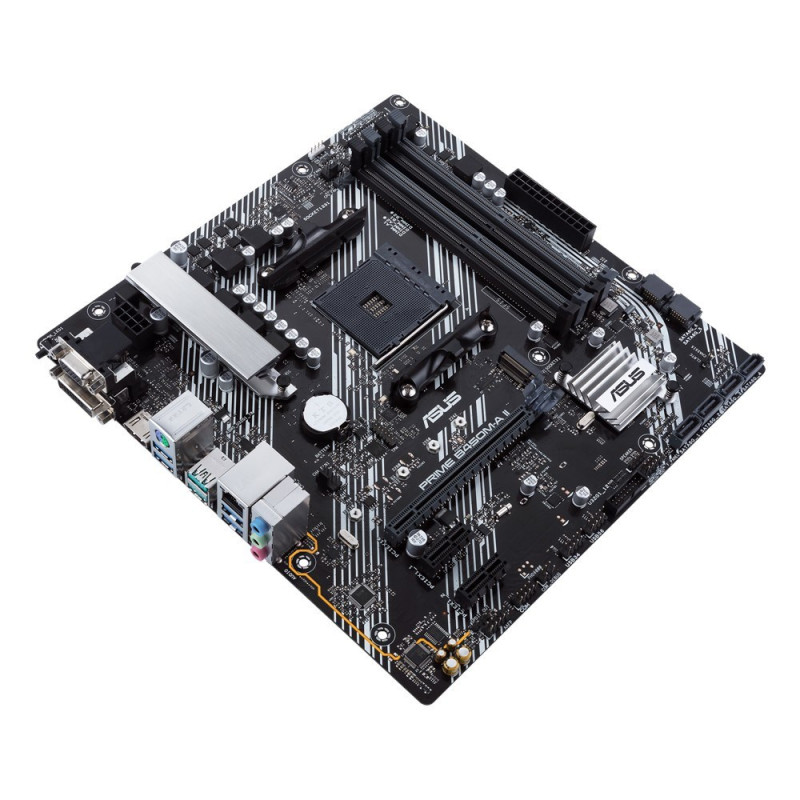

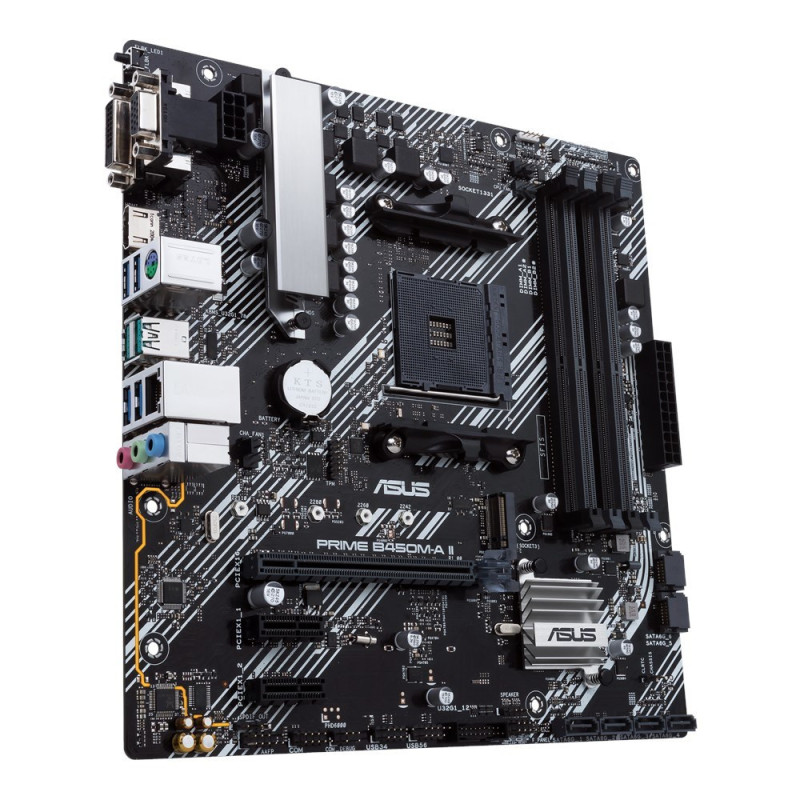

ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450
Product reference:
6-90MB15Z0-M0EAY0
ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450
ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450
Product reference:
6-90MB15Z0-M0EAY0
ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3 AMD Ryzen™ 5 AMD Ryzen™ 7 3rd Generation AMD Ryzen™ 9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Parallel processing technology support | Not supported |
| Motherboard chipset | AMD B450 |
| Windows operating systems supported | Windows 10 x64 Windows 7 x64 |
| Audio output channels | 7.1+2 channels |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Supported memory clock speeds | 3000 2400 2800 2133 MHz 3200 2666 3466 4000 3733 4400 3400 3866 3600 3300 |
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Width | 244 mm |
| Depth | 240 mm |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 6 |
| S/PDIF out connector | Yes |
| 12V power connector | Yes |
| Front panel audio connector | Yes |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Audio connector | Yes |
| RGB LED pin header | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |

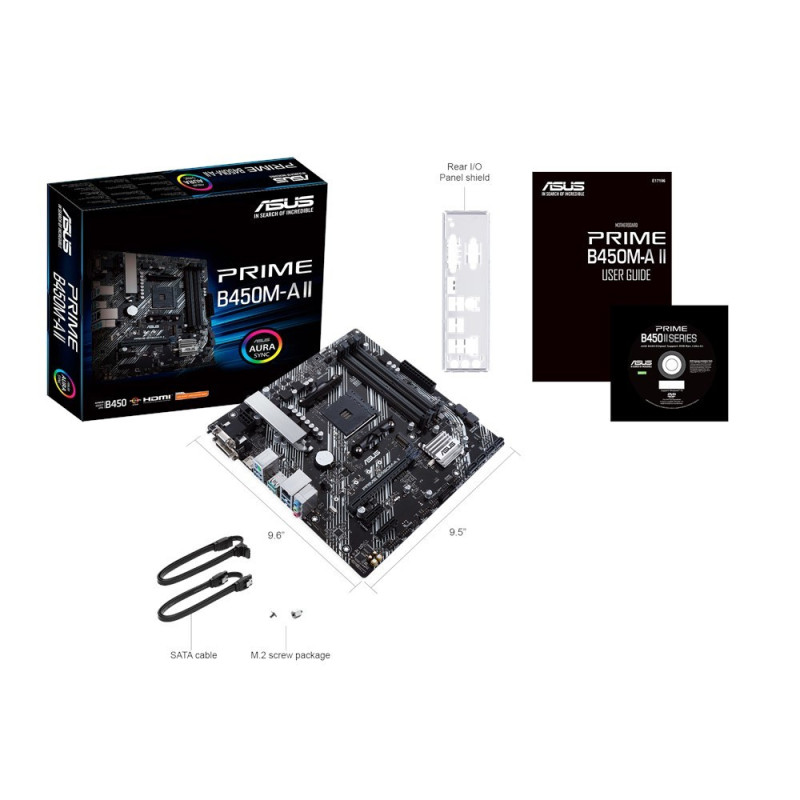

| Cables included | SATA |
| Drivers included | Yes |
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDD & SSD |

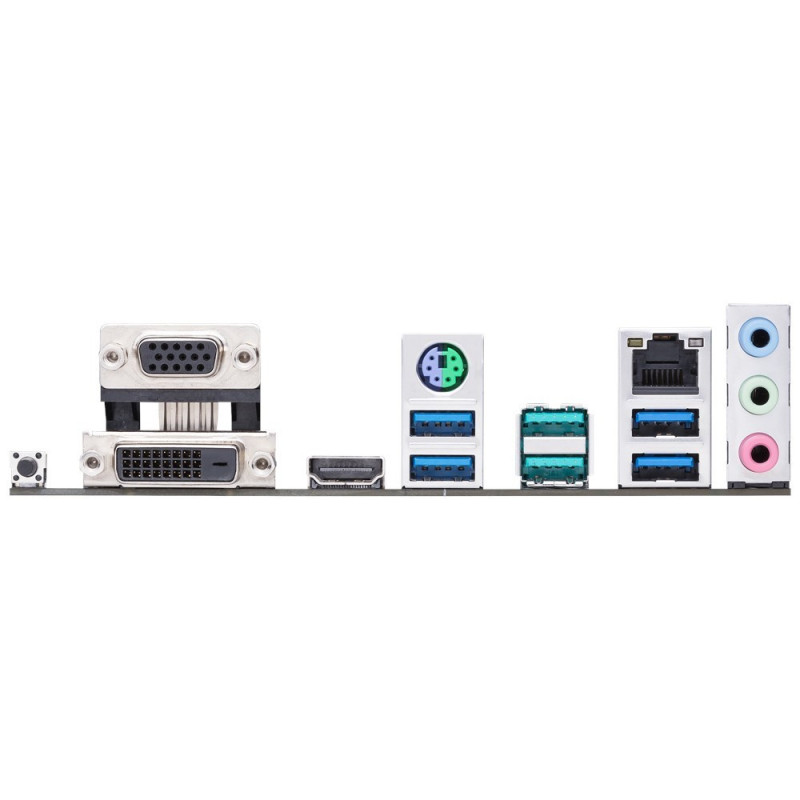

| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| Warnings | Avoid direct contact with sensitive electronic components. Dispose of according to local electro-waste regulations. Store away from water and sources of moisture. |
