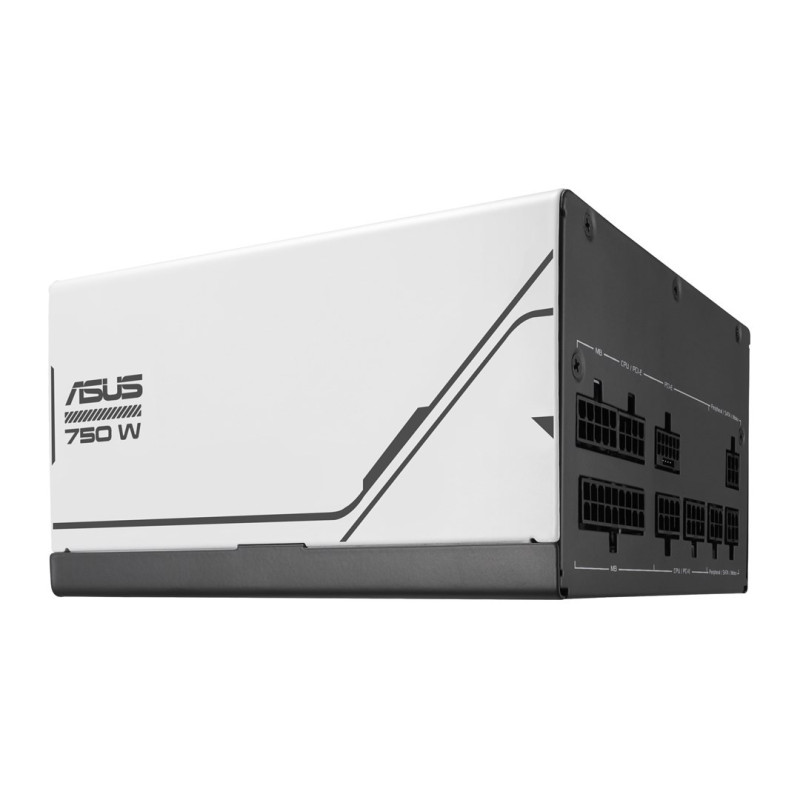

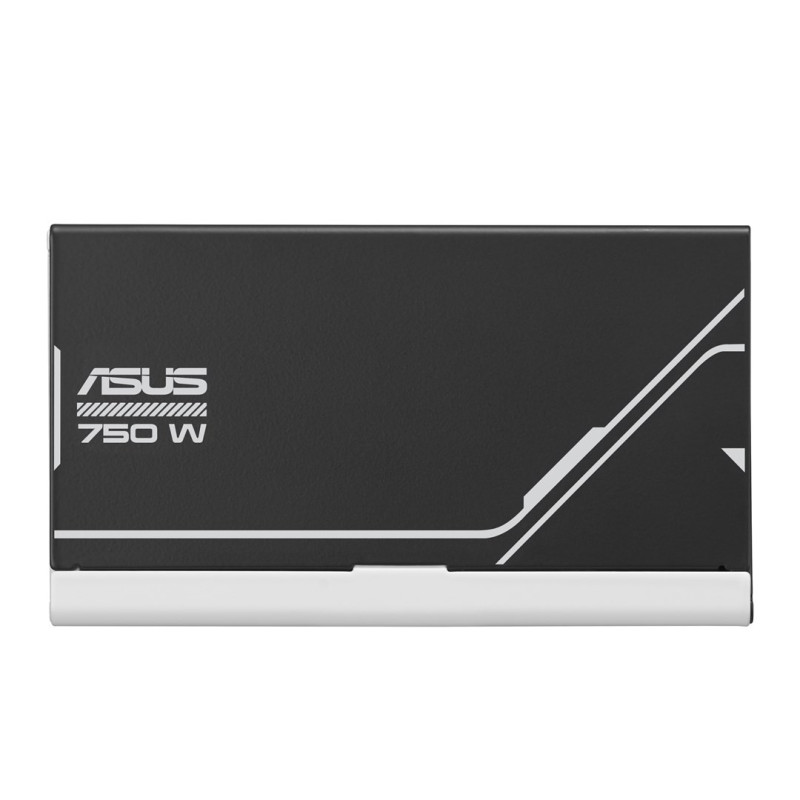

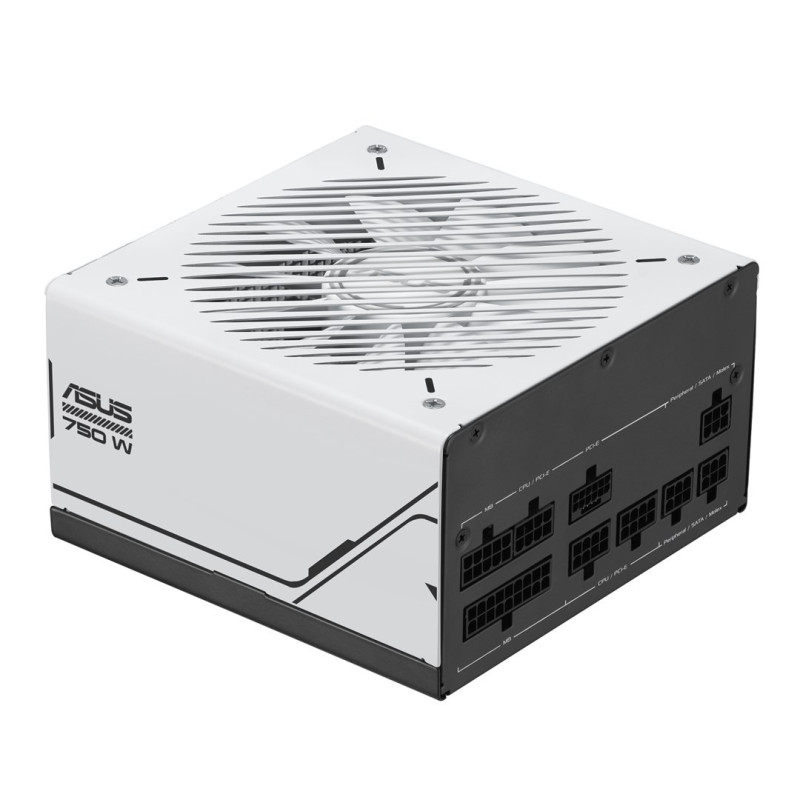

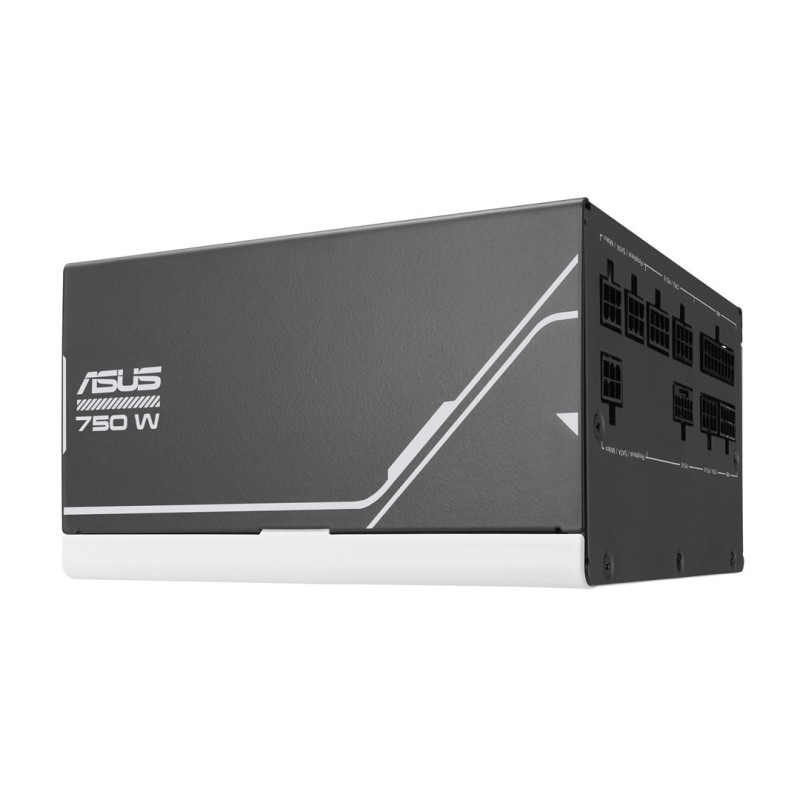

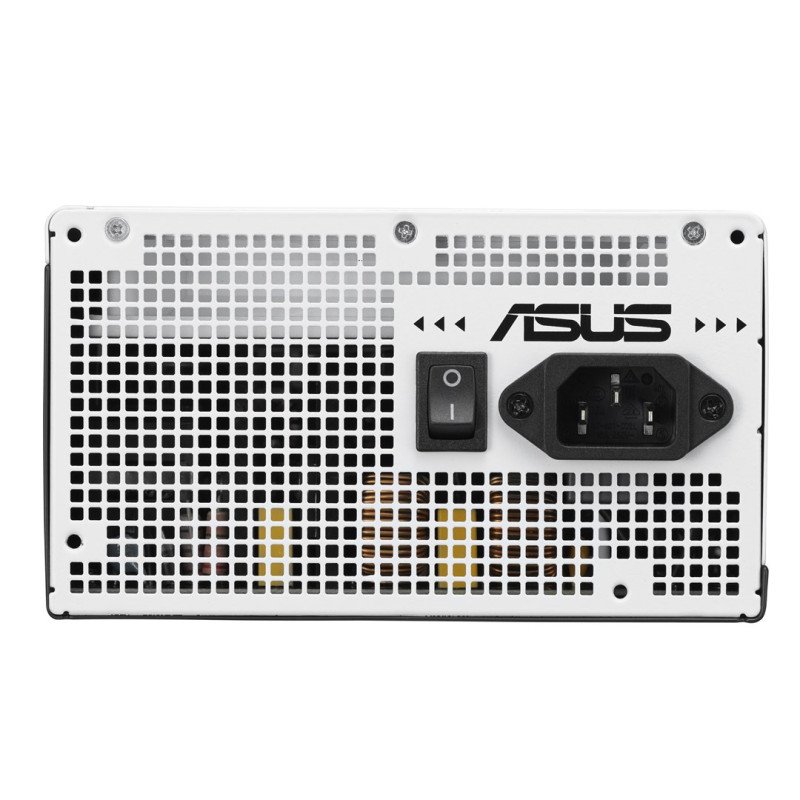

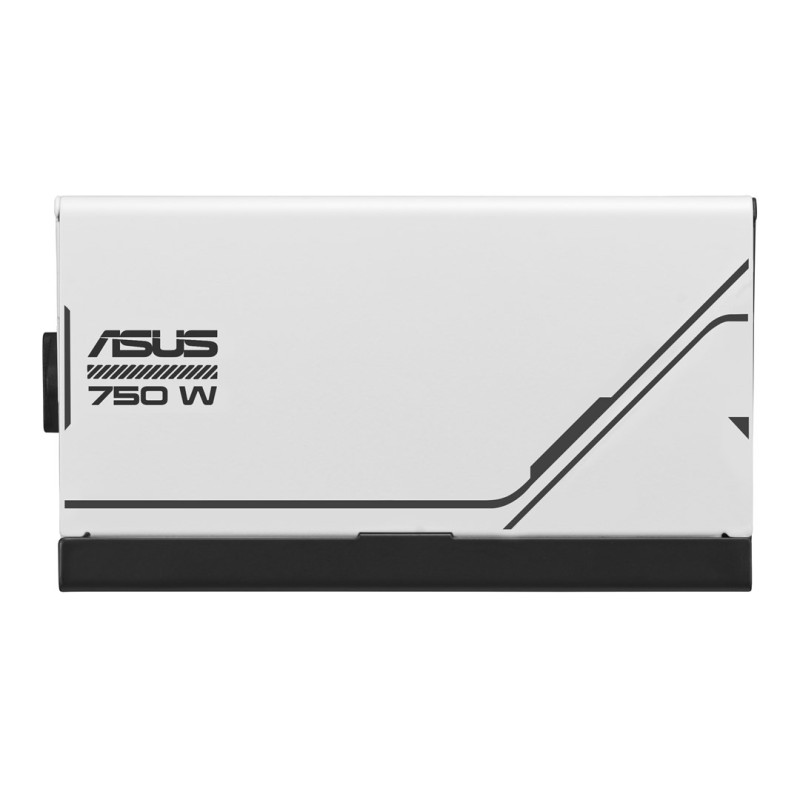

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

Product reference: 6-90YE00U1-B0NA00

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

Product reference: 6-90YE00U1-B0NA00

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

You have 3 products in compare list, please remove someone and try again

Add to compare

14648 €

Last product in warehouse

Guarantee
96 month

Delivery from Europe in
6 - 11
business days

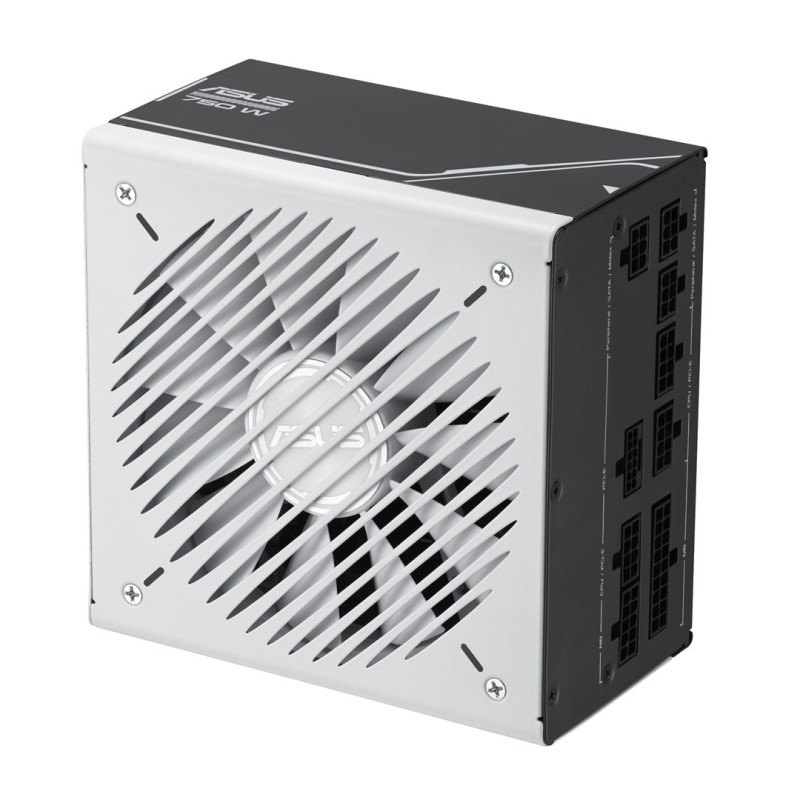

Cooling type	Active

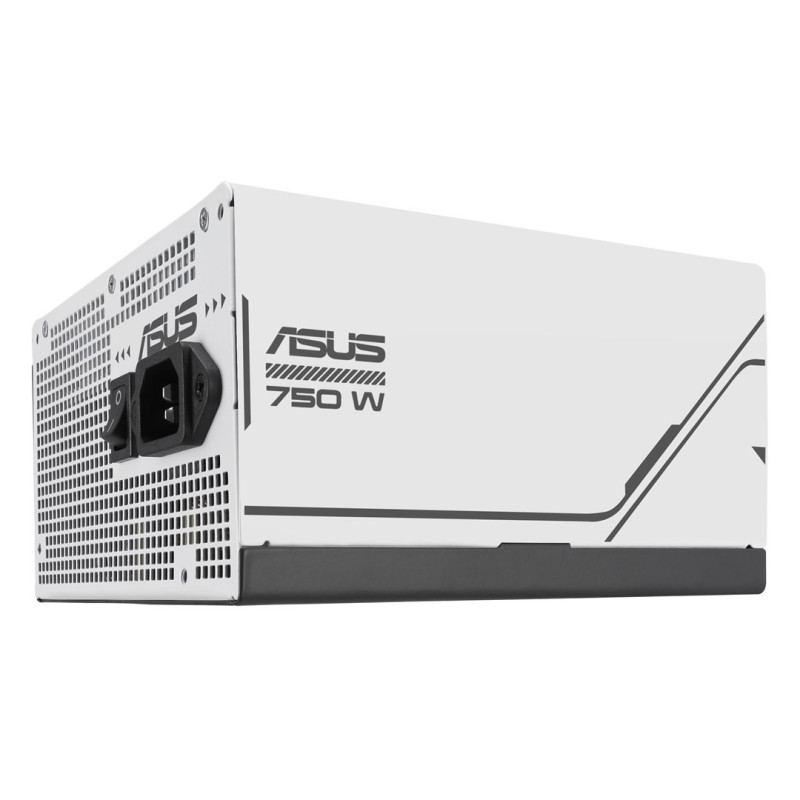

On/off switch	Yes
Product colour	Black, White
AC input voltage	100 - 240 V
Power protection features	Under voltage, Overheating, Over power, Short circuit, Over voltage, Overcharge
Max output current (+5Vsb)	2.5 A
Combined power (-12V)	3.6 W
Max output current (+5V)	20 A
Combined power (+5Vsb)	12.5 W
Combined power (+5V)	110 W
Max output current (+3.3V)	20 A
Total power	750 W
Combined power (+12V)	744 W
Combined power (+3.3V)	110 W
Power Factor Correction (PFC) type	Active
Max output current (+12V)	62 A
Efficiency	92%
Max output current (-12V)	0.3 A
Depth	150 mm
Width	150 mm
Weight	1.47 kg
Height	86 mm
Power supply unit (PSU) form factor	ATX
Bearing technology	Ball bearing
Purpose	PC
80 PLUS certification	80 PLUS Gold
ATX version	3.0
Mean time between failures (MTBF)	120000 h

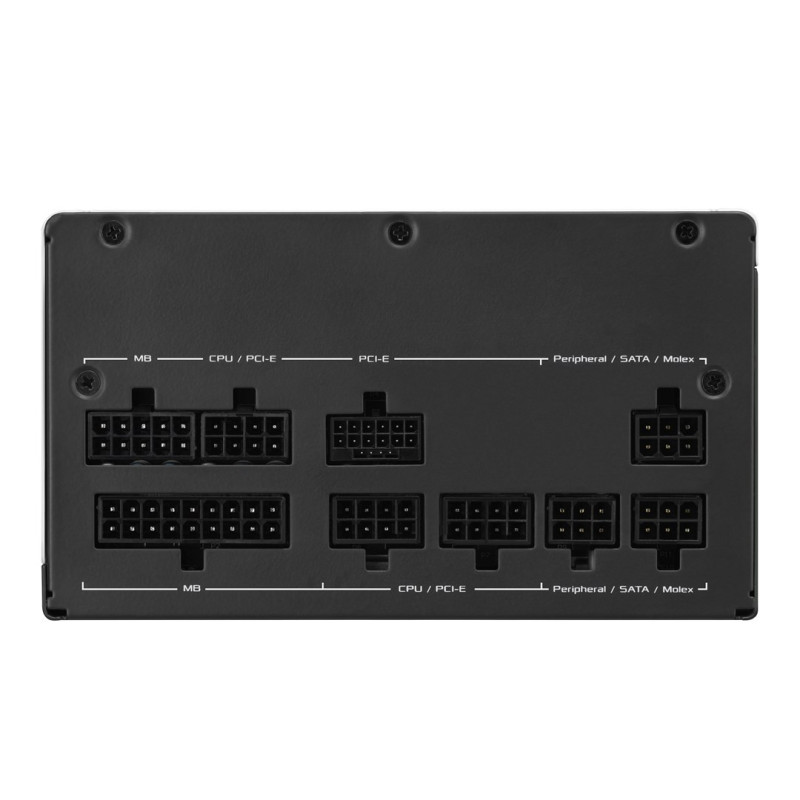

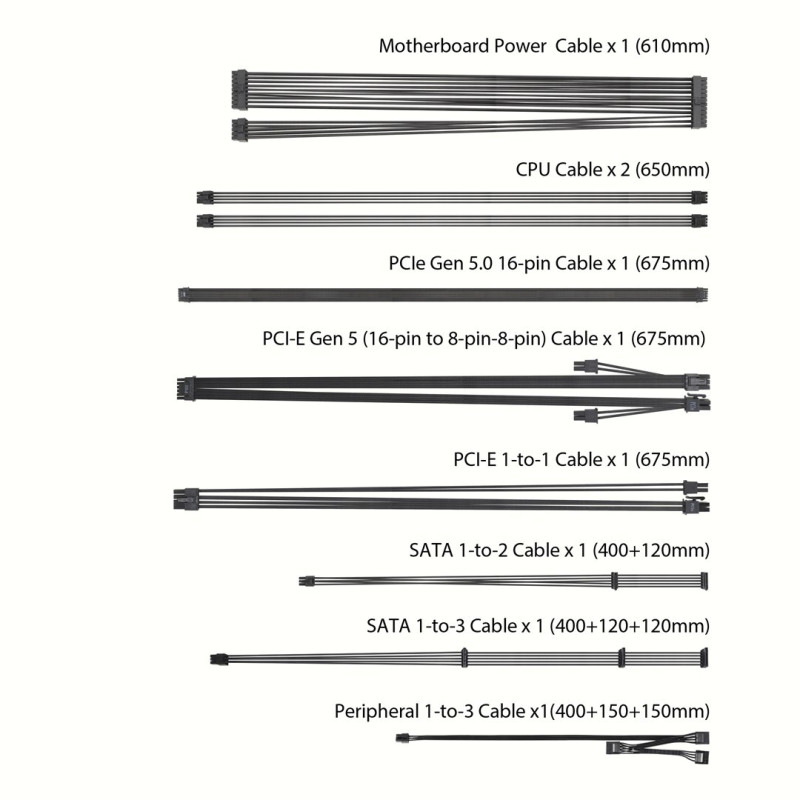

Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (16-pin)	1
Peripheral (Molex) power cable length	150, 400 mm
SATA power cable length	400 mm, 120
Motherboard power cable length	61 cm
Motherboard power connector	20+4 pin ATX
ATX power connector (20+4 pin)	Yes
CPU P4 connector (4-pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (8-pin)	3
Cabling type	Fully-Modular
CPU power cable length	65 cm
Number of SATA power connectors	5
