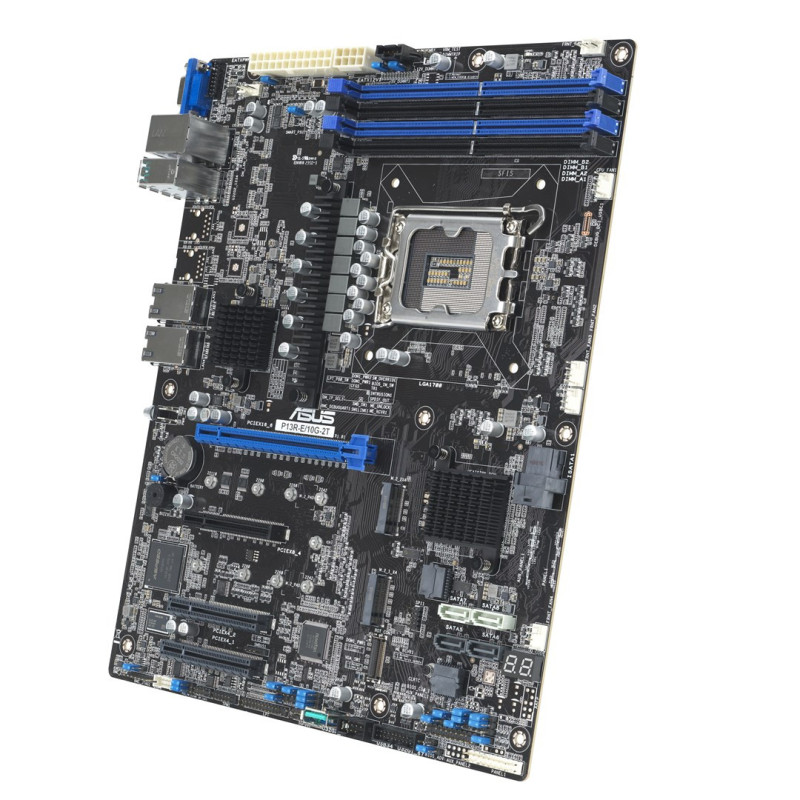

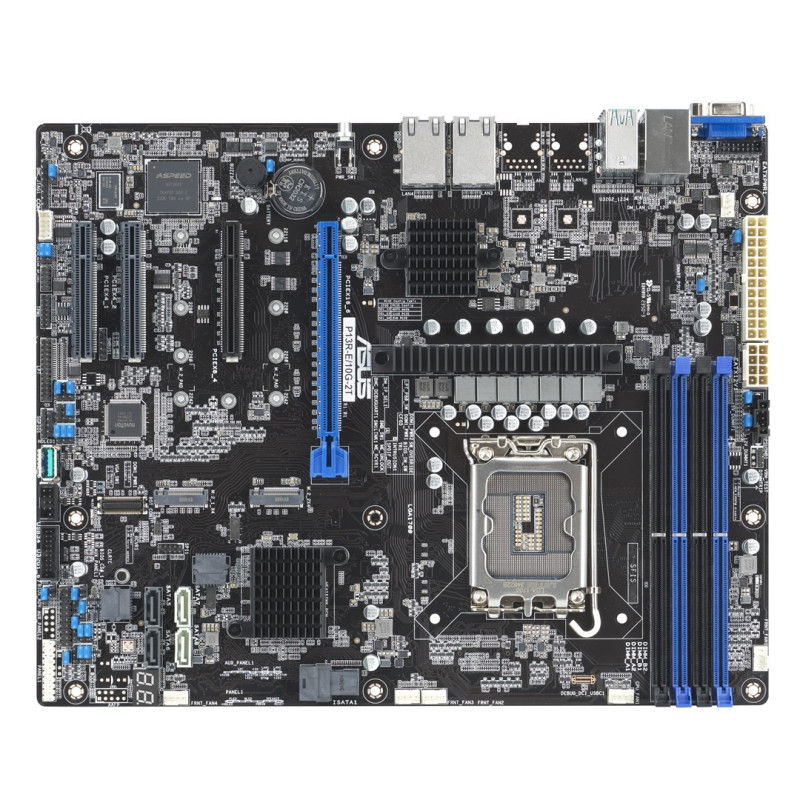

ASUS P13R-E / 10G-2T Intel C266 LGA 1700 ATX
Product reference:
6-90SB0CY0-M0UAY1
ASUS P13R-E/10G-2T Intel C266 LGA 1700 ATX
ASUS P13R-E / 10G-2T Intel C266 LGA 1700 ATX
Product reference:
6-90SB0CY0-M0UAY1
ASUS P13R-E/10G-2T Intel C266 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Xeon E, Intel® Pentium® |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Temperature, CPU, Fan |
| Motherboard chipset family | Intel |
| Product colour | Black |
| Power source type | ATX |
| Motherboard chipset | Intel C266 |
| Motherboard form factor | ATX |
| Component for | Server |
| Cooling type | Passive |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4400 MHz |
| Maximum internal memory per slot | 32 GB |
| Supported memory clock speeds | 4400 MHz, 4000, 3600 MHz |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 305 mm |
| Depth | 244 mm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of SATA III connectors | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 1 |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Front panel connector | Yes |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express, SATA III |
| Number of storage drives supported | 10 |

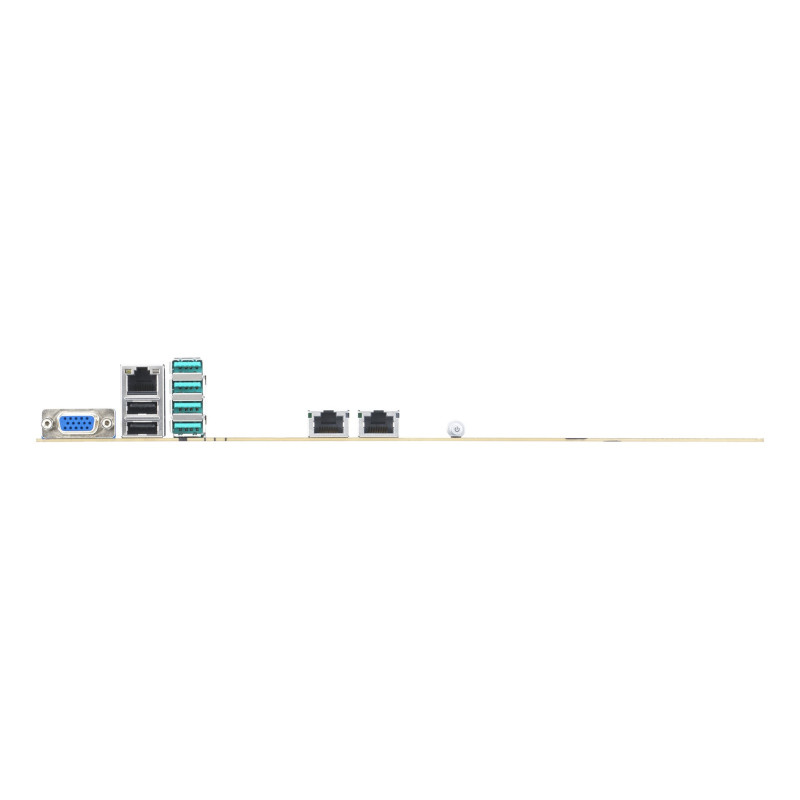

| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 2 |
| Weight | 800 g |
