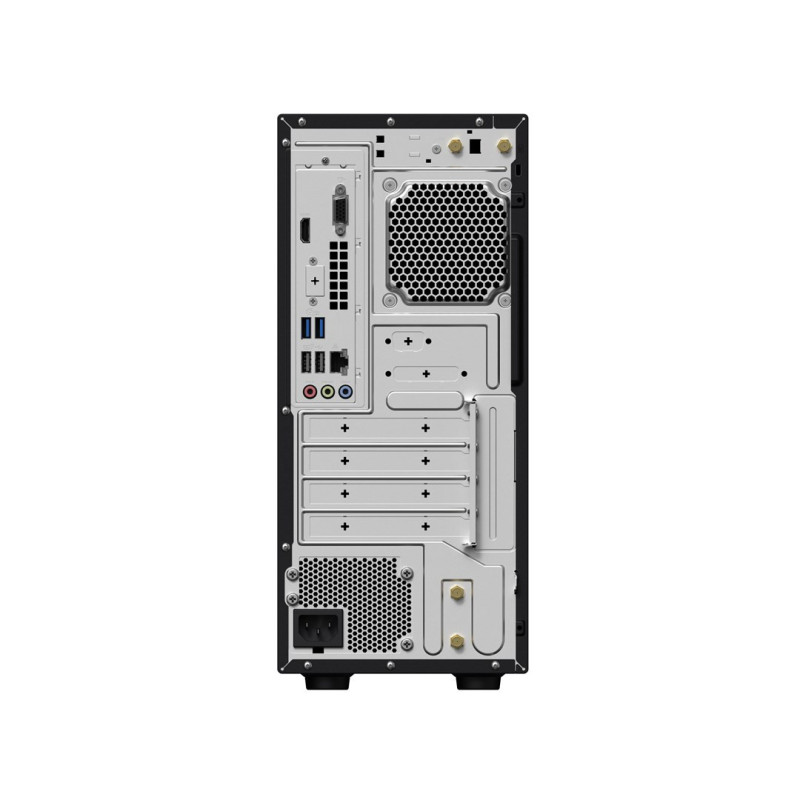

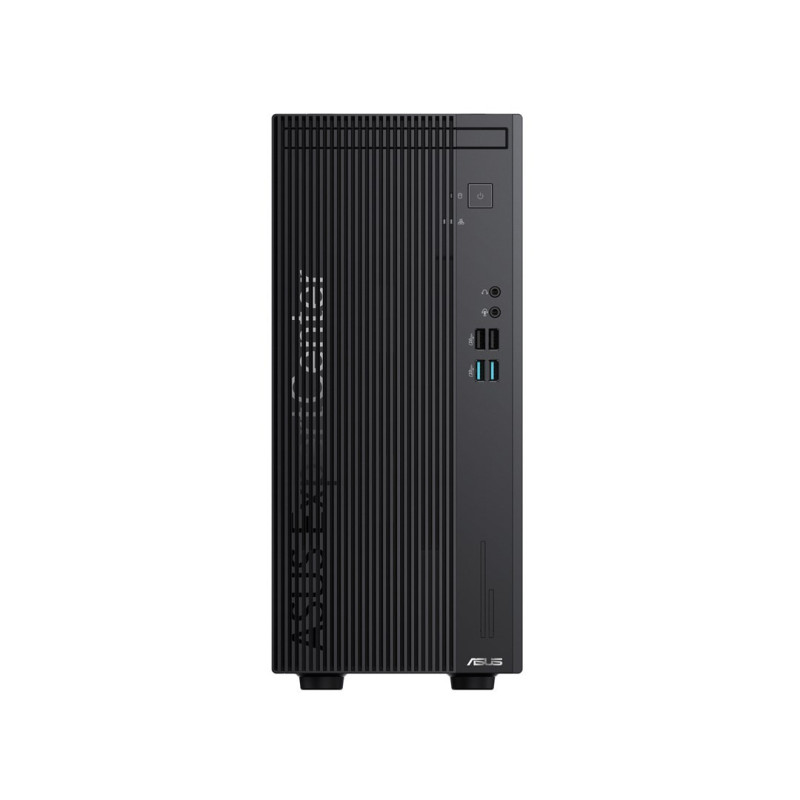

ASUS ExpertCenter D5 Mini Tower D501MER-514500009X Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Black
ASUS ExpertCenter D5 Mini Tower D501MER-514500009X Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Black
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
Performance-core Max Turbo Frequency | 5 GHz |
Efficient-core Max Turbo Frequency | 3.7 GHz |
Processor model | i5-14500 |
Processor cores | 14 |
Performance-core base frequency | 2.6 GHz |
Processor threads | 20 |
Performance cores | 6 |
Efficient cores | 8 |
Processor cache | 24 MB |
Processor manufacturer | Intel |
Processor generation | Intel® Core™ i5 (14th gen) |
Processor base power | 65 W |
Processor family | Intel® Core™ i5 |
Maximum turbo power | 154 W |
Efficient-core base frequency | 1.9 GHz |
Processor boost frequency | 5 GHz |
Processor cache type | Smart Cache |
Discrete graphics card | No |
On-board graphics card family | Intel® UHD Graphics |
On-board graphics card model | Intel UHD Graphics 770 |
Discrete graphics card model | Not available |
On-board GPU manufacturer | Intel |
On-board graphics card | Yes |
Internal memory | 16 GB |
Internal memory type | DDR5-SDRAM |
Maximum internal memory | 64 GB |
Chassis type | Mini Tower |
Cable lock slot | Yes |
Product colour | Black |
Cable lock slot type | Kensington |
Power supply | 180 W |
Height | 347 mm |
Depth | 296 mm |
Width | 155 mm |
Weight | 6 kg |
Mobile network connection | No |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10 1000 100 |
Bluetooth | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Wi-Fi | Yes |
Powered by | ASUS |
Password protection type | User HDD |
Trusted Platform Module (TPM) | Yes |
Product type | PC |
Audio system | High Definition Audio |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel B760 |
Market positioning | Business |
Password protection | Yes |
Display included | No |
Operating system installed | Windows 11 Pro |
Operating system architecture | 64-bit |
NVMe | Yes |
SSD capacity | 512 GB |
SSD form factor | M.2 |
Storage media | SSD |
Total storage capacity | 512 GB |
Number of storage drives installed | 1 |
Total SSDs capacity | 512 GB |
SSD interface | PCI Express 4.0 |
Number of SSDs installed | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Headphone outputs | 1 |
Combo headphone/mic port | Yes |
HDMI version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
Warnings | Warning: When in use, do not cover the computer's vents to avoid overheating. The product contains electrical components which may be hazardous if used incorrectly. Avoid contact with water and store in a dry place. |
