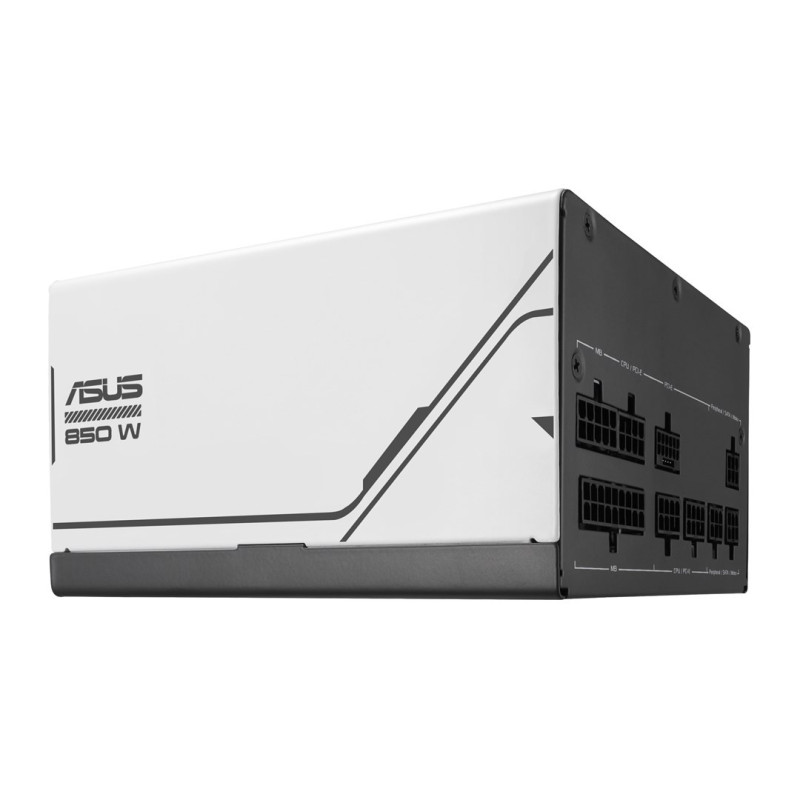

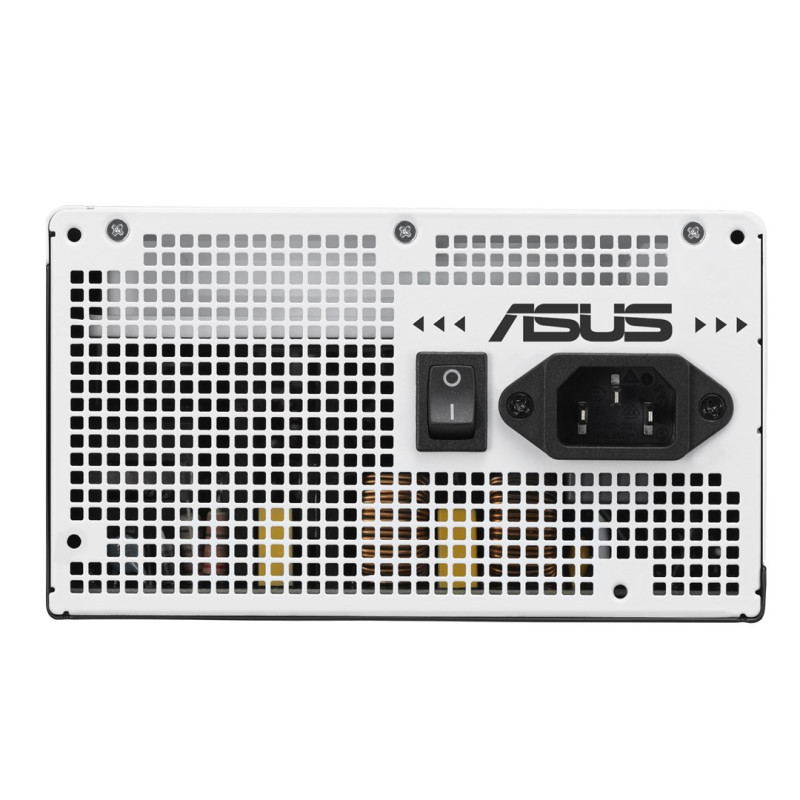

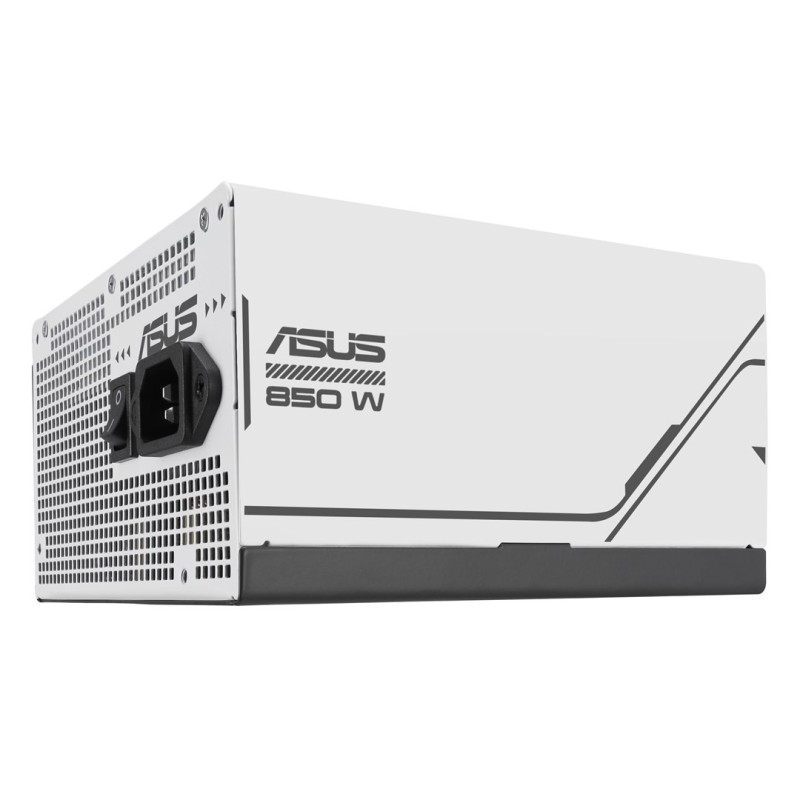

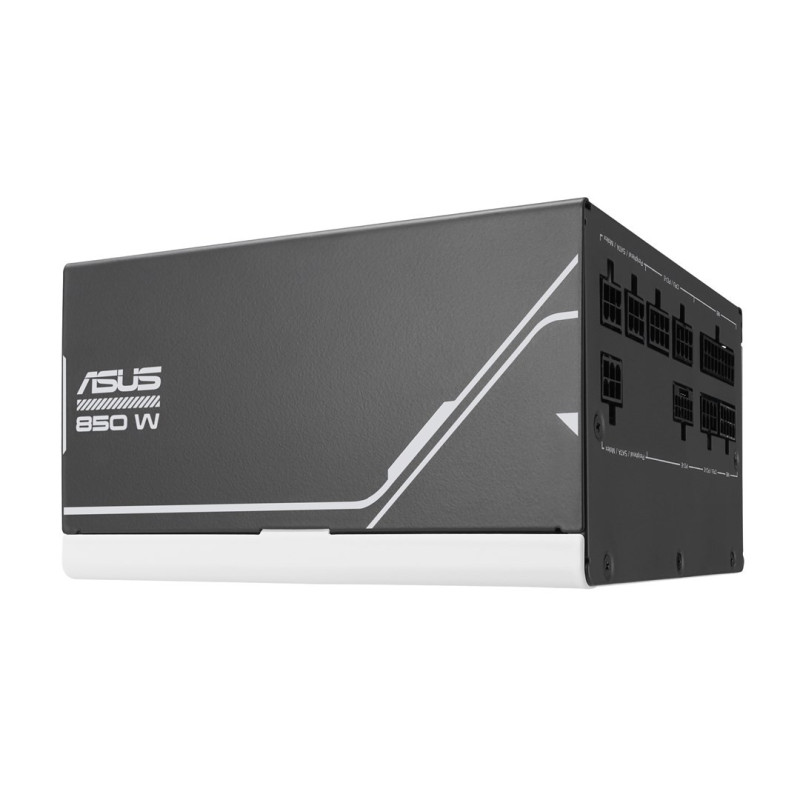

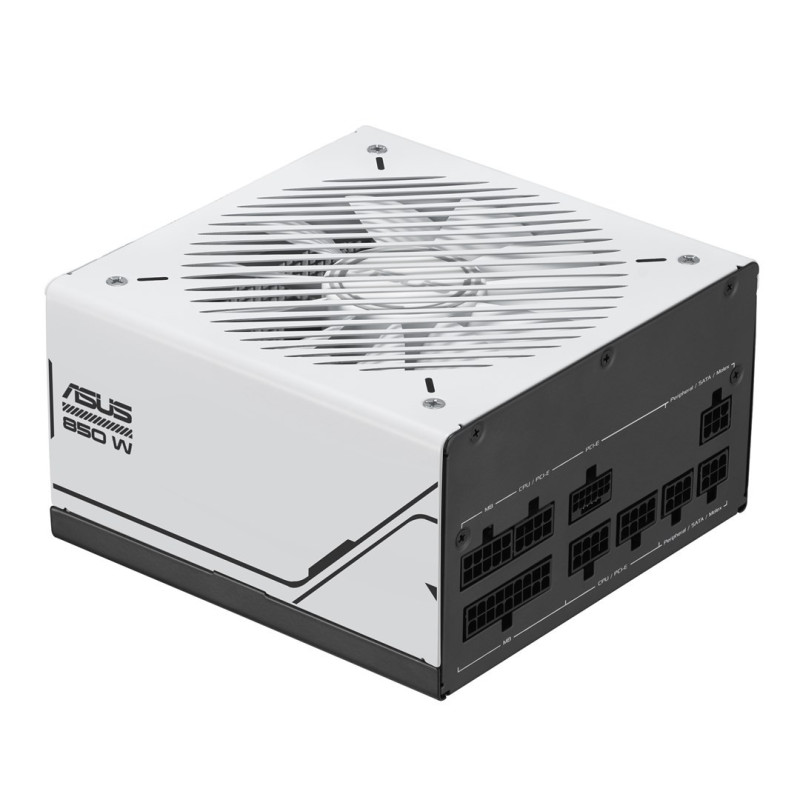

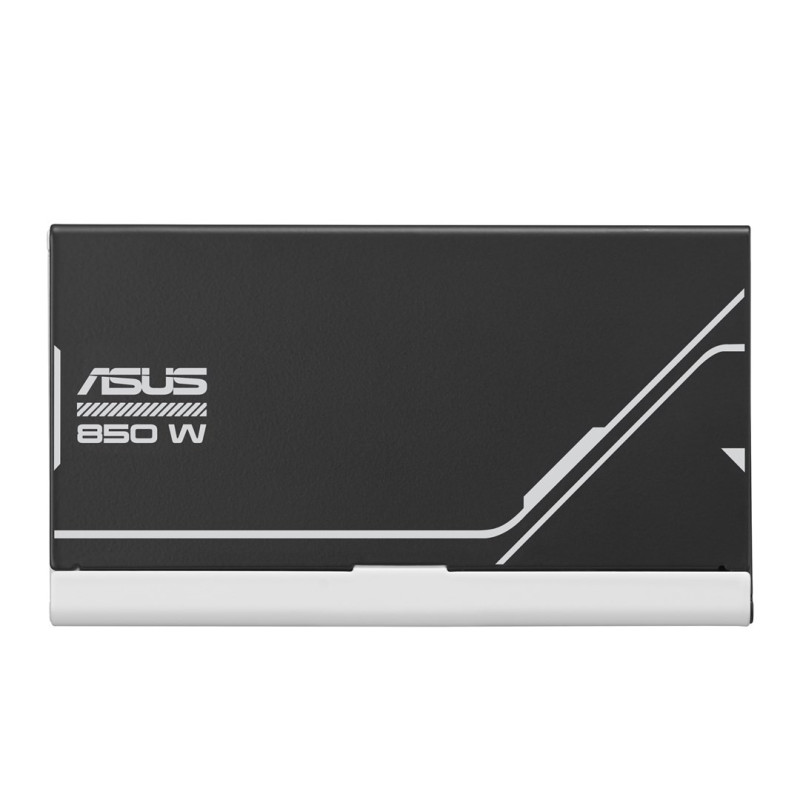

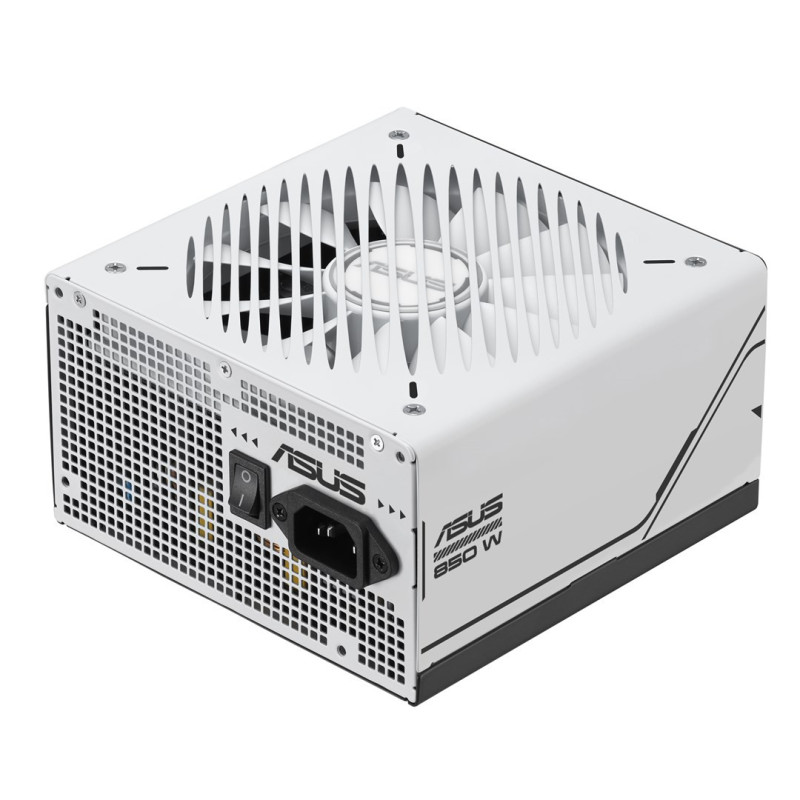

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

Product reference: 6-90YE00U0-B0NA00

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

Product reference: 6-90YE00U0-B0NA00

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

You have 3 products in compare list, please remove someone and try again

Add to compare

14811 €

Product in warehouse

Guarantee
96 month

Delivery from Europe in
6 - 11
business days

Cooling type	Active
Product colour	Black White

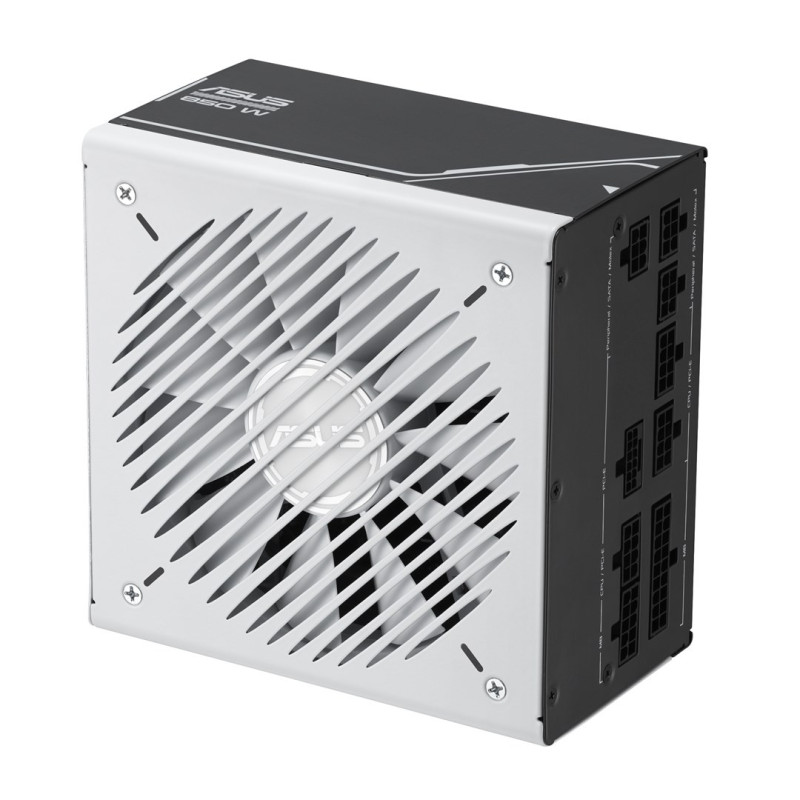

Number of fans	1 fan(s)
Fan location	Top
Illumination	Yes
AC input voltage	100 - 240 V
Combined power (+3.3V)	110 W
Combined power (+5Vsb)	12.5 W
Power protection features	Over power Under voltage Over current Overheating Short circuit Over voltage
Max output current (-12V)	0.3 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	2.5 A
Total power	850 W
Combined power (-12V)	3.6 W
Combined power (+12V)	846 W
Power Factor Correction (PFC) type	Active
Max output current (+12V)	70.5 A
Combined power (+5V)	110 W
Max output current (+3.3V)	20 A
Weight	1.5 kg
Width	150 mm
Depth	150 mm
Height	86 mm
Power supply unit (PSU) form factor	ATX
Purpose	PC
80 PLUS certification	80 PLUS Gold
Mean time between failures (MTBF)	120000 h
ATX version	3.0

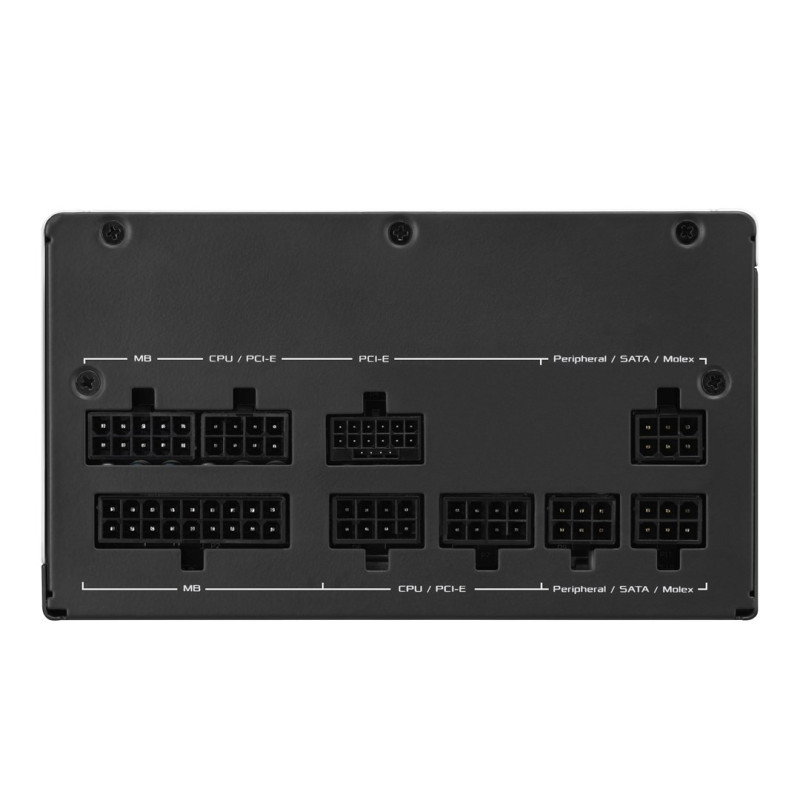

Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Compliance certificates	RoHS
Peripheral (Molex) power connectors (4-pin)	3
SATA power cable length	400 120 mm
Motherboard power cable length	61 cm
Peripheral (Molex) power cable length	400 150
CPU power connector (4+4 pin)	Yes
PCI Express power cable length	67.5 cm
PCI Express power connectors (8-pin)	3
Number of SATA power connectors	5
Cabling type	Fully-Modular
Motherboard power connector	20+4 pin ATX
CPU power cable length	65 cm
PCI Express power connectors (16-pin)	1
