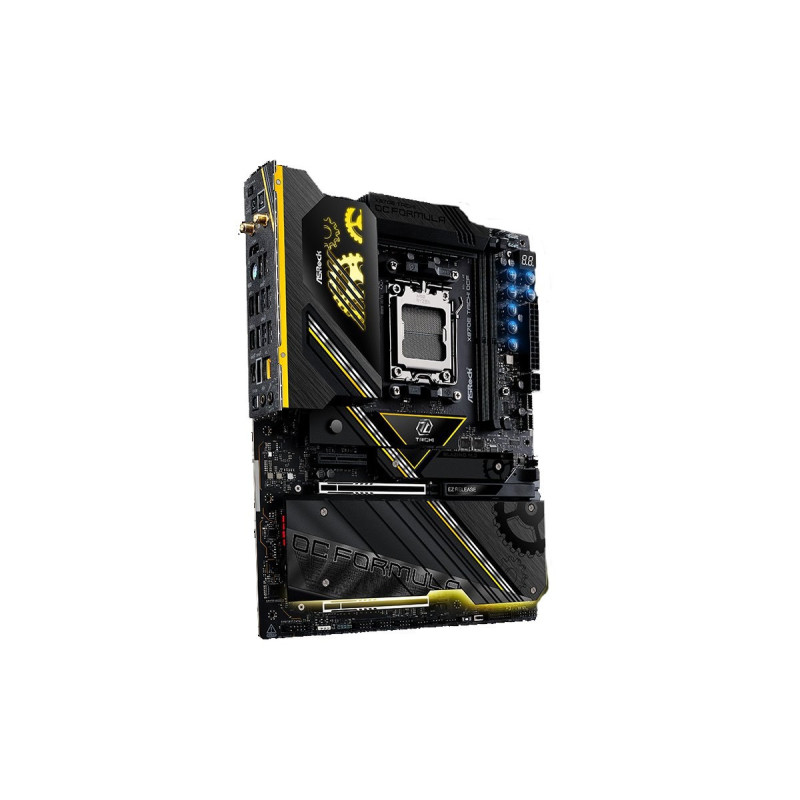

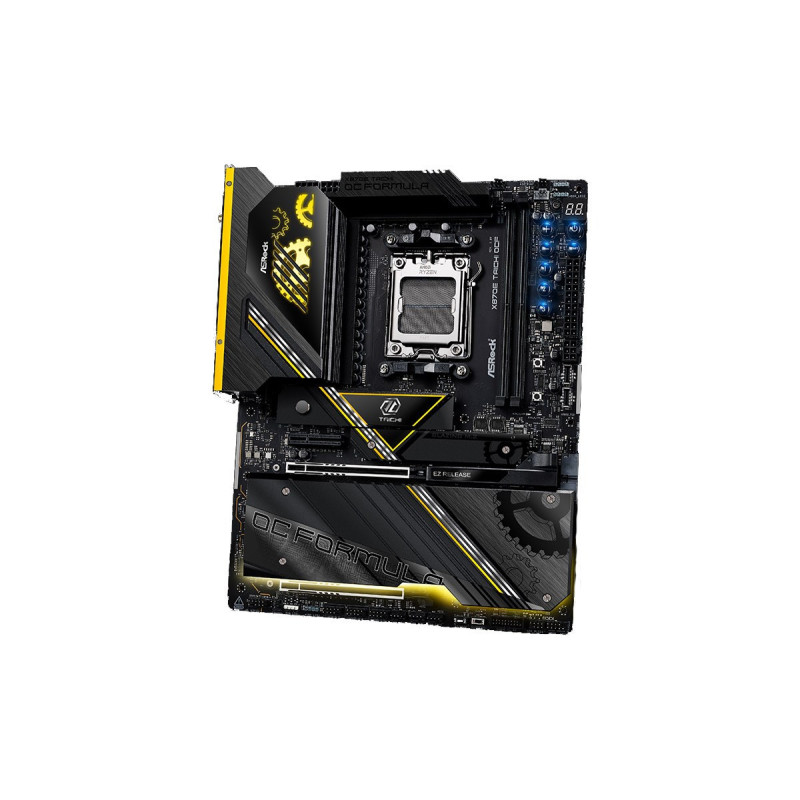

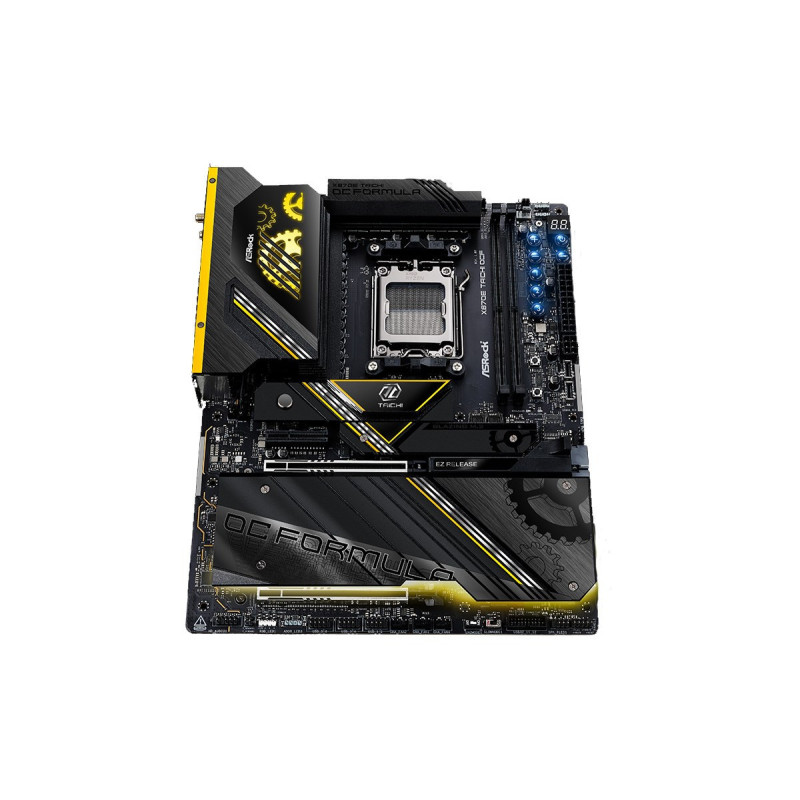

Asrock X870E TAICHI OCF motherboard
Product reference:
6-X870E TAICHI OCF
Asrock X870E TAICHI OCF motherboard
Asrock X870E TAICHI OCF motherboard
Product reference:
6-X870E TAICHI OCF
Asrock X870E TAICHI OCF motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| HDCP version | 2.3 |
| HDCP | Yes |
| Certification | - FCC, CE- ErP/EuP ready |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset family | AMD |
| Audio output channels | 5.1 channels |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset | AMD X870E |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Number of memory slots | 2 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Depth | 267 mm |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), 802.11 axe, 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 4 (802.11n), 802.11b |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Antenna type | 2x2 |
| LAN controller | Realtek RTL8126 |
| Number of CPU fan connectors | 2 |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 2 |
| 12V power connector | Yes |
| Number of SATA III connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Antenna included | Yes |
| RAID levels | 10, 1 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |

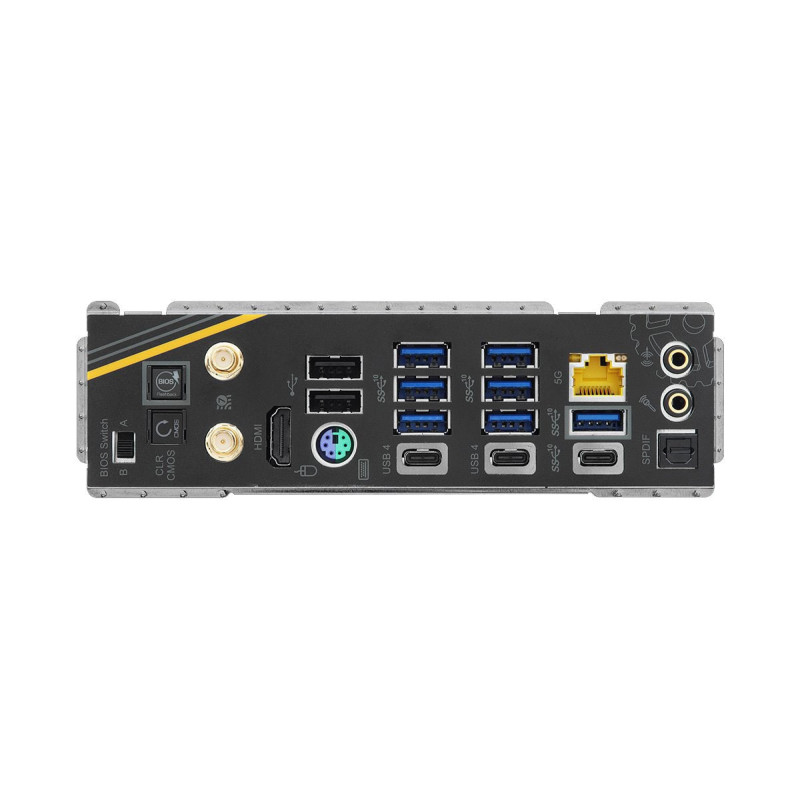

| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
