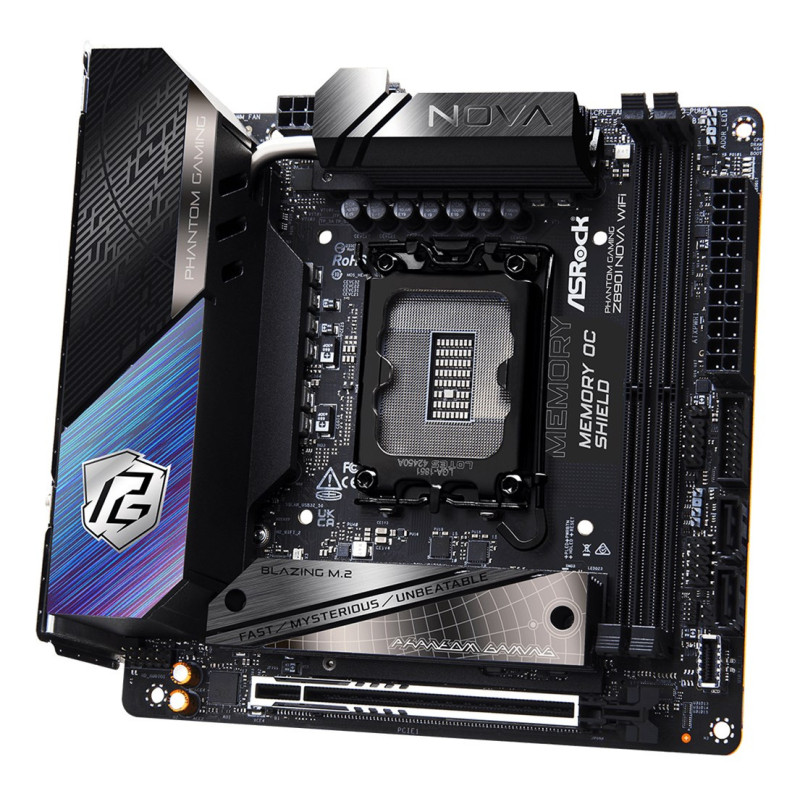

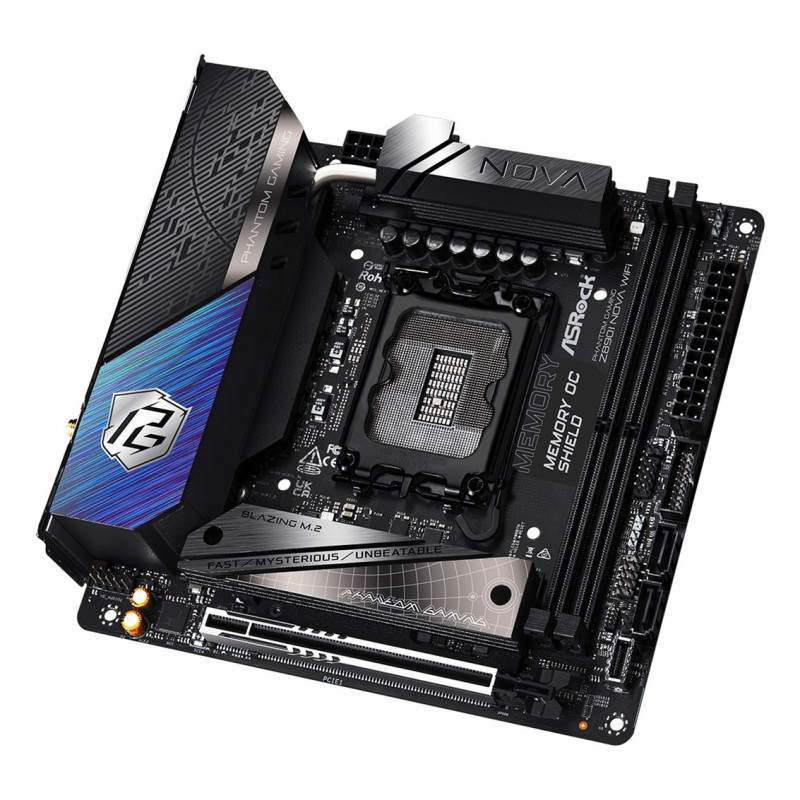

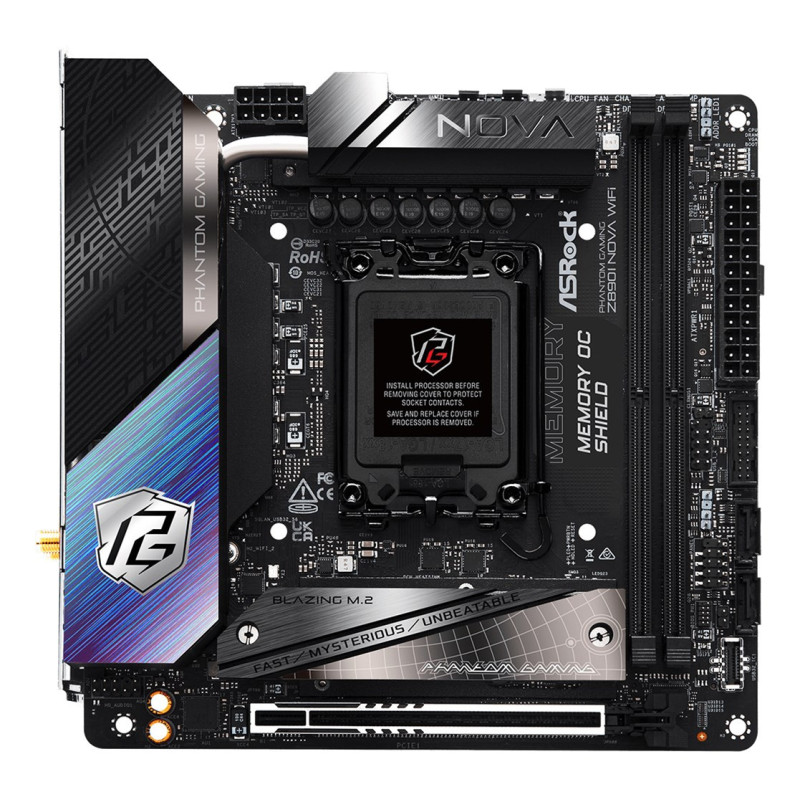

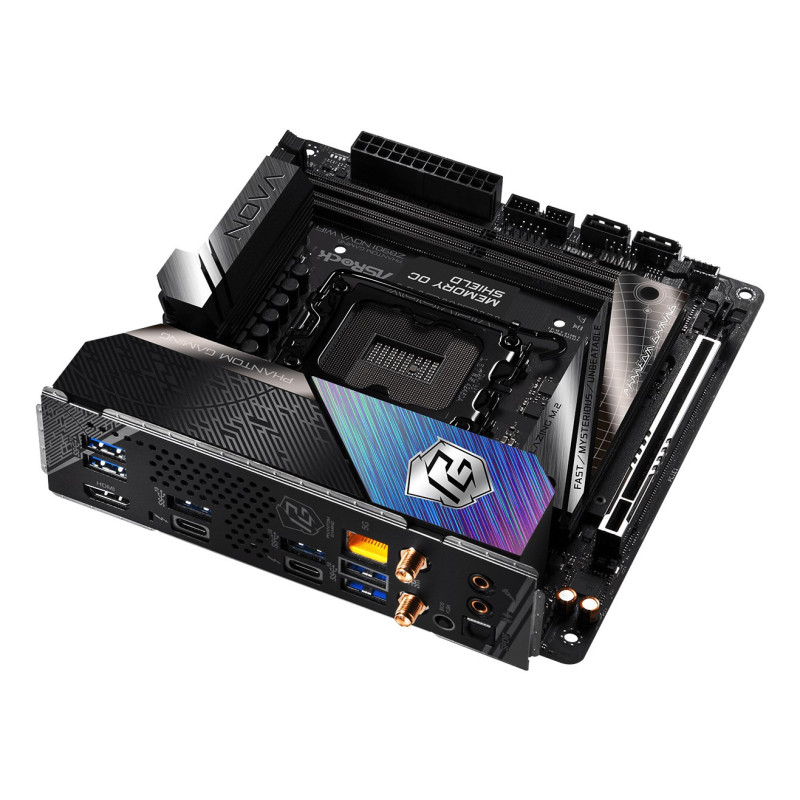

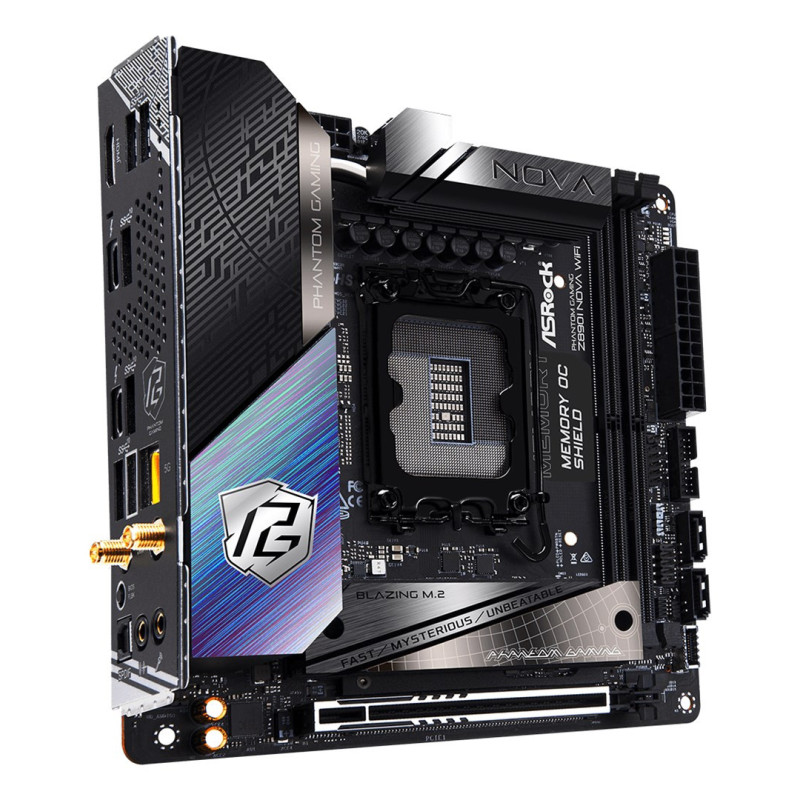

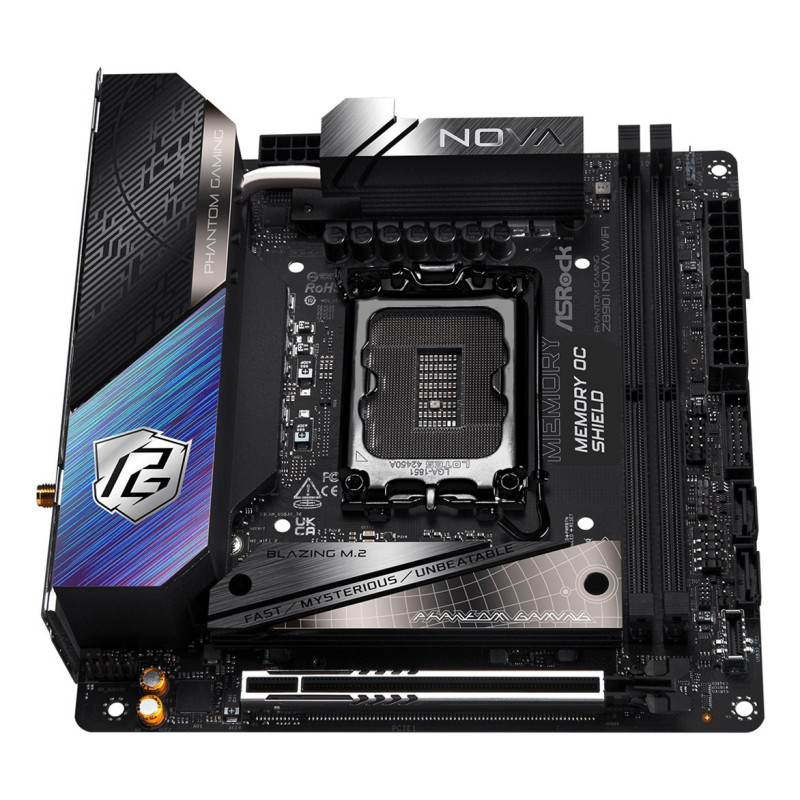

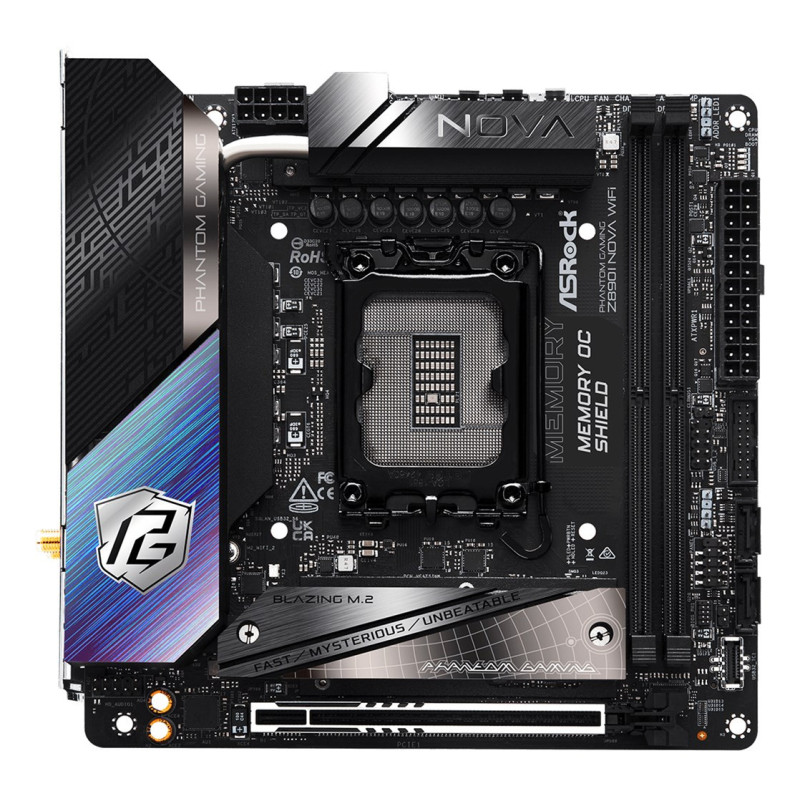

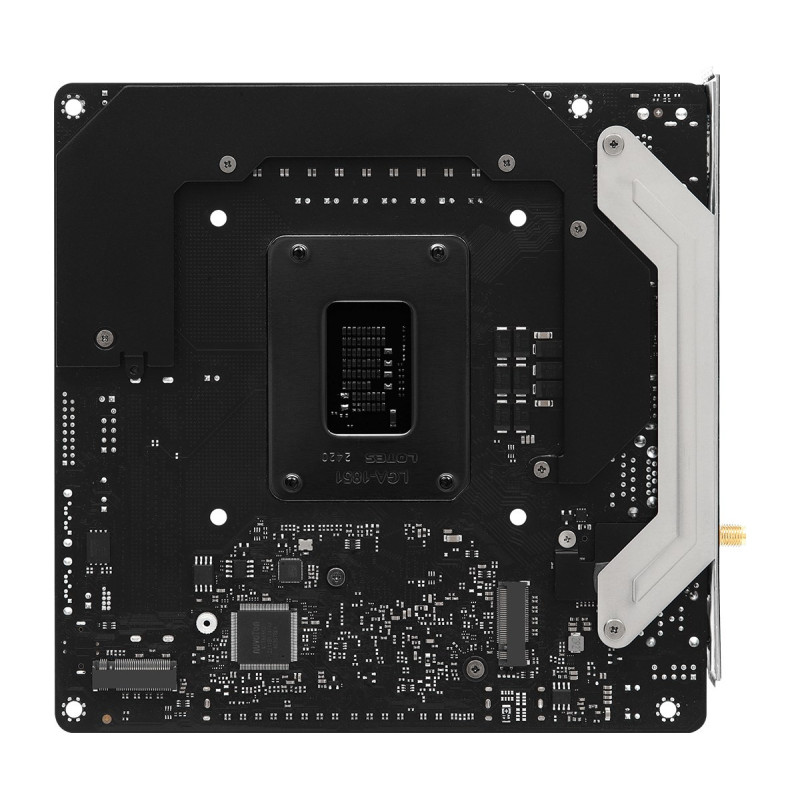

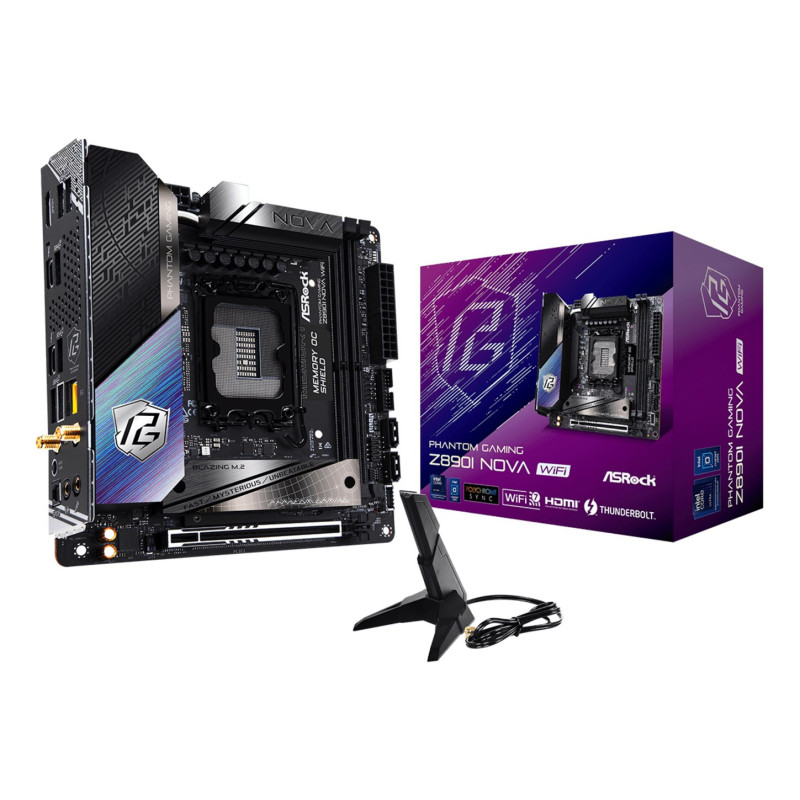

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
6-Z890I Nova WiFi
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
6-Z890I Nova WiFi
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1851 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| HDCP | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Certification | FCC, CE, ErP/EuP |
| Motherboard form factor | mini ITX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Depth | 170 mm |
| Width | 170 mm |
| LAN controller | Realtek RTL8126 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of CPU fan connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Antenna included | Yes |
| Screws included | Yes |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 5, 1, 10 |
| Number of storage drives supported | 5 |

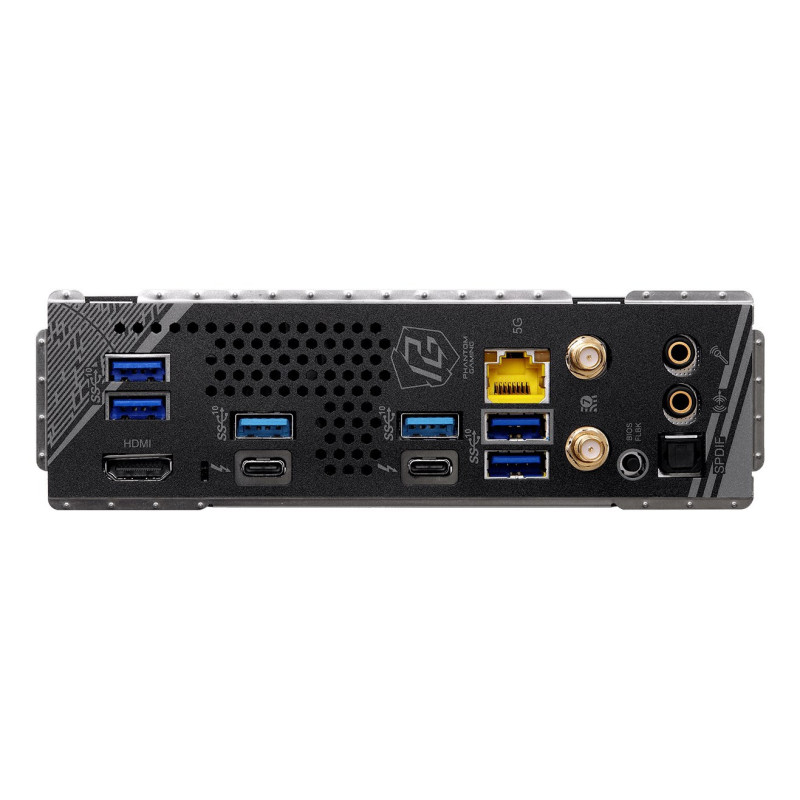

| USB connector type | USB Type-A, USB Type-C |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 2 |
| Microphone in | Yes |
| 1st M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 3 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 highest PCI Express generation | 5.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
