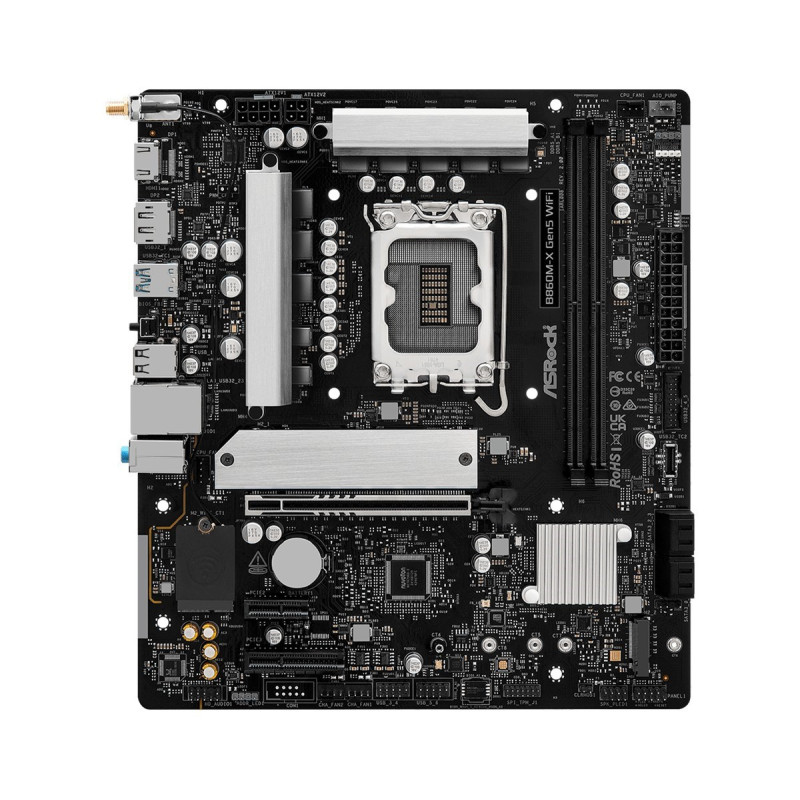

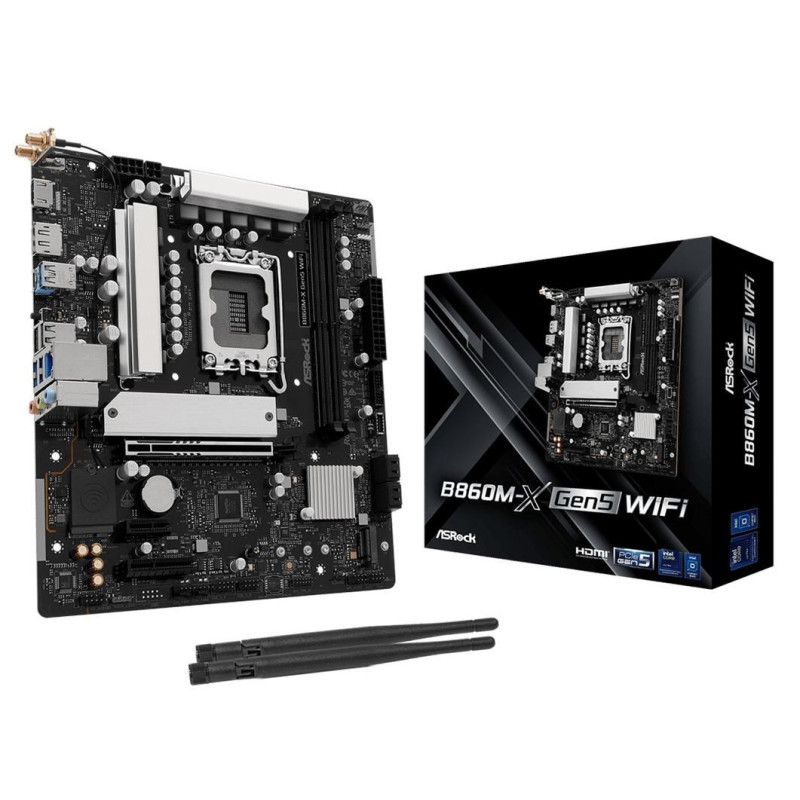

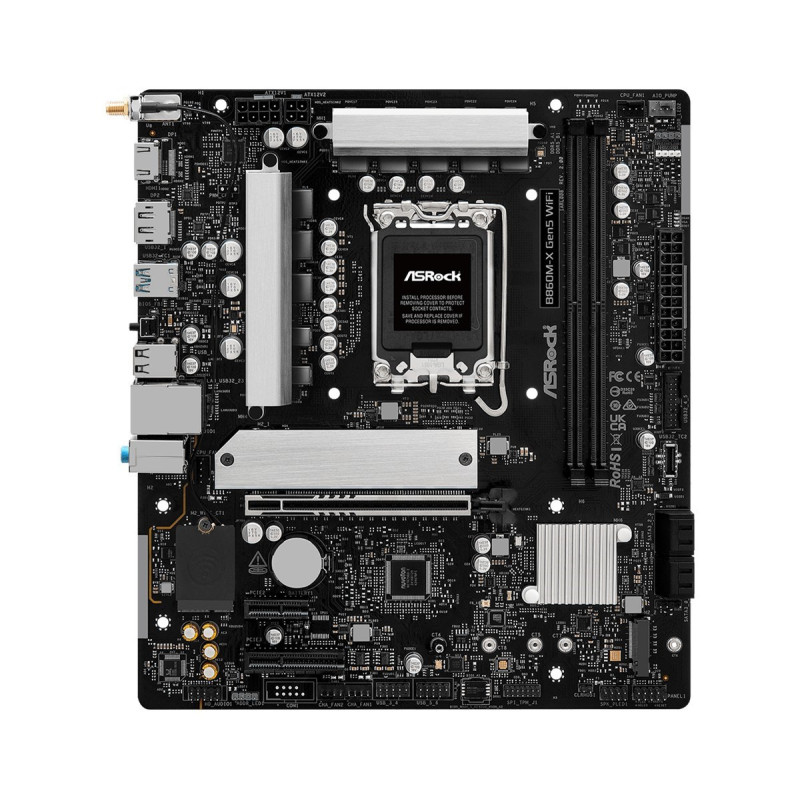

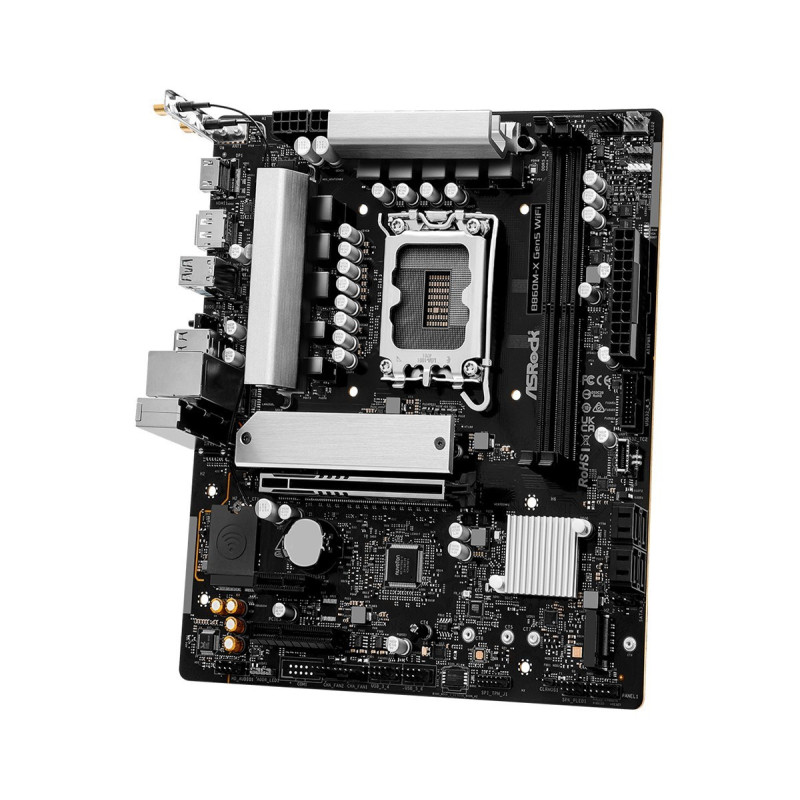

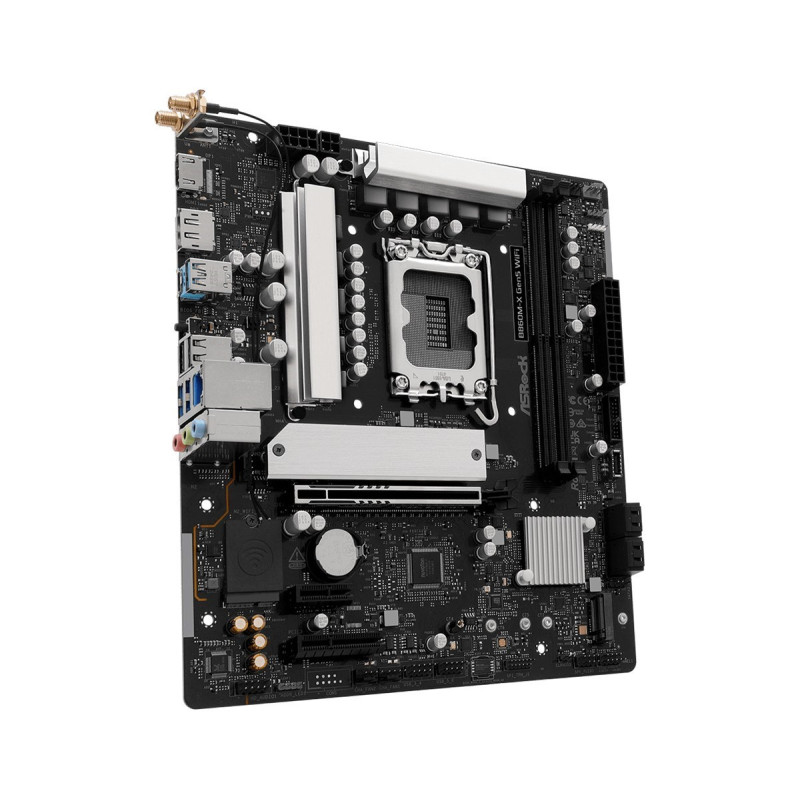

Asrock B860M-X GEN5 WIFI motherboard
Product reference:
6-B860M-X GEN5 WIFI
Asrock B860M-X GEN5 WIFI motherboard
Asrock B860M-X GEN5 WIFI motherboard
Product reference:
6-B860M-X GEN5 WIFI
Asrock B860M-X GEN5 WIFI motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| On-board graphics card family | Intel Iris Xe Graphics |
| HDCP | Yes |
| Certification | FCC, CE, ErP/EuP |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Depth | 218 mm |
| Width | 244 mm |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Bluetooth | Yes |
| MU-MIMO | Yes |
| Bluetooth version | 5.3 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| Number of water pump connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1, 3 |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| BIOS type | UEFI AMI |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 5, 1, 10 |
| Antennas quantity | 2 |
| HDMI ports quantity | 1 |
| Flashback BIOS button | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
