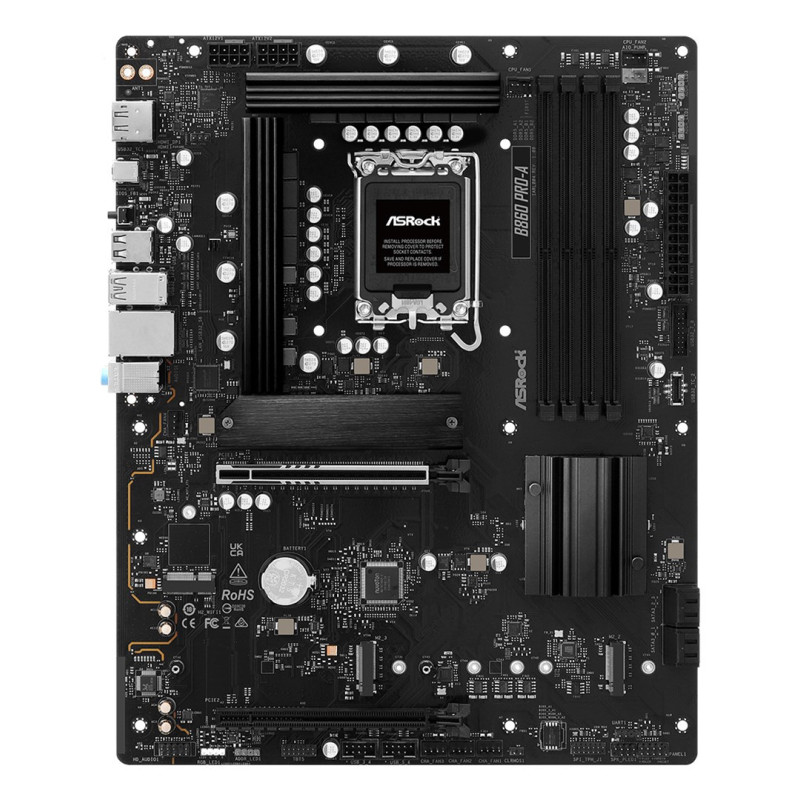

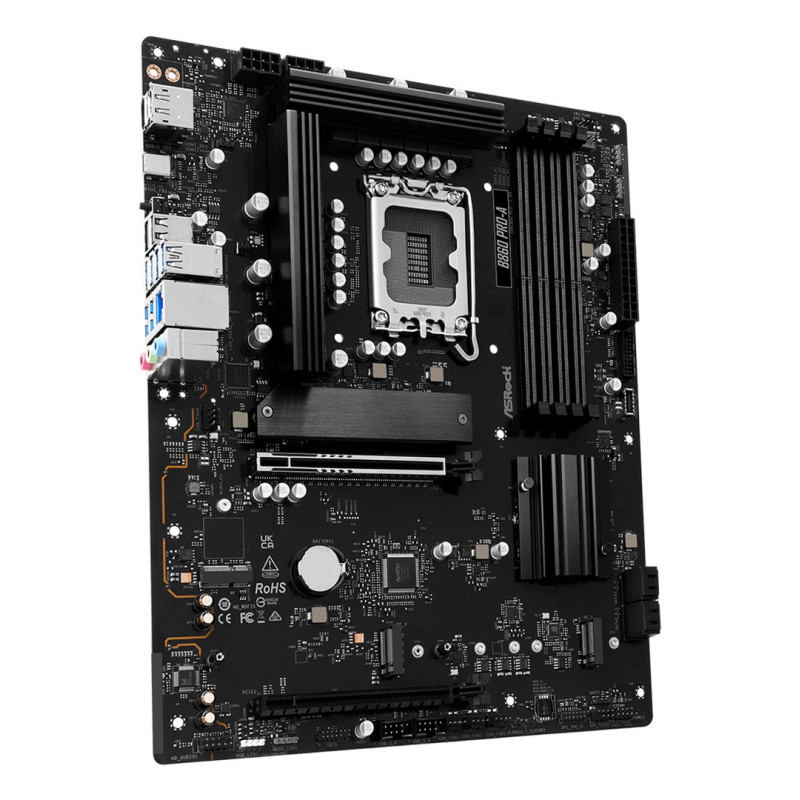

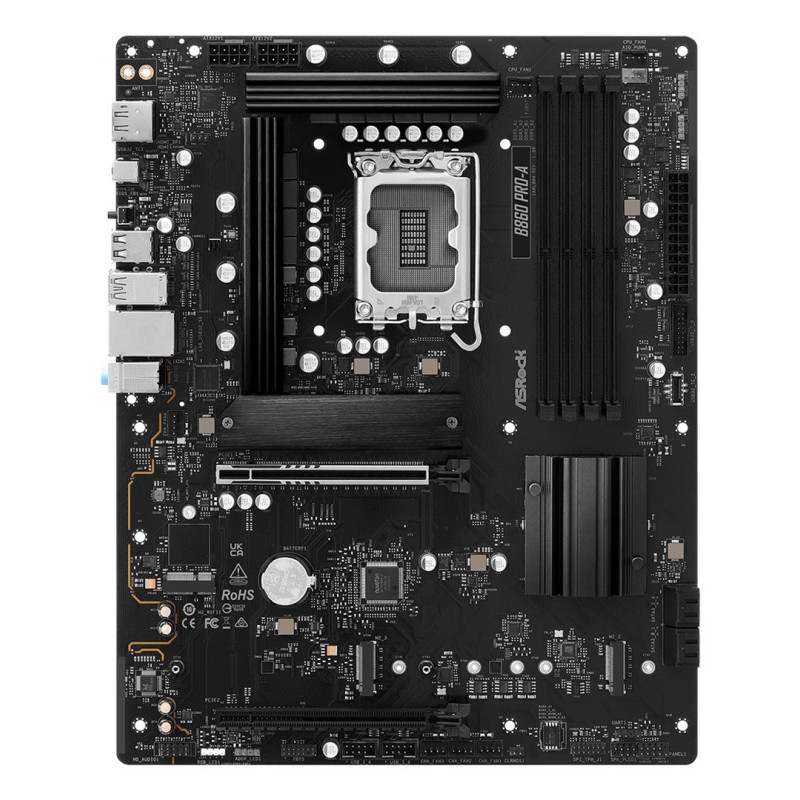

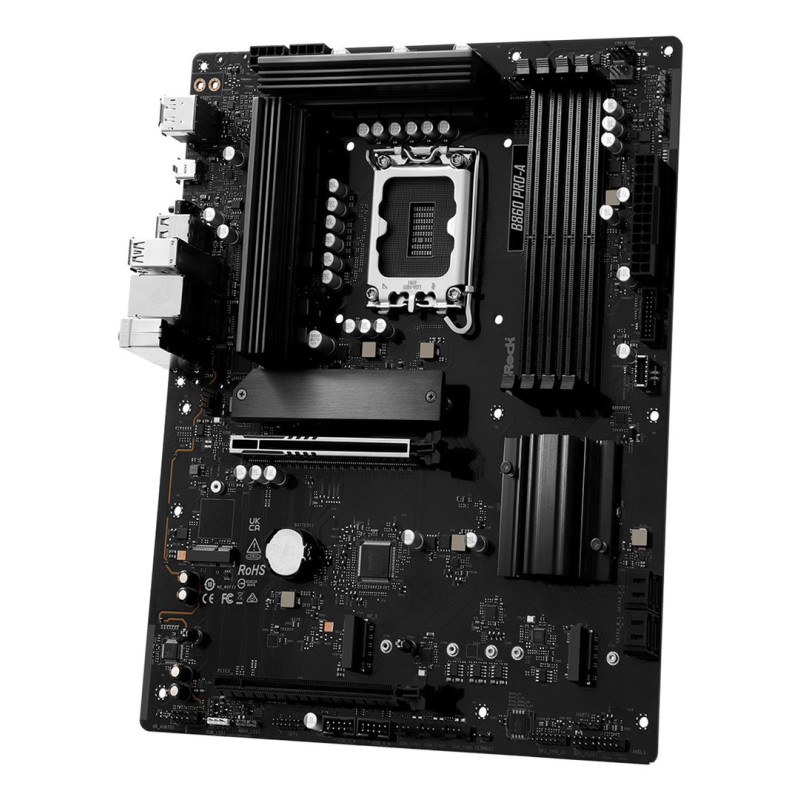

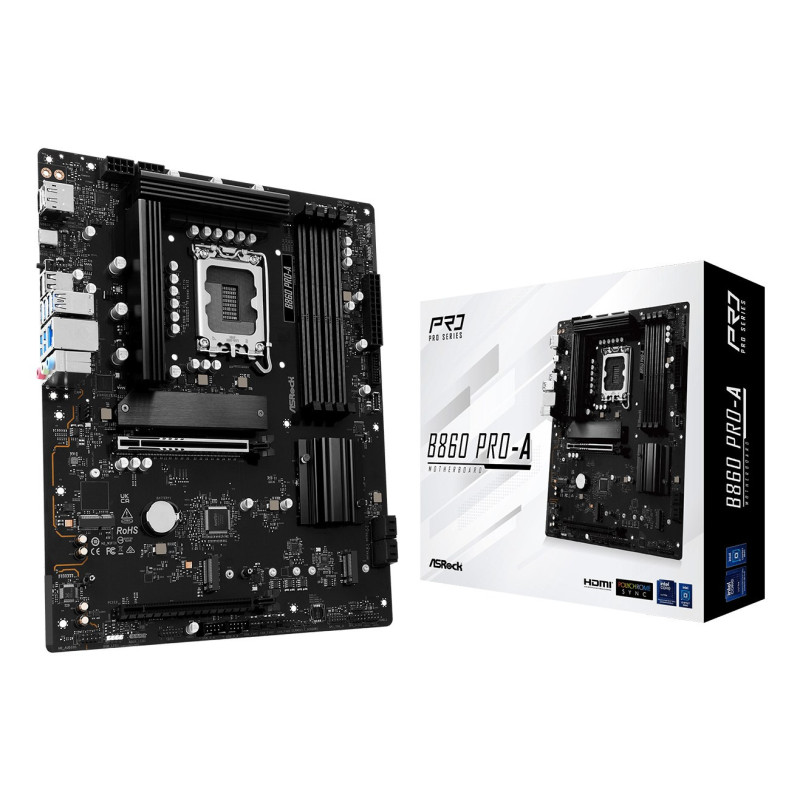

Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX
Product reference:
6-B860 Pro-A
Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX
Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX
Product reference:
6-B860 Pro-A
Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Graphics card family | Intel |
| Graphics card | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Motherboard chipset | Intel B860 |
| Windows operating systems supported | Windows 11 x64 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Memory slots type | DIMM |
| Depth | 244 mm |
| Width | 305 mm |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 4 |
| USB 2.0 connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of CPU fan connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| RGB LED pin header | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of RGB LED pin headers | 4 |
| BIOS type | EFI AMI |
| Cables included | SATA |
| Screws included | Yes |
| RAID levels | 10 1 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Warnings | In case of installation problems, contact a qualified service technician. Do not open or modify the motherboard to prevent damage. When disposing of the product, follow local regulations for the recycling of electronics. |
