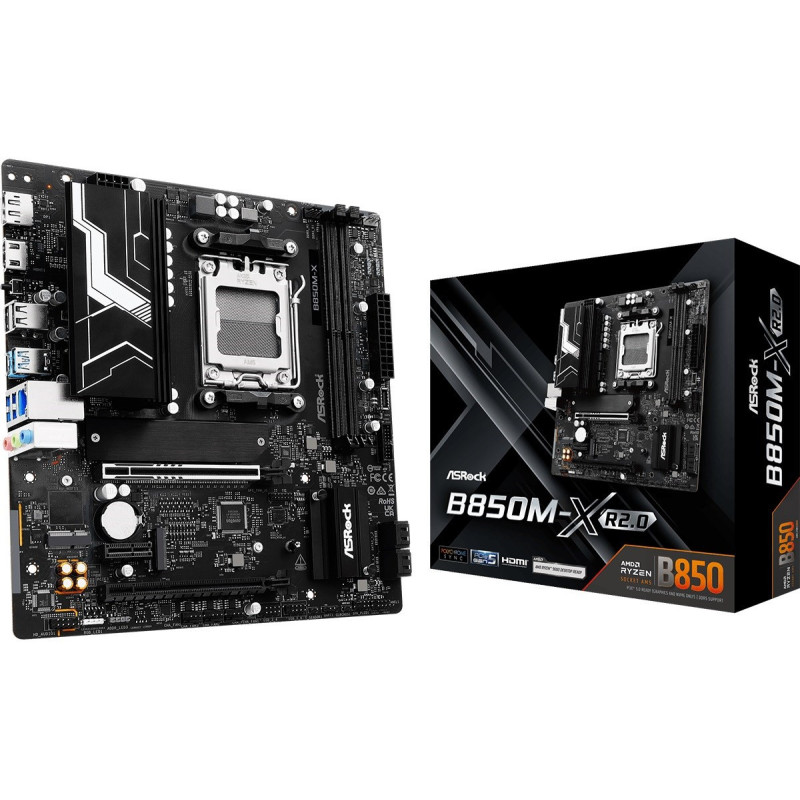

Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX
Product reference:
6-B850M-X R2.0
Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX
Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX
Product reference:
6-B850M-X R2.0
Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor socket | Socket AM5 |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | AMD |
| Product colour | Black |
| Motherboard chipset | AMD B850 |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Maximum internal memory | 128 GB |
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Depth | 226 mm |
| Width | 244 mm |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Mobile network connection | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| USB 2.0 connectors | 2 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| Number of chassis fan connectors | 3 |
| USB Type-C ports quantity | 1 |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Screws included | Yes |
| Supported storage drive types | HDD & SSD |
| RAID levels | 10, 1 |
| RAID support | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 ports quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio output | 3.5 mm |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (E) slots | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| Warnings | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
