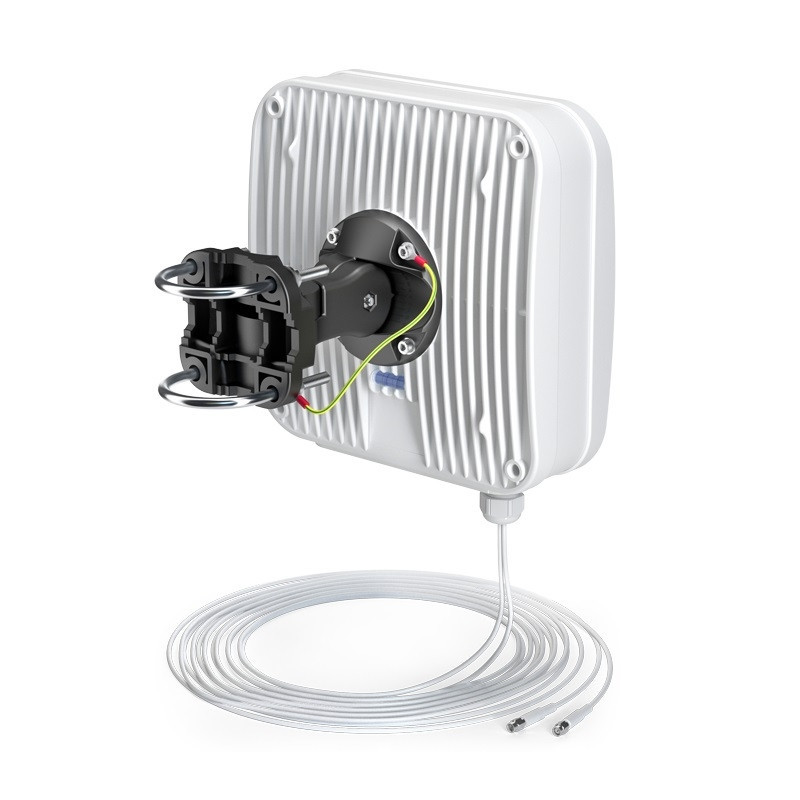

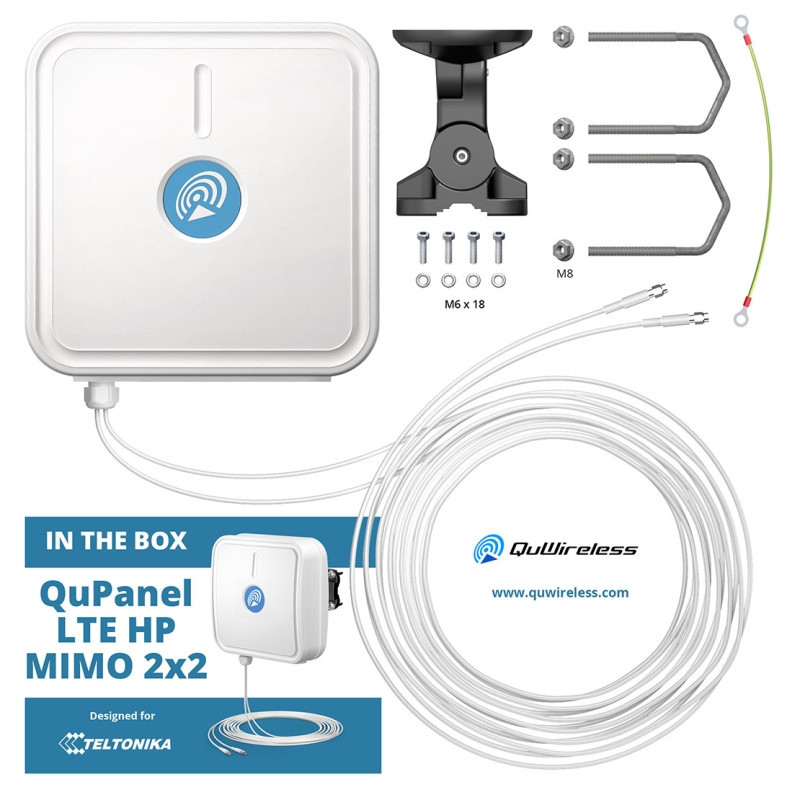

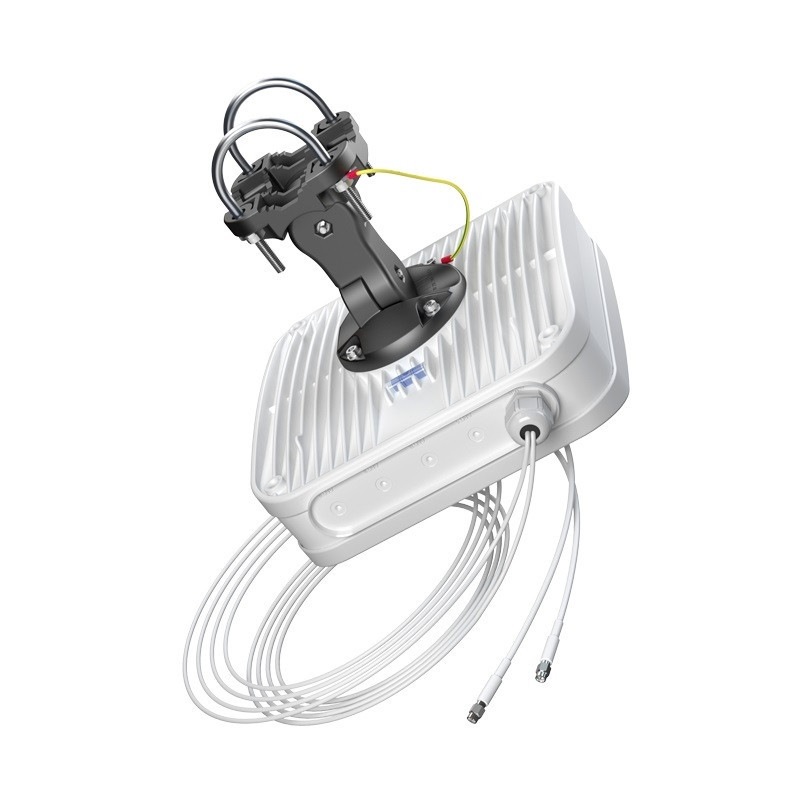

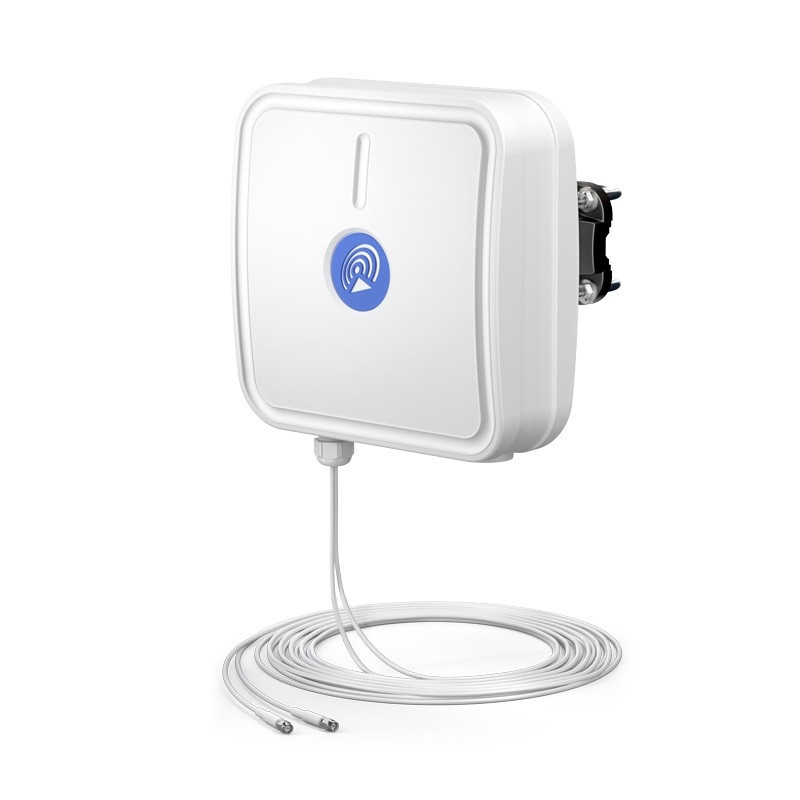

QuWireless Outdoor antenna QuPanel LTE HP MIMO 2x2, 10m cables
Product reference:
18-APLM2-H1
QuWireless Outdoor antenna QuPanel LTE HP MIMO 2x2, 10m cables
QuWireless Outdoor antenna QuPanel LTE HP MIMO 2x2, 10m cables
Product reference:
18-APLM2-H1
QuWireless Outdoor antenna QuPanel LTE HP MIMO 2x2, 10m cables
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
QuPanel LTE HP directional MIMO 2x2 high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It's compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi |
| Front-to-Back | > 10 dB |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 70°/70° ±15° |
| Polarization | Dual polarized X-Pol |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |

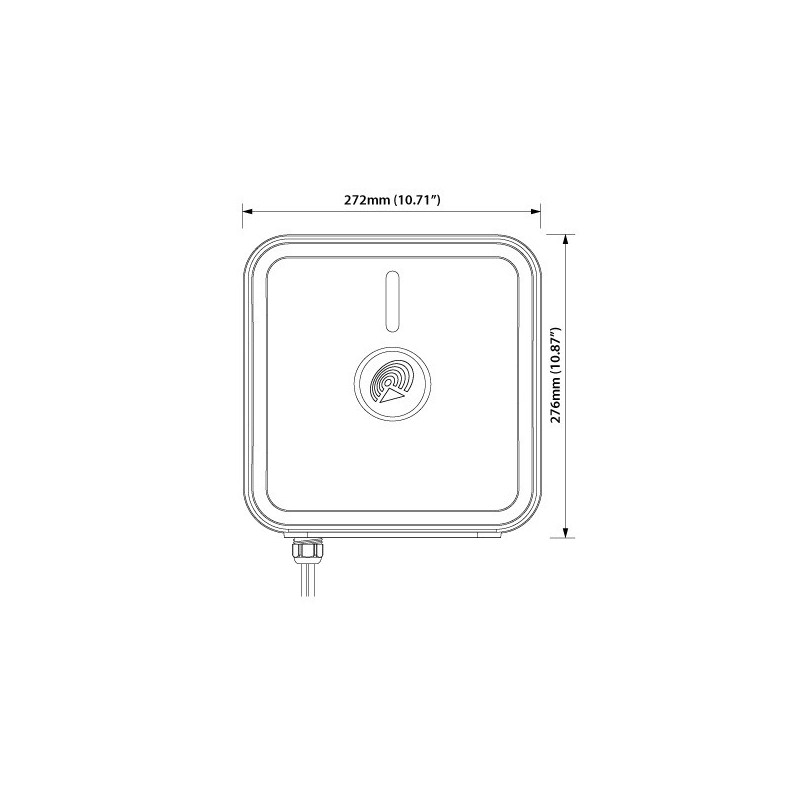

| Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
| Weight | 1.8 kg 3.97 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| Cable length | 10m |
| Cable type | LMR195 white |
| Connector type | 2x SMA plug |
