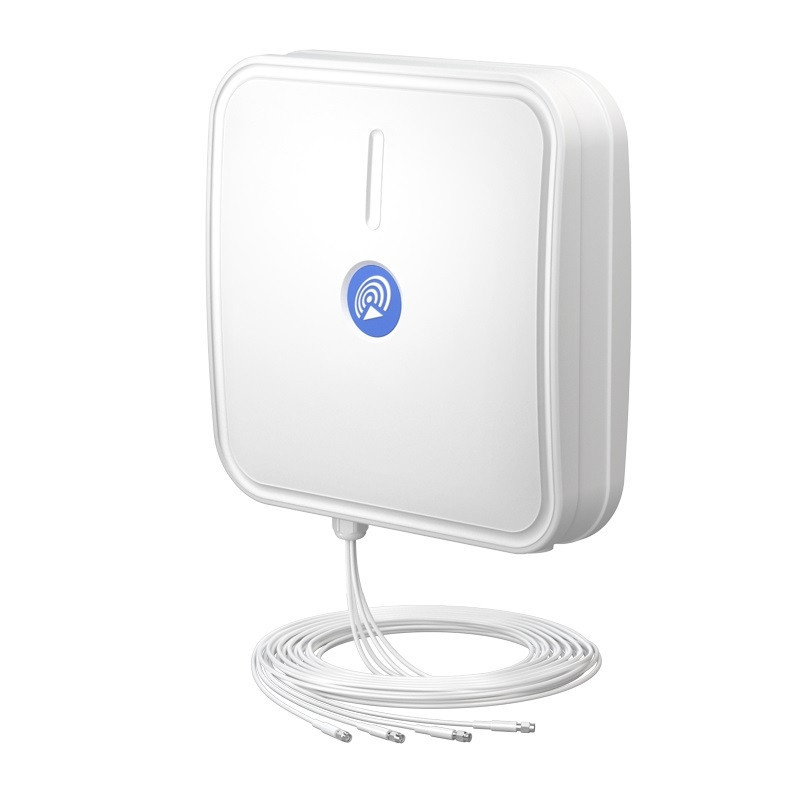

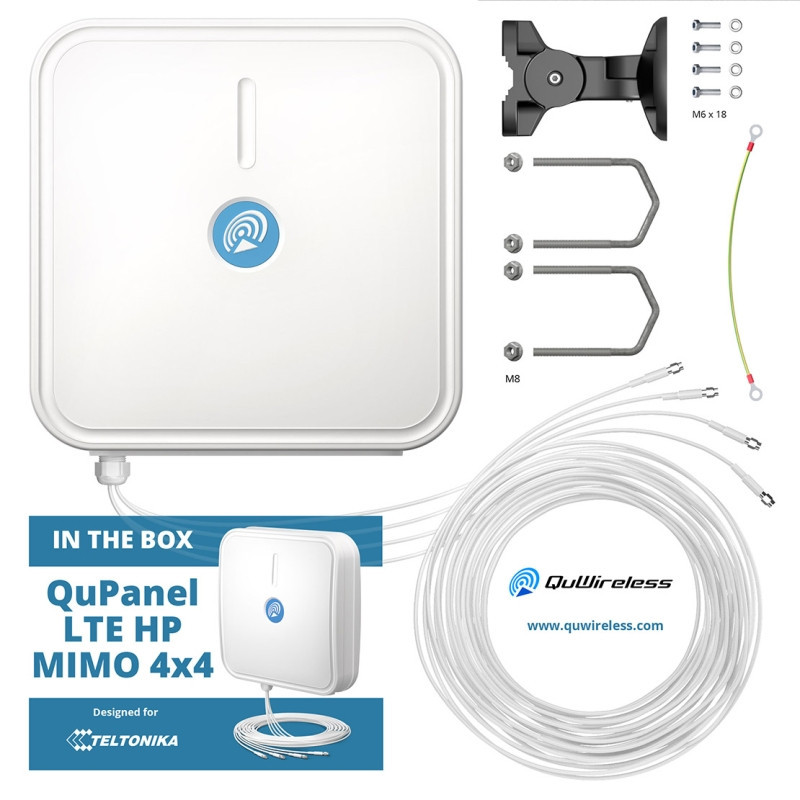

QuWireless Outdoor antenna QuPanel 5G / LTE HP MIMO 4x4, 5m cables
Product reference:
18-AP5G4
QuWireless Outdoor antenna QuPanel 5G/LTE HP MIMO 4x4, 5m cables
QuWireless Outdoor antenna QuPanel 5G / LTE HP MIMO 4x4, 5m cables
Product reference:
18-AP5G4
QuWireless Outdoor antenna QuPanel 5G/LTE HP MIMO 4x4, 5m cables
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days

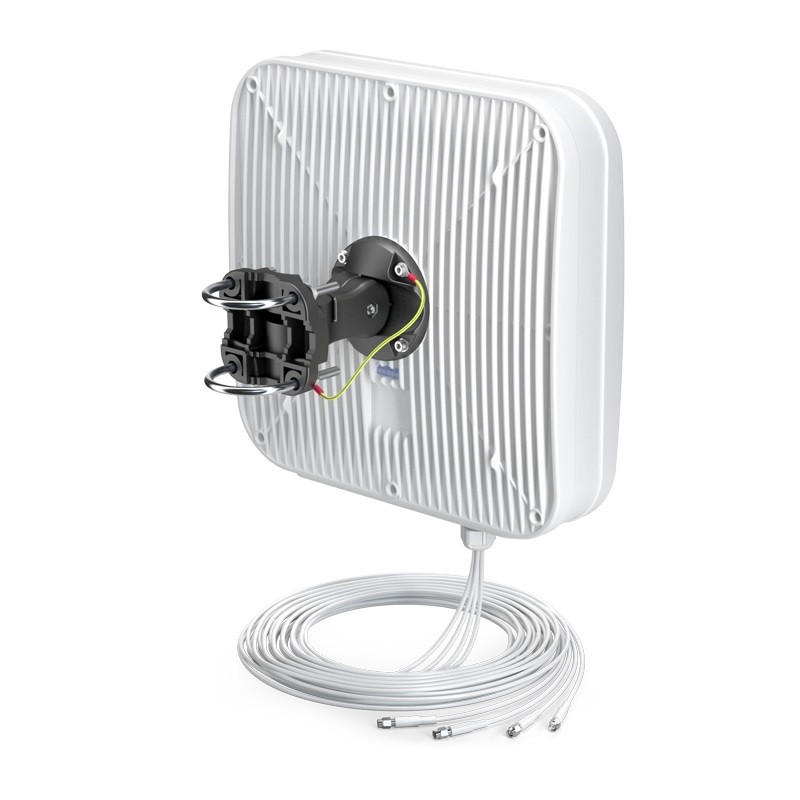

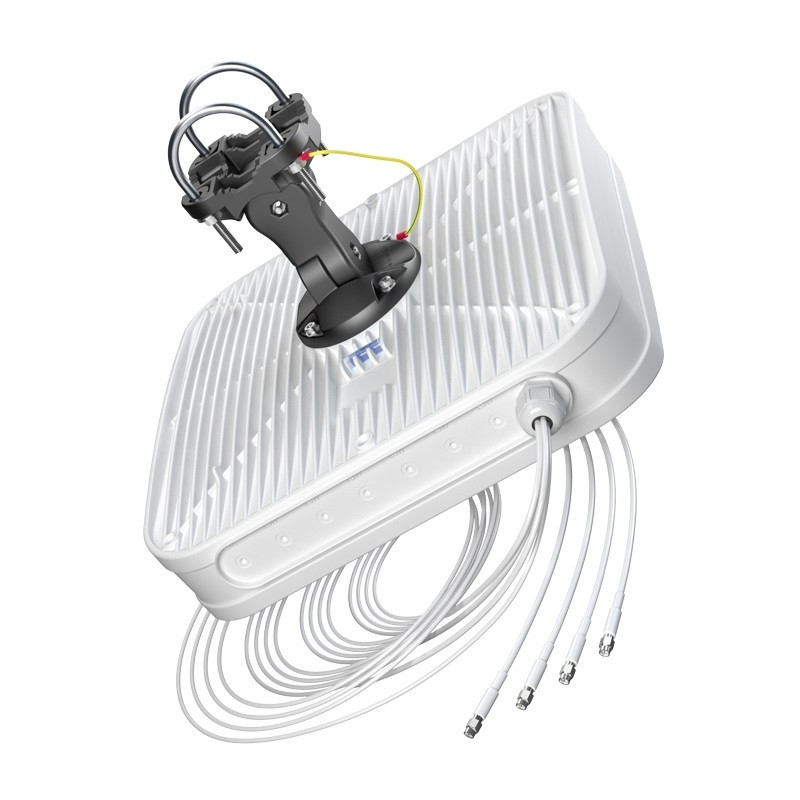

QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It's compatible with Teltonika and other MIMO 4x4 5G / LTE / 3G / 2G modems and routers.
| 5G/LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz 3.3 - 3.8 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7.5 dBi 3.3 - 3.8 GHz : 5.5 dBi |
| Front-to-Back | 0.694 - 0.96 GHz : > 10 dB 1.7 - 2.2 GHz : > 12 dB 2.2 - 2.7 GHz : > 14 dB 3.3 - 3.8 GHz : > 17 dB |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 70°/70° ±15° |
| Polarization | Dual polarized X-Pol |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |
| Dimensions | 392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch |
| Weight | 3.7 kg 8.16 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| Cable length | 5m (P/N: AP5G4) or 10m (P/N: AP5G4-1) |
| Cable type | LMR195 white |
| Connector type | 4x SMA plug |
