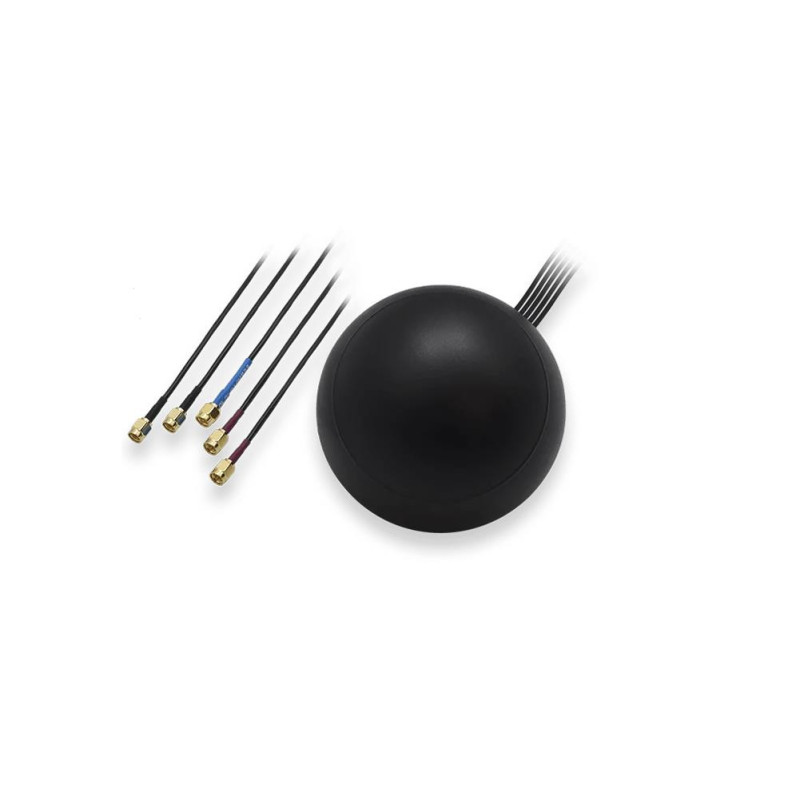

Teltonika Combo LTE/ GPS/ Wi-Fi antenna

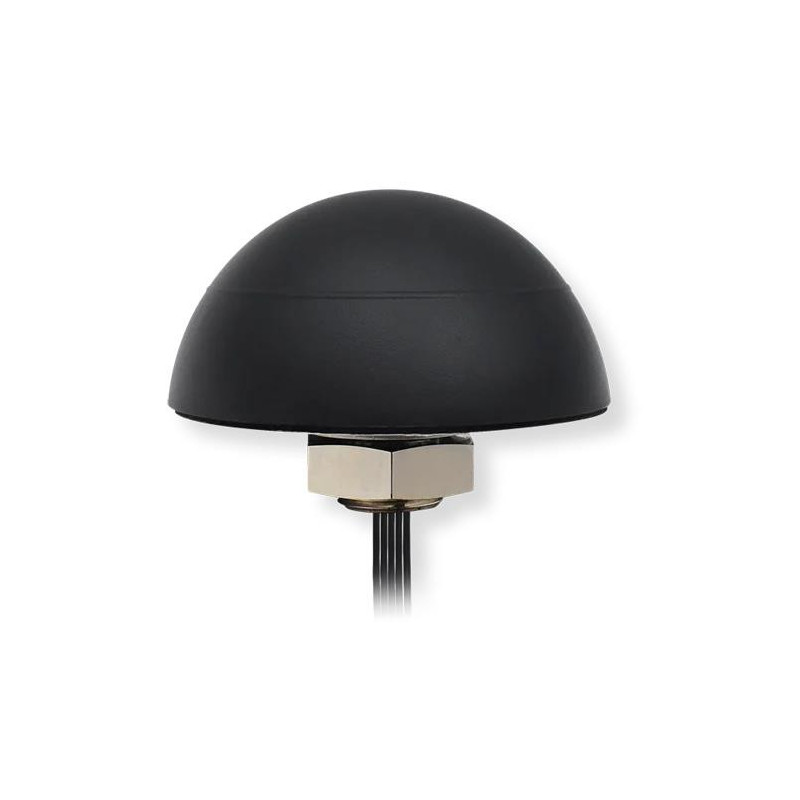

The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.
- Frequency range 1575.42-1610 MHz
- Polarisation RHCP
- Impedance 50 Ω
- LNA reinforcement 28±2 dB
- LNA Noise Figure < 1.5 dB
- Supply voltage 3-5 V DC
- Power consumption < 15 mA
- LNA V.S.W.R. < 2.0
- Connector Male SMA
| Antenna connector type | SMA/RP-SMA |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna gain (5 GHz) | 2 dBi |
| Antenna gain level (max) | 28 dBi |
| Antenna type | MIMO directional antenna |
| Cable length | 3 m |
| Cable type | 5x RG174 |
| Compliance certificates | RoHS |
| Connector gender | Female/Female |
| Diameter | 110 mm |
| Frequency band | 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz |
| Harmonized System (HS) code | 85177100 |
| Height | 55 mm |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Impedance | 50 Ω |
| Input voltage | 3-5 V |
| International Protection (IP) code | IP67 |
| Model name | PR1KCO28 |
| Polarization | Linear polarization |
| Power consumption | 15 mA |
| Product colour | Black |
| Product Net Weight | 0.535 kg |
| Shipping Box Depth | 12.5 cm |
| Shipping Box Height | 12 cm |
| Shipping Box Weight | 0.535 kg |
| Shipping Box Width | 12.5 cm |
| Summary | Teltonika PR1KCO28. Antenna gain level (max): 28 dBi, Frequency band: 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: MIMO directional antenna, Antenna connector type: SMA/RP-SMA, Connector gender: Female/Female. Power consumption: 15 mA, Input voltage: 3-5 V. Compliance certificates: RoHS. Height: 55 mm, Diameter: 11 cm, Weight: 550 g |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.125 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.001875 cubm |
| Unit Calculated Weight | 0.535 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.batna24.com/en/p/teltonika-003r00253-combo-antenna-rmmnq |
| Voltage Standing Wave Ratio (VSWR) | 2/2.5/3 |
| Weight | 550 g |
