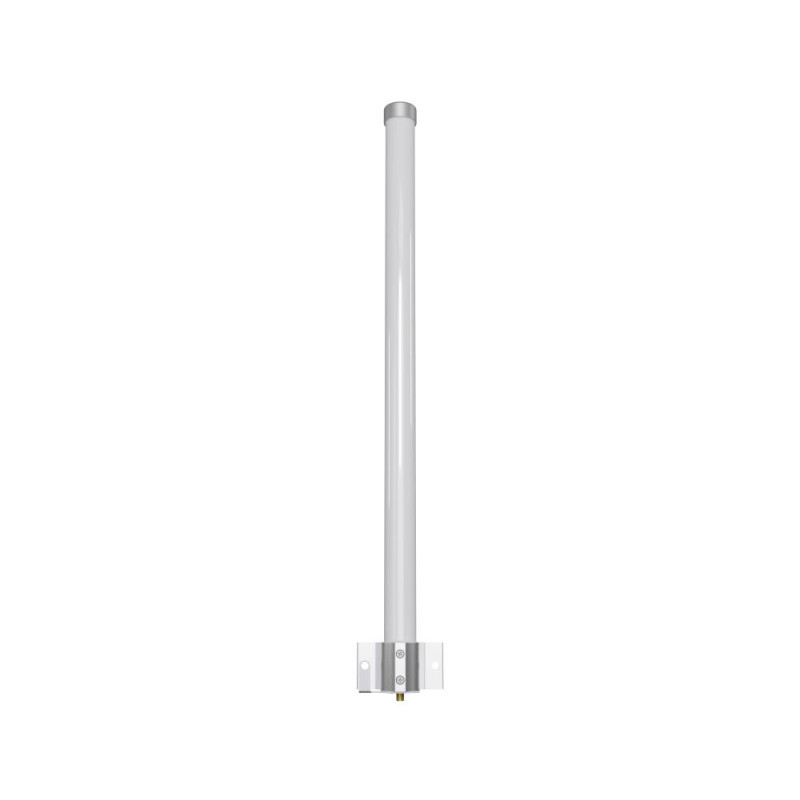

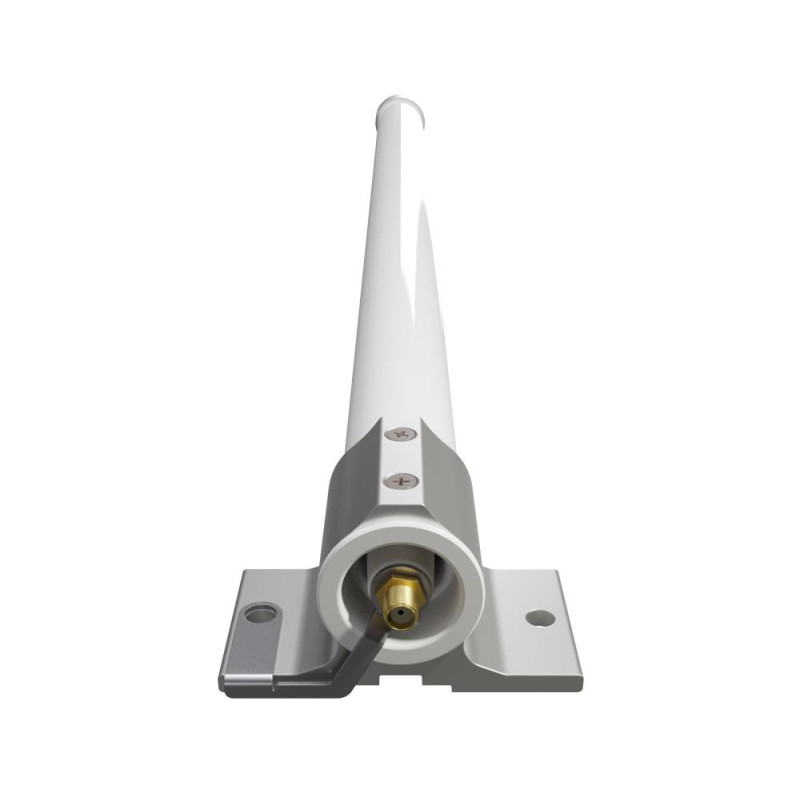

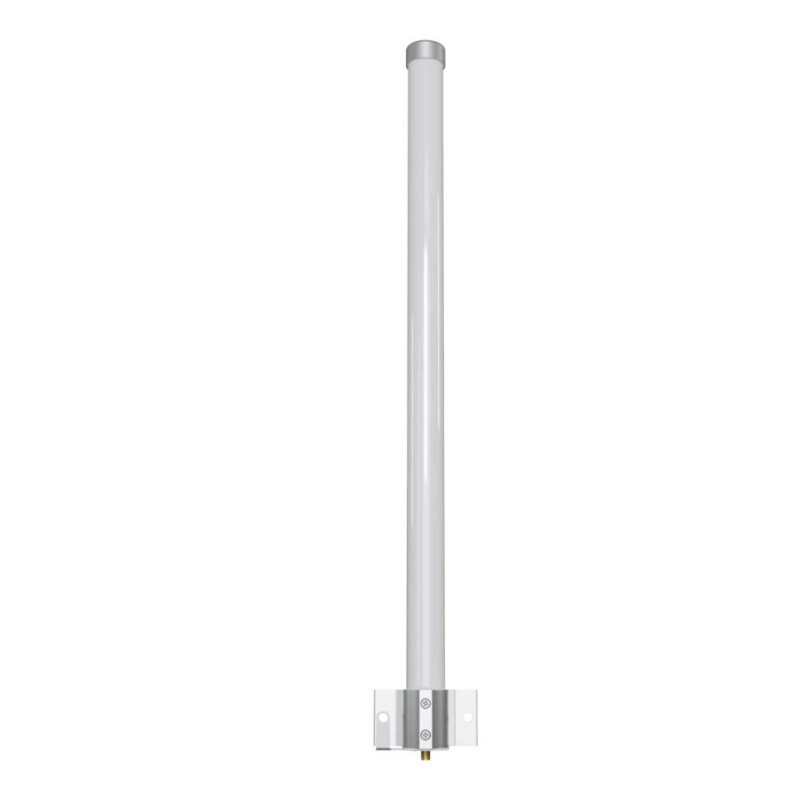

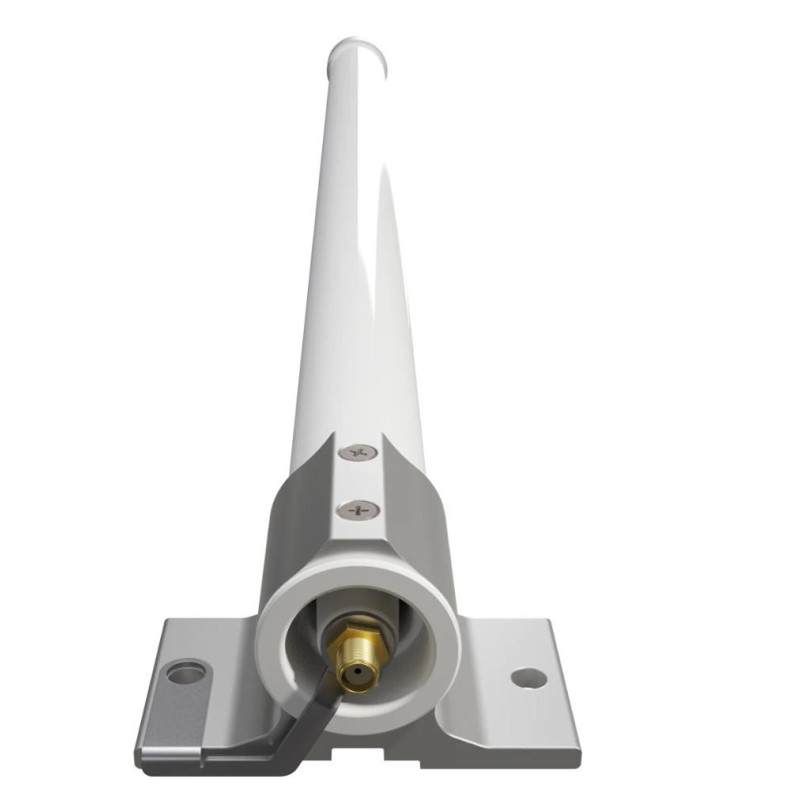

This is a 6.5 dBi omni antenna kit for LoRa® within the 900-928 MHz frequency range. It has a strong 1m long SMA cable, and a mechanical holder for quick and easy mast attachment.
The improved cable durability and the IP66 water resistance rating (protection against powerful jets) make this kit an excellent choice for all kinds of marine and coastal projects.
You can use it with the KNOT LR9 kit, wAP KR9, or other LoRa devices with the appropriate frequency support.
| Antenna connector type | SMA |
| Antenna gain level (max) | 6.5 dBi |
| Antenna type | Omni-directional antenna |
| Bandwidth note | 824 - 960 MHz |
| Depth | 495 mm |
| Frequency band | 0.824 - 0.96 GHz |
| Harmonized System (HS) code | 85177100 |
| Height | 42 mm |
| Horizontal beam width | 360 ° |
| Impedance | 50 Ω |
| Model | 868 Omni antenna |
| Model name | 868 Omni |
| Product Net Weight | 0.3 kg |
| Shipping Box Depth | 51 cm |
| Shipping Box Height | 5 cm |
| Shipping Box Weight | 0.36 kg |
| Shipping Box Width | 8 cm |
| Summary | Mikrotik 868 Omni. Antenna gain level (max): 6.5 dBi, Frequency band: 0.824 - 0.96 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA. Width: 68 mm, Depth: 495 mm, Height: 42 mm |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.08 |
| Unit Calculated Volume | 0.00204 cubm |
| Unit Calculated Weight | 0.36 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://mikrotik.com/product/868_omni_antenna#fndtn-downloads |
| Vertical beam width | 30 ° |
| Weight | 600 g |
| Width | 68 mm |
