ANTENNA DISH 5GHZ 30DBI / MTAD-5G-30D3-PA MIKROTIK
Product reference:
2-4752224000255
ANTENNA DISH 5GHZ 30DBI / MTAD-5G-30D3-PA MIKROTIK
Product reference:
2-4752224000255
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

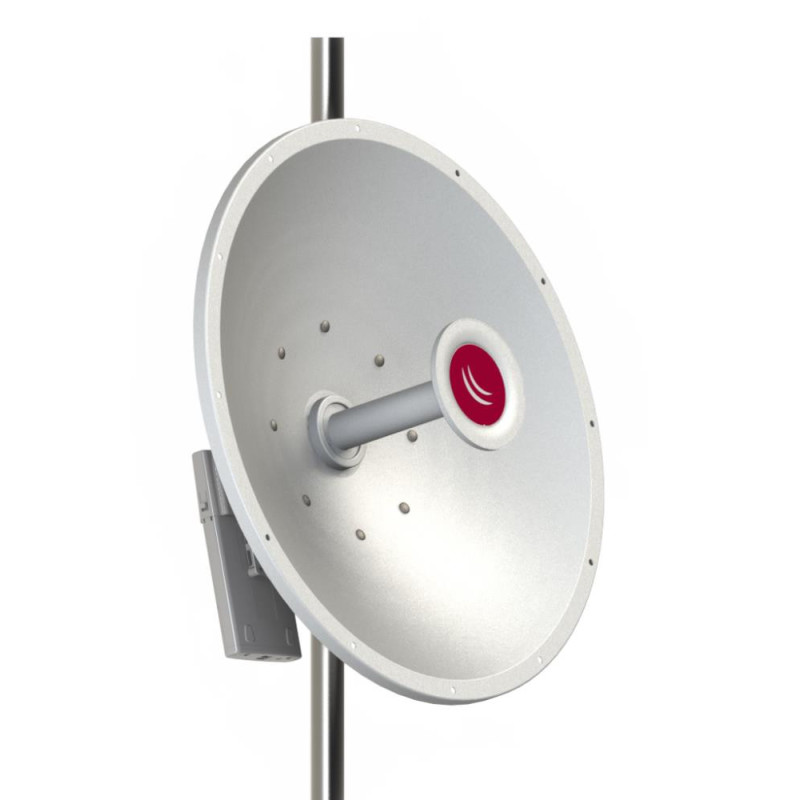

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 30 dBi |
| Depth | 450 mm |
| Frequency band | 4.7 - 5.9 GHz |
| Harmonized System (HS) code | 85177100 |
| Impedance | 50 Ω |
| Model name | mANT30 PA |
| Polarization | Dual polarization |
| Power handling | 100 W |
| Product colour | White |
| Product Net Weight | 5.7 kg |
| Purpose | Outdoor |
| Quantity per pack | 1 pc(s) |
| Shipping Box Depth | 72 cm |
| Shipping Box Height | 74 cm |
| Shipping Box Weight | 7.9 kg |
| Shipping Box Width | 19.5 cm |
| Summary | Mikrotik mANT30 PA. Antenna gain level (max): 30 dBi, Frequency band: 4.7 - 5.9 GHz, Impedance: 50 Ω. Antenna connector type: RP-SMA, Polarization: Dual polarization, Product colour: White. Width: 700 mm, Depth: 450 mm, Weight: 5.7 kg. Quantity per pack: 1 pc(s) |
| Unit Box Height | 0.74 |
| Unit Box Length | 0.72 |
| Unit Box Width | 0.195 |
| Unit Calculated Volume | 0.1039 cubm |
| Unit Calculated Weight | 7.9 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://routerboard.com/MTAD-5G-30D3-PA |
| Vertical beam width | 2.5 ° |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Weight | 5700 g |
| Width | 700 mm |
