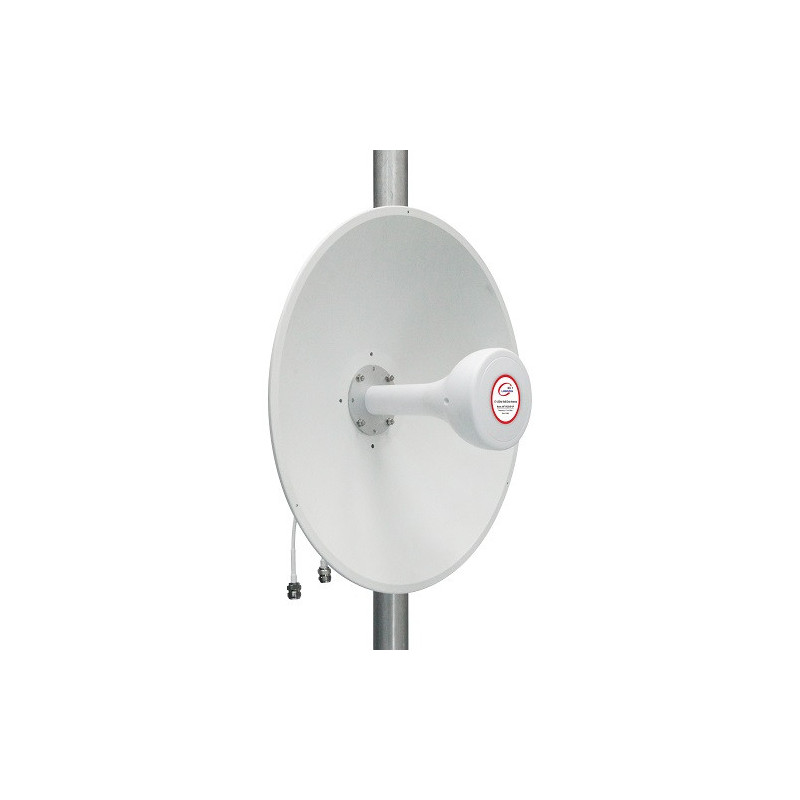

5G / LTE / CBRS 2x2MIMO antenna, 1.7-4.2GHz, 17dBi+19dBi

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-4200MHz, 16-20dBi
Features:
Dual-polarization directional dish design MIMO antenna for LTE, 5G, CBRS and Wi-Fi connections, 1710-2690MHz / 3300-4200MHz, 17dBi / 19dBi.
It operates in two frequency ranges and supports 2x2 MIMO technology, so it can transmit and receive two independent signals simultaneously.
Designed for long distances, suitable for weak signal areas.
Lightning protection DC grounding.
Technical specification:
Frequency: 1710-2690MHz / 3300-4200MHz.
Gain: 1x 17±1dBi (1.7-2.7 GHz range), 1x 19±1dBi (3.3-4.2 GHz range).
VSWR: lt;2.0.
Impedance: 50 ohms.
Max. power per port: 50W.
Isolation gt; 20 dB.
Beamwidth 1710-2690 MHz: horizontal: 25°±5, vertical: 25°±5°.
Beamwidth 3300-4200 MHz: horizontal: 15°±5, vertical: 15°±5°.
Connectors: 2x N Female/SMA.
Antenna diameter: 400 mm.
Mounting: on a pole 30-50mm diameter.
Mechanical tilt: ±20°.
Polarization: dual polarization +/-45°.
Application: LTE, 5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), 2.4GHz Wi-Fi IEEE802.11b/g/n.
Operating temperature: -40°C~ +70°C.
Color: white.
Weight: 2kg.
Warranty: 24 months
