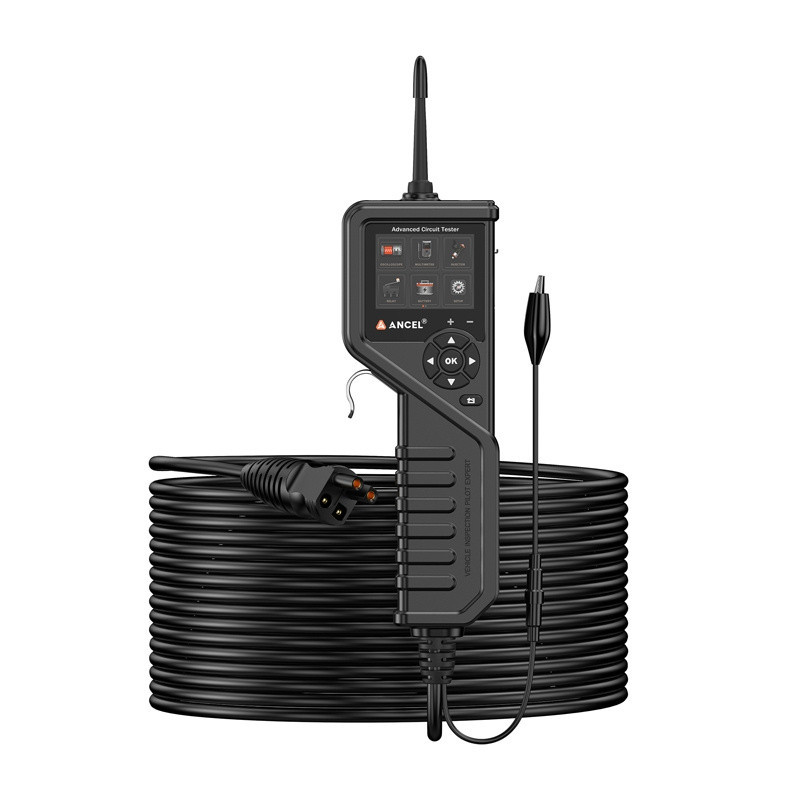

Ancel PB600 circuit tester

Ancel PB600 circuit tester

The Ancel PB600 is a powerful circuit tester designed for vehicles with 12-24V installations. The device offers 8 diagnostic modes, including AC/DC voltage, frequency, injector, duty cycle, and diode and continuity tests. The 2.4" TFT color screen allows precise parameter tracking and real-time viewing of signal waveforms.

Real-time testing

A major advantage of the Ancel PB600 is its ability to measure battery voltage and probe tip voltage simultaneously. The tester Shows this data on a clear display, and the user can switch between digital and waveform modes, which makes it easier to detect voltage irregularities in the installation. This will help you detect short circuits, interruptions or power supply instabilities faster.

Multiple measurement modes

The Ancel PB600 tester offers measurements of DC voltage (up to 110 V) and AC voltage (up to 200 V), frequency (up to 1 MHz), resistance, diodes, and relay and injector test modes. It supports supply voltages from 6 to 35 volts, allowing universal application in cars, trucks, motorcycles, boats or snowmobiles. The measurement range and functionality are suitable for both quick service tests and more complex diagnostics.

Direct wire testing

The use of a sharp probe tip with LED illumination allows spot testing of wires without the need to remove or cut them. The PB600 can detect broken wires, weak ground, short circuits and discontinuities in a circuit. This significantly reduces work time in locating faults. Component activation and lighting trailer test functions further expand the device's capabilities.

Signal simulation and analysis

The device generates AC voltage signals, which allows you to test the response of consumer circuits under near-real conditions. You can observe voltage, frequency and duty cycle graphs on the screen in real time. This makes it easier to assess whether an electrical component is operating within the correct parameters.

Robust equipment and easy operation

The tester comes with a full set of test leads, probe tips, relay test leads and a transport box. The unit is operated via an ergonomic panel with directional buttons. The menu is available in English, and software updates are free and for life.

Included:

• Circuit tester
• Extension cable with test needle
• Test probe extender
• Cable with battery clip
• Test needle
• Relay test cable
• Relay test cable
• Short probe tip
• Long probe tip
• Carrying case
• User manual
