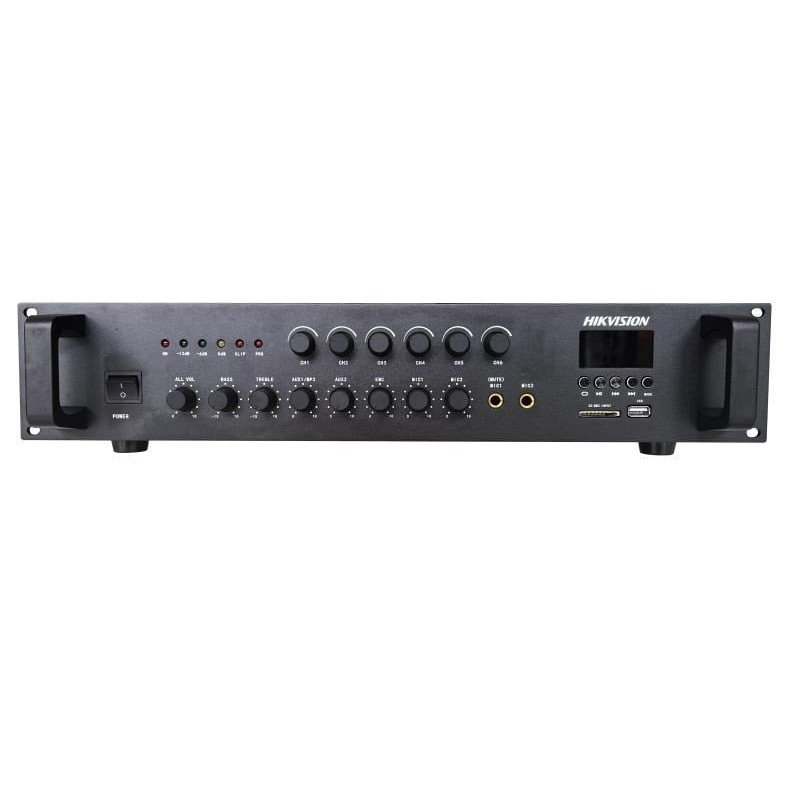

Analog amplifier Hikvision DS-QAE0A120G1-VB6 (120W, Bluetooth, USB)
Product reference: 26-6942160482101
  • The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input and 2 microphone inputs; 1 auxiliary output allowing connection to another amplifier.
  • The volumes of microphones 1/2, emergency line and lines 1/2 are adjusted separately, and there is also a general volume control.
  • The integrated Bluetooth/MP3 module allows you to play content from your phone.
  • Equipped with six independent volume control outputs.
  • Microphone 1 and the emergency EMC line input have the highest priority, and their mixed output can severely interrupt other audio signals.
  • Microphone 2, lines 1, 2 and MP3 (Bluetooth/SD/USB) have mixed output.
  • Equipped with a high and low frequency adjustment function.
  • There are advanced protection functions against short circuit, overheating and overload.
  • The circuit has an amplitude limiting function that protects the speaker from excessive amplifier output.
  • Supports multiple indicator lights (power, signal).
  • Using a forced cooling structure with a fan, the device can operate for a long time.
Analog amplifier Hikvision DS-QAE0A120G1-VB6 (120W, Bluetooth, USB)

Analog amplifier Hikvision DS-QAE0A120G1-VB6 (120W, Bluetooth, USB)

Product reference: 26-6942160482101
  • The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input and 2 microphone inputs; 1 auxiliary output allowing connection to another amplifier.
  • The volumes of microphones 1/2, emergency line and lines 1/2 are adjusted separately, and there is also a general volume control.
  • The integrated Bluetooth/MP3 module allows you to play content from your phone.
  • Equipped with six independent volume control outputs.
  • Microphone 1 and the emergency EMC line input have the highest priority, and their mixed output can severely interrupt other audio signals.
  • Microphone 2, lines 1, 2 and MP3 (Bluetooth/SD/USB) have mixed output.
  • Equipped with a high and low frequency adjustment function.
  • There are advanced protection functions against short circuit, overheating and overload.
  • The circuit has an amplitude limiting function that protects the speaker from excessive amplifier output.
  • Supports multiple indicator lights (power, signal).
  • Using a forced cooling structure with a fan, the device can operate for a long time.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13186 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Sound
  • Frequency response 80Hz-18KHz（±3dB）
  • Rated power 120W
  • Sensitivity Line: -10dBEMC: -10dBMIC: -40dBLine：0dB
  • THD and SNR THD≤0.5%SNR≥83dB
  • General data
  • Color Black
  • Dimensions 484×88×360mm
  • Installation Cabinet installation
  • Material Iron
  • Working temperature -10~+ 40°C, (±2) 20%~80% relative humidity
  • Package size 484 × 88 × 395mm
  • In the package One machine and one power cord
  • Energy 200V-230V～, 50/60Hz 5A
  • Weight Approx. 9.2 kg (20.28 lb.)
  • Weight with packaging Approx. 9.5 Kg(20.94 lb.)
  • Interface
  • Audio input EMC IN × 1, 6.5 mm Microphone × 2, AUX IN × 2, Bluetooth, USB2.0, SD card
  • Audio output Constant Voltage Output × 1，110 V COM,Constant Voltage Output × 1，70 V COM,Constant Impedance Output × 1，4~16Ω COM,Partition Output × 6，110 V COM,line out × 1,
  • USB USB2.0
  • Volume control wheel MIC Volume Knob × 2，Partition 1 Volume Knob × 6，All Volume Knob × 1，Bass Volume Knob × 1，Treble Volume Knob ×1，AUX1/MP3 Volume Knob ×1，AUX2 Volume Knob ×1，EMC Volume Knob ×1
