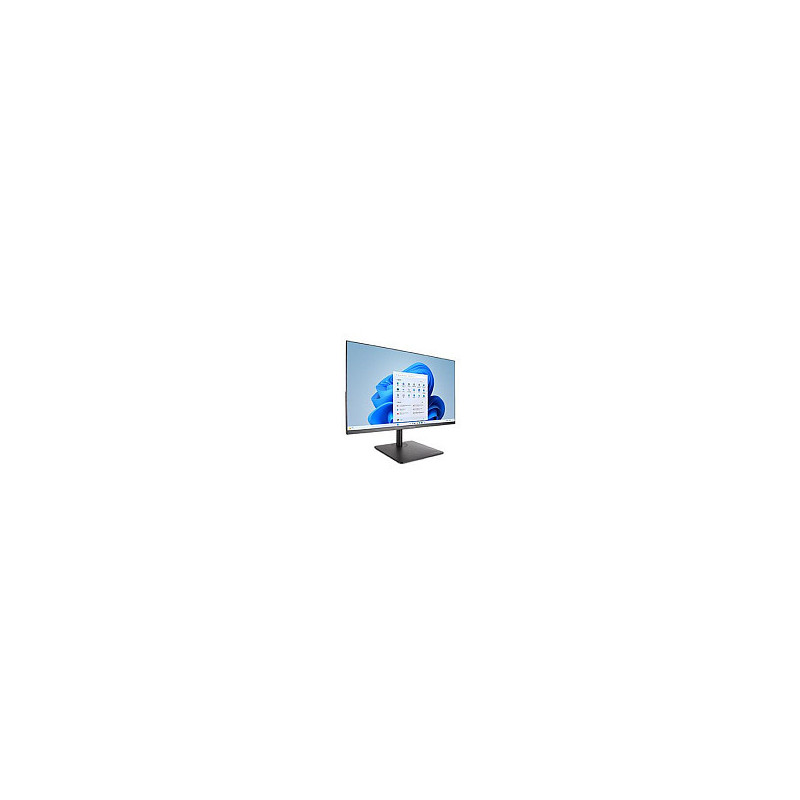

TERRA 1001393 All-in-One PC / workstation

TERRA 1001393. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: LCD. Processor family: Intel Core 5. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 500 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Home. Product colour: Black

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Feature: LED backlight
Display brightness: 250 cd/m²
Panel type: LCD
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Feature: Tilt adjustment
Tilt angle range: -5 - 20°

Processor

Processor manufacturer: Intel
Processor family: Intel Core 5
Processor generation: Intel Core (Series 1)
Processor model: 120U
Processor cores: 10
Processor threads: 12
Processor boost frequency: 5 GHz
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Performance-core base frequency: 1.4 GHz
Efficient-core base frequency: 900 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor socket: BGA 1744
Processor base power: 12 W
Maximum turbo power: 55 W

Memory

Internal memory: 16 GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 32 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory layout (slots x size): 2 x 8 GB

Storage

Total storage capacity: 500 GB
Storage media: SSD
SSD capacity: 500 GB
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: Intel
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 3 W

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.0a
Audio output: Yes
Number of rear USB ports: 4

Design

Feature: Frameless design
Product colour: Black
Feature: Height adjustment
Feature: VESA mounting
Panel mounting interface: 75 x 75 mm

Performance

Product type: All-in-One PC
Market positioning: Home
Cooling type: Active
Noise level: 22.3 dB
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Software

Operating system installed: Windows 11 Home

Power

AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V

Weight & dimensions

Width (with stand): 540 mm
Depth (with stand): 228 mm
Height (with stand): 482 mm
Weight (with stand): 4.3 kg
Weight: 4.3 kg

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Certificates

Certification: SMBIOS (DMI), Energy Star (Valid only for US), EN 62368-1, EN 55032, EN 55035, EN 61000-3-2/3, EN 62623, 89/336/ECC.

Packaging content

Feature: AC adapter included
Feature: Quick start guide
Cables included: AC

Other features

Audio output channels: 6.0 channels
Compatible operating systems: Windows 10, Windows 11
Expansion slots: 1x 2.5" SSD
Maximum number of SMP processors: 1
Number of processors installed: 1
Power supply: 65 W
Resolution description: HDMI 2.0a bis 3840x2160 @ 60 Hz (4K), ¦ Unterstützt Dual-Monitoring
Locale: International repository
