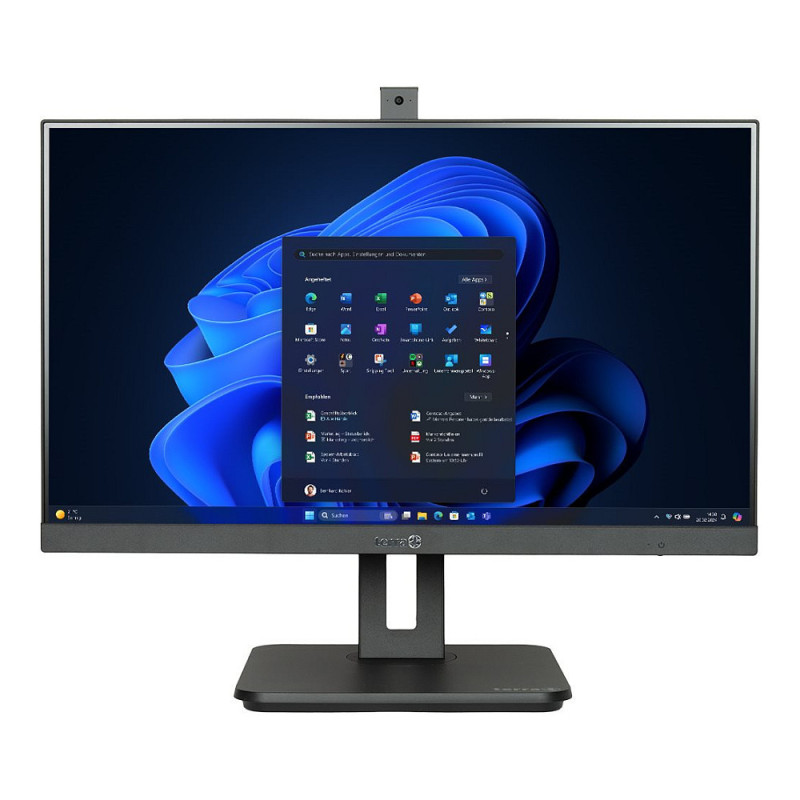

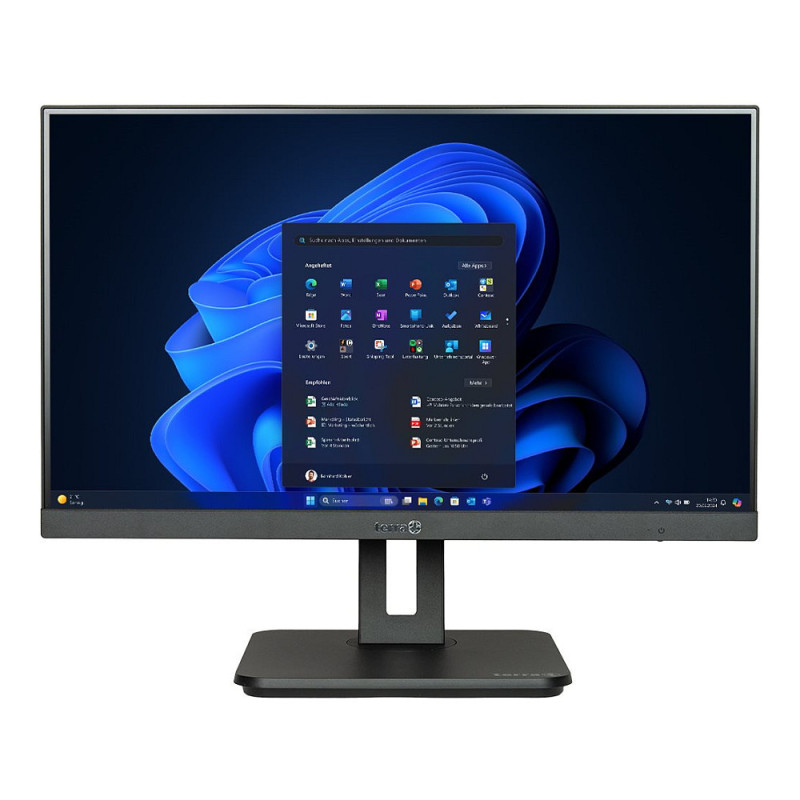

TERRA 1000036 All-in-One PC / workstation

TERRA 1000036. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: LCD. Processor family: Intel® Core™ i5. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Black

High adjustable fancy AIO 2410 HA PC with an Intel Core i5 CPU inside is elegant, performant and silent. This space-saving device fits perfectly into your office and with the optional purchasable VESA-mount it is easily Now with retractable 5MP webcam.

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Display brightness: 250 cd/m²
Panel type: LCD
Response time: 14 ms
Contrast ratio (typical): 1300:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14500
Processor cores: 14
Processor threads: 20
Processor boost frequency: 5 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.6 GHz
Efficient-core base frequency: 1.9 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor socket: LGA 1700
Processor base power: 65 W
Maximum turbo power: 154 W

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 5600 MHz
Memory layout (slots x size): 1 x 16 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Storage options: 2x S-ATA 6GB/s ¦ 1x M.2 type 2260/2280 (SATA & PCIe 4.0 x4 NVMe)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 6 W

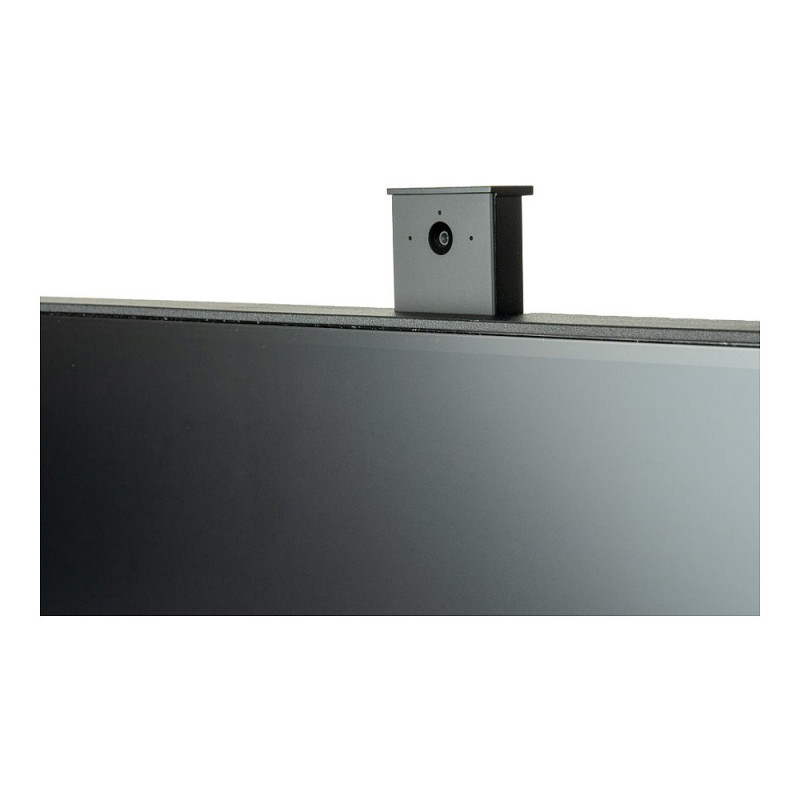

Camera

Feature: Built-in camera

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6 AX201
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2

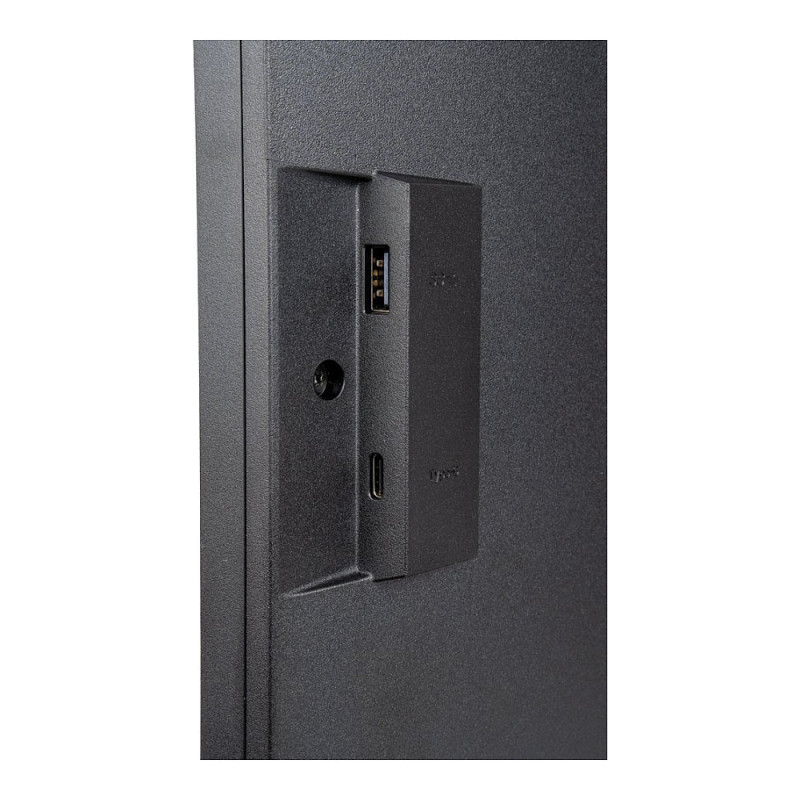

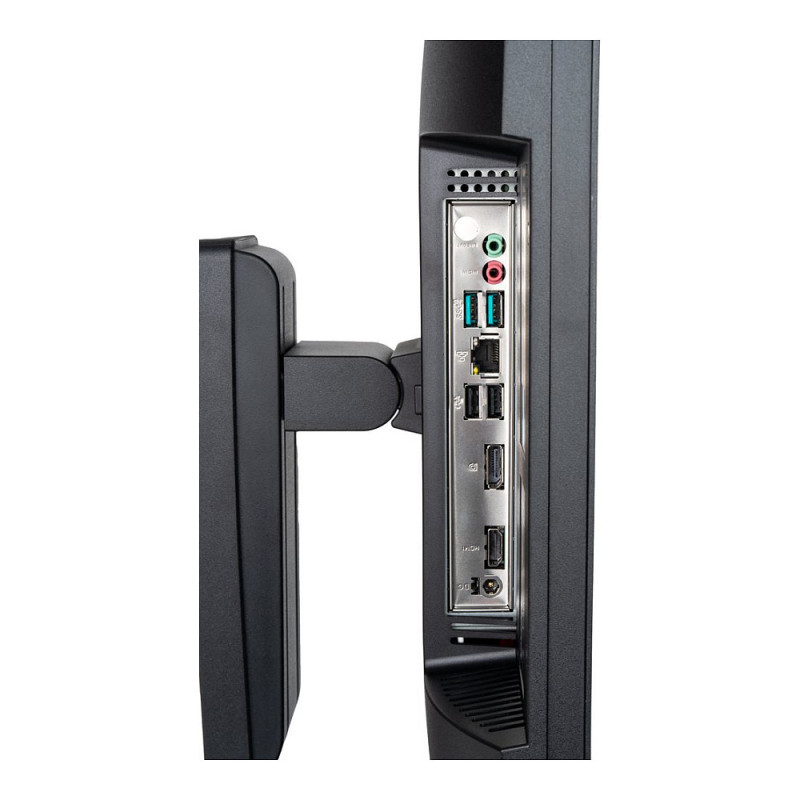

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
Feature: Microphone in
Audio output: Yes
Feature: DC-in jack

Design

Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

Product type: All-in-One PC
Market positioning: Business
Cooling type: Active
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Power

AC adapter power: 120 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Power consumption (standby): 1.9 W
Power consumption (off): 0.2 W

Weight & dimensions

Width (with stand): 540 mm
Depth (with stand): 54 mm
Height (with stand): 520 mm
Weight (with stand): 7.5 kg
Weight: 7.5 kg

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Packaging content

Feature: AC adapter included
Feature: Quick start guide
Cables included: AC

Other features

Audio output channels: 8.0 channels
Compatible operating systems: Windows 10, Windows 11
Expansion slots: 1x 2.5" SSD
Maximum number of SMP processors: 1
Number of processors installed: 1
Power supply: 120 W
Resolution description: HDMI 2.1 max. 4096 x 2160, DP 1.4 max. 4096 x 2304
Locale: International repository
Power consumption (short idle): 34.45 W
