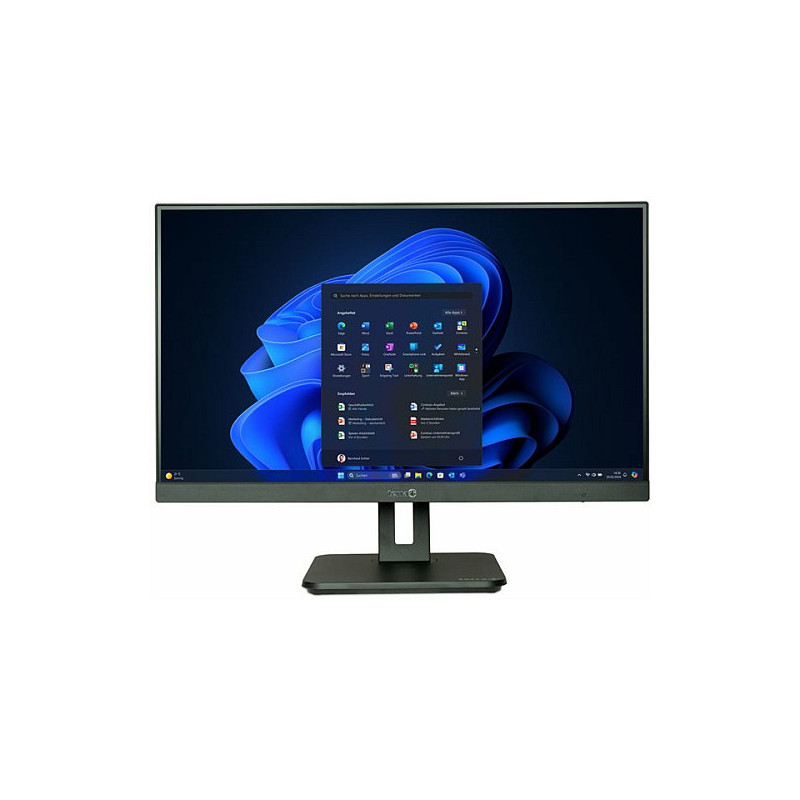

TERRA 1000035 All-in-One PC / workstation

TERRA 1000035. Product type: All-in-One PC. Display diagonal: 68.6 cm (27"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: LCD. Processor family: Intel® Core™ i5. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro. Product colour: Black

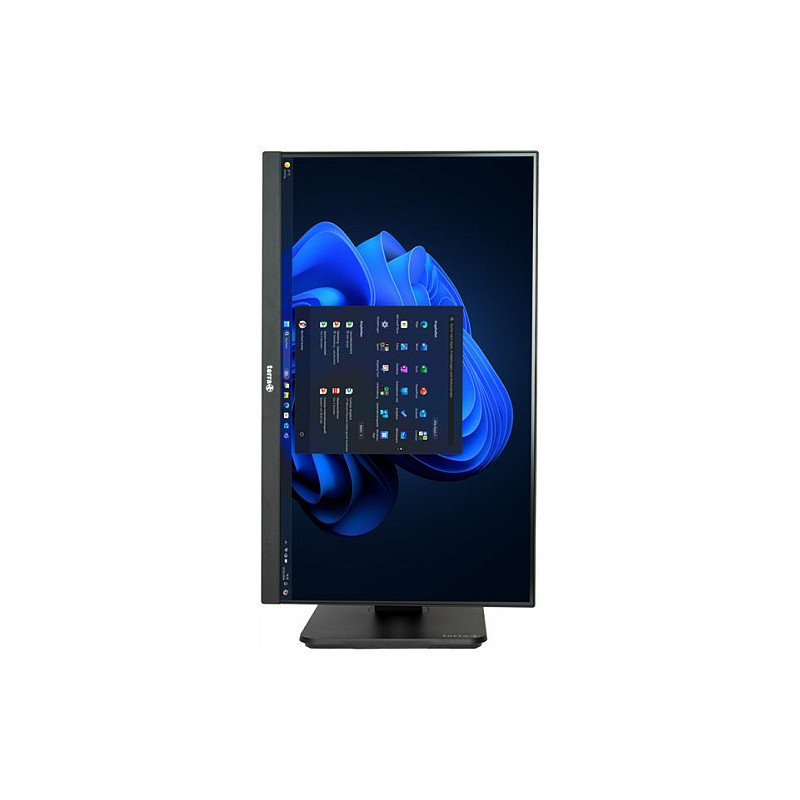

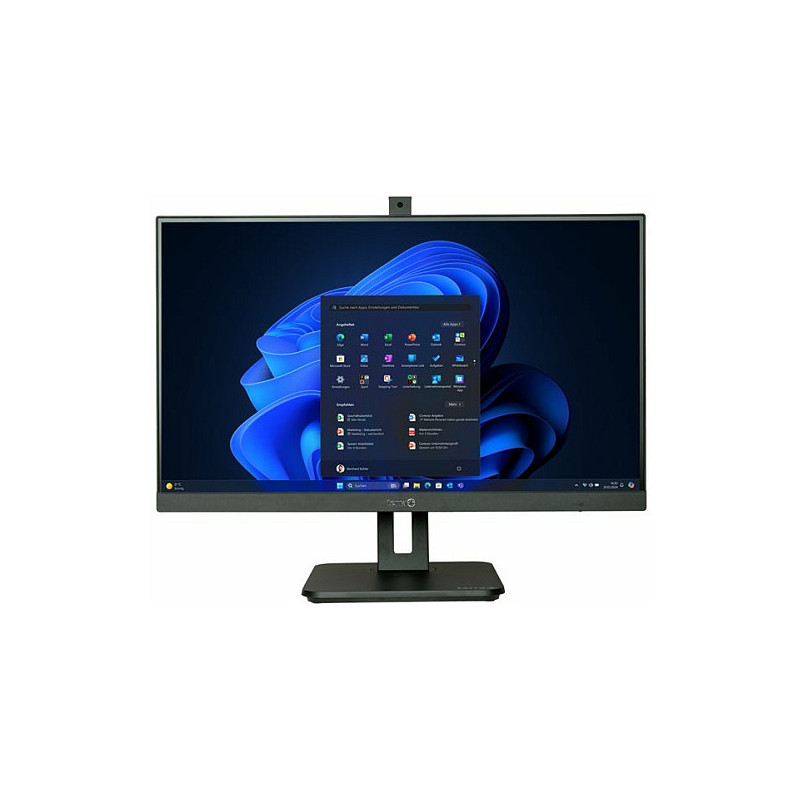

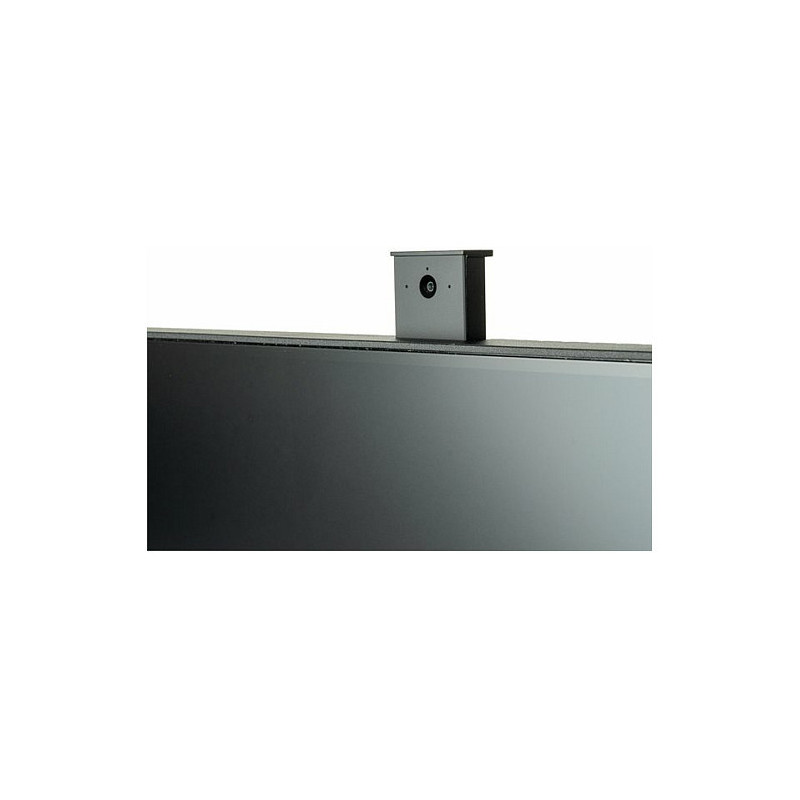

High adjustable fancy AIO 2710 HA PC with an Intel Core i5 CPU and M.2-SSD PCIe inside is elegant, performant, silent and now with retractable 5MP webcam. This space-saving device fits perfectly into your office and with the optional purchasable VESA-mount it is easily possible to attach it onto walls.

Display

Display diagonal: 68.6 cm (27")
Display resolution: 1920 x 1080 pixels
Touchscreen: No
HD type: Full HD
Display brightness: 250 cd/m²
Panel type: LCD
Tilt angle range: 0 - 140°

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14500
Processor cores: 14
Processor threads: 20
Processor boost frequency: 5 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.6 GHz
Efficient-core base frequency: 1.9 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 154 W

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB
Memory slots: 2
Memory clock speed: 5600 MHz
Memory layout (slots x size): 1 x 16 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770

Audio

Built-in speaker(s): Yes
Number of speakers: 2
RMS rated power: 6 W

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.2

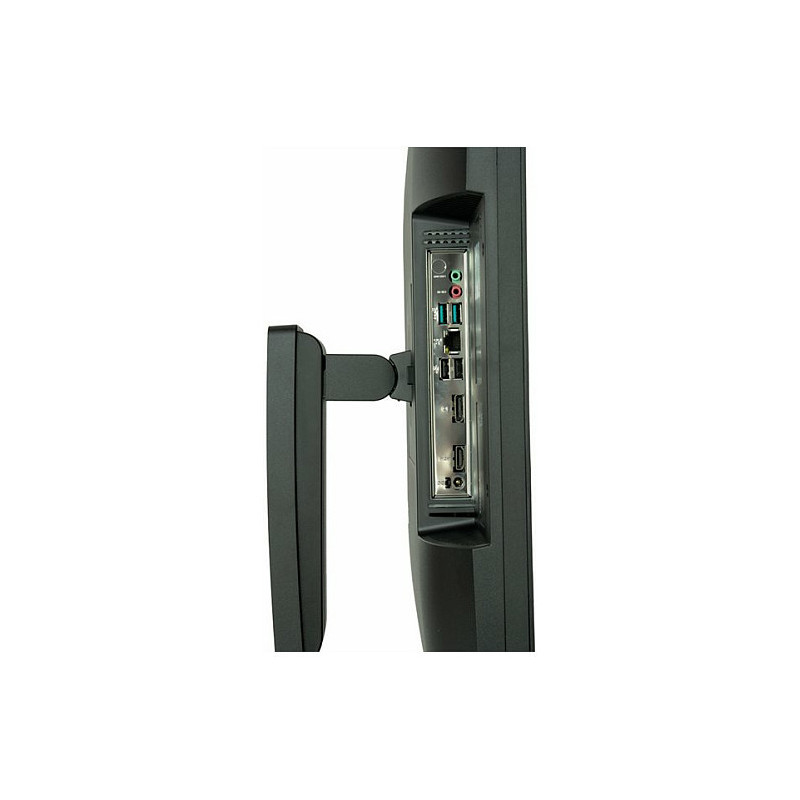

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
Microphone in: Yes
Audio output: Yes
DC-in jack: Yes

Design

Product colour: Black
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

Product type: All-in-One PC
Market positioning: Business
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Power

AC adapter power: 120 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Certificates

Certification: SMBios (DMI), EnergyStar 8.0, EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
