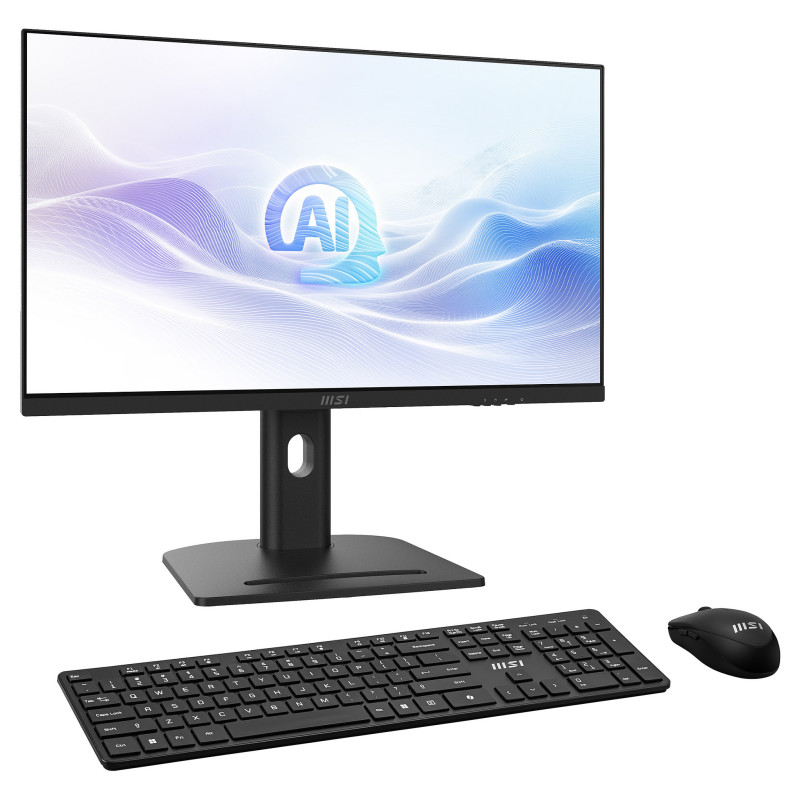

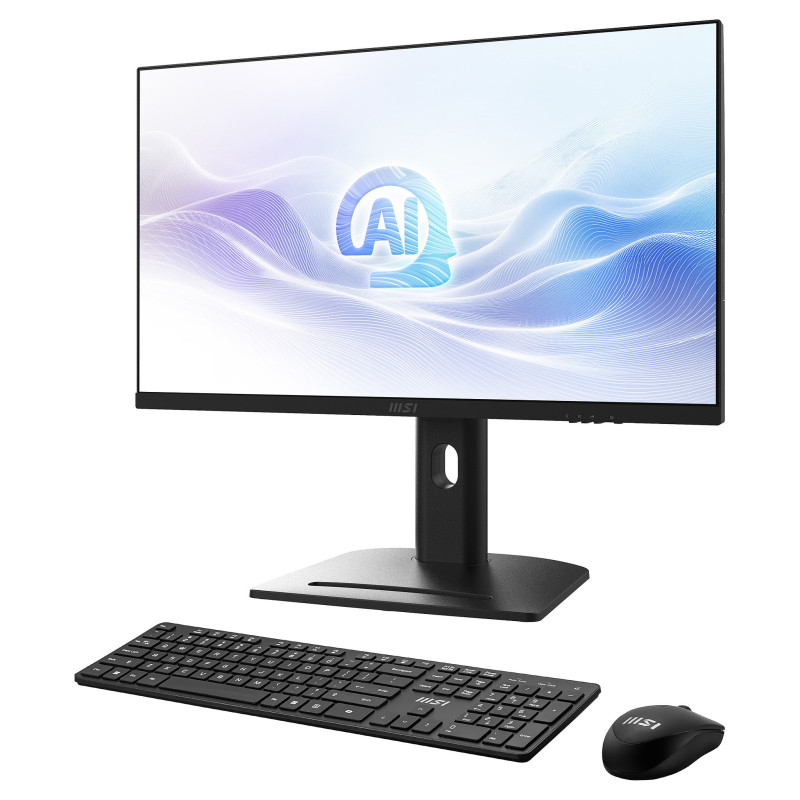

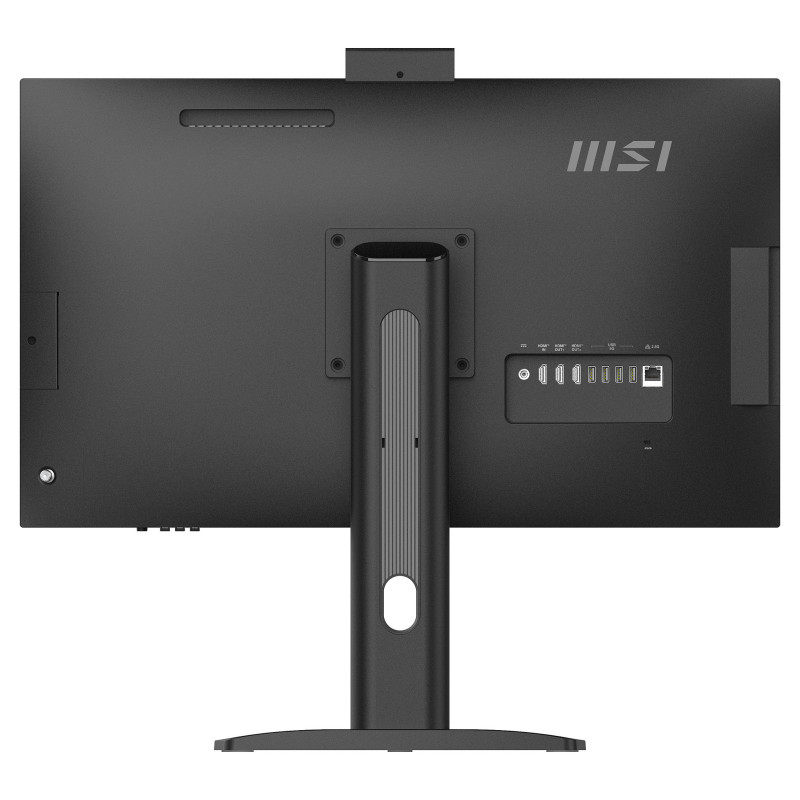

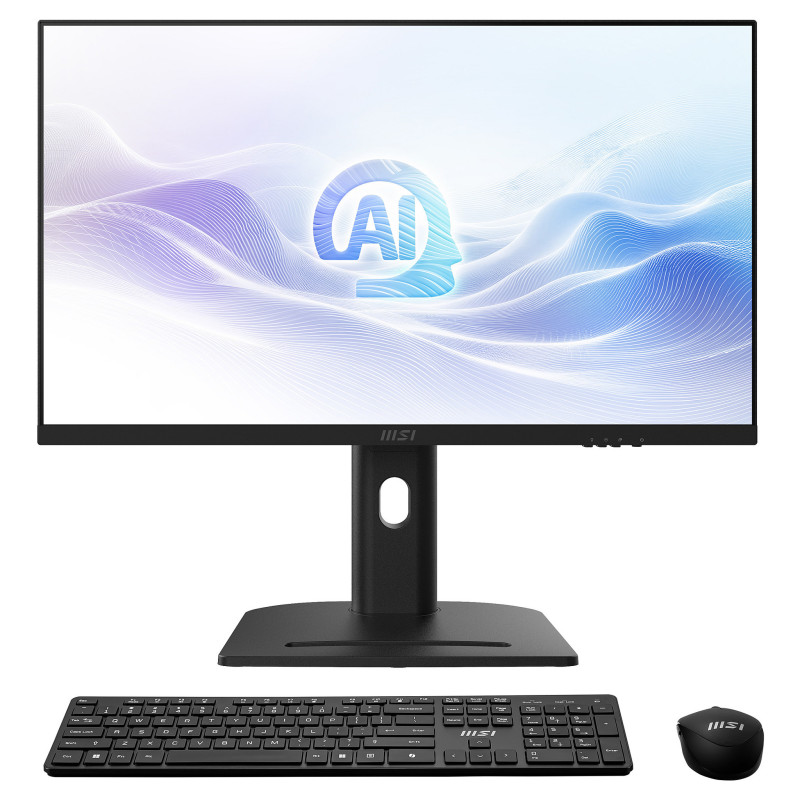

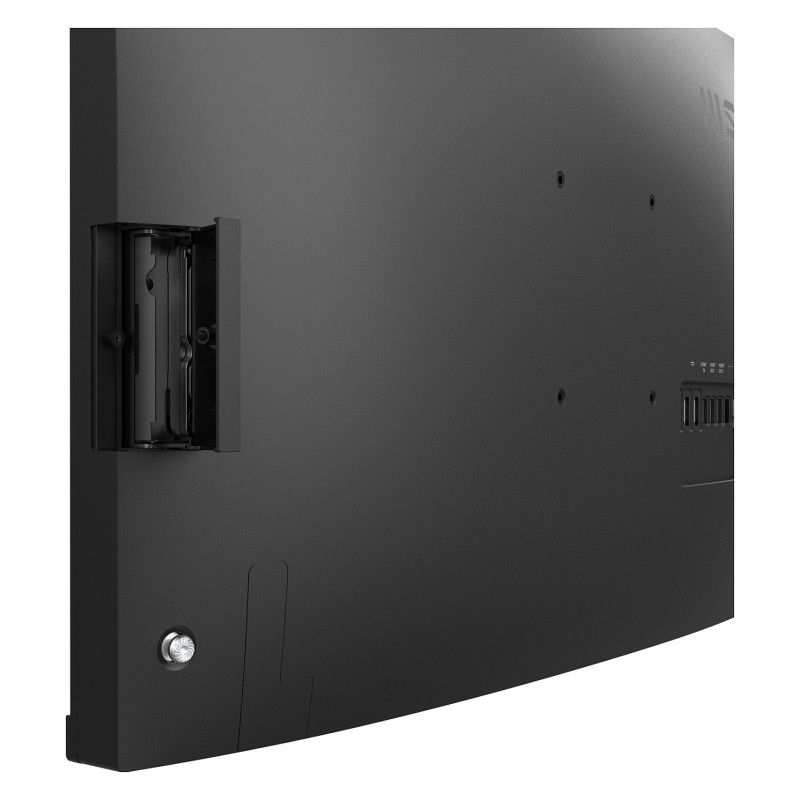

MSI Modern AM273QP AI 1UMG-221AT

MSI Modern AM273QP AI 1UMG-221AT. Product type: All-in-One PC. Display diagonal: 68.6 cm (27"), HD type: Wide Quad HD, Display resolution: 2560 x 1440 pixels, Panel type: IPS. Processor family: Intel Core Ultra 7. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Black

To Be Future-Ready
The AI era is upon us. Are you ready for the transformation in work and everyday life? Let's work together with the Modern AM273QP AI Series to embrace the next-level AI experience with faster, power-saving, AI-enabled processors.

Display

Display diagonal: 68.6 cm (27")
Display resolution: 2560 x 1440 pixels
HD type: Wide Quad HD
Display brightness: 300 cd/m²
Panel type: IPS
Pixel pitch: 0.2331 x 0.2331 mm

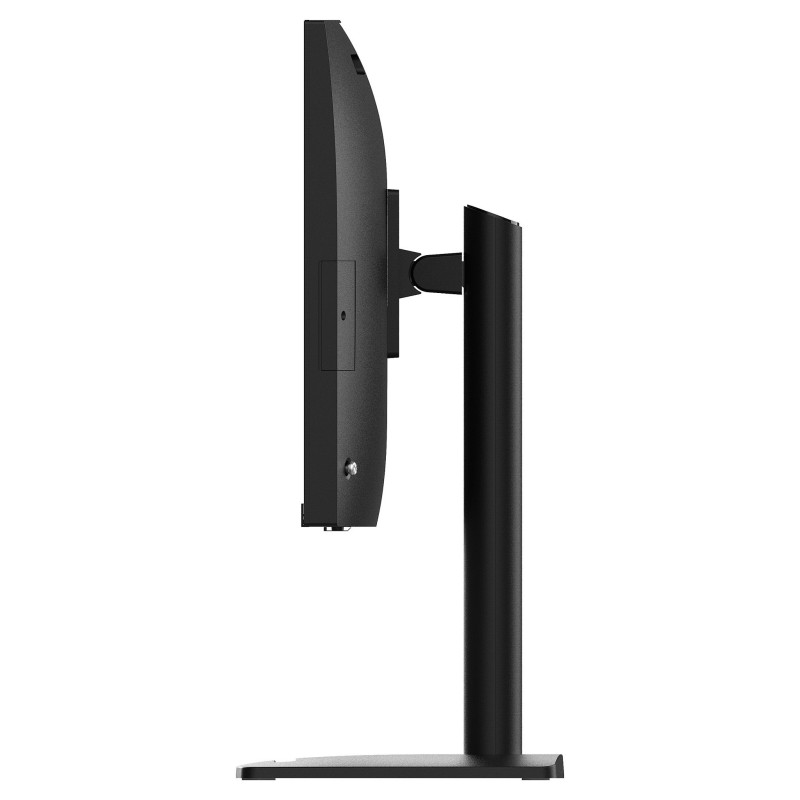

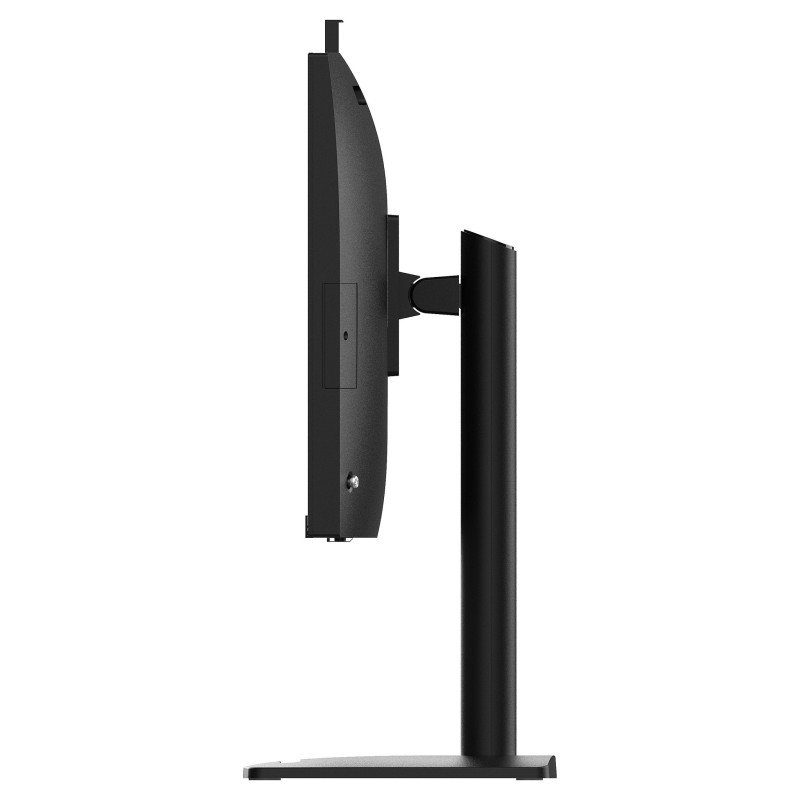

Tilt angle range: -4 - 20°

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 155H
Processor cores: 16
Processor threads: 22
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.4 GHz
Efficient-core base frequency: 0.9 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 5600 MHz
Memory layout (slots x size): 2 x 16 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
Optical drive type: No
Feature: Card reader integrated

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 6 W

Camera

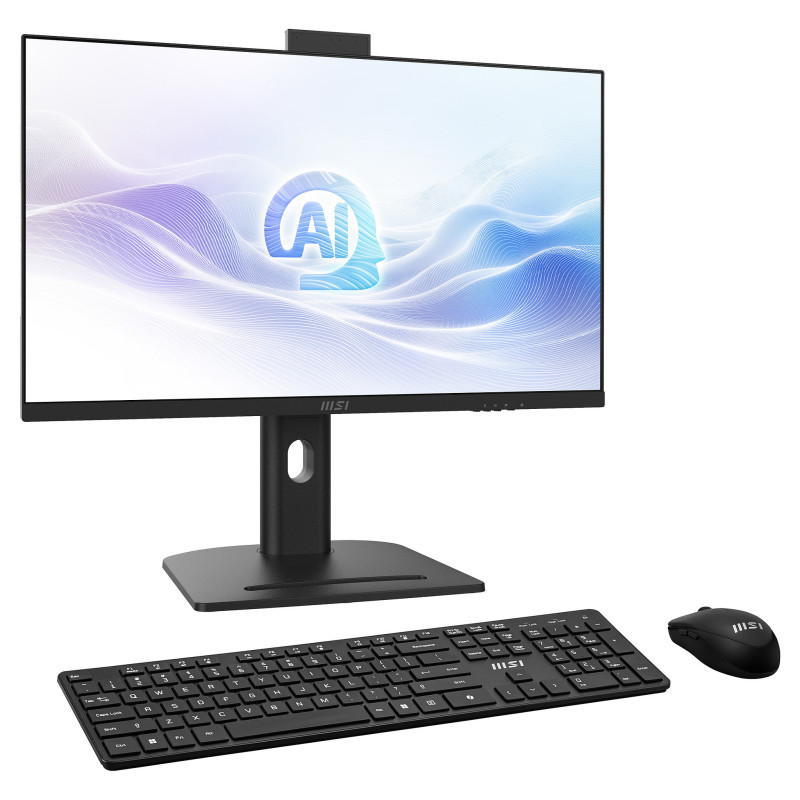

Feature: Built-in camera
Total megapixels: 2 MP
Camera HD type: HD

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.3

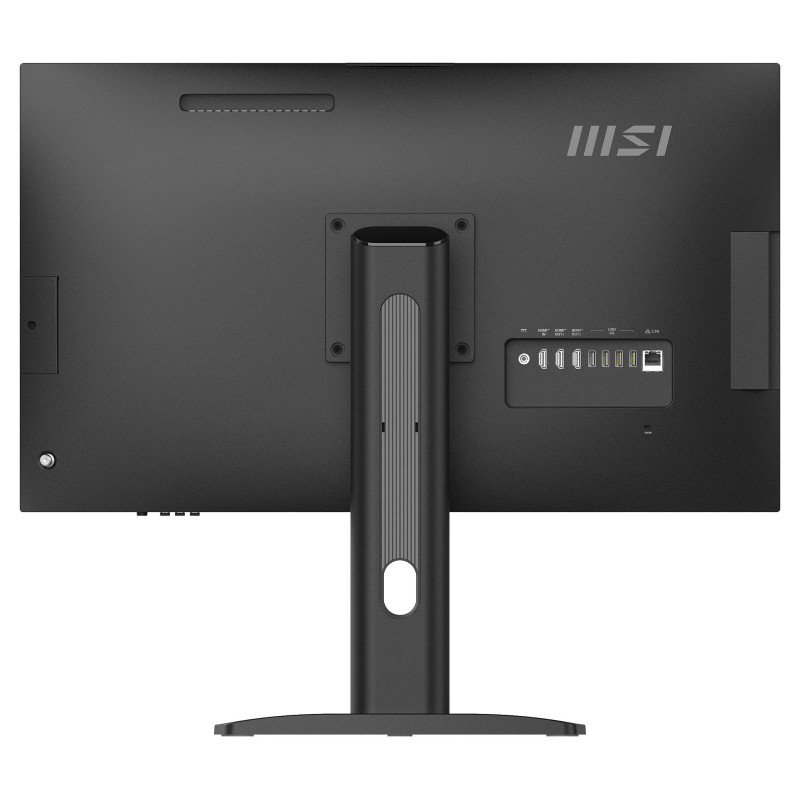

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.0
Feature: Combo headphone/mic port

Design

Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington

Performance

Product type: All-in-One PC
Motherboard chipset: Intel SoC
Feature: Trusted Platform Module (TPM)

Software

Operating system installed: Windows 11 Pro

Processor special features

Feature: Intel Virtualization Technology for Directed I/O (VT-d)

Power

AC adapter power: 120 W

Weight & dimensions

Width (with stand): 613.5 mm
Depth (with stand): 235 mm
Height (with stand): 543.7 mm
Weight (with stand): 8.05 kg
Package weight: 12.1 kg

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%
