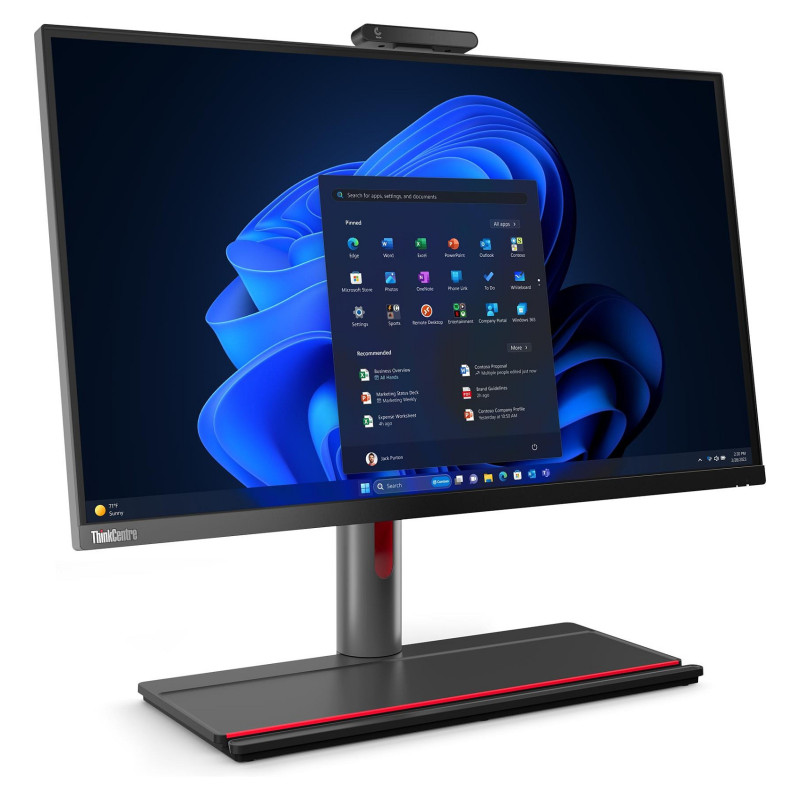

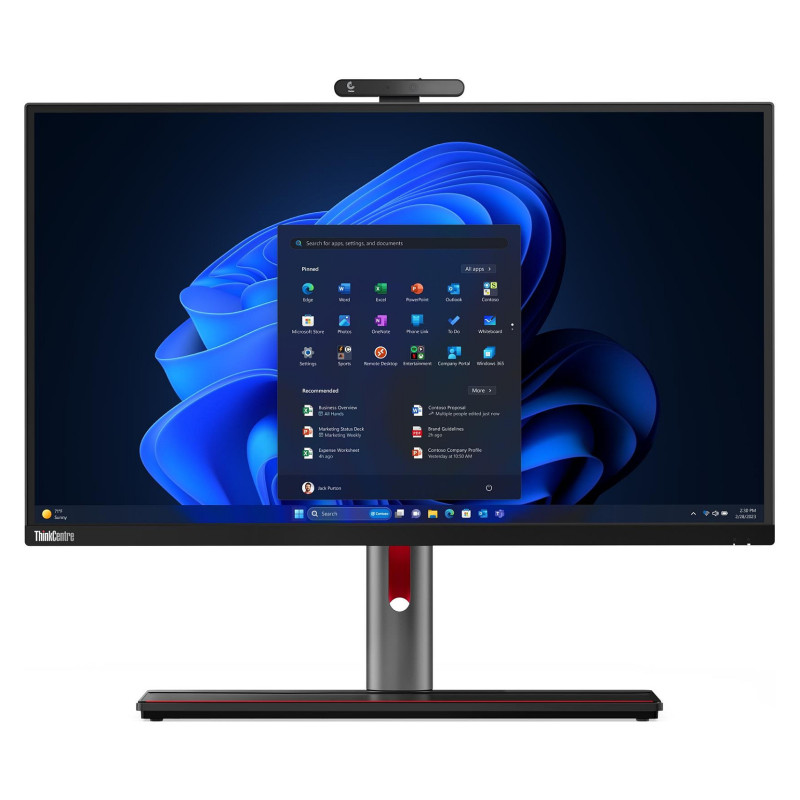

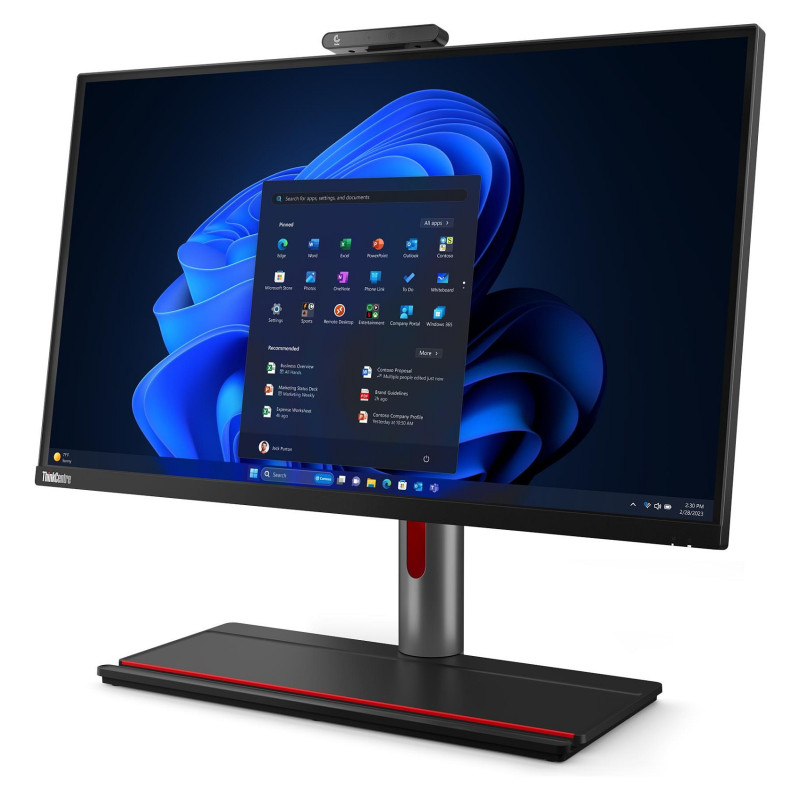

Lenovo ThinkCentre M90a Pro Gen 4

Lenovo ThinkCentre M90a Pro Gen 4. Product type: All-in-One PC. Display diagonal: 68.6 cm (27"), HD type: Quad HD, Display resolution: 2560 x 1440 pixels, Panel type: IPS. Processor family: Intel® Core™ i9. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Built-in camera. Optical drive type: DVD±RW. Operating system installed: Windows 11 Pro. Product colour: Black

Display

Display diagonal: 68.6 cm (27")
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display brightness: 350 cd/m²
Panel type: IPS
Contrast ratio (typical): 1000:1
RGB colour space: sRGB
Feature: Anti-glare screen
Colour gamut: 99%

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i9
Processor generation: 13th gen Intel® Core™ i9
Processor model: i9-13900
Processor cores: 24
Processor threads: 32
Processor boost frequency: 5.6 GHz
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.5 GHz
Processor cache: 36 MB
Processor cache type: Smart Cache
Processor socket: LGA 1700
Processor base power: 65 W
Maximum turbo power: 219 W

Memory

Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory form factor: DIMM/SO-DIMM
Feature: Non-ECC

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD memory type: TLC
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: DVD±RW

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 10 W
Feature: Built-in microphone
Audio chip: Realtek ALC256-NL
Audio system: Dolby Atmos

Camera

Feature: Built-in camera
Total megapixels: 5 MP

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Antenna type: 2x2
Feature: Ethernet LAN
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4/2.1
DisplayPorts quantity: 1
Feature: Combo headphone/mic port

Design

Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

Product type: All-in-One PC
Motherboard chipset: Intel Q670
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: BIOS password

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Power

AC adapter power: 230 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V

Weight & dimensions

Width (with stand): 613.6 mm
Weight (with stand): 11.2 kg
Width (without stand): 613.6 mm
Depth (without stand): 54.5 mm
Height (without stand): 383.4 mm
Package width: 764 mm
Package depth: 235 mm
Package height: 545 mm

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Certificates

Compliance certificates: RoHS

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Keyboard connectivity: Wired
Keyboard language: German

Other features

Feature: Wake-on-LAN ready
Feature: Intel® vPro™ Platform Eligibility
