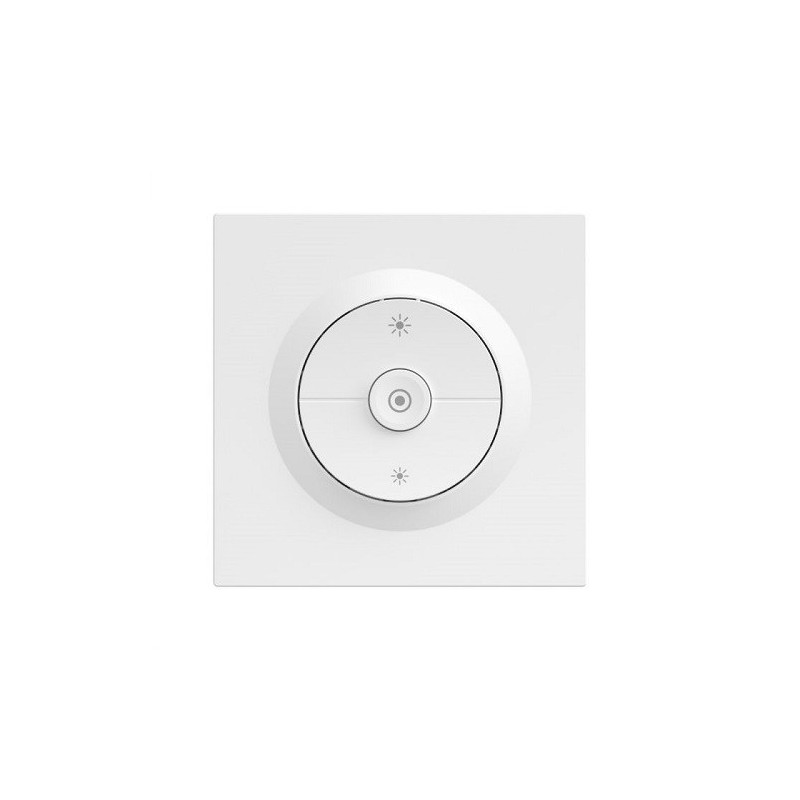

SONOFF MINI-ZBDIM-E smart dimmer switch, Zigbee

Sonoff MINI-ZBDIM-E (Orb-ZBDIM) smart light controller (dimmer) 220-240V AC, max. 2A, 1 channel, for dimmable LED, incandescent and halogen lamps, Zigbee 3.0
The SONOFF smart home system allows you to control electrical appliances remotely using the "EWeLink" app or by voice with "Amazon Alexa" or "Google Home". It allows you to create various scenarios, group devices by turning on / off multiple devices in your home with one touch, set desired timers and schedules, monitor the status of your home and devices in real time, and share their control. By linking the "EWeLink" app with the digital automation platform IFTTT, you can further expand the possibilities of scenarios. Sonoff smart home system devices have the built-in ability to operate in a local LAN network without a cloud server.
Features:
Smart dimmer with mechanical switch allows you to smoothly adjust the brightness of the lighting. It supports remote control, scenarios and schedules, while maintaining the ability to control the lighting with a regular wall switch.
The device also works as a Zigbee router, extending the network coverage and helping to ensure stable and reliable communication with other Zigbee devices.
Easily integrates with Home Assistant and other open source platforms to create a customized smart home control system (e.g. via Sonoff Dongle series USB adapters, which are purchased separately).
Using Matter Bridge, SONOFF Zigbee devices can be integrated into the Apple Home ecosystem and controlled together with other smart devices.
The integrated energy consumption monitoring function allows you to see real-time electricity consumption, monitor the status of the device, detect unusual energy usage, and manage electricity consumption more effectively.
Allows you to control the brightness of home lighting according to your mood, turn on/off, dim/brighten the lighting with a smart device using the eWeLink mobile app (Android, IOS). The brightness of the light can be adjusted with an accuracy of 1% at any time and from anywhere.
The app allows you to set timers with brightness settings and adjust the light according to smart scenarios. For example, it supports turning on/off the light at sunrise/sunset.
Supports the last state recovery function after a power failure.
The automatic calibration function adapts to different types of lamps and helps ensure smooth brightness adjustment without flickering.
Integrated overload, overcurrent and overheating protection constantly monitors the circuit status and automatically disconnects the power supply when faults are detected, ensuring safe and reliable operation.
Supports voice control via Google Assistant or Amazon Alexa.
Easy installation and management. The device is mounted in a flush-mounted box behind the switch, making it suitable for both new installations and modernization of existing electrical systems.
Stylish, modern design, adapted to the Sonoff Fusion series frames and blends harmoniously into the interior.
Compatible with other Sonoff wall switches and sensors and with various other products that would complement smart home scenarios.
Designed for smart lighting control in homes or commercial premises.
Note: smart functions require a Zigbee 3.0 hub (e.g. SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost or Home Assistant with Zigbee coordinator).
Technical data:
Compatibility: SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, SNZB-01P, SONOFF SNZB-02P, SONOFF SNZB-02D, SONOFF SNZB-02WD, SONOFF SNZB-03P, etc.
Number of channels: 1.
Input voltage: 220-240V AC.
Output voltage: 220-240V AC.
Frequency: 50Hz.
Max. current: 2A.
Power: <400W (for incandescent and halogen bulbs), <200VA (for dimmable LED bulbs).
Dimming range: 0-100%.
Chip: EFR32MG21.
Wireless standard: IEEE 802.15.4.
Supported protocol: Zigbee 3.0.
App: eWeLink (Android, iOS).
Works with Amazon Alexa Google Assistant.
Housing material: PC.
Installation: flush.
Operating temperature: -10°C~40°C.
Operating humidity: 5%-95%RH (non-condensing).
Dimensions: 86x86x34 mm.
Color: white.
Weight: 83g.
Certificates: CE, RoHS.
Warranty: 24 months
