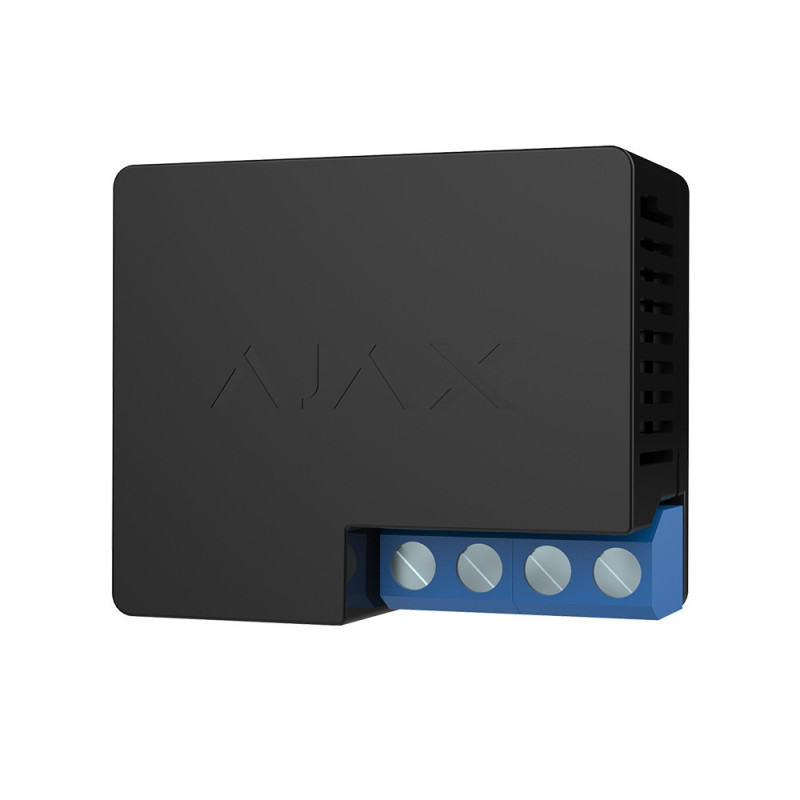

Ajax WallSwitch power relay

The Ajax WallSwitch power relay turns household appliances on and off at home and regulates energy consumption via a mobile app.
Long distance is not an obstacle
"Ajax WallSwitch" can be mounted up to 1000 meters away from the smart control center "Ajax Hub" - the signal will reach it without any problems.
100% protection
Protected against short-term voltage surges and overheating. Operation is checked every 12-300 seconds.
Simple and effective
A remote antenna is used for more effective contact. Operating voltage range: 110-230V. Saves parameters after failures.
Technical data
Connection type: wireless
Compatibility: Only works with Ajax Hub
Relay life: 200,000 switching cycles
Power supply voltage: 110-230 V AC±10% 50/60 Hz
Overvoltage protection 230 V: Max - 264 V, min - 161 V
Voltage protection 110 V: Max - 126 V, min - 77 V
Maximum load current: 13 A
Maximum current protection: yes (13 A)
Permissible power (resistive load at 230 V): up to 3 kW
Permissible power (resistive load at 110 V): up to 1.5 kW
Electric meter: yes
Power consumption parameters: yes (current, voltage, power consumption)
Permissible ambient temperature: from 0°C to +64°C
Temperature protection: yes (65°C (inside the device)
Communication protocol: Jeweller (868.0-868.6 MHz)
Signal power: 25 mW
Response time: less than 1 sec.
Maximum distance between relay and control panel: up to 1,000 m (in open space)
Standby power consumption: less than 1 Wh
Protection index: IP20
Humidity resistance: less than 75%
Dimensions: 38x25x18 mm
Installation dimensions: Ø> 50, depth 55mm
Complete set
Remote control
Instruction
Installation kit
