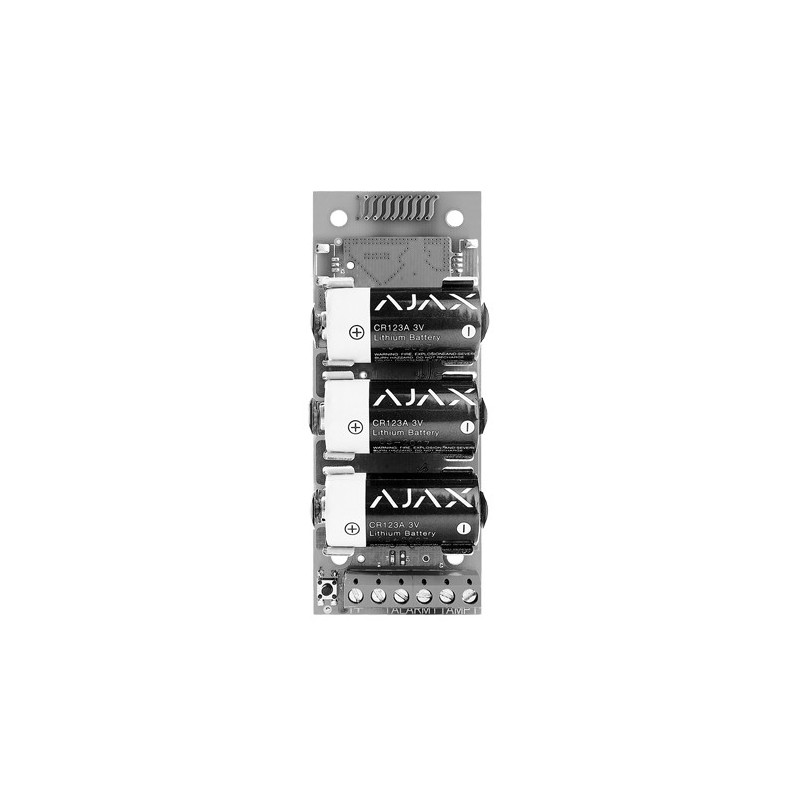

Ajax Transmitter

Ajax Transmitter is a transmitter for third-party detector integration. The transmitter allows you to connect detectors with a wired output to the security system.
Long distance is not an obstacle:
Works up to 1600 meters from the Ajax Hub smart control panel in open space and across multiple floors. Works both indoors and outdoors. Works with wired and autonomous detector with wired outputs.
100% protection:
Uses recognition technology to prevent intrusions. Uses encrypted communication. Immediately sounds an audible alarm if tampered with. Beep period every 12 seconds.
Efficient and reliable:
Operates at temperatures from +25°C to +50°C, humidity resistance up to 75%.
Easy to install and operate:
With interactive user manual for easier installation. Connection quality can be tested remotely.
Technical data:
Place of use: interior/exterior
Works only with Ajax Hub smart control panel: yes
Compatibility: wired and standalone detectors with wired output
Radio signal power: 25 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between transmitter and smart control panel: up to 1600 m (in open space).
Maximum number of devices that can be connected: 1
Beep interval: 12-300 sec. (adjustable)
Connection blocking detection: yes
Anti-disassembly: accelerometer
Alarm input: 1
Power supply type: +/- connectors
Power supply: 3V
Operating temperature: from +25°C to +50°C
Humidity resistance: up to 75%
Dimensions: 100x39x22 mm
The set includes:
Wireless transmitter
CR123A battery
Installation kit
Instruction
