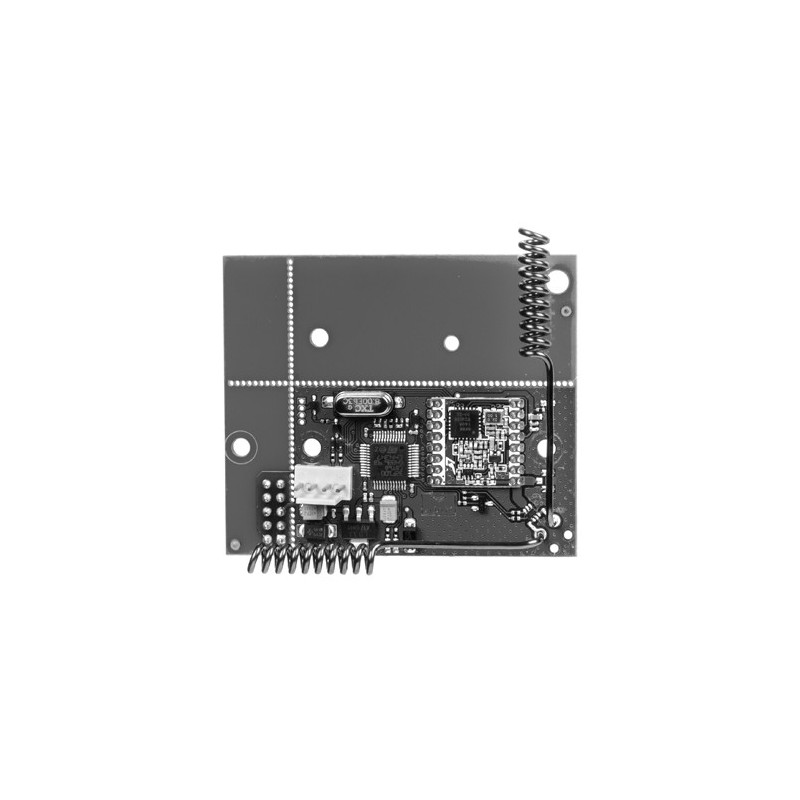

Ajax module uartBridge

Ajax uartBridge module for integration with smart home systems. Wireless smart network and security systems connect to third-party security or smart home systems using a UART interface.
Maximum power:
Jeweller's wireless technology extends the range of network devices up to 2000 meters in open areas or even across multiple floors. It can work with up to 85 devices at a time.
100% protection:
Uses recognition technology to prevent intrusions. Antenna diversity and frequency hopping provide additional security. Uses encrypted communication.
Efficient and fast:
Detectors are adapted using a radio channel. Saves event history. Notifies about operation with an audible signal every 12-300 seconds. Notifies about the status of each device - battery life, alarm, etc.
Easy to install and operate:
Connects using the UART interface.
Technical data:
Communication interface with the central unit: UART (speed 57,600 Baud)
Place of use: interior
Radio signal power: 25 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between detectors and uartBridge: up to 2000 m (in open space).
Maximum number of devices that can be connected: 85
Connection blocking detection: Yes
Operating system updates: yes
Detector performance monitoring: yes
Power supply: DC 5 V (from UART interface)
Operating temperature: from -20°C to +50°C
Humidity resistance: up to 90%
Dimensions: 64x55x13 mm (without antennas); 110x58x13 mm (with antennas).
