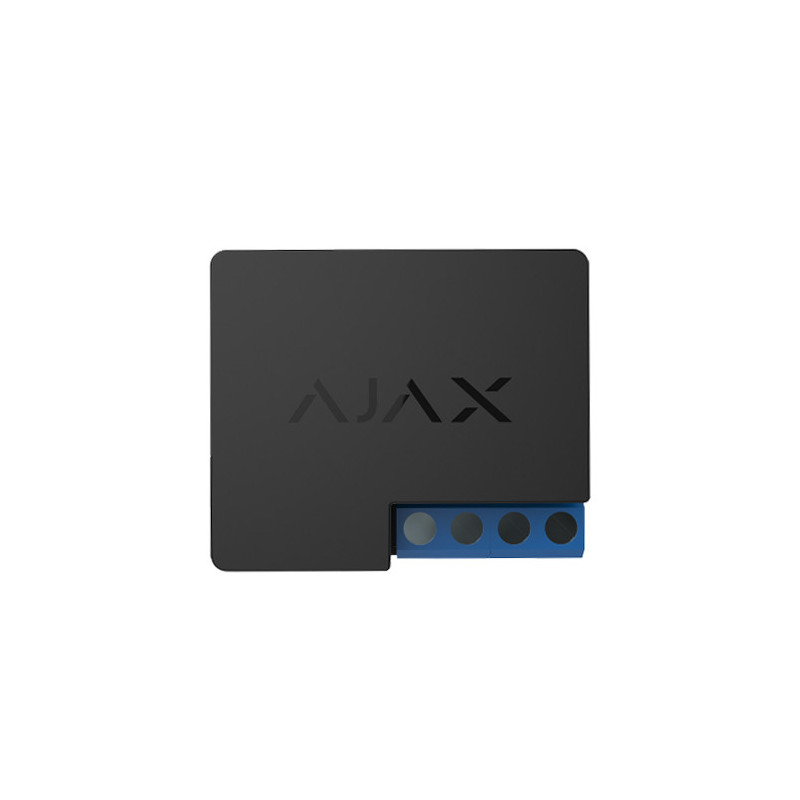

Ajax dry contact relay Dry Contact

Wireless dry contact relay for switching on and off devices. Powered by a 7-24V DC source.
Long distance is not an obstacle:
Works up to 1000 meters from the Ajax Hub smart control panel in open space and across multiple floors. Allows you to remotely turn devices on or off. With pulse equipment control function.
100% protection:
Protects against voltage surges and overheating.
Efficient and reliable:
Uses a remote antenna. Operating voltage 7-24V. Technical parameter information is saved after overheating.
Technical data:
Color: black
Place of use: interior
Device: electromagnetic relay
Relay life: 200,000 switching cycles
Supply voltage range: 7-24 V (DC)
Voltage protection: yes, min - 6.5 V, max - 36.5 V
Maximum current load: 5 A at 36 V DC, 13 A at 230 V AC
Overcurrent protection: no
Maximum temperature protection: yes, above 65°C at the installation site or above 85°C in the relay.
Output power: up to 3 kW
Parameter control: yes
Power consumption: less than 1 Wh
Communication protocol: Jeweller (868.0-868.6 MHz)
Modulation: GFSK
Maximum distance between relay and smart control panel: 1000 m
Radio signal power: 25 mW
Operating temperature: from 0°C to +64°C
Humidity resistance: up to 75%
Dimensions: 38x25x18 mm
Weight: 32 g
The set includes:
Relay
Instruction
Double-sided adhesive tape
