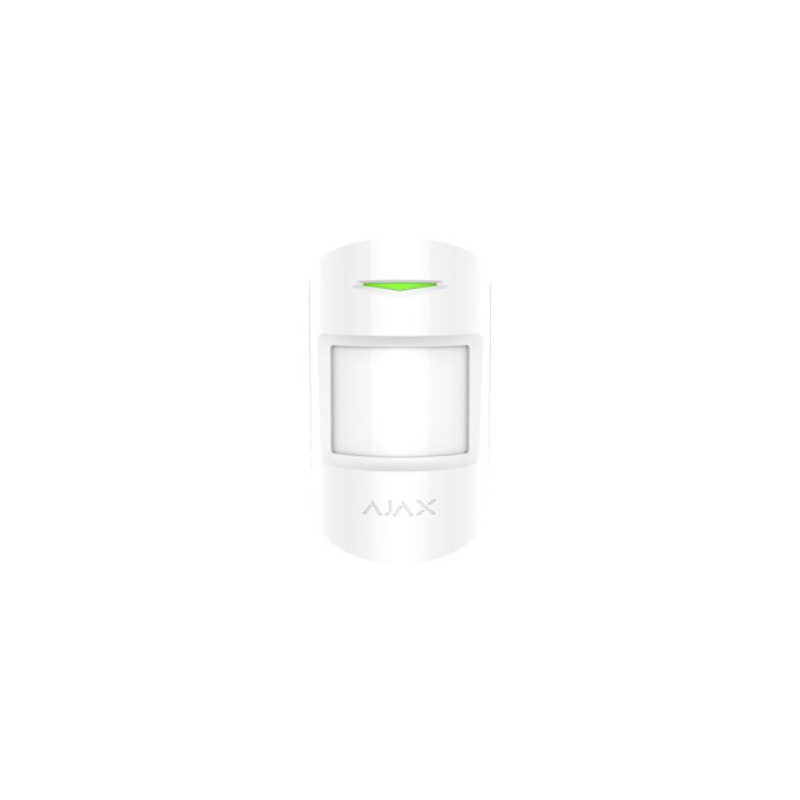

Ajax MotionProtect motion detector (white)

The compact and wireless Ajax MotionProtect motion detector recognizes only human movement and captures movements up to 12 meters away. You can control and change the settings of the Ajax MotionProtect motion detector using the Ajax Security System app directly on your smart device or computer screen.*
Will recognize an intruder from the first step
Thanks to SmartDetect technology, the Ajax MotionProtect motion detector detects human movement as soon as it enters the device's viewing area and instantly sends an alarm signal. The motion detector recognizes human movement from a distance of 12 meters, but the sensor does not detect the movement of pets or drafts.
Long distance is not an obstacle
Thanks to Jeweler's unique communication technology, the Ajax MotionProtect motion sensor can be mounted up to 1,700 meters away from the Ajax Hub smart control center.
100% protection
Ajax MotionProtect has special protection against the methods used by criminals to suppress security systems - a unique system that prevents communication signals from being suppressed by an encrypted signal. The smart control panel, periodically sending signals, also constantly checks the operation of the detectors.
Easy to install and operate
You can connect the Ajax MotionProtect motion detector to the Ajax security system by scanning the QR code on the packaging with your smart device and following a few steps in the Ajax Security System app. In addition, thanks to the special SmartBracket holders, you can easily attach the detector to vertical surfaces.
Verified quality
The Ajax MotionProtect device meets the strict quality and reliability requirements of the European standard EN 50131 for security system manufacturers.
Long-lasting battery
The Ajax MotionProtect motion detector uses a standard replaceable CR123A battery. The device is extremely energy efficient, so one battery will last up to 7 years.
* The Ajax MotionProtect motion detector is not a standalone device. To use its full capabilities, it must be paired with the Ajax Hub smart center. You also need a smart device with Android 4.1, iOS 9 or a higher version of these operating systems.
Technical data
Connection type: wireless
Place of use: interior
Motion detection distance: up to 12 m
Sensitivity: 3 levels (low, medium, high)
Detection angle: 88.5° horizontal / 80° vertical
Recommended installation height: 2.4 m
Ignoring animals: weight up to 20 kg, height up to 50 cm.
Burglary protection: yes
Signal power: 20 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between detector and control panel: 1700 m (in open area)
Battery type: CR123A
Supply voltage: 3V
Battery life: 7 years.
Operating temperature: from 0°C to + 50°C
Humidity resistance: up to 80%
Dimensions: 110x65x50 mm
Complete set
Motion detector
CR123A battery
Installation kit
Instruction
