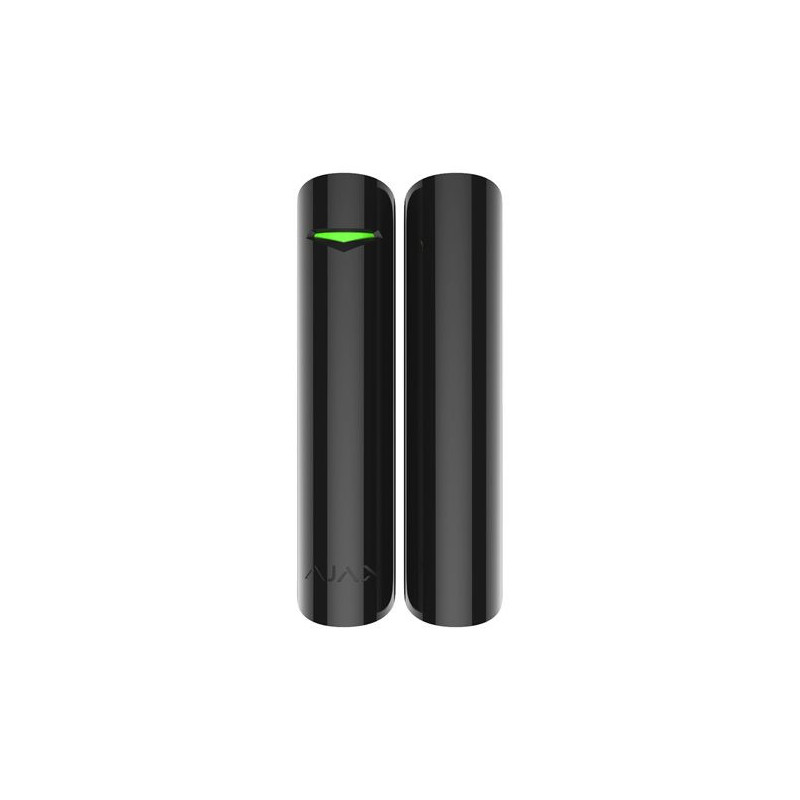

Ajax DoorProtect Plus door opening detector (black)

The compact and wireless Ajax DoorProtect door and window opening detector, whose magnetic sensor detects intrusion as soon as doors and windows are opened, even on several floors.
Long distance is not an obstacle
Thanks to Jeweler's long-range communication technology, Ajax DoorProtect door and window opening detectors can be mounted up to 1000 meters away from the system control center.
100% protection
For even better protection, "Ajax DoorProtect Plus" has a special system that prevents communication signals from being suppressed, encrypted with a signal. Periodically sending signals every 12-300 seconds to the detectors, their operation is also checked by the smart control panel.
Easy to install and operate
You can connect the Ajax DoorProtect Plus motion detector to the Ajax security system by scanning the QR code on the package with your smart device and following a few steps in the Ajax Security System app. In addition, thanks to the special SmartBracket brackets, you can easily attach the detector to vertical surfaces. The package includes 2 magnets of different sizes. You can decide which one to use based on the design of the window or door.
Long-lasting battery
The Ajax DoorProtect Plus door detector uses a standard replaceable CR123A battery. The device is extremely energy efficient, so one battery will last up to 5 years.
Technical data
Detector type: wireless
Installation: surface mounted
Detection elements: Reed switch, accelerometer
Distance to magnet: up to 1 cm (small magnet), up to 2 cm (large magnet)
Place of use: interior
Compatibility: Only works with Ajax Hub
Additional inputs: yes
Burglary protection: yes
Signal power: 20 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between detector and control panel: 1000 m (in open area)
Battery type: CR123A
Supply voltage: 3V
Battery life: 5 years.
Operating temperature: from 0°C to + 50°C
Humidity protection: up to 80%
Dimensions: 20x90 mm
Complete set
Detector
2 magnets
CR123A battery
External contact
Installation kit
Instruction
