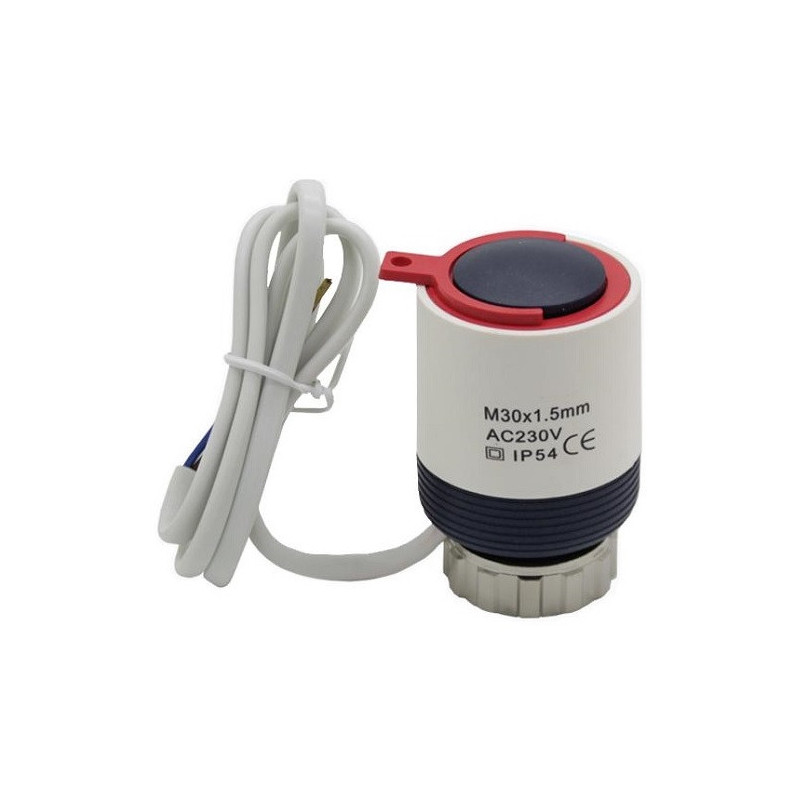

Thermal actuator, NC, 230V AC

Thermal actuator, NC, 230V
Features:

• An electric thermal actuator is designed to control the heat distribution system of heating equipment. It receives commands from automation devices (such as room thermostats or controllers) and regulates the distribution of water flow according to set parameters. With the help of a thermal actuator, it is possible to precisely control the temperature of the premises and energy consumption.


• The thermal actuator has a NC (normally closed) status. It is not suitable for use in a system heated by a solid fuel boiler.


• The actuator works with any type of programmable or non-programmable room thermostats.

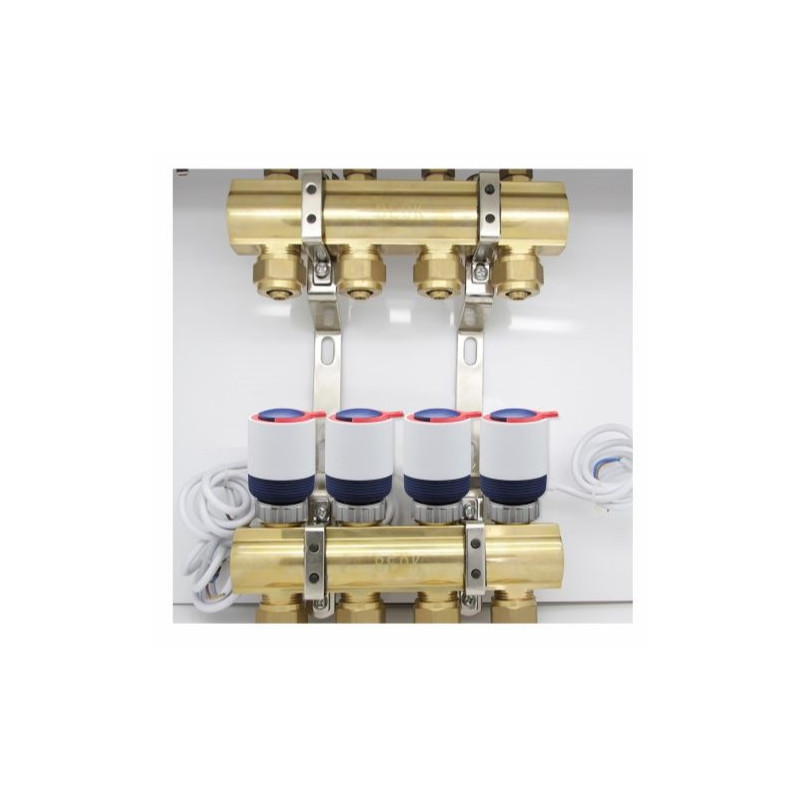

• Simple installation, the thermal actuator is connected to the manifold with an M30 thread.


• Power consumption only 2W.

Technical data:

• Purpose: water heating system.


• Thermal actuator operating type: NC (normally closed).


• Operating voltage: AC 230V, 50/60Hz.


• Starting current: 50mA.


• Response time: up to 180s (valve off-on).


• Power consumption: 2W.


• Power: 100N (± 10%).


• Installation: connected to the collector.


• Thread: M30x1.5mm.


• Cable length: 80cm.


• Operating temperature: -20°C~ +50°C.


• Operating humidity: 5%~95%RH (non-condensing).


• Safety class: IP54.


• Dimensions: 40 x 40 x 68 mm.


• Color: white.


• Certificates: CE EN60730.
