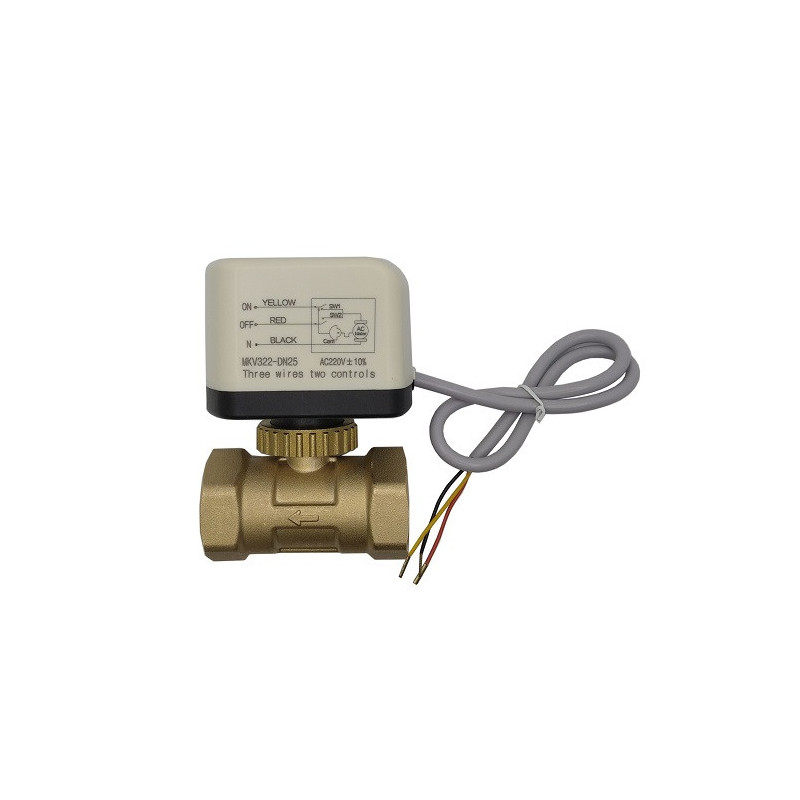

Electric water valve, 220V, DN25, ball

Electric water valve, 220V, DN25, ball
Features'

• The electric valve consists of a ball valve and a thermal actuator. It is designed to control the on/off of a water system and can be applied in various HVAC (heating, ventilation and air conditioning) systems.


• The energy-saving design in the valve allows the power to be turned off when the valve is fully open or closed. The energy consumption when opening or closing the valve is only 4W.


• Dual control, stable performance.


• The reliable and sturdy brass valve body ensures a long service life.

Technical data:

• Purpose: water systems.


• Operating voltage: AC 220V ± 10%, 50/60Hz.


• Response time: up to 15s (valve on); up to 15s (valve off).


• Nominal pressure: 2.5 Mpa.


• Power consumption: 4W.


• Connection diameter: DN 25mm.


• Inner diameter: 1 inch.


• Application: cold/hot water, glycol water solution (<50%).


• Liquid temperature: 2°C ~ 90°C.


• Safety class: IP54.


• Insulation class: II (double insulation).


• Valve material: nickel-plated brass.


• Gear housing material: ABS+PC.
