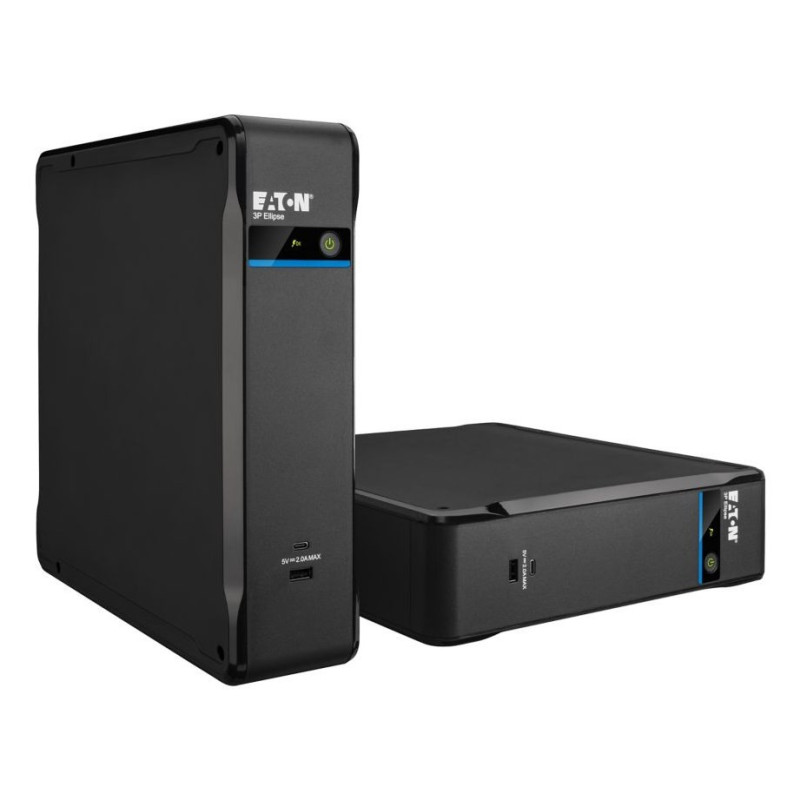

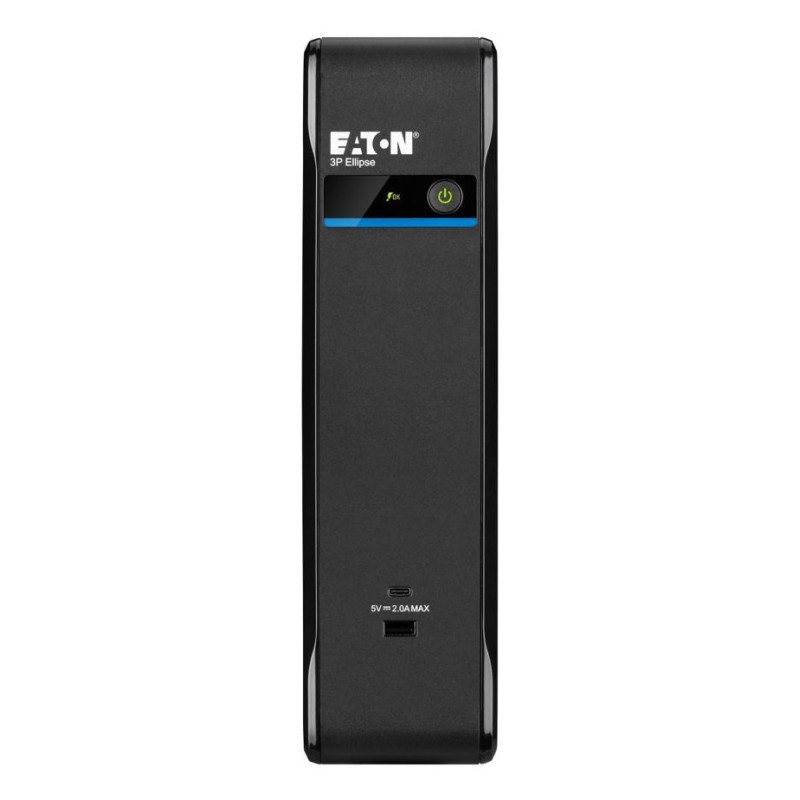

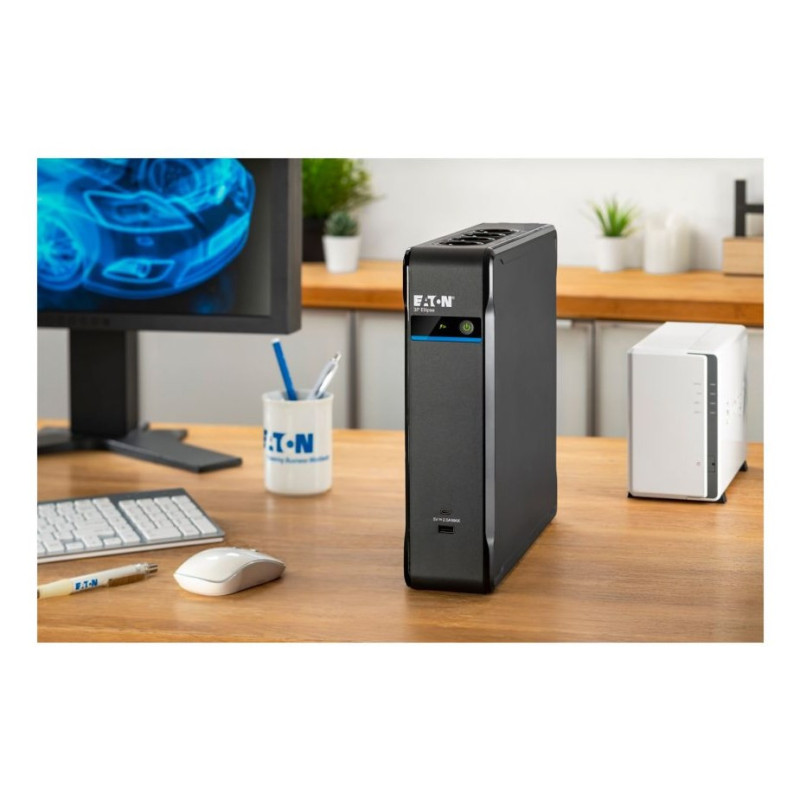

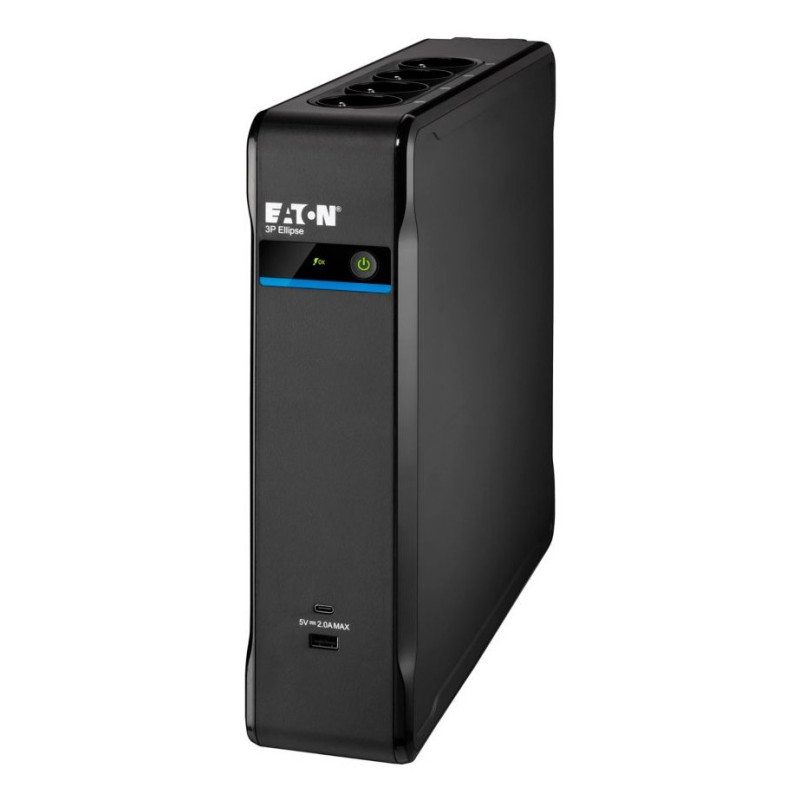

Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
Product reference:
6-3P1300UD
Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
Product reference:
6-3P1300UD
Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| Output frequency | 50/60 Hz |
| Efficiency (ECO mode) | 97% |
| Efficiency | 97% |
| UPS topology | Standby (Offline) |
| Output operation voltage (min) | 161 V |
| Auto shut-off | Yes |
| Output power factor | 0.6 |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Waveform | Stepwise |
| Output operation voltage (max) | 284 V |
| Input operation voltage (max) | 284 V |
| Input operation voltage (min) | 161 V |
| Input frequency | 46/70 Hz |
| Noise level | 25 dB |
| Surge protection | Yes |
| Power consumption (average operating) | 26 W |
| Output power | 840 W |
| Output power capacity | 1.3 kVA |
| Control type | Buttons |

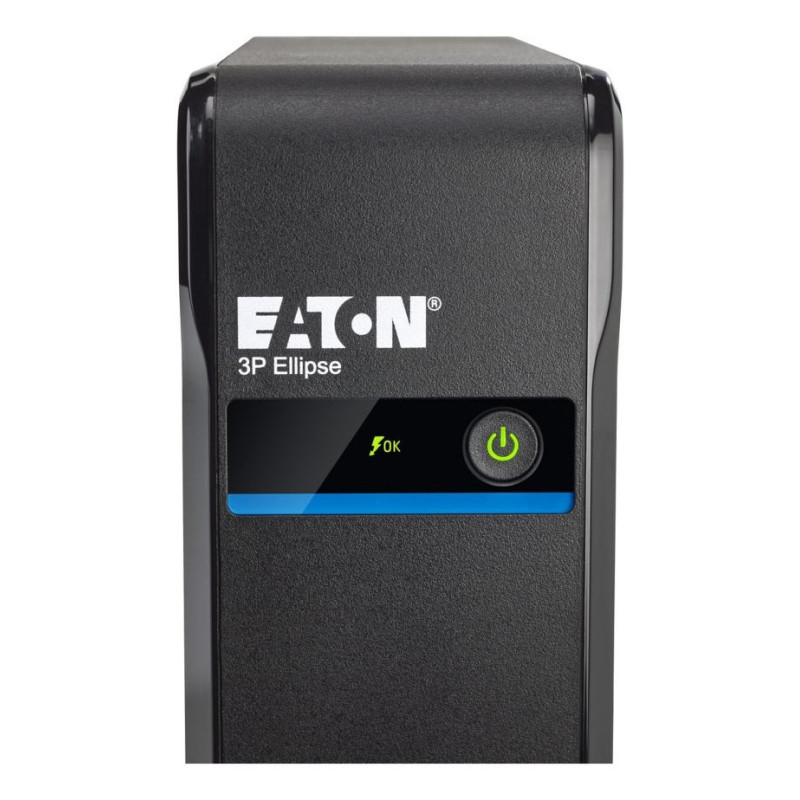

| Display type | LED |
| Form factor | Tower |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight | 7 kg |
| Depth | 312 mm |
| Width | 81 mm |
| Height | 305 mm |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CB, RoHS, CE, WEEE |
| AC outlet types | C13 coupler |
| USB 2.0 ports quantity | 2 |
| AC outlets quantity | 8 AC outlet(s) |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |

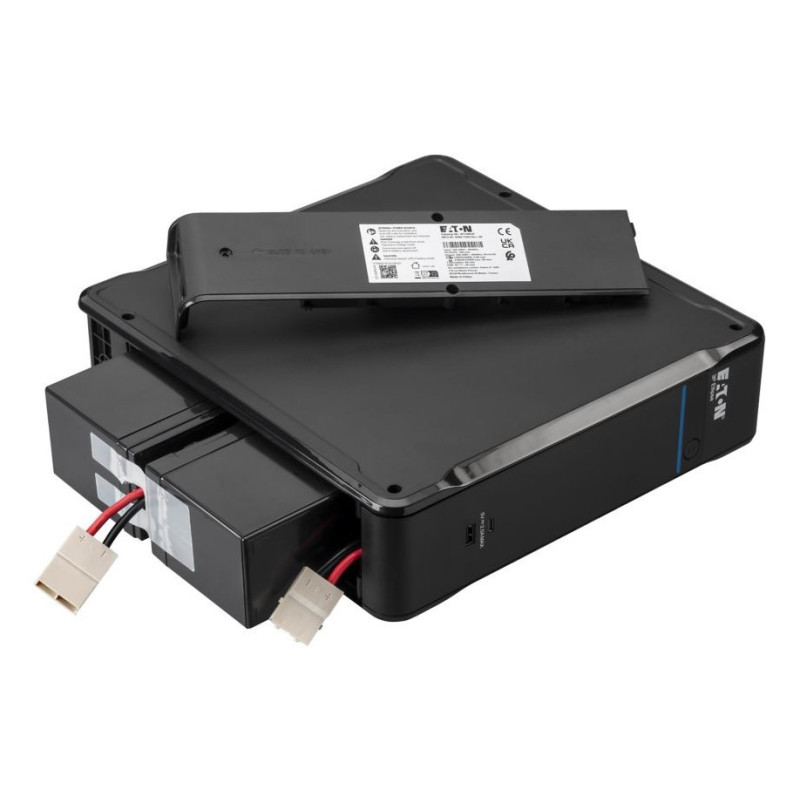

| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Relative humidity | 0 - 95% |
| Input connection type | C14 |
| Nominal input voltage | 220-240 V |
