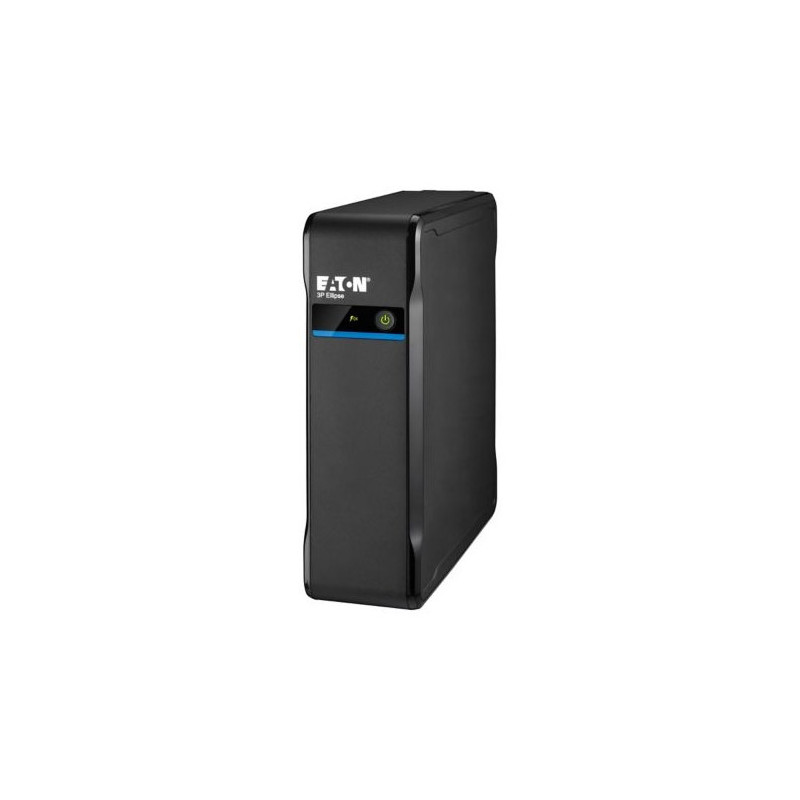

Eaton 3P Ellipse uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
Product reference:
6-3P700D
Eaton 3P Ellipse uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
Eaton 3P Ellipse uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
Product reference:
6-3P700D
Eaton 3P Ellipse uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| AC outlet types | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Depth | 235 mm |
| Display type | LED |
| Efficiency | 97% |
| Efficiency (ECO mode) | 97% |
| Form factor | Tower |
| Height | 263 mm |
| Input frequency | 46/70 Hz |
| Input operation voltage (max) | 284 V |
| Input operation voltage (min) | 161 V |
| Noise level | 25 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 284 V |
| Output operation voltage (min) | 161 V |
| Output power | 420 W |
| Output power capacity | 0.7 kVA |
| Output power factor | 0.6 |
| Product colour | Black |
| Rack mount kit | No |
| Surge protection | Yes |
| UPS topology | Standby (Offline) |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Waveform | Stepwise |
| Weight | 3.7 kg |
| Width | 81 mm |
