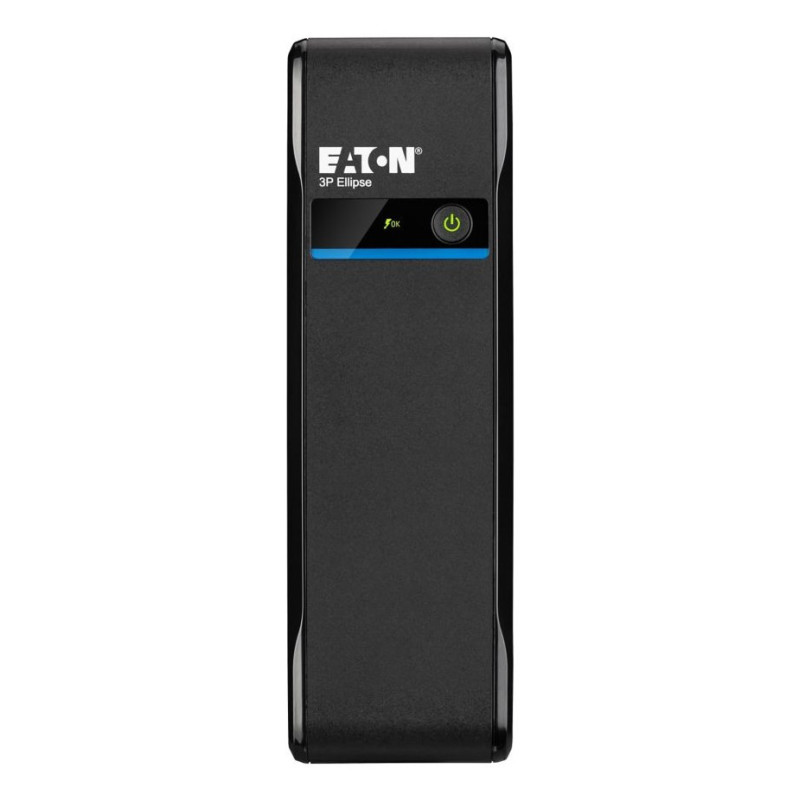

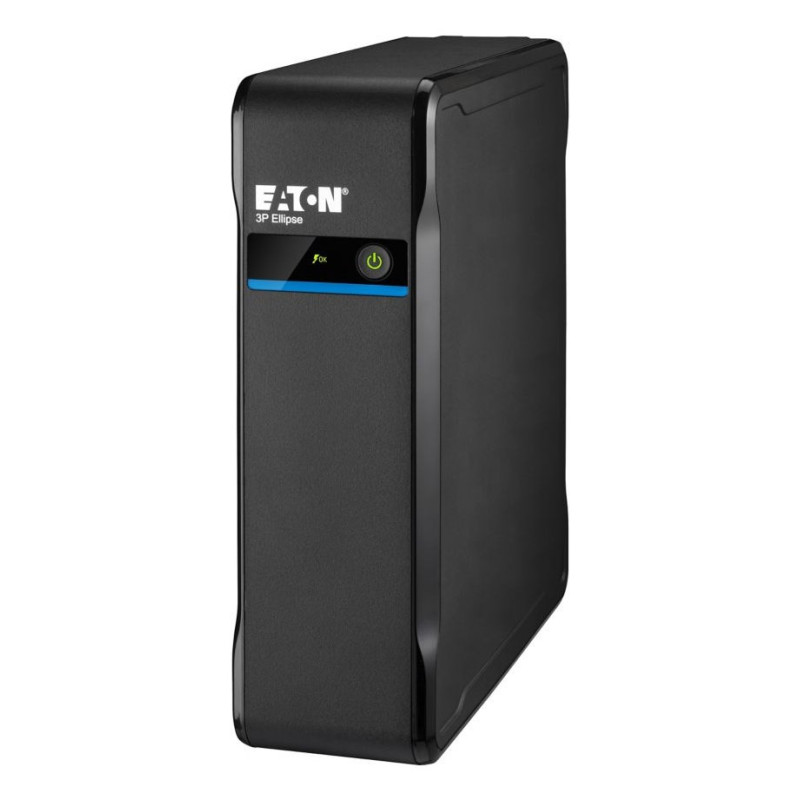

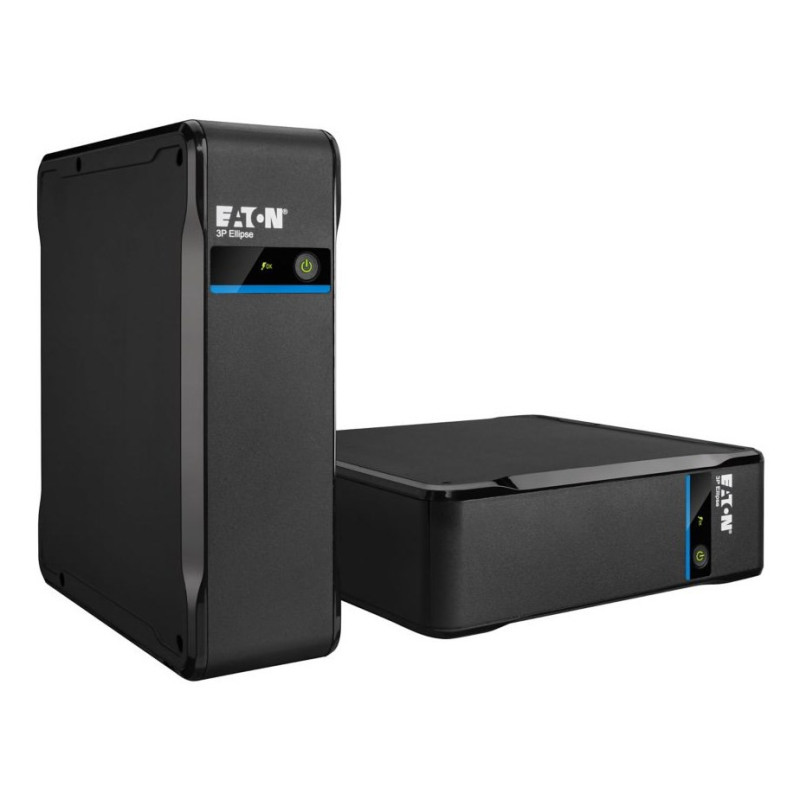

Eaton 3P Ellipse 550 uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 4 AC outlet(s)

Product reference: 6-3P550F

Eaton 3P Ellipse 550 uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 4 AC outlet(s)

Eaton 3P Ellipse 550 uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 4 AC outlet(s)

Product reference: 6-3P550F

You have 3 products in compare list, please remove someone and try again

Add to compare

12234 €

147,40 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
6 - 11
business days

Power consumption (average operating)	10.2 W
Noise level	25 dB
Output power	330 W
Number of input phases	1
Output operation voltage (min)	161 V
Input frequency	46/70 Hz
Efficiency	97%
Input operation voltage (max)	284 V
Output frequency	50/60 Hz
Auto shut-off	No
Surge protection	Yes
Number of output phases	1
Output power capacity	0.55 kVA
Input operation voltage (min)	161 V
Efficiency (ECO mode)	97%
UPS topology	Standby (Offline)
Output power factor	0.6
Waveform	Stepwise
Output operation voltage (max)	284 V
Form factor	Tower
Product colour	Black

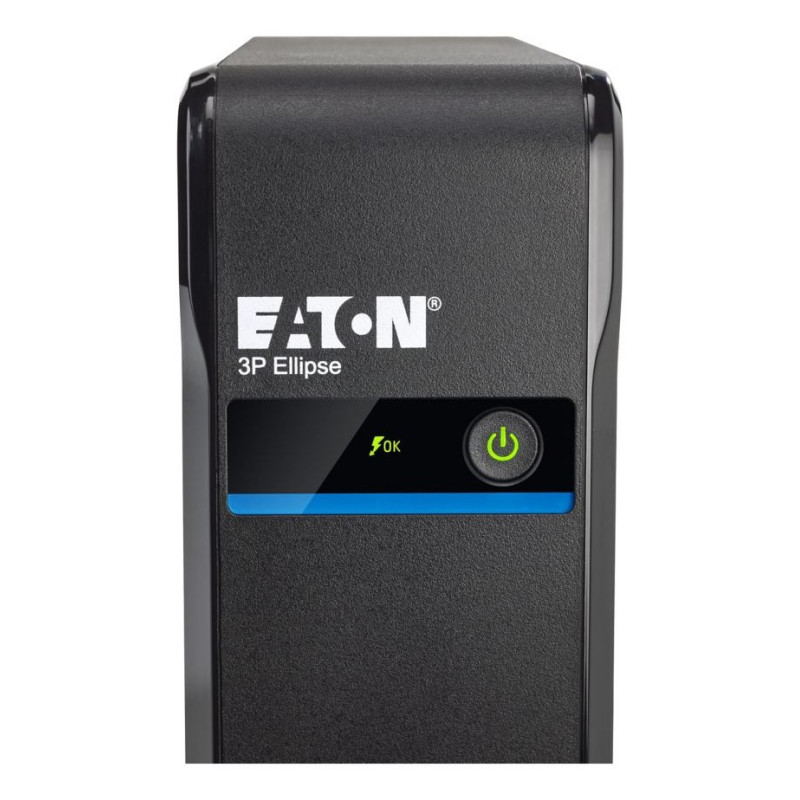

Display type	LED
Operating temperature (T-T)	0 - 40 °C
Depth	235 mm
Height	263 mm
Width	81 mm
Weight	3 kg
Rack mount kit	No
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, CE, WEEE, CB

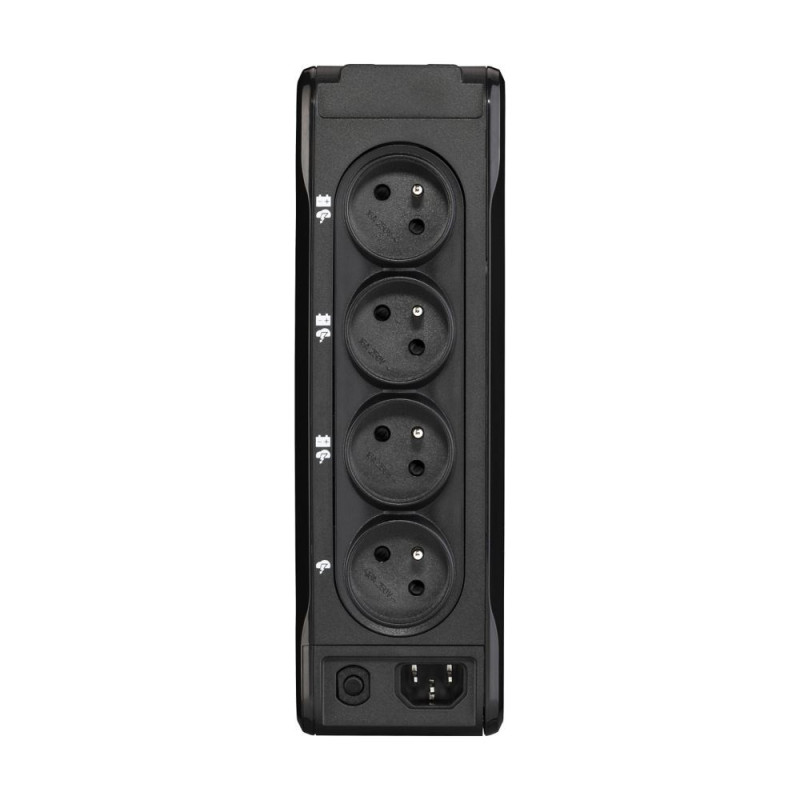

AC outlets quantity	4 AC outlet(s)
AC outlet types	C3 coupler

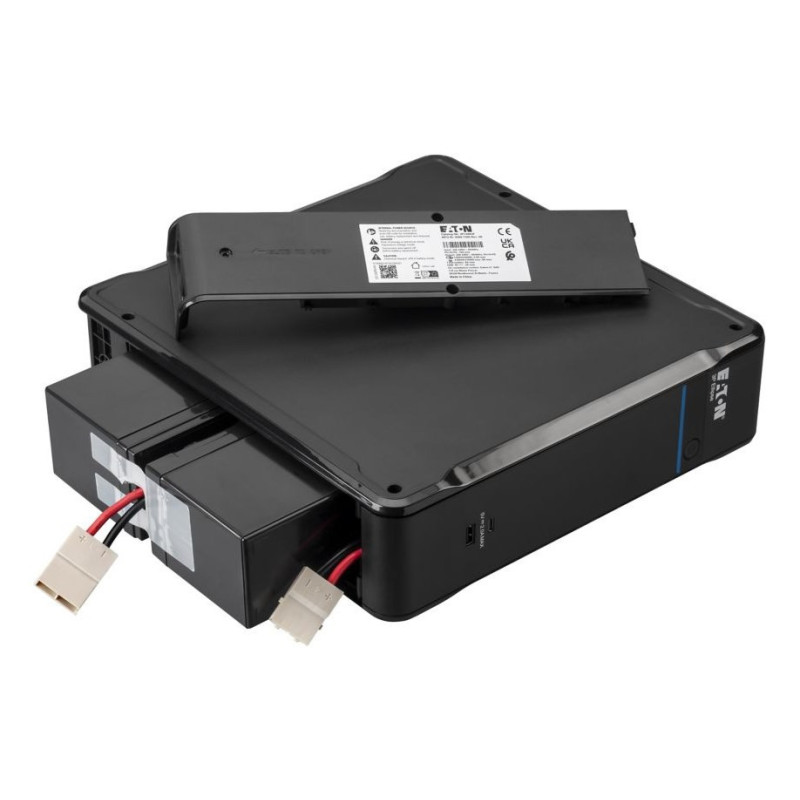

Battery voltage	12 V
Battery capacity	4.5 Ah
Input connection type	C14
Nominal input voltage	220-240 V
Relative humidity	0 - 95%
