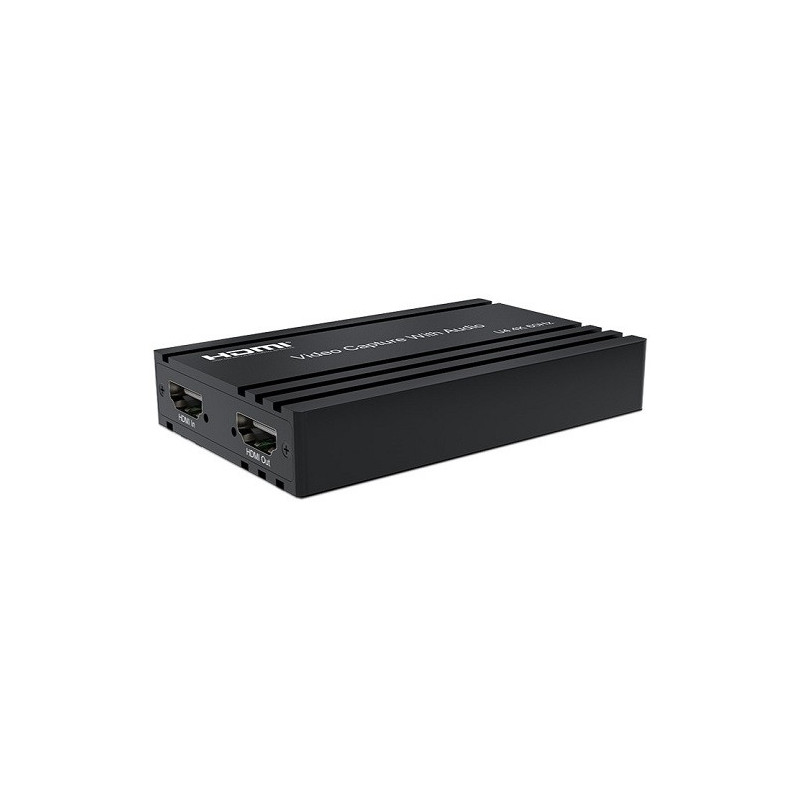

Video capture device HDMI, USB3.0, 4K 60Hz

Video capture device HDMI, USB3.0, 4K@60Hz, with loop-out (HDMI loop-out) and audio output
The HDMI device can capture HDMI video and HDMI audio together with microphone audio mixing. It can transmit the audio signal to a computer or smartphone for viewing and storage, suitable for game broadcasts, meetings. HD recording supports XRGB format. The maximum resolution can reach 4K/60Hz.
Features:
Supports maximum resolution up to 4K@60Hz.
Supports digital content protection standards HDCP2.2 and HDCP1.4, and HDR10 image quality technology.
Microphone audio input, 3.5 mm stereo audio output are supported.
Automatic input signal recognition.
Supported video formats: MJPEG / YUY2 / NV12 / I420 / XRGB.
Uncompressed video and audio capture, compliant with UVC and UAC standards.
Powered via USB Type-C, Plug Play, no drivers required.
Compatible with operating systems: Windows, MacOS.
Compatible with programs: OBS, Potplayer, VLC, Vmix, etc.
Supports data transfer rates up to 18Gbps and bandwidth up to 600 MHz.
Supports standard HDMI AWG26 cable up to 5 meters.
Technical data:
Input resolution: max. 4K@60Hz, 4:4:4 (full resolution without compression).
Output resolution: max. 4K@60Hz.
Input: 4K HDMI 2.0 input, microphone input.
Output: 4K HDMI 2.0 loop-out, USB Type-C (5Gbps) output, audio output.
Video output formats: MJPEG / YUY2 / NV12 / I420 / XRGB.
Supported audio formats: Complies with UVC and UAC standards.
Voltage: 5V DC.
Current: max. 0.7A.
Max bandwidth: 600 MHz.
Max. data transfer rate: 18Gbps.
Cable length: up to 5m HDMI AWG26.
Operating temperature: -10°C~+55°C.
Dimensions: 100x63x16 mm.
Weight: 126 g.
Warranty: 12 months.
