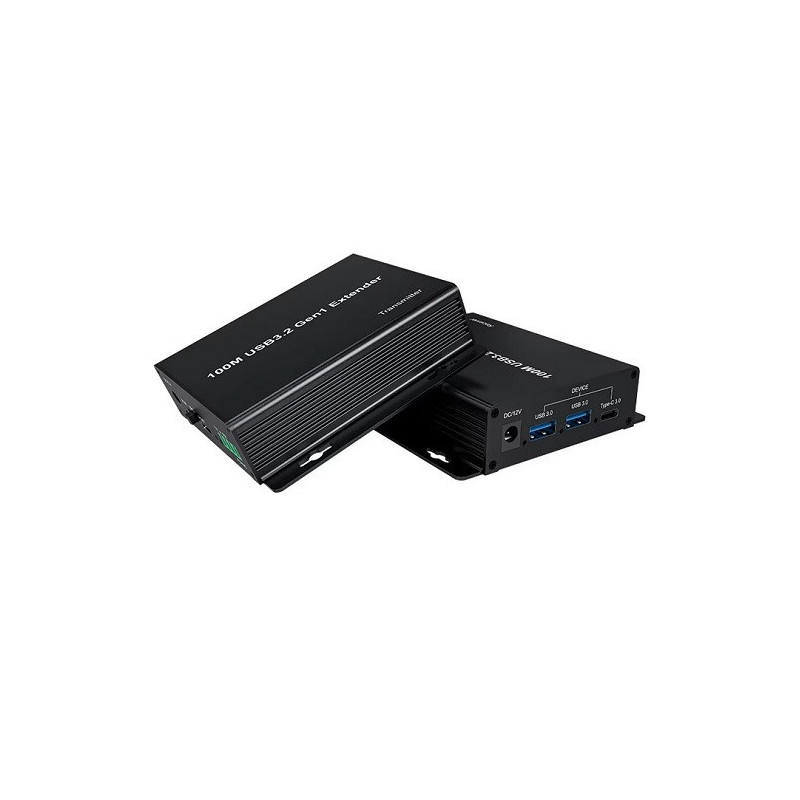

USB3.2 Gen1 extender up to 100m, 2xUSB-A, 2xUSB-C

USB3.2 Gen1 signal extender (extender) over CAT6A up to 100m, 2xUSB-A, 2xUSB-C, 1xRJ45
USB 3.2Gen1 signal extender is designed for high-speed data and USB signal transmission over CAT6A cable over network infrastructure up to 100m. The receiver has 2 USB Type-A and 2 USB Type-C connectors. The set includes a transmitter (TX) and a receiver (RX), which are powered by 12V/2A adapters.
Features:
USB 3.2Gen1 signal and Ethernet connection transmission via CAT6A cable up to 100 meters.
USB 3.2Gen1 data transfer rate up to 5 Gbps.
Using a double-shielded CAT6A network cable, the USB connection can be extended up to 100 meters.
The receiver has 2 USB Type-A and 2 USB Type-C ports, supporting all USB 3.0, 2.0 and 1.1 devices.
Suitable for use with USB printer, memory stick, external hard drive, motion control devices, camera, touch screen, keyboard and mouse, USB to video or audio converter and other devices.
Each USB port on the receiver has a current of up to 1.5 A (7.5 W), and the total maximum power of the four USB ports does not exceed 21 W.
Point-to-point communication link between transmitter and receiver.
The all-metal body ensures excellent heat dissipation and more stable operation.
Simple connection (plug and play), no additional software required.
The most popular operating systems are supported: Windows, MacOS, Linux, and Chrome OS.
A reliable solution that allows you to extend USB 3.0 devices up to 100 m without losing speed.
Technical data:
Max. (CAT6 cable) length between transmitter and receiver: 100m.
Unshielded cable length between transmitter and receiver: 50m.
RJ45 Ethernet port: 100/1000 Mbps.
Max. data transfer speed: 5Gbps.
Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 12V / 2A.
Operating current: 0.2 A.
Max. operating current (when no USB devices are connected): 300 mA.
USB port maximum current: 1.5 A (per port).
Operating temperature: 0°C ~ +45°C.
Operating humidity: 5-90%RH (non-condensing).
Size: 104x103x28 mm.
Weight: TX 171g; RX 177g.
Transmitter sockets:
DC/12V - power socket.
Red - power indicator light.
PWR / SRC - 12V DC / USB Type-C power switch.
HOST - connecting to a computer (host) USB port.
Blue - Type-C 3.0 connection indicator light.
Blue - operation indicator light.
TX - RX connector: RS232 serial port.
FSYNC - connection of the synchronization signal (1.8V).
HDBT-USB3 - network port.
Receiver sockets:
DC/12V - power socket.
Blue - USB hardware identification indicator light.
DEVICE / USB 3.0 - USB3.2Gen1 interface. (2x USB Type-A, 2x USB Type-C).
HDBT-USB3 - network port.
Blue - operation indicator light.
TX - RX connector: RS232 serial port.
FSYNC - connection of the synchronization signal (1.8V).
Red - power indicator light.
Warranty: 24 months
